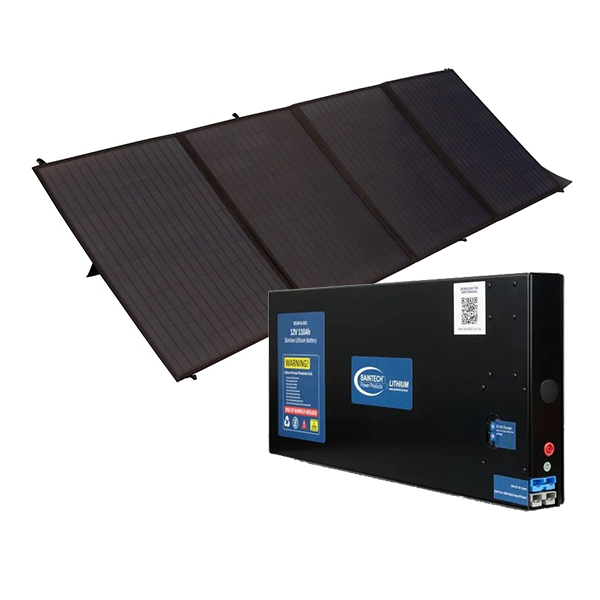

Baintech 12V 110Ah Slim Lithum Battery With 200W Solar Bundle

Product Description

Baintech 12V 110Ah Slim Lithum Battery With 200W Solar Bundle, 5 Year Warranty. 110Ah Slimline Lithium Battery + Bracket Kit – the BTLITH12110-SL model contains two (2) convenient grey Anderson plug connectors accessible from the side of the battery as shown in Figure 3. Both can be used as input and outputs for charging and running loads. Or one plug could be used to charge the battery and the second plug used for loads. Charge sources could include: – External AC charger with grey Anderson connector; – External (regulated) solar charger with grey Anderson connector; or – External DC-DC charger with grey Anderson connector.

For connected chargers and devices, a grey Anderson plug must be used. Check to ensure the Anderson is correctly wired (positive and negative) and do not attempt to use any coloured Anderson other than grey.

NOTE – There are no internal fuses inside the battery so an external fuse must be used for each Anderson connector, 100A maximum. The internal BMS is designed for up to 100A continuous charge and 100A continuous discharge. Please consider this when connecting charging devices and loads.

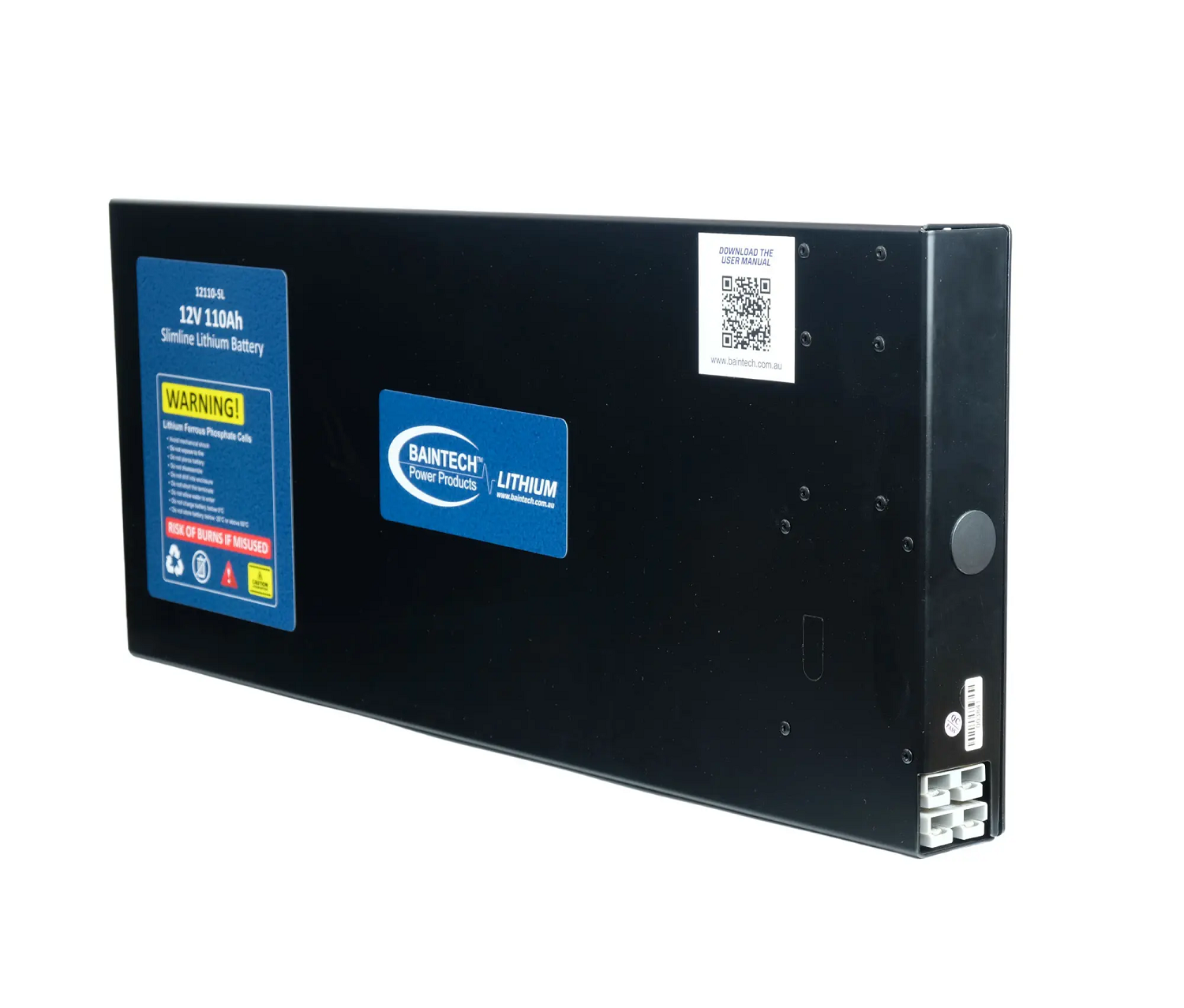

110Ah Slimline Lithium Battery + Bracket Kit

Features:

• 5-year Warranty
• Australian Designed
• Internal 100A BMS
• Strong aluminium enclosure
• Lightweight
• Slimline shape and size
• Parallel connect capable

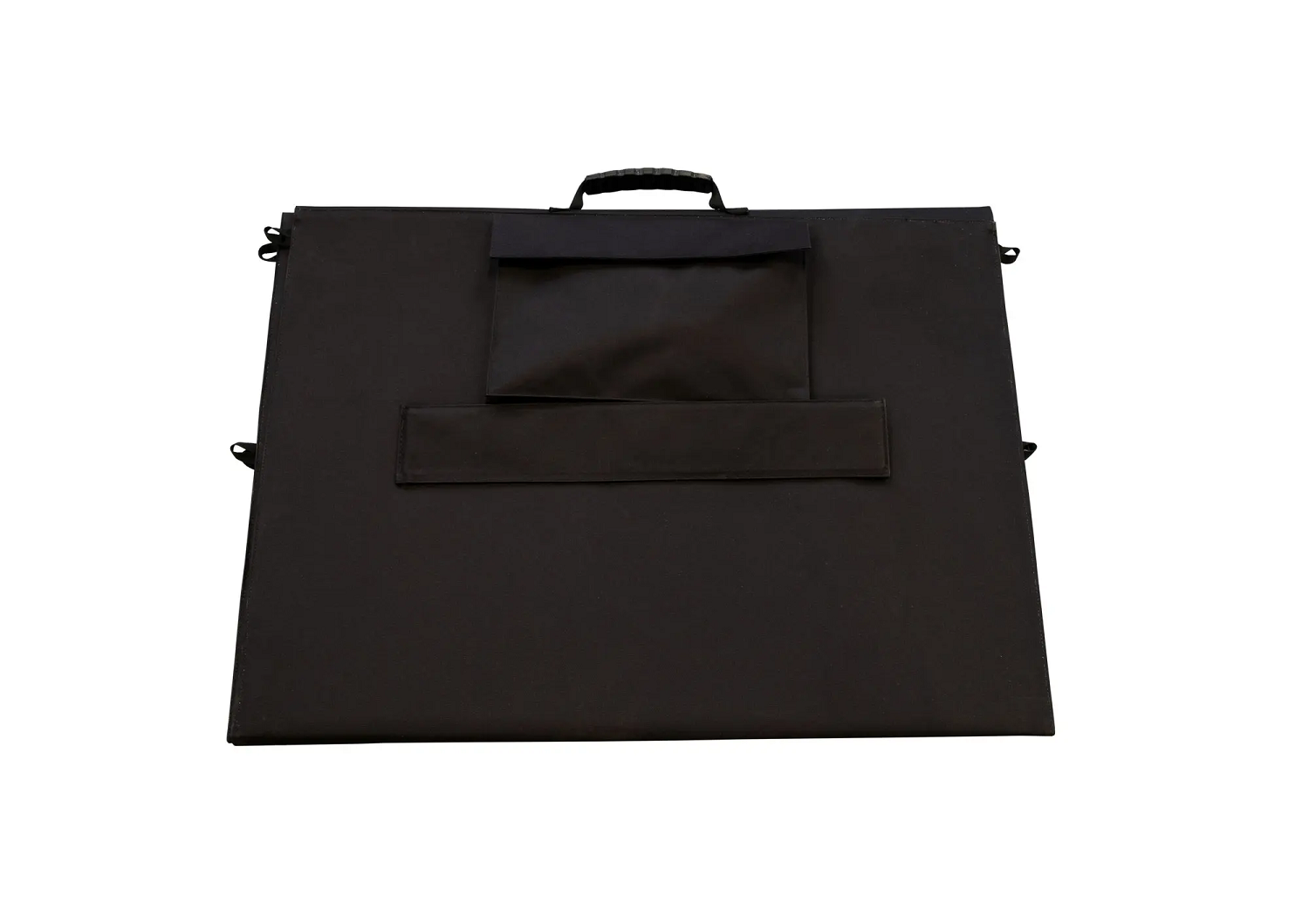

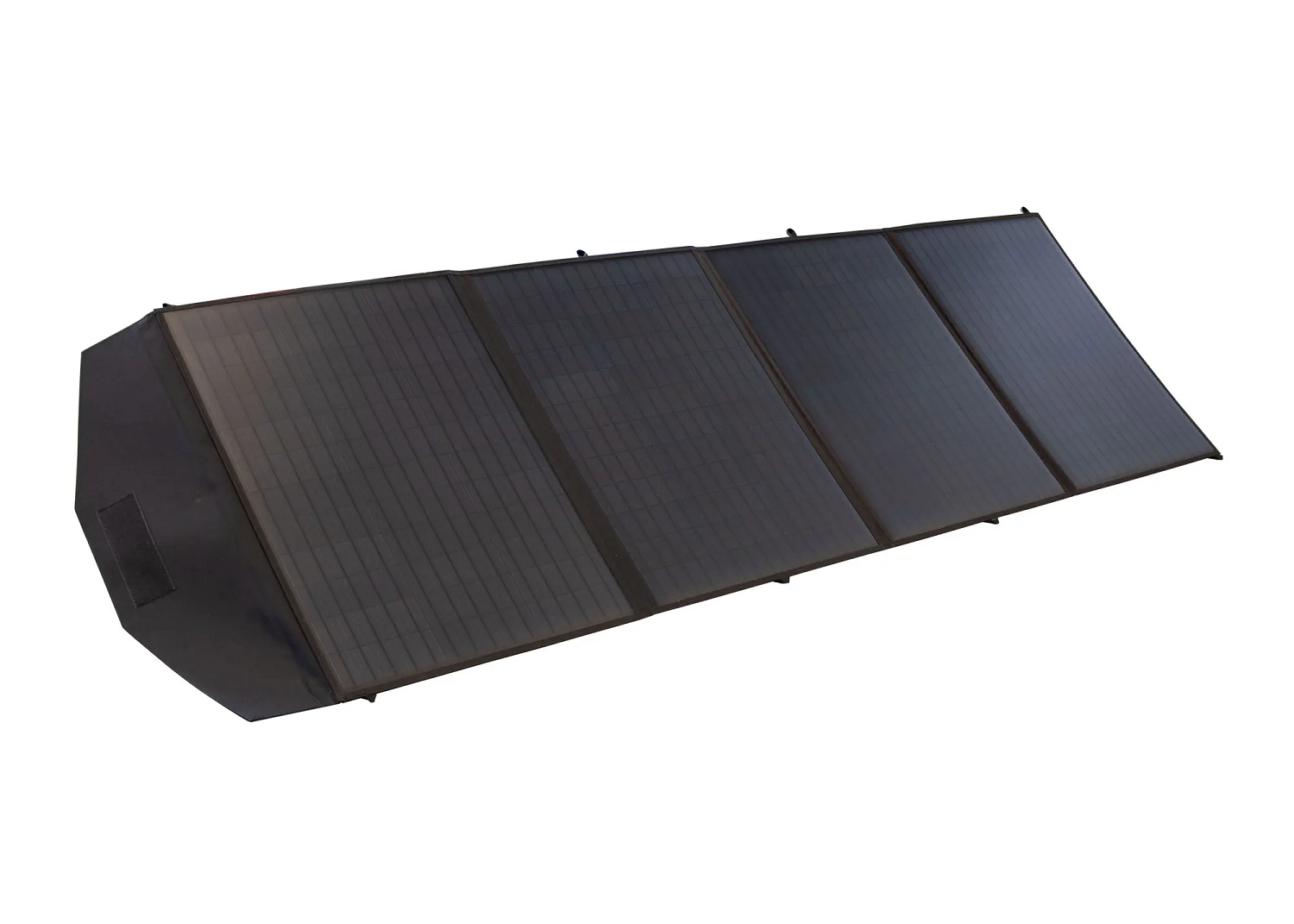

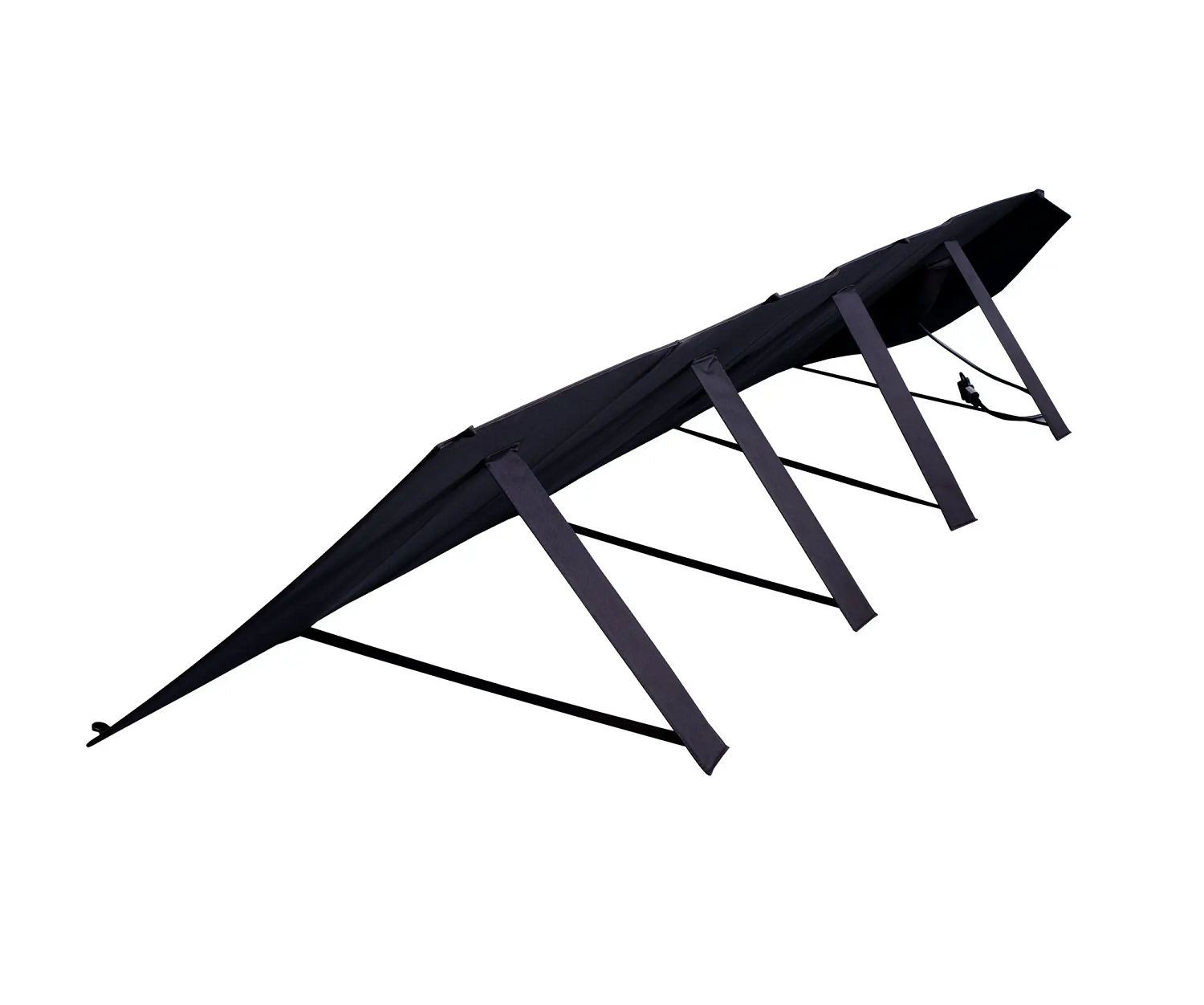

Baintech Foldable Solar Blanket 200w – Black With Pwm

Features:

• 200 Watts
• Monocrystalline solar cell
• Compact
• Light weight
• Easy to use – plug and play
• 20a PWM included
