Black Jack Electric Trailer Jack with Clamp

SKU: BJTJ-1000 Learn More»
EXTRA $30 OFF! Add to cart to get an instant discount




Learn More»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

Black Jack Electric Trailer Jack with Clamp, 3 Year Warranty. The Black Jack Trailer Jack is the simplest, quietest and most advanced electric jack on the market today. BJTJ-1000 Includes clamp bracket, bolt kit, folding foot, foot pad and all weather cover (No wiring kit, just connect to an Andersen plug).

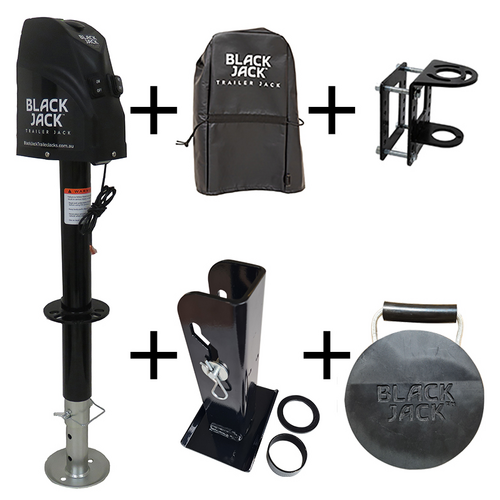

Kit Includes;

  • 1x Black Jack Electric Trailer Jack
  • 1x Black Jack Clamp Patented
  • 1x Black Jack Folding Foot

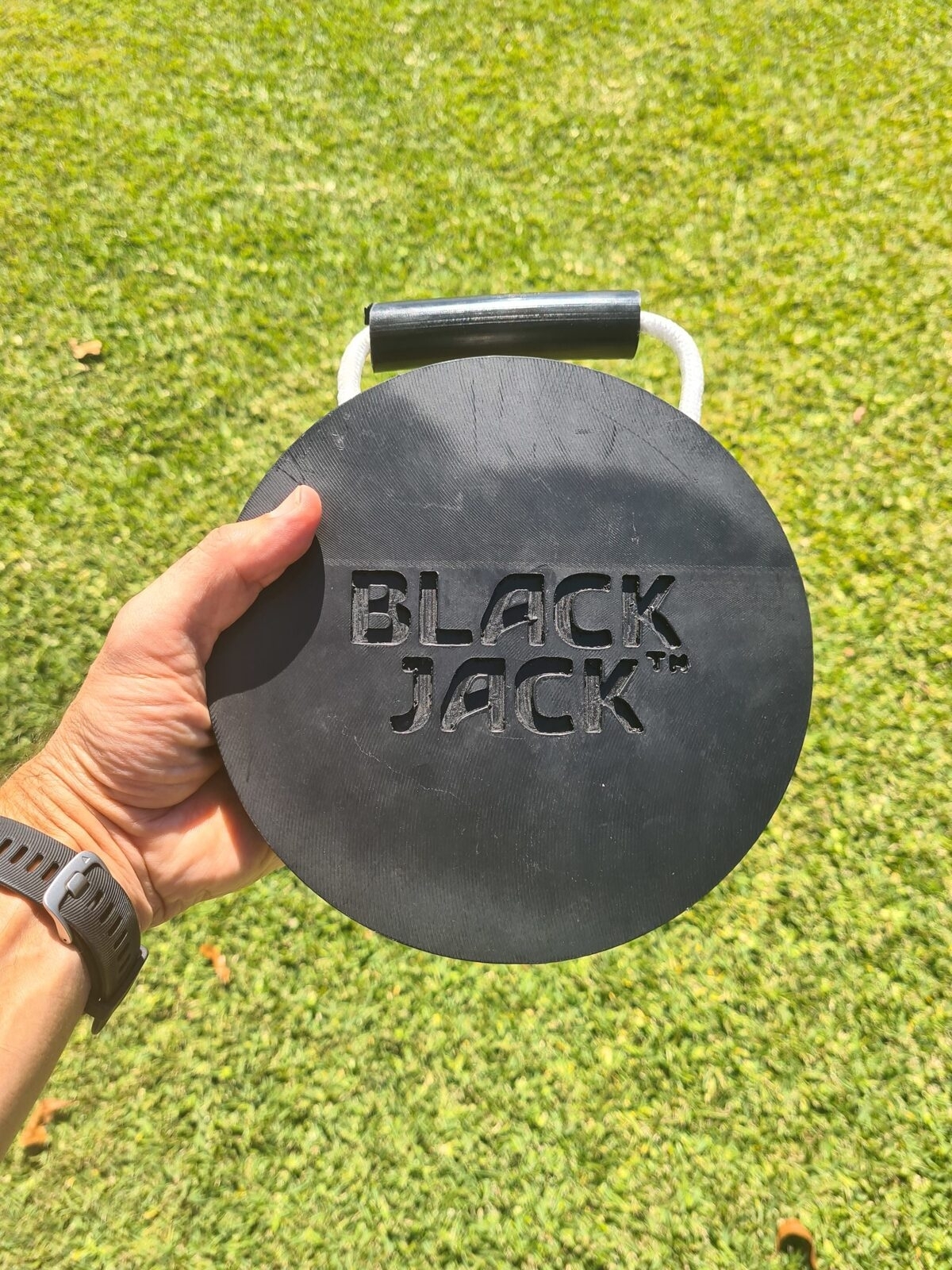

  • 1x Black Jack Foot Pad
  • 1x Black Jack All Weather Cover


  • 1600 kg lifting capacity, more than enough muscle
  • Robust 58 mm outer post built for the toughest conditions (normal jockey wheels are only 48mm)
  • Massive 560 mm stroke that will lift the caravan clear of the tow vehicle hitch in any conditions
  • Built in level indicator to easily adjust the caravan level after you unhitch
  • Removable foot pad extension for travelling
  • Tough powder coated finish
  • Emergency crank handle included as an emergency back up
  • Built in night light for operating after hours
  • 12 volt 28 amp DC power plugs directly to 12 volt battery
  • Free installation kit included, easy DIY Installation (with BJTJ ?Çô 1001)Free all weather cover to keep the rain out
  • Total weight including Black Jack Clamp 17 kg
  • Black Jack cable length is 1.3m
Note: This product does not come with the wiring harness. The Wiring harness can be purchased individually here Black Jack DIY Harness Kit SKU: BJTJ-HAR or as a bundle with the Electric Trailer Jack here Black Jack Electric Trailer Jack with Clamp & Harness Kit SKU: BJTJ-1001.

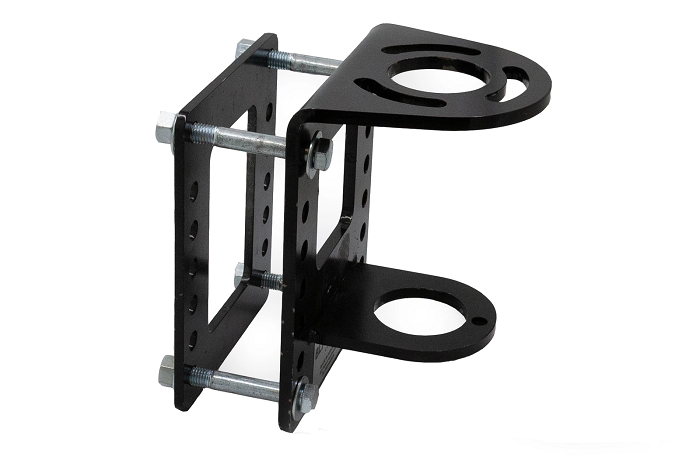

Also Included is the Black Jack?äó CLAMP Featuring:

  • 6 different chassis bolt hole positions so it fits any Caravan or trailer A-Frame in Australia (6 inch, 5 inch, 4 inch or 3 inch)
  • Multiple top hole positions so the Black Jack can be installed facing the front, the side or the rear of the Caravan or trailer. Your choice!
  • Panel recess so you can install over the top of existing wire fittings maximizing the options of where to install on the A-Frame.
  • Safety chain insert hole so you can hang safety chains on the Black Jack Clamp.
  • Upper support and a lower support brackets designed to eliminate any lateral movement that may be caused by uneven surfaces.
  • Easy bolt installation. No additional modifications, welding or tools are required.
  • Tough powder coated finish
  • Australian Patent Pending (No. 2020902039)
  • Registered Australian Design
  • Made in Australia supporting Australian jobs

Black Jack Plate

Black Jack Dimensions

Product Manual



Brand Black Jack

GTIN 0754590506502

Warranty Period: 3 Years

Product Category Trailer and Towing Equipment

Dimensions 781 x 216 x 140mm (H x W x D)

Net Weight (kg) 9

Lifting Capacity 1600kg

Engine / Motor Type Sealed brushless motor


Operating Your Titan RV Electric Caravan Jack


Why You Need A Black Jack Electric Caravan Jack


Customer Reviews

Extremely Happy Review by
I had a wind up jockey wheel which was hard to use on a heavy caravanThis makes life simple but to the uninitiated bewareCaravan must not move when removing from vehicle otherwise your new Black Jack will be fucked
(Posted on 15 January 2023)

Write a product review

Product Q&A

Ask Us a Question
  • Good morning Do you sell the Electric jack mounting clamp separately. Thank you Stephen Illingsworth

    Hi There

    Unfortunaetly, these are not sold separately. The are only sold with the kits advertised.

    Kind Regards

  • Do I need power to run my Black Jack?

    Yes, you require 12V power to run your Black Jack. This can be achieved via an Andersen plug to your caravan battery or your vehicle battery through the tow connection point.

  • What is the lifting capacity of a Black Jack?

    The Black Jack has a 1600kg lifting capacity, more than enough for all caravans in todays market

  • Do I require the Harness Kit?

    You will only need the harness kit if you don't already have 12V power at your connection point, ie Andersen plug on tow vehicle and/or caravan battery.

  • How long is the cable that comes attached to the Black Jack?


  • How high will the Black Jack go up?

    The Black Jack has a stroke of 560mm, if you require more you can utilise the RedFoot Big Block to increase your stroke length.

  • Do I have to take off the Black Jack when travelling?

    No, provided you have securely attached the Jack using the supplied clamp and the leg and foot plate is fully retracted.
