Victron Easysolar 12V / 1600VA 70amp Inverter Charger

$2,155

Save $332 (13%) off RRP of $2,487

FREE SHIPPING

Accessories

$32

$55

$142

Click '+' to show more accessories
Learn More»
Express Shipping Price Match Guarantee Customer Reviews

Product Description

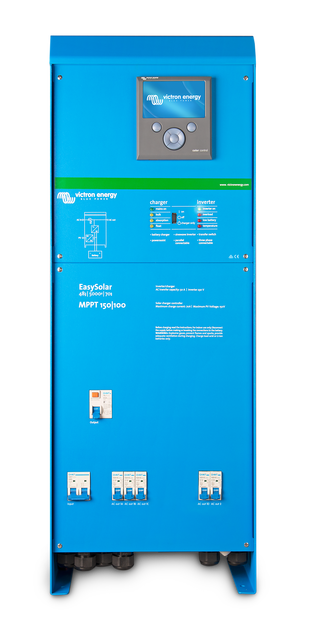

Victron Easysolar 12V 1600VA 70amp Inverter Charger, 5 Year Warranty. The EasySolar combines a MPPT Solar Charge Controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.

All-in-one solar power solution:

The EasySolar combines a MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.

The solar charge controller: Blue Solar MPPT 100/50

Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors.

The inverter/charger: MultiPlus Compact 12/1600/70 or 24/1600/40

The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.

AC distribution:

The AC distribution consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available.

PowerAssist:

Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.

Unique solar application software:

Several software programs (Assistants) are available to configure the system for various grid interactive or stand-alone applications.

Victron Product Card

Victron Product Manual

Specifications

SKU CEP121621000

Brand Victron

GTIN 8719076021599

Warranty Period: 5 Years

Product Category Power Inverter Chargers

Model CEP121621000

Wattage (W) 1300

Charge Voltage Float - Wet (25 degrees)** 13,8V

Output Voltage and Frequency 230 VAC ± 2% | 50 Hz ± 0,1%

Operating temperature range -20 to +50°C (fan assisted cooling)

Protection a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high

Dimensions 745 x 214 x 110

Net Weight (kg) 3

Charge voltage 'storage' 13,2V

Protection category IP 21

Peak power 3000W

Humidity Max 95%

No load power consumption 8W | 2W (in search mode)

Charge voltage 'absorption' 14,4V

Efficiency 98%

Input Voltage 9,5 - 17V

Battery-connection Screw terminals

AC Output 16A


Product Q&A

Ask Us a Question
  • Can these chargers take solar input?

    No, the battery charging component is an AC input, meaning only AC power (mains power) can charge through this unit.

  • how many batteries can you run on it how big can they be & and what type off batteries Victron Easysolar 12V 1600V/A 70amp
