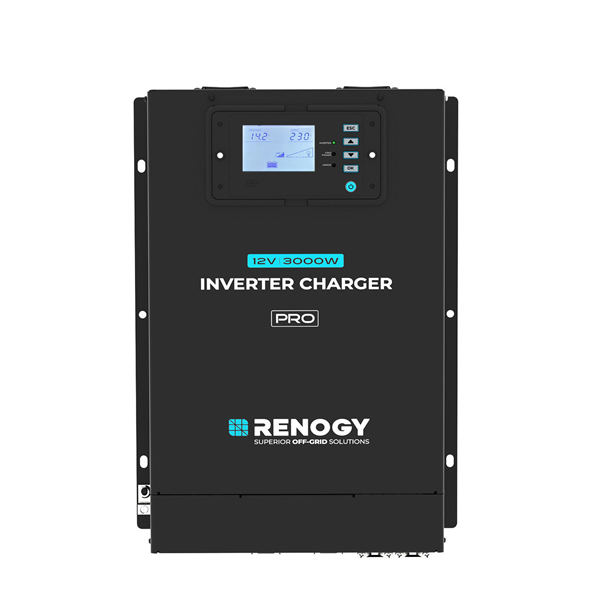

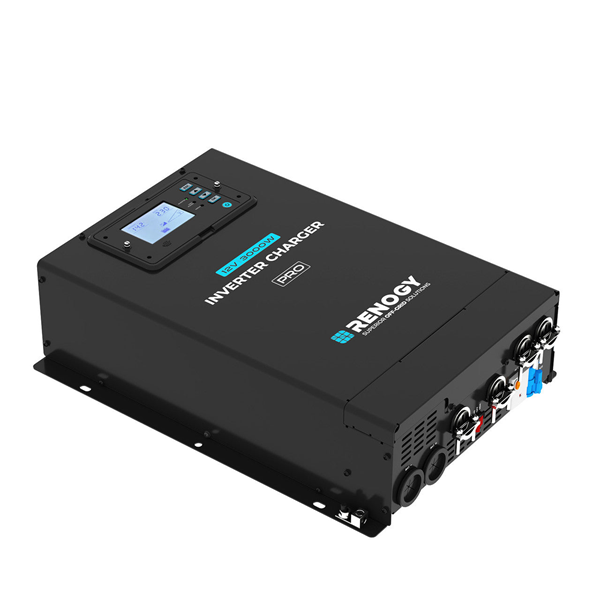

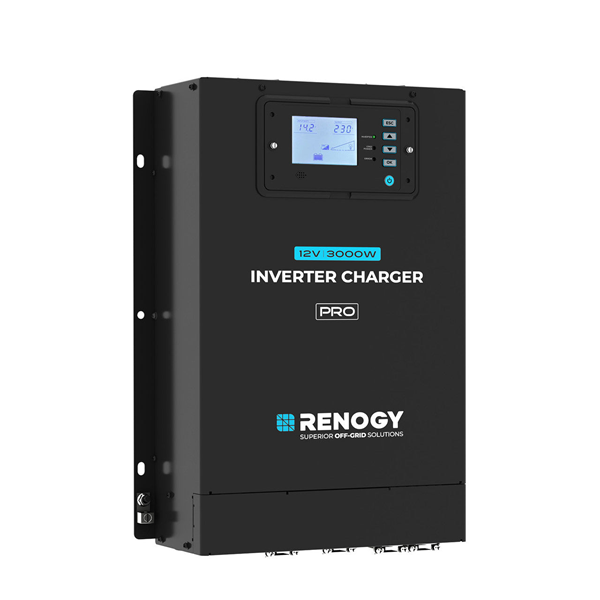

Renogy Pro 12V 3000W HF Inverter Charger

SKU: RIV1230PCH-24S Learn More»

Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

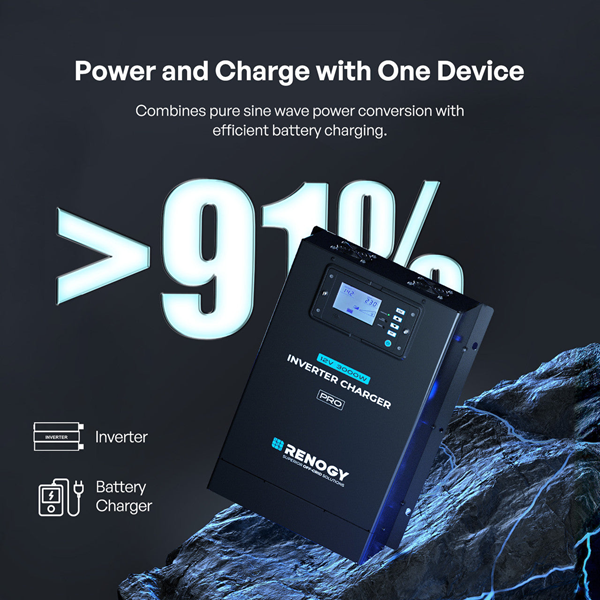

Renogy Pro 12V 3000W HF Inverter Charger, 5 Year Warranty. No Bulk, Just Pure Efficiency. Built for those who demand reliable power without compromise, this all-in-one inverter charger seamlessly combines charging and AC power conversion into a single, powerful solution. Its an all in one charging and power station so you can enjoy seamless battery charging and AC power conversion in a single device as well as providing reliable backup power you can trust to keep your home powered during outages without worry, ensuring safety and comfort for your family. The HF Inverter charger comes with internal RCD protection that detects leakage faults instantly, cuts off power automatically and restores with a simple switch flip.

Key Features & Benefits:

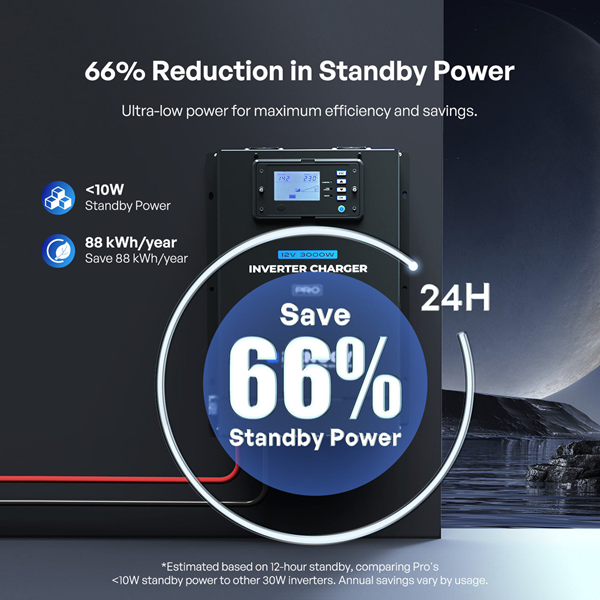

Ultra-High Efficiency & Low Standby Draw. Delivers over 91% peak efficiency while drawing under 10 W in standby—conserving your battery power for when you need it most
Rapid Power Switching. Ensures uninterrupted energy flow with a transfer time of just 10 ms, switching instantly between utility and battery power

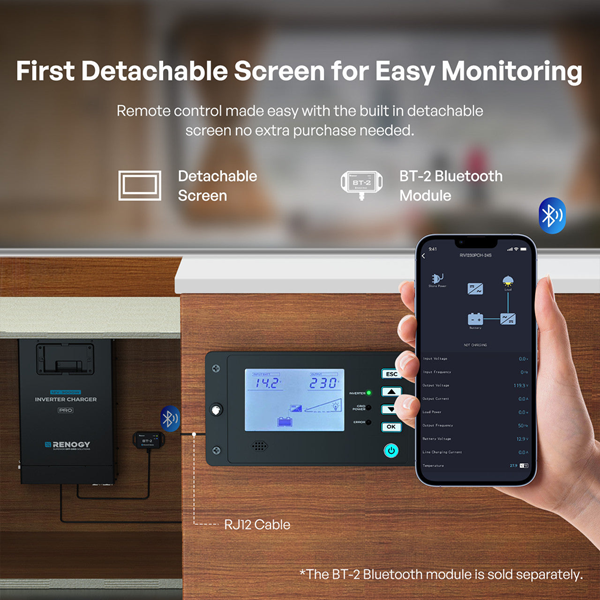

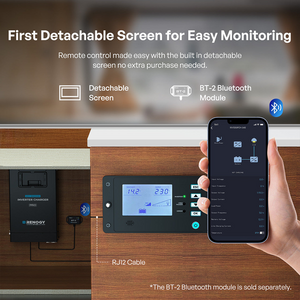

Remote Monitoring & Control. Includes a detachable LCD panel for flexible placement. Remote monitoring is enabled via an optional BT-2 Bluetooth module

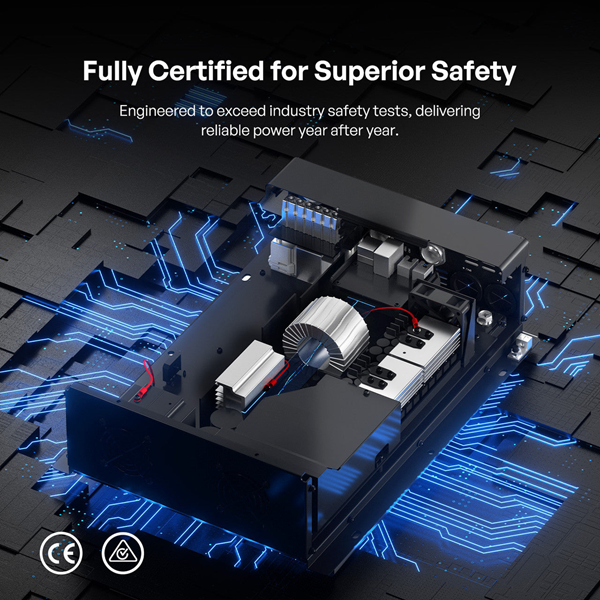

Built-In RCD Protection. Internal leakage detection and safety shutdown eliminate the need for external protection modules—offering seamless and safe installation
Lightweight & Compact. Weighs just 8.1 kg, making it easy to install even in tight spaces.

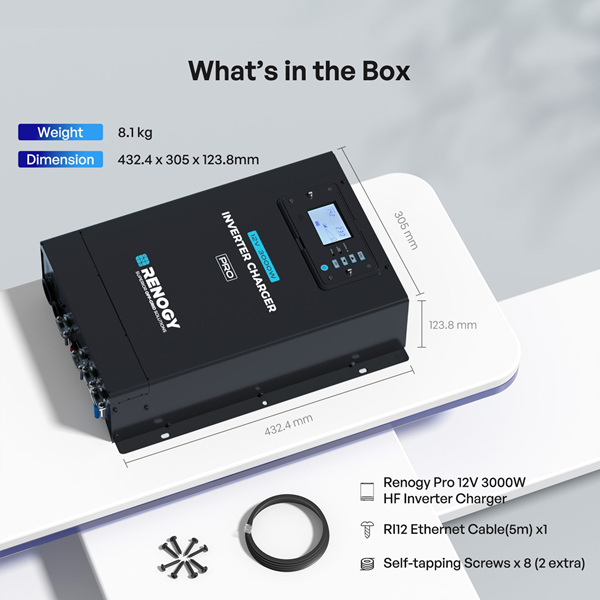

Includes:

1 x Pro-12V 3 kW HF Inverter Charger
8 x Self-tapping Screws (ST6.3 × 16 mm)
1 x RJ12 Ethernet Cable (5 m)
1 x User Manual

Go to: Product Details

Go to: Reviews

Specifications

SKU RIV1230PCH-24S

Brand Renogy

Warranty Period: 1 Year

Product Category Power Inverter Chargers

Wattage (W) 3000

Output Frequency (nominal) 50/60 Hz ± 0.1Hz，default 50Hz

Dimensions 432.4 x 305 x 123.8mm

Transfer Rating 16A

Transfer Time Max. 20 ms

Nominal Input Voltage 187-265VDC

Nominal Output Voltage 240VAC

Surge Power 6000W

Output Current 5-150A configurable, 5A intervals

Storage Temperature -30 - 70°C

Input voltage range 10.5-15.5VDC

Continuous Power 3000W

No load power consumption <20W (Normal)

Output wave form Pure Sine Wave

Efficiency ＞91% peak

Noise Level < 55 dB

DC Input Voltage 12V

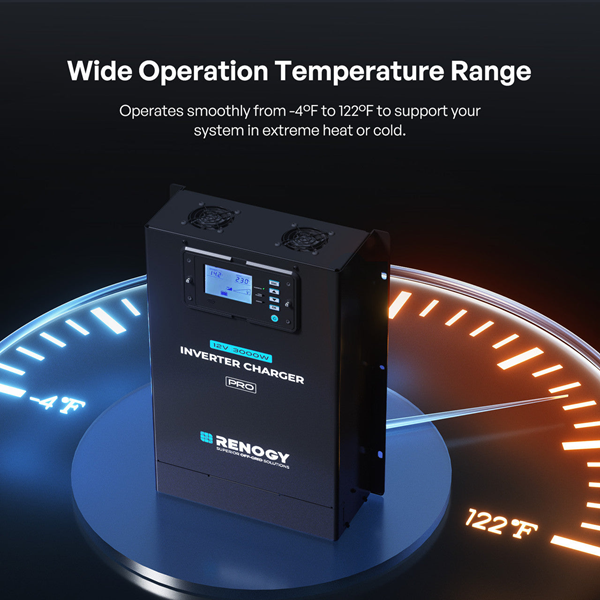

Operating temperature range -20°C - 50℃

Weight (kg) 8.1

Battery Types GEL, AGM, SLA, FLD, CAL, LI, USER

Humidity 0% to 95%, RH

Go to: Specifications

Go to: Reviews

Product Q&A

Ask Us a Question

Can I use 2 x 100Ah lithium-ion batteries with a 3000W inverter? I think I read somewhere that it requires 3 x 100 Ah batteries.

Yes, you can use two 100Ah lithium-ion batteries with a 3000W inverter, but be mindful of the current limitations of your batteries. Many 100Ah batteries come with a Battery Management System (BMS) that limits continuous discharge to around 100 amps. This means that two 100Ah batteries may provide a total of 200 amps, which would likely support around 2000W of power, but might not be enough to reliably run the full 3000W load. For maximum efficiency and to run 3000W continuously, 3 x 100Ah batteries would be ideal.
How do I attach the temperature sensor to the batteries?

The temperature sensor can typically be placed between the battery terminals or leads.
Anyone having trouble running a 1100 watt microwave with the 3000 watt unit with nothing else on?

Yes, our inverter charger can run an 1100W microwave without any issues. Please make sure that the wiring is of a heavy enough gauge to handle the load, as under-sized wires could cause voltage drops or overheating, especially under higher current draws.
Can I Bluetooth my phone to monitor the inverter? What APP do I need to download?

Yes, you can monitor the inverter via Bluetooth using your phone. To do so, download the "DC HOME" app, which is specifically designed for this purpose. It allows you to keep track of performance, battery status, and other key metrics.
