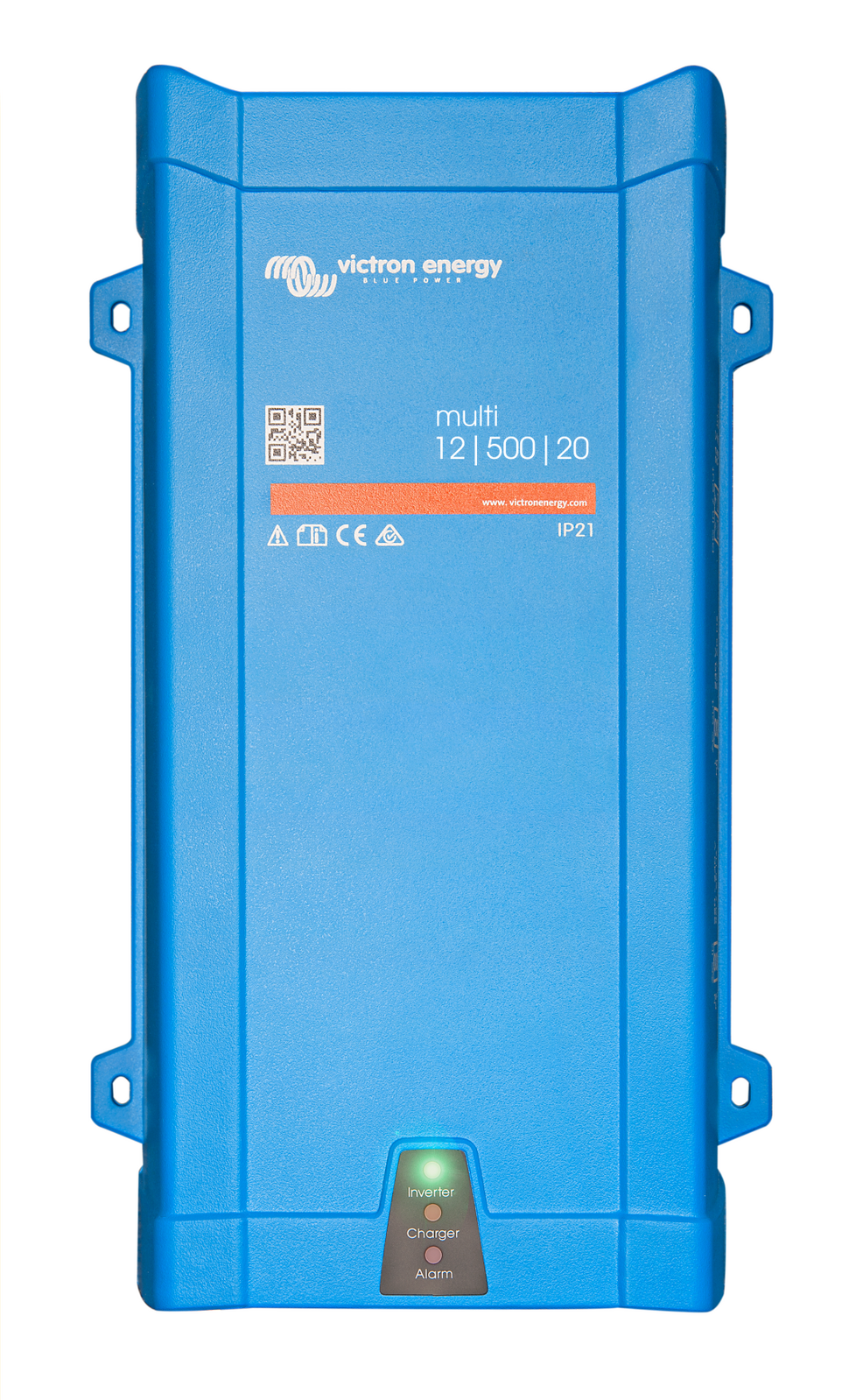

Victron Multi Inverter Charger 12/500/20-16 230V

$607

Save $131 (18%) off RRP of $738

FREE SHIPPING

Accessories

$92

Learn More»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

Victron Multi Inverter Charger 12V / 500VA /20A Battery Charger with 16A AC Transfer Switch, 5 Year Warranty. The new style MultiPlus is set to replace the earlier MultiPlus Compact range. It is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure.

Uninterrupted AC Power (UPS Function):

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring and Control:

Monitor and control your MultiPlus and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your MultiPlus to setting a Geofence for hire vehicles and more.

Proven reliability:

The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverter is short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

PowerControl - Dealing with limited generator, shore side or grid power (800VA/1200VA):

With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.

PowerAssist - Boosting the capacity of shore or generator power (800VA/1200VA):

Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.

High start-up power:

Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools.

Search Mode:

When Search Mode is ‘on’, the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode the Multi, when operating in inverter mode, is switched off in case of no load or very low load, and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again.

Programmable relay:

By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).

Remote on / off / charger on:

Three pole connector.



Victron Product Card

Victron Product Manual

Product Drawing

Specifications

SKU PMP121500000

Brand Victron

GTIN 8719076046363

Warranty Period: 5 Years

Product Category Power Inverter Chargers

Model MultiPlus 12/500/20

Product Type Inverter and charger in one package

Wattage (W) 430

Charge voltage 'storage' 13.2

Output Voltage and Frequency 230 Vac ± 2% / 50 Hz ± 0.1%

Input Voltage 9.5-17V

Product Dimensions (mm) LxWxH 182 x 100 x 311mm

Net Weight (kg) 4.4

Inverter Output Continuous Watts 430W (continuous output power at 25­­°C)

Charge voltage 'absorption' 14.4V

Peak power 900W

Operating temperature range -40 to +65°C

No load power consumption 6W | 2W in search mode

AC Input 187-265VAC | 45-65Hz

Charge Voltage Float - Wet (25 degrees)** 13.8V

Output Power 430W (continuous output power at 25­­°C) | 400W (continuous output power at 40­­°C) | 300W (continuous output power at 65­­°C)

Note For further specifications and performance details, please download the PRODUCT CARD under our Product Details tab

Output Current Rating (Amps) 20

Inverter Output Nominal Efficiency 90% (maximum)


Product Q&A

Ask Us a Question
  • Can these chargers take solar input?

    No, the battery charging component is an AC input, meaning only AC power (mains power) can charge through this unit.
