Victron MultiPlus-II Inverter Charger 48/5000/70-50 GX
SKU: PMP482506000 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description
Victron MultiPlus-II Inverter Charger 48V /5000VA /70A-50A GX, 5 Year Warranty.
Inverter/charger with GX inside:
An Inverter/Charger with device networking built-in, the MultiPlus-II GX communicates with a solar charger, batteries, and other devices to control a grid-connected, off-grid, or remote power installation. Capable of parallel operation for increased power output, or battery charge-rates, the MultiPlus-II GX can also be configured for a three-phase supply. A host of advanced features - such as uninterrupted power supply, setting load limits, and supplementing limited grid-power availability with battery power - can all be controlled straight from your phone or smart device. Remote monitoring is also possible.
A MultiPlus-II with LCD and GX functionality:
The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display.
Display and Wi-Fi:
The display reads battery, inverter, and solar charge controller parameters.
The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.

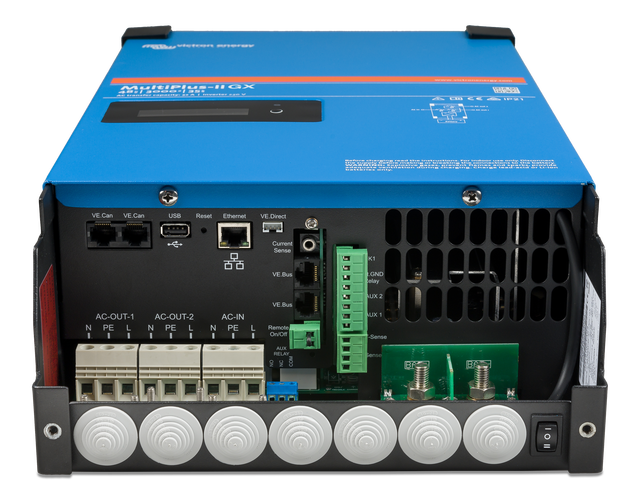

GX device:
The integrated GX device includes:
- A VE.Can interface. This can be used to connect to Victron VE.Can devices (eg VE.Can MPPTs), or the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Li-ion Battery.
- A USB port.
- An Ethernet port.
- A VE.Direct port.
Applications:
The MultiPlus-II GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications.
Parallel and three-phase operation:
Only one GX unit is needed in the case of Parallel and three-phase operation.
Specifications:
| Power Control & Power Assist | Yes |
| Maximum AC input current | 50A |
| DC Input voltage range | 38 – 66V |
| Output |
Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1% |
| Cont. output power at 25°C | 2400W |
| Cont. output power at 40°C | 2200W |
| Cont. output power at 65°C | 1700W |
| Maximum apparent feed-in power | 2500VA |
| Peak power | 5500W |
| Maximum efficiency | 94% |
| Zero load power | 18W |
| Zero load power in AES mode | 12W |
| Zero load power in Search mode | 2W |
| AC Input |
Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz |
| Charge voltage 'absorption' | 57.6V |
| Charge voltage 'float' | 55.2V |
| Storage mode | 52.8V |
| Maximum battery charge current | 70A |
| Battery temperature sensor | Yes |
| VE.Bus communication port | For parallel and three phase operation, remote monitoring and system integration |
| Remote on-off | Yes |
| Operating temperature range | 40 to +65°C (fan assisted cooling) |
| Humidity (non-condensing) | max 95% |
| Material & Colour | Steel, blue RAL 5012 |
| Protection category | IP22 |
| Battery-connection | M8 bolts |
| 230 V AC-connection | Screw terminals 13 mm² (6 AWG) |
| Weight | 30Kg |
| Dimensions (d x w x h) | 148 x 323 x 565 |
Please Note: The image shown is not the correct image for this model.
Specifications
SKU PMP482506000
Brand Victron
GTIN 8719076048824
Warranty Period: 5 Years
Product Category Power Inverter Chargers
Output Current Rating (Amps) 70
Model MultiPlus 48/5000/70-50
Product Type Inverter and charger in one package
Wattage (W) 4000
Charge Voltage Float - Wet (25 degrees)** 55.2V
Net Weight (kg) 30
No load power consumption 18W | 2W in search mode
Inverter Output Nominal Efficiency 96% (maximum)
Inverter Output Continuous Watts 4000W (continuous output power at 25°C)
AC Input 187-265VAC | 45-65Hz
Charge voltage 'storage' 52.8V
Charge voltage 'absorption' 57.6V
Product Dimensions (mm) LxWxH 148 x 323 x 565
Output Voltage and Frequency 230 Vac ± 2% / 50 Hz ± 0.1%
Peak Power (W) 9000
Output Power 4000W (continuous output power at 25°C) | 3700W (continuous output power at 40°C) | 3000W (continuous output power at 65°C)
Input Voltage 38-66V
Operating temperature range -40 to +65°C
NOTE For further specifications and performance details, please download the PRODUCT CARD under our Product Details tab
Videos
MultiPlus-II introduction
Product Q&A
-
Can these chargers take solar input?
No, the battery charging component is an AC input, meaning only AC power (mains power) can charge through this unit.
-
What size Generator can I use with the Multiplus Inverter Chargers?
The below generators are the minimum recommend sizes based on an AVR generator:
Inverter Charger Size Minimum Recommended Generator Size 240V AC Input Current Limit 800VA 2 kVa 5A 1200VA 2.5 kVa 7A 1600VA 3 kVa 10A 3000VA 5 kVa 16A 5000VA 8 kVa 25A If your generator is smaller than the recommended size for your inverter/charger, you will definitely need to adjust the settings on the inverter/charger and reduce the AC input current limit, and/or a DC charge current limit to prevent overloading the generator. If you do want an inverter based generator get one that is at least 30% larger than required than an equivalent AVR based model to help prevent overloads.
