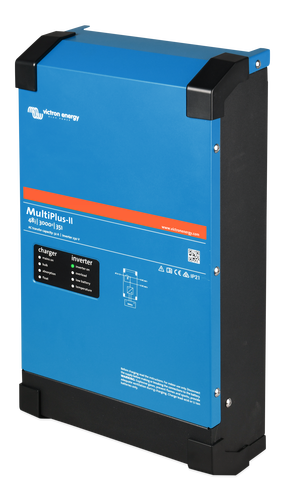

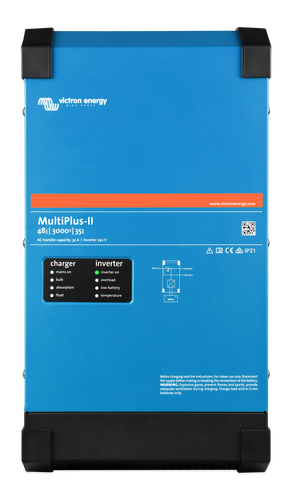

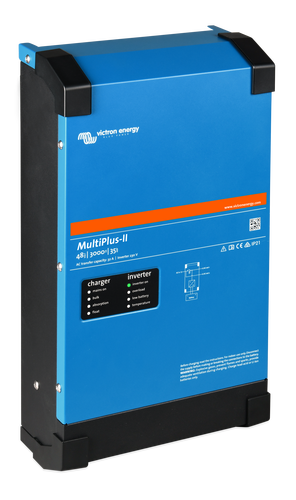

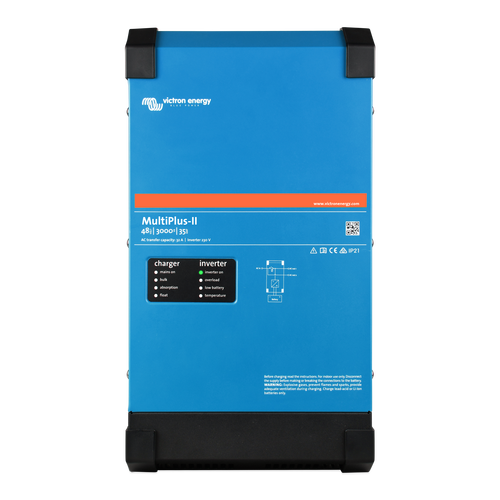

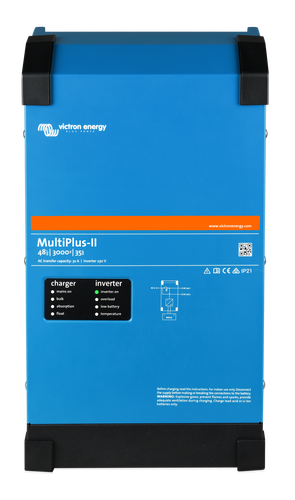

Victron MultiPlus-II Inverter Charger 48/3000/35-32

SKU: PMP482305010 Learn More»
Victron MultiPlus-II Inverter Charger 48/3000/35-32
Free Shipping
$1,125
$1,298

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Accessories

$708

$67

$92

$65

$74

$129

Click '+' to show more accessories
Learn More»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

Victron Multiplus-II Inverter Charger 48V / 3000VA / 35A Battery Charger with 32A AC Transfer Switch, 5 Year Warranty. The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.

PowerAssist:

The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

ESS: Energy Storage Systems:

The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters.

Uninterrupted AC power (UPS function):

In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

Remote Monitoring and Control:

Monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your Multi to auto starting a back generator and more...

A MultiPlus, plus ESS (Energy Storage System) functionality:

The MultiPlus-II is a multifunctional inverter/charger with all the features of the MultiPlus, plus an external currentsensor option which extends the PowerControl and PowerAssist function to 50A resp. 100A. The MultiPlus-II is ideally suited for professional marine, yachting, vehicle and land based off-grid applications. It also has built-in anti-islanding functionality, and an increasingly long list of country approvals for ESS application. Several system configurations are possible. For more detailed information see the ESS Design and configuration manual.

PowerControl and PowerAssist - Boosting the capacity of the grid or a generator:

A maximum grid or generator current can be set. The MultiPlus-II will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function).

PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the MultiPlus-II will compensate insufficient generator, shore or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery.

Solar energy: AC power available even during a grid failure:

The MultiPlus-II can be used in off grid as well as grid connected PV and other alternative energy systems. It is compatible with both solar charger controllers and grid-tie inverters.

Two AC Outputs:

The main output has no break functionality. The MultiPlus-II takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus-II. Loads that should not discharge the battery, like a water heater for example, can be connected to this output.

Virtually unlimited power thanks to parallel and three phase operation:

Up to 6 Multis can operate in parallel to achieve higher power output. Six 48/5000/70 units, for example, will provide 25 kW / 30 kVA output power with 420 Amps charging capacity.
In addition to parallel connection, three units of the same model can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel connected for a 75 kW / 90 kVA inverter and more than 1200 Amps charging capacity.

On-site system configuring, monitoring and control:

Settings can be changed in a matter of minutes with VEConfigure software (computer or laptop and MK3-USB interface needed). Several monitoring and control options are available: Color Control GX, Venus GX, Octo GX, CANvu GX, laptop, computer, Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, Digital Multi Control Panel.

Remote configuring and monitoring:

Install a Color Control GX or other GX product to connect to the internet. Operational data can be stored and displayed on Victron's VRM (Victron Remote Management) website, free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed.

Note: for a short period of time this product was called MultiGrid-II.

Victron Product Card

Victron Product Manual

Victron Installation Guide

Product Drawing

Specifications

SKU PMP482305010

Brand Victron

GTIN 8719076047582

Warranty Period: 5 Years

Product Category Power Inverter Chargers

Output Current Rating (Amps) 35

Model MultiPlus 48/3000/35

Product Type Inverter and charger in one package

Wattage (W) 2400

Charge voltage 'storage' 52.8V

Output Voltage and Frequency 230 Vac ± 2% / 50 Hz ± 0.1%

Input Voltage 38-66V

Product Dimensions (mm) LxWxH 147 x 275 x 506

Net Weight (kg) 18

Inverter Output Continuous Watts 2400W (continuous output power at 25­­°C)

Charge voltage 'absorption' 57.6V

Peak power 5500W

Operating temperature range -40 to +65°C

No load power consumption 11W | 2W in search mode

AC Input 187-265VAC | 45-65Hz

Charge Voltage Float - Wet (25 degrees)** 55.2V

Output Power 2400W (continuous output power at 25­­°C) | 2200W (continuous output power at 40­­°C) | 1700W (continuous output power at 65­­°C)

NOTE For further specifications and performance details, please download the PRODUCT CARD under our Product Details tab

Inverter Output Nominal Efficiency 95% (maximum)


Videos

MultiPlus-II introduction



Product Q&A

Ask Us a Question
  • Can these chargers take solar input?

    No, the battery charging component is an AC input, meaning only AC power (mains power) can charge through this unit.

  • What size Generator can I use with the Multiplus Inverter Chargers?

    The below generators are the minimum recommend sizes based on an AVR generator:

    Inverter Charger Size Minimum Recommended Generator Size 240V AC Input Current Limit
    800VA 2 kVa 5A
    1200VA 2.5 kVa 7A
    1600VA 3 kVa 10A
    3000VA 5 kVa 16A
    5000VA 8 kVa 25A

    If your generator is smaller than the recommended size for your inverter/charger, you will definitely need to adjust the settings on the inverter/charger and reduce the AC input current limit, and/or a DC charge current limit to prevent overloading the generator. If you do want an inverter based generator get one that is at least 30% larger than required than an equivalent AVR based model to help prevent overloads.
