Product Description

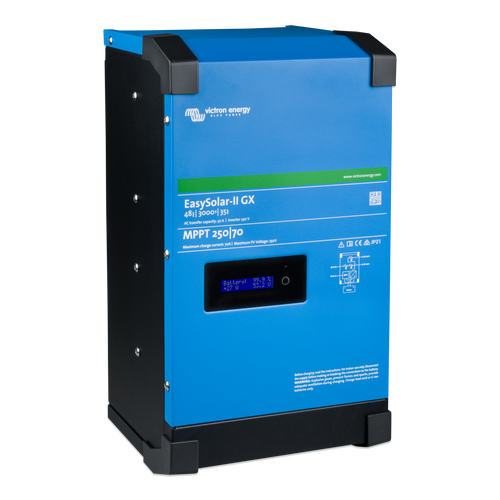

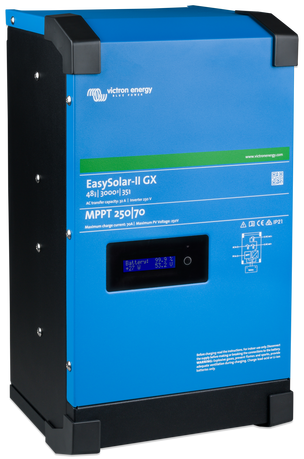

Victron EasySolar-II 48V / 3000VA / 35A Battery Charger with 32A AC Transfer Switch + MPPT 250/70 GX, 5 Year Warranty. The EasySolar combines a MPPT Solar Charge Controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.

The all-in-one solar power solution:

The EasySolar combines a MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure.
The product is easy to install, with a minimum of wiring.

Color Control panel:

Two outstanding functions:

Prioritizes battery charging by the MPPT charge controller
Connects to the internet, enabling remote monitoring (VRM website) and remote control.

AC distribution:

The AC distribution consists of a RCD (30mA / 63A) and four AC outputs protected by two 10A and two 16A circuit breakers.
An additional 16A output is controlled by the AC input: it will switch on only when AC is available.

PowerAssist:

Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.

Go to: Product Details

Go to: Reviews

Specifications

SKU PMP482307010

Brand Victron

GTIN 8719076045786

Warranty Period: 5 Years

Product Category Solar Charge Controllers

Charge Current (A) 70

Model EasySolar 24/3000/35-50

Charge voltage 'storage' 52.8V

Peak power 6000W

Input Voltage 38-66V

Humidity Max. 95%

Product Dimensions (mm) LxWxH 218 x 258 x 810

No load power consumption 25W | 12W in search mode

Charge voltage 'absorption' 57.6V

Output Power 2400W (continuous output power at 25°C) | 2200W (continuous output power at 40°C) | 1700W (continuous output power at 65°C)

Operating temperature range -40 to +65°C

Amps 35

AC Input Frequency Range 45-65Hz

Charge Voltage Float - Wet (25 degrees)** 55.2V

AC Input Voltage 187-265VAC

NOTE For further specifications and performance details, please download the PRODUCT CARD under our Product Details tab

Net Weight (kg) 28

Go to: Specifications

Go to: Q & A

Customer Reviews

Write a product review

Go to: Reviews

Go to: Warranty

Product Q&A

Ask Us a Question

Hi guys I'm new to the off grid world and I have a client that will require a Victron Easy Solar II 48V/3000VA I will be using the auxillary output to heat their 3.6kW hot water system and therefore require a genrator.What generator would you recomme

Hi There,

Technically you could use just about any generator up to around 10kVA or so.

We have a range of offgrid specific generators that you can find here:

https://www.mygenerator.com.au/auto-start-generators-for-off-grid-solar.html
Can these chargers take solar input?

No, the battery charging component is an AC input, meaning only AC power (mains power) can charge through this unit.
What batteries are compatible with this unit
