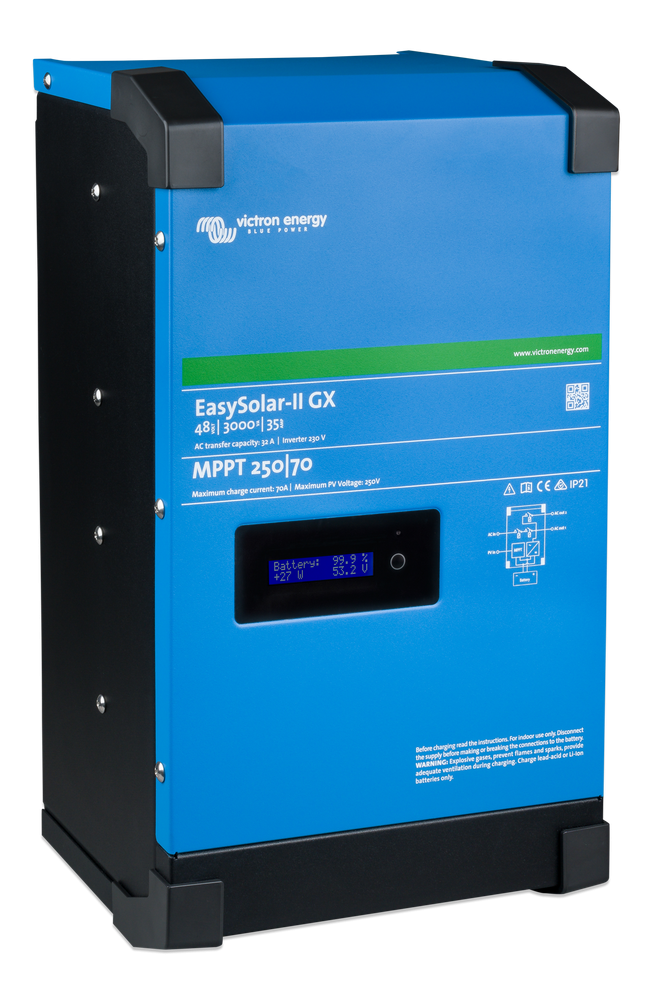

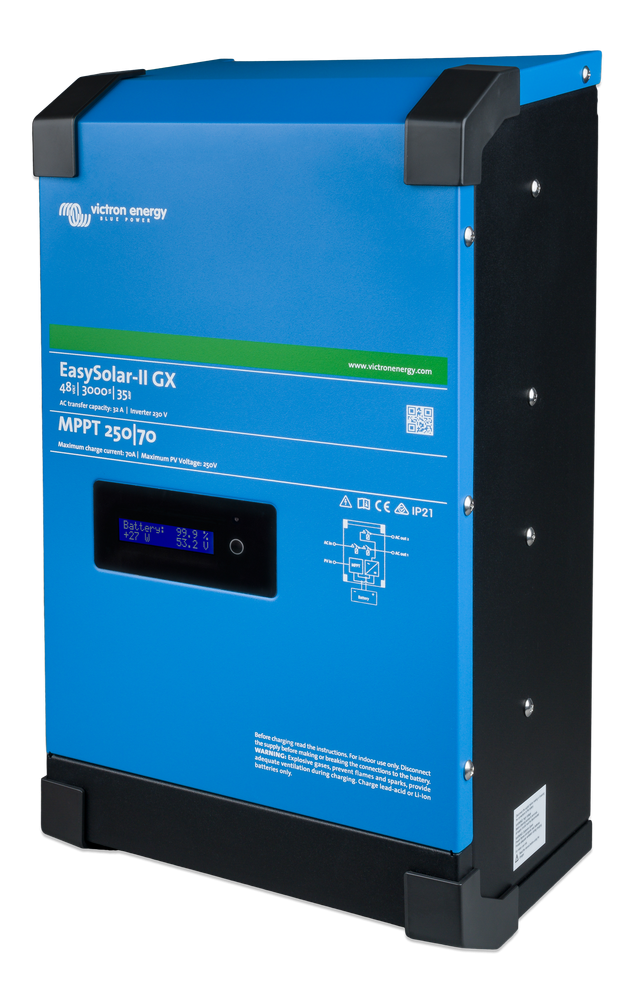

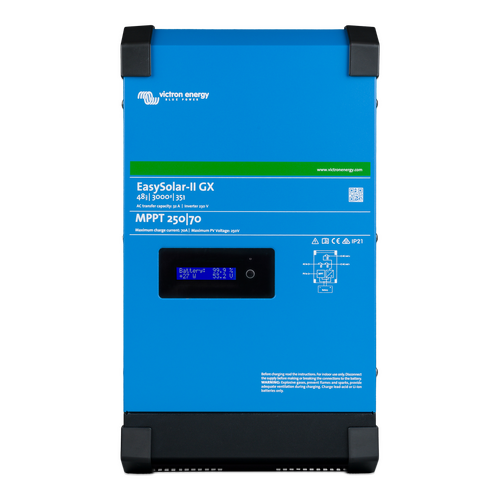

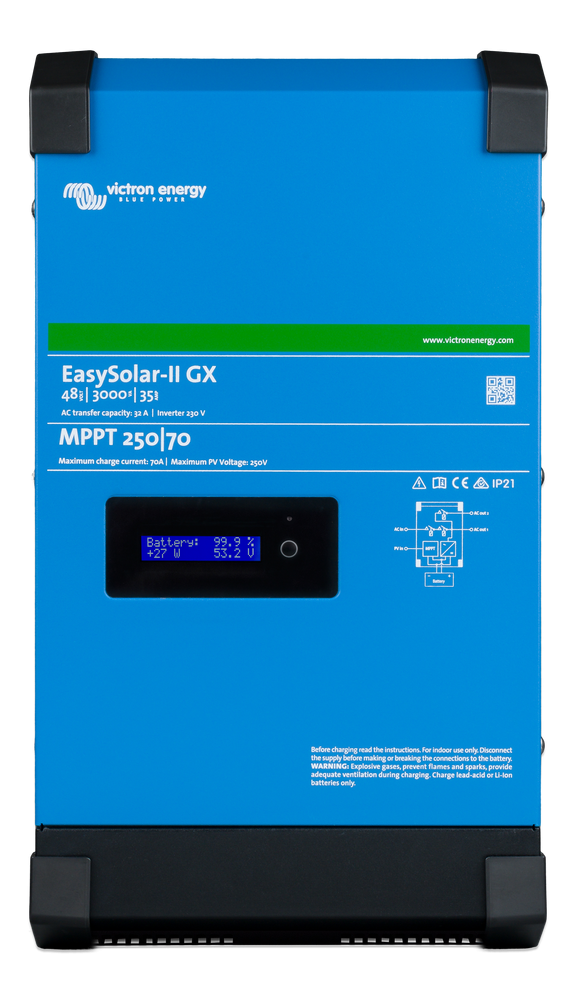

Victron EasySolar-II GX 48/5000/70-50 MPPT 250/100

Product Description

Victron EasySolar-II GX 48/5000/70-50 MPPT 250/100, 5 Year Warranty. The EasySolar-II GX combines an MPPT Solar Charge Controller, an inverter/charger and control hub in one enclosure. The product is easy to install, with a minimum of wiring.

Features:

The Victron EasySolar-II GX integrates the following elements:

• A MultiPlus-II inverter/charger
• A SmartSolar MPPT -Tr solar charge controller
• A GX device with a 2 x 16-character display.

These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.

Display and Wi-Fi:

• The display reads battery, inverter and solar charge controller parameters.
• The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.
• In addition, Wi-Fi can be used to set up the system and to change settings.

Solar charge controller:

• The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger.
• The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.

GX device:

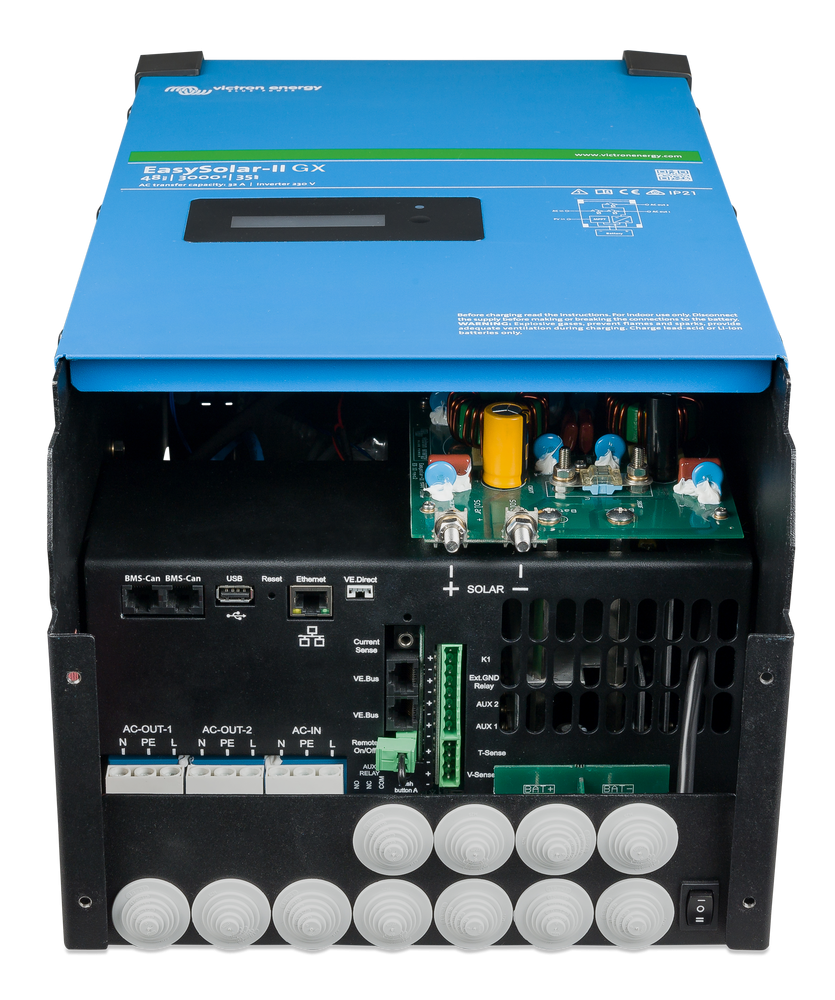

The integrated GX device includes:

• A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed
• battery. Note that this not a VE.Can compatible port.
• A USB port
• An Ethernet port
• A VE.Direct port

The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.

Specifications:

• Amps: 50.0 Amps
• Model: EasySolar 48/5000/70-50
• AC Input Voltage: 187-265VAC
• AC Input Frequency Range: 45-65Hz
• Peak Power    9000W
• Operating Temperature Range: -20 to +45 °C (fan assisted cooling) Max. altitude 2000 m
• Humidity: Max. 95%
• Output Power: 4000W (continuous output power at 25­­°C) | 3700W (continuous output power at 40­­°C) | 3000W (continuous output power at 65­­°C)
• Net Weight (kg): 38.6 Kg
• Charge voltage 'absorption': 57.6V
• Charge Voltage Float - Wet (25 degrees)**: 55.2V
• Charge voltage 'storage': 52.8V
• Input Voltage: 38-66V
• Product Dimensions (mm) LxWxD: 604 x 323 x 253

Please Note: The display model is EasySolar-II GX 48V 3000VA.
