Renogy 200Ah Mini Lithium with 40A DC-DC Bundle
SKU: RBT12200LFP-M-DC-DC Learn More»










Product Description
Renogy 200Ah Mini Lithium with DC-DC Charger Bundle, 5 Year Warranty

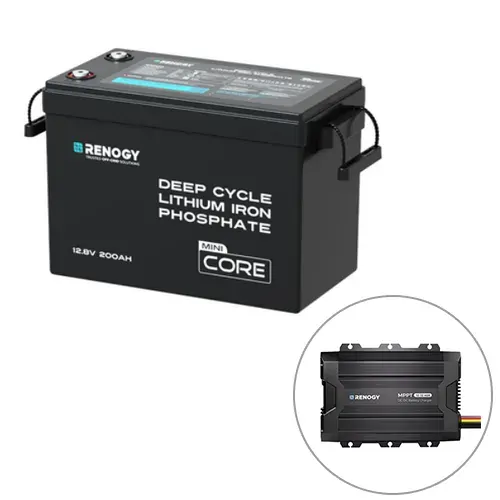

Included in Bundle:

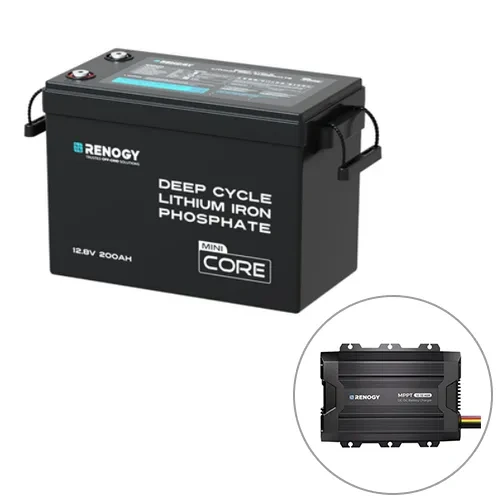

- Renogy 12V 200Ah Core Mini Lithium Battery - RBT12200LFP-M
Optional DC-DC Charger:
- Renogy 40A DC-DC Battery Charger with MPPT - RBC40D1S
- Renogy DCC50S 12V 50A Dual Input DC to DC Battery Charger with MPPT - RBC50D1S

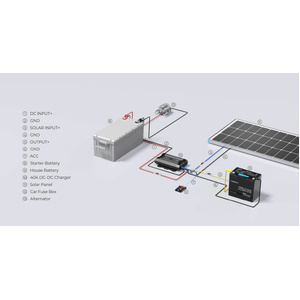

To effectively manage your Renogy 200Ah Mini Lithium with DC-DC Charger Bundle it's important to know how these components interact in your energy setup:
- Renogy 12V 200Ah Core Mini Lithium Battery: The Renogy Core Series 200Ah Mini Battery is engineered for superior performance and compact design. As a direct drop-in replacement for traditional deep-cycle lead-acid batteries with a standard Battery Council International (BCI) group size. This lithium battery offers cutting-edge features in a significantly smaller package, 1/3 smaller and half the weight of comparable 12V 200Ah lead-acid batteries. Delivering twice the energy with 100% Depth of Discharge (DOD), it supports over 5000 charge cycles and is built using high-quality automotive-grade battery cells to ensure the highest safety and reliability. It Complies with FCC, UN38.3, ROHS, UKCA certifications and is backed by a 5-year warranty for peace of mind.
-

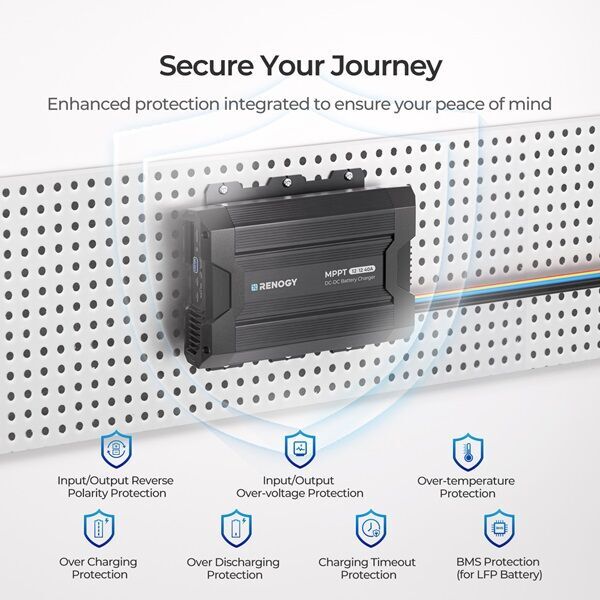

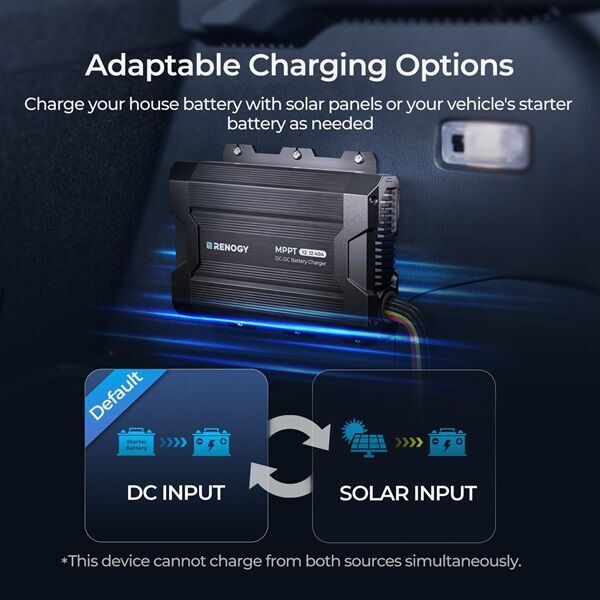

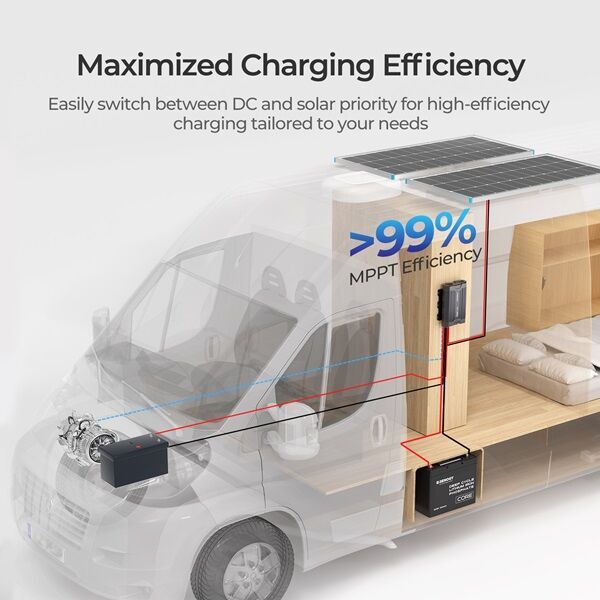

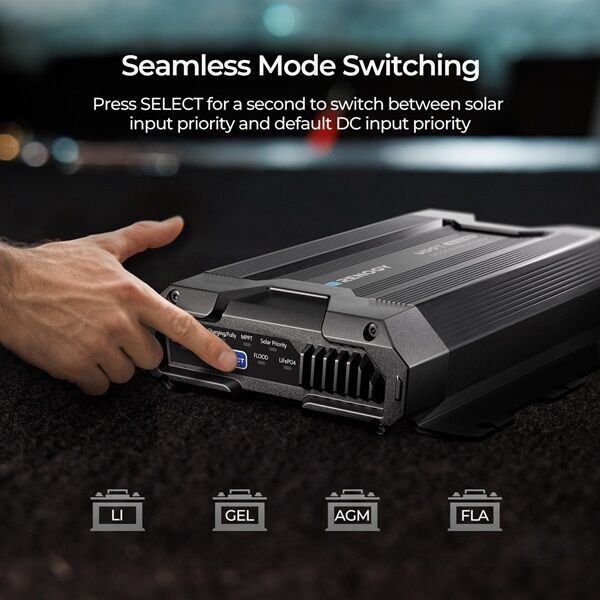

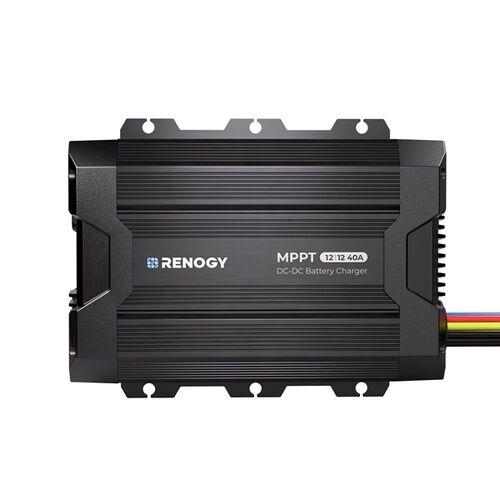

Renogy 40A DC-DC Battery Charger with MPPT: This sleek, versatile charger keeps you powered wherever you go. It switches seamlessly from DC input while driving to solar charging when parked. With a simple press of the SELECT button, you can easily set solar priority mode for maximum efficiency. Effortlessly switch between solar and DC inputs to keep your battery charged efficiently, all while enjoying the reliability and superior performance you expect. The system automatically switches to the alternate charging mode when the input voltage in the primary mode drops below the default threshold, ensuring continuous, efficient charging. It will automatically switch to the alternate charging mode when the input voltage in the primary mode falls below the default voltage.
-
Renogy DCC50S 12V 50A Dual Input DC to DC Battery Charger with MPPT: Renogy's DC to DC MPPT on-board Battery Charger is designed to give you options! This multi-stage, multi-input battery charger can charge a service battery from a starting battery linked to an alternator or by utilizing solar panels connected directly to the unit. While your vehicle's alternator prioritizes your starting battery, this unit will allow your solar system to charge your service battery first! It's the smart way to keep yourself fully charged and off-grid longer! And with multi-stage charging and multi-chemistry functionality, Renogy's DC to DC MPPT Charger has you covered whether you're using Flooded, Gel, AGM, or Lithium batteries. With RJ45 communication port featured, you can unlock monitoring features exclusively using the BT-2 Bluetooth Module and Renogy DC Home App, control and monitor the device remotely through your phone in real time.
Battery Information:
40A Dual Input DC to DC Battery Charger Information:
50A Dual Input DC to DC Battery Charger Information:
Specifications
SKU RBT12200LFP-M-DC-DC
Brand Renogy
Warranty Period: 5 Years
Product Category Battery Bundle
Battery Voltage 12V
Amp Hours (Ah) 200
Battery Length (mm) 384
Battery Width (mm) 194
Battery Height (mm) 253
Battery Weight (kg) 19.25
Nominal Voltage 12.8V
Battery Charge Temperature 0°C to 55°C
Battery Discharge Temperature -20°C to 65°C
Maximum Continuous Discharge Current 200A
Humidity 5% to 95%
Protection Rating IP65
Maximum Continuous Charge Current 100A
Operating Temperature 0°C to 55°C
Operating temperature range -20°C to 45°C (Battery Charger)
