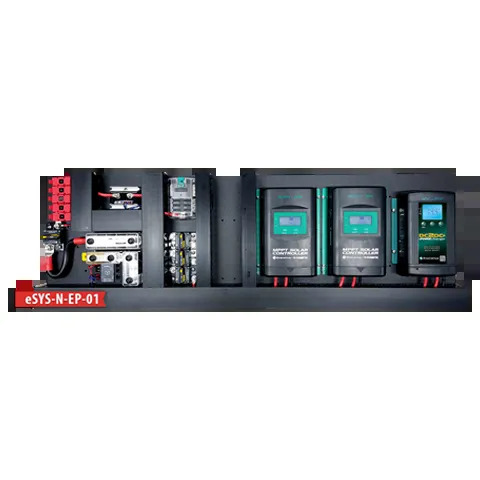

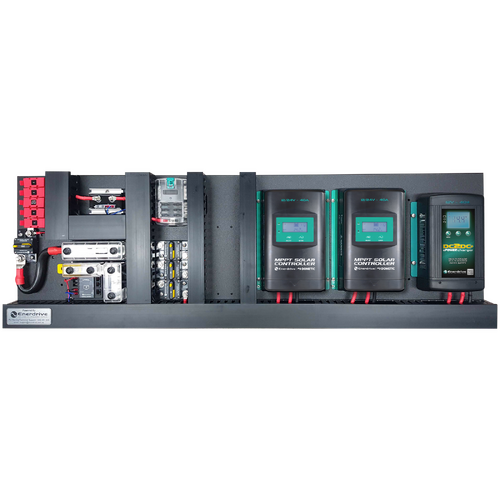

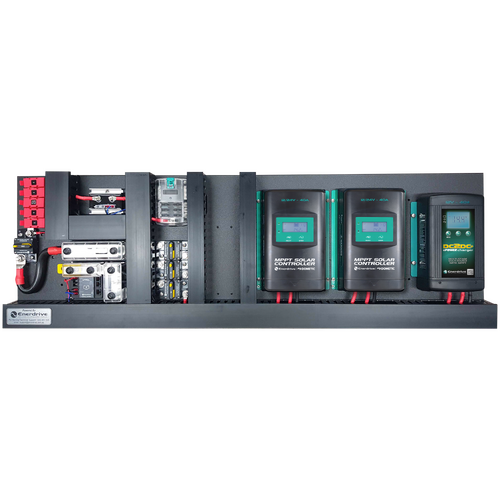

Enerdrive eSYSTEM-N 40A DC with Dual MPPT 12/24V 40A & ePRO+

SKU: ESYS-N Learn More»
Enerdrive eSYSTEM-N 40A DC with Dual MPPT 12/24V 40A & ePRO+
Free Shipping

ESYS-N-EP-01

$2,500
$3,032
EXTRA $70 OFF! Add to cart to get an instant discount
SALE ENDS:

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

This product is built to order. Build time 2 weeks Express Shipping Price Match Guarantee Customer Reviews

Product Description

Enerdrive eSYSTEM-N 40A DC with Dual MPPT 12/24V 40A & Monitor, 5 Year Warranty. Enerdrive have created many different layouts and dimensional sizes to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. From small kits with AC & DC charging and battery monitoring up to kits with 2000w inverters and individual charge/load monitoring.

These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.

Options:

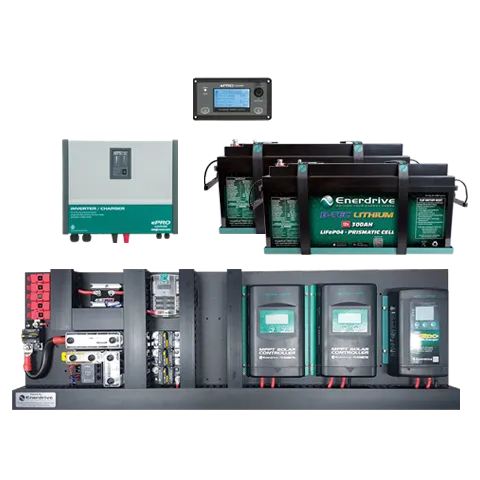

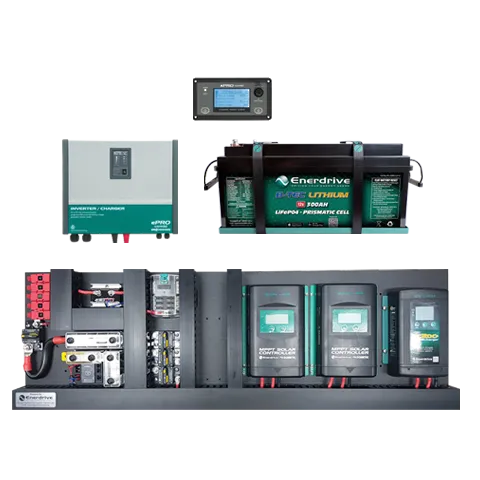

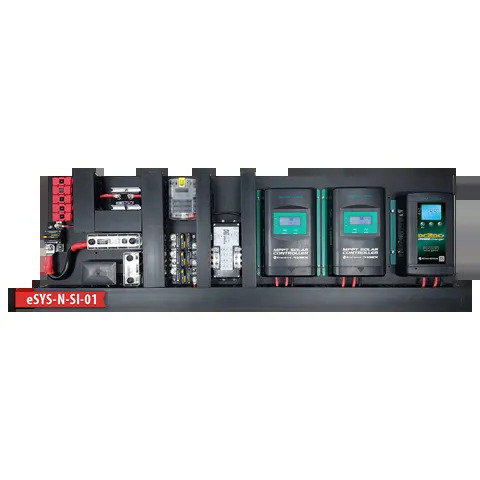

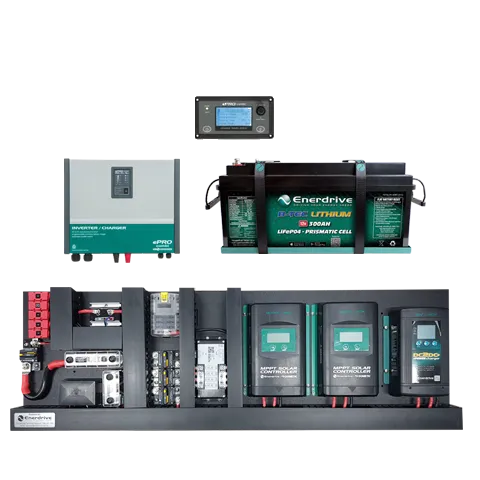

  • Enerdrive ePRO PLUS Battery Monitor - EN55050 or Simarine Pico Display Panel Mount Black - SI-PICO-3, SI-SC303, SI-SCQ50
  • Enerdrive Battery - No battery or 1 -2 x Enerdrive ePOWER B-TEC 300Ah Lithium Battery - EPL-300BT-12V-G2
  • Enerdrive Inverter Charger - No Inverter Charger or 1 x Enerdrive ePRO Combi 3000W Inverter Charger - EPC-3000-12-KIT

Pack Includes:

  • Enerdrive DC2DC Battery Charger - 12V 40A - EN3DC40+
  • 2 x Enerdrive MPPT 12/24V 40A Solar Controller with Display - EN43540
  • Enerdrive ePOWER 12/24V 40A IP66 Smart Battery Guard - EN-LBC1224-40
  • Enerdrive Class-T Fuseholder 50V/225A-400A - DCM-5073850
  • Blue Sea Fuse Class T 400A - BS-5121B
  • Enerdrive 3 x M8 Busbar - DCM-5073160
  • Enerdrive EN-RCB200 Surface Mount Resettable Breaker - 200amp - EN-RCB200
  • Enerdrive EN-RCB60 Surface Mount Resettable Breaker - 60amp - EN-RCB60
  • Enerdrive Modular Fuse Holder (Fuse Module) - I-LMI-F-M
  • Modular Midi Bussbar 6 Position - I-B109-7046-6
  • Fuse Block 6 Way with Neg Bar - EA-FB-08
  • Fuse MIDI 30A, 50A, 60A - BS-5250B, BS-5252B, BS-5253B
  • Slotted Duct 60 x 60 per Metre & Slotted Duct 40 x 60 per Metre - Black - SD 60X60 BLK & SD 40X60 BLK
  • SDI Flex 95mm2 V90HT TCW Black (Double Insulated Tinned Copper) & SDI Flex 16mm2 V90HT TCW Black- ENC-95MM2ENC-16MM2
  • Cable Lug Bell Mouth - 95mm2 (M10 Stud), 16mm2 (M6 Stud), 16mm2 (M8 Stud)- ENC-LUG-95-10, ENC-LUG-16-6, ENC-LUG-16-8



Click the left and right buttons to view the eSYSTEM Range

(✓) Indicates standard Fitment, (#) Indicates optional fitment

Properties eSYS-C eSYS-D eSYS-E eSYS-F eSYS-G eSYS-H eSYS-I eSYS-J eSYS-K eSYS-L eSYS-M eSYS-N-EP-01 eSYS-N-SI-01 eSYS-O eSYS-R-EP-01 eSYS-R-SI-01 eSYS-R-EP-02 eSYS-R-SI-02 eSYS-R-EP-03 eSYS-R-SI-03 eSYS-COMBI-EP-01 eSYS-COMBI-SI-01 eSYS-COMBI-EP-02 eSYS-COMBI-SI-02 eSYS-ICA-EP-02 eSYS-ICA-SI-02
AC 40Amp Charger ✓ ✓ ✓ ✓ ✓       ✓ ✓ ✓       ✓ ✓
AC 60Amp Charger           ✓ ✓ ✓                 ✓ ✓
AC 100Amp Charger                                     ✓ ✓
DC2DC 40Amp Charger ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓# ✓#     ✓ ✓
DC2DC 30Amp 24V Charger                                             ✓✓ ✓✓
Morningstar Tristar 45A Solar Controller           ✓ ✓ ✓ ✓ ✓
Enerdrive MPPT 40A Solar Controller                       ✓✓ ✓✓ ✓✓ ✓ ✓ ✓✓ ✓✓ ✓✓ ✓✓ ✓✓ ✓✓ ✓✓ ✓✓ ✓✓ ✓✓
ePRO+ 500A Battery Monitor ✓   ✓     ✓   ✓   ✓ ✓ ✓     ✓   ✓   ✓   ✓   ✓   ✓
Simarine Pico LCD WIFI Monitoring Screen   ✓   ✓ ✓   ✓   ✓       ✓ ✓   ✓   ✓   ✓   ✓   ✓   ✓
Simarine SC303 300A Main Battery Shunt   ✓   ✓ ✓   ✓   ✓       ✓ ✓   ✓   ✓   ✓   ✓   ✓   ✓
Simarine SCQ25T Quad Shunt Tank Module   ✓   ✓ ✓       ✓
Simarine SCQ50 Quad Shunt Tank Module             ✓             ✓   ✓   ✓   ✓           ✓
Simarine ST107 Tank Monitoring Module                         ✓     ✓   ✓   ✓   ✓   ✓   ✓
Inverter Breaker 200A (Pre Wired Inverter Supply)               ✓ ✓ ✓       #
Battery Restart Switch ✓ ✓ ✓ ✓ ✓       ✓ ✓
24hr Critical Load Distribution Fuse Block   ✓ ✓ ✓ ✓   ✓   ✓ ✓       ✓
Main Load Distribution Fuse Block   ✓ ✓     ✓ ✓
2000W AC Transfer Inverter ✓     ✓                     ✓ ✓
2600W AC Transfer Inverter                                 ✓ ✓ ✓ ✓
Dimensions 1185W x 380H x 130Dmm 600W x 490H x 100Dmm 600W x 490H x 100Dmm 1185W x 380H x 130Dmm 790W x 380H x 100Dmm 1195W x 380H x 111Dmm 1195W x 380H x 111Dmm 920W x 380H x 111Dmm 490W x 600 H x 111D mm 490W x 600 H x 111D mm 600W x 350H x 111D mm 1190W x 380H x 111D mm 1190W x 380H x 111D mm 600H x 520W x 111Dmm 535W x 1195H x 111D mm 535W x 1195H x 111D mm 535W x 1195H x 111D mm 535W x 1195H x 111D mm 535W x 1195H x 111D mm 535W x 1195H x 111D mm 535W x 1195H x 147D mm 535W x 1195H x 147D mm 535W x 1195H x 147D mm 535W x 1195H x 147D mm 535W x 1195H x 120D mm 535W x 1195H x 120D mm

Specifications

SKU ESYS-N

Brand Enerdrive

GTIN 9342616031469

Warranty Period: 5 Years

Product Category Power Systems

Wattage (W) 3000

Float 13.0V - 13.8V (DC Battery Charger) | 13.4 – 13.8 V (AC Battery Charger)

Power Consumption 700W (Full Load) (AC Battery Charger)

AC Input Frequency Range 47 – 63 Hz (AC Battery Charger)

Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (DC and AC Battery Charger)

Equalize 15.5V (DC Battery Charger) | 16.0 V (AC Battery Charger)

Charger Mode Output Voltage 13.8V - 15.5V (DC Battery Charger) | 14.2 – 15.5 V (AC Battery Charger)

Charger Efficiency 95% (DC Battery Charger) | > 82% (AC Battery Charger)

AC Input Operating Range 207-265 Vac (3.8 A Max) 90 – 125 Vac (7.7 A Max) (AC Battery Charger)

DC Output Single (DC Battery Charger) | Three (1 fully independent, 2 common with diode isolation) (AC Battery Charger)

AC Input Voltage 90 to 265 VAC (AC Battery Charger)

Operating Range (temp) -32°C to 82°C (Breaker 200Amp)

Input Voltage 12.5 VDC (Inverter)

Weight (kg) 18.5 (Inverter) | 38.2 (Battery) | 1.85 (Batter Charger) | 0.185 (Battery Cutout) | 0.1 (Circuit Breaker-200Amp) | 0.147 (Circuit Breaker - 60Amp)

Humidity 5-95%, relative humidity non-condensing (AC to DC Battery Charger) | 5-90% noncondensing (Inverter)

Operating Voltage 6 - 35V (Battery Monitor)

Amps 40A (Solar Charge Controller)

Dimensions 370mm x 431mm x 132mm (Inverter) | 521mm x 280mm x 238mm (Battery) 242mm(H) x 172mm(W) x 74mm(D) (Battery Charger) | 62mm (W) x 41mm (H) 82mm (L) (Bat


Product Q&A

Ask Us a Question

Warranty

For details relating to this product's warranty CLICK HERE

Delivery

    For details relating to our delivery process CLICK HERE
