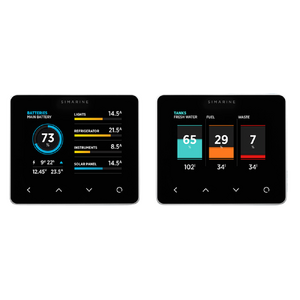

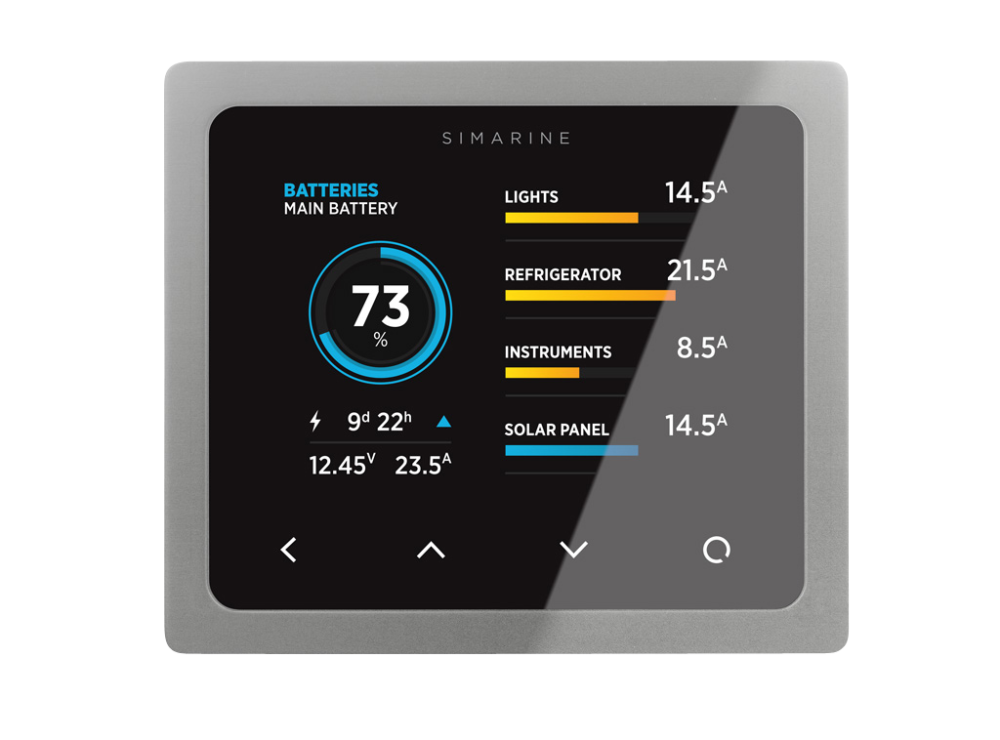

Simarine by Enerdrive Pico Display Standalone Black

Product Description

Simarine by Enerdrive Pico Display Standalone Black, 5 Year Warranty. SIMARINE's advanced battery monitor for most demanding users. For up to 6 battery banks, 6 additional battery voltages, 14 tank level and 20 consumer or power generation readings. Compatible with all SIMARINE shunts and modules.

Operating:

• Power source voltage range    6 - 35 V
• Temperature range    -20 – +70 °C
• Power consumption at 12 V
• Operating, WiFi On, 100% illumination    90 mA
• Operating, WiFi Off, 70% illumination    35 mA
• Operating, WiFi Off, 0% illumination    18 mA
• Power Off, logger still active    5 mA

Resolution

• Current (A): ±0.01 A
• Voltage (V): ±0.01 A
• Amp hours (Ah): ±0.1 A
• SOC - Stat of Charge ( 0 - 100%): ±0.01 A
• Temperature: ±0,1 °C / °F

Voltage inputs

• Range: 0 – 75V

WIFI

• Radio Frequency Band: 2.4 GHz

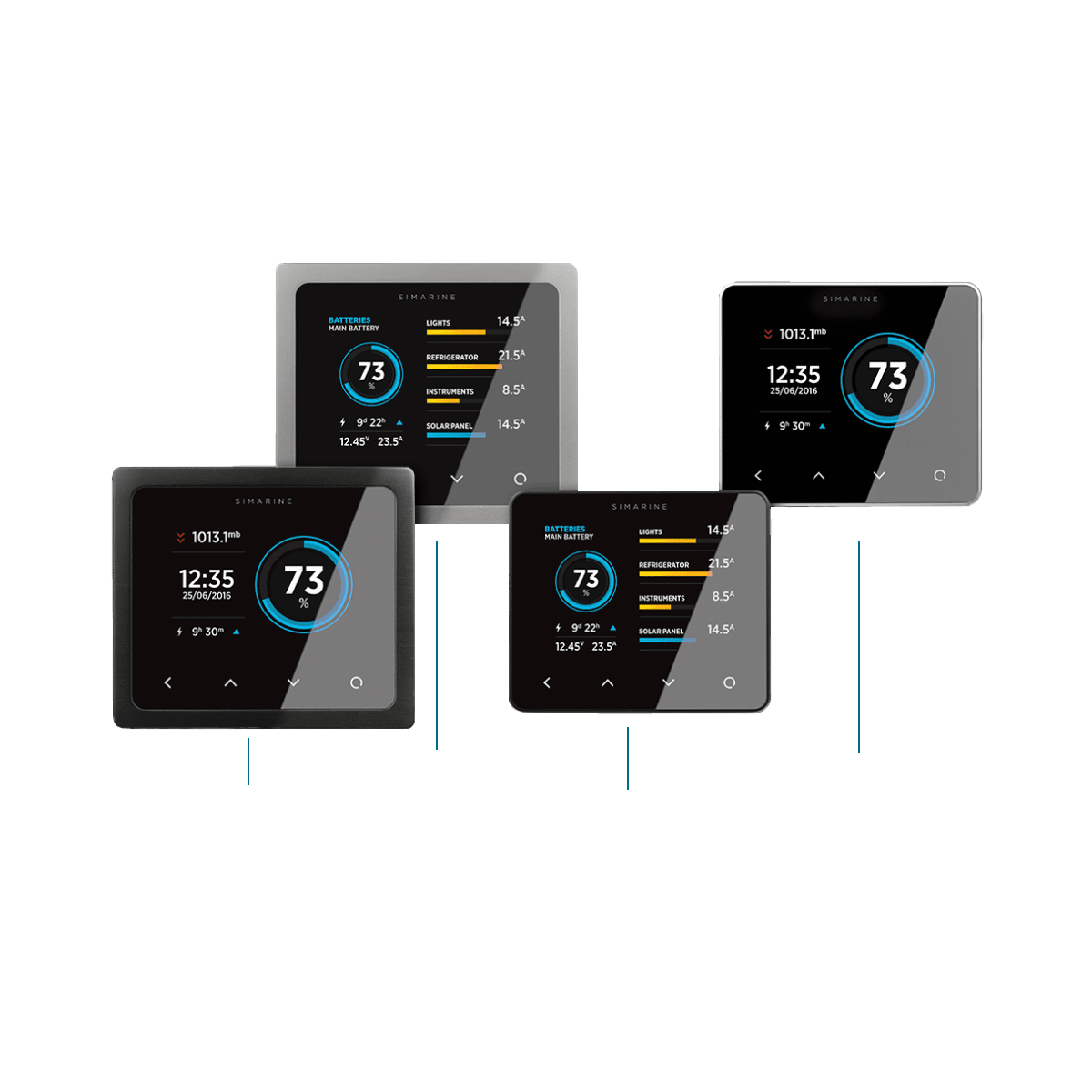

Dimensions (without connector)

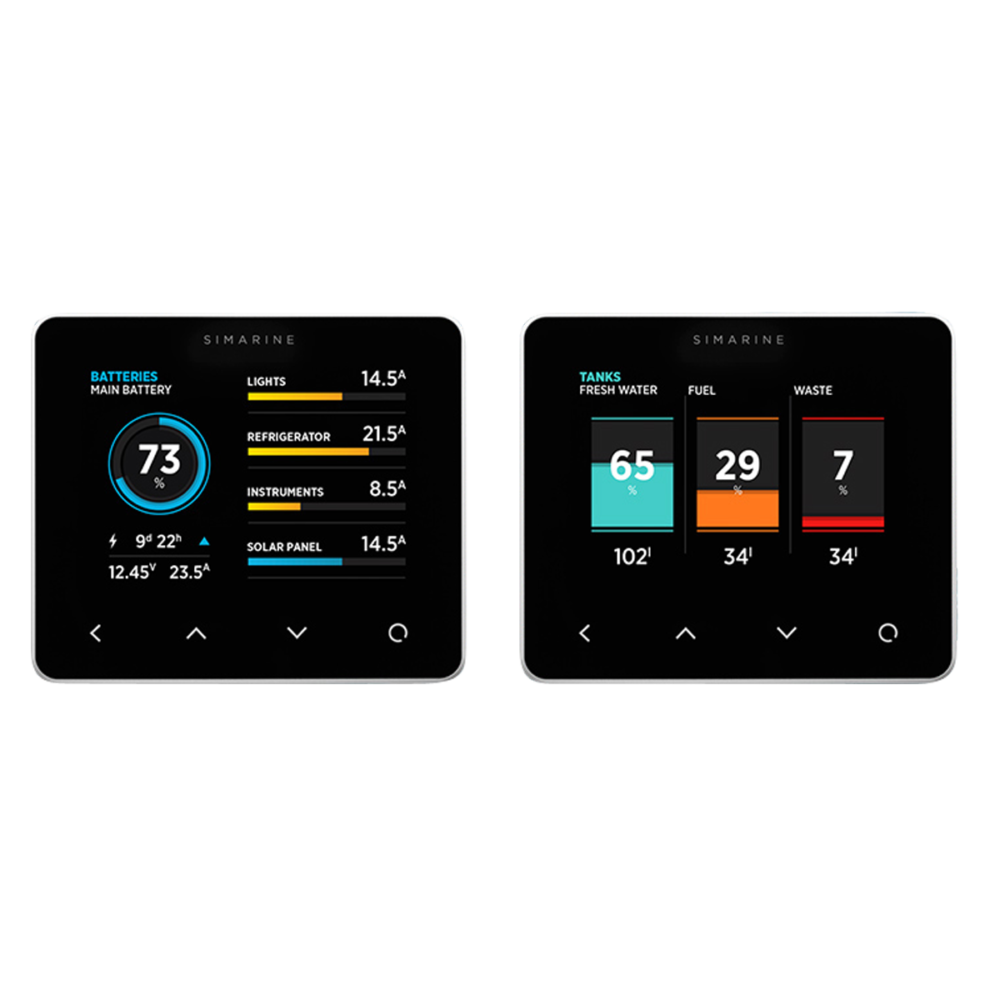

• Standalone: 89 x 84 x 10 mm

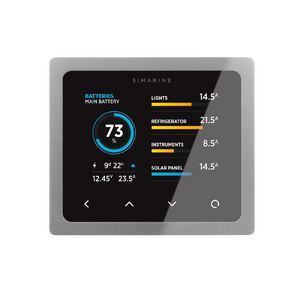

• Panel: 108.5 x 94 x 10 mm

Connectivity Up to:

• Batteries: 6
• Shunts: 24
• Temperature sensors: 10

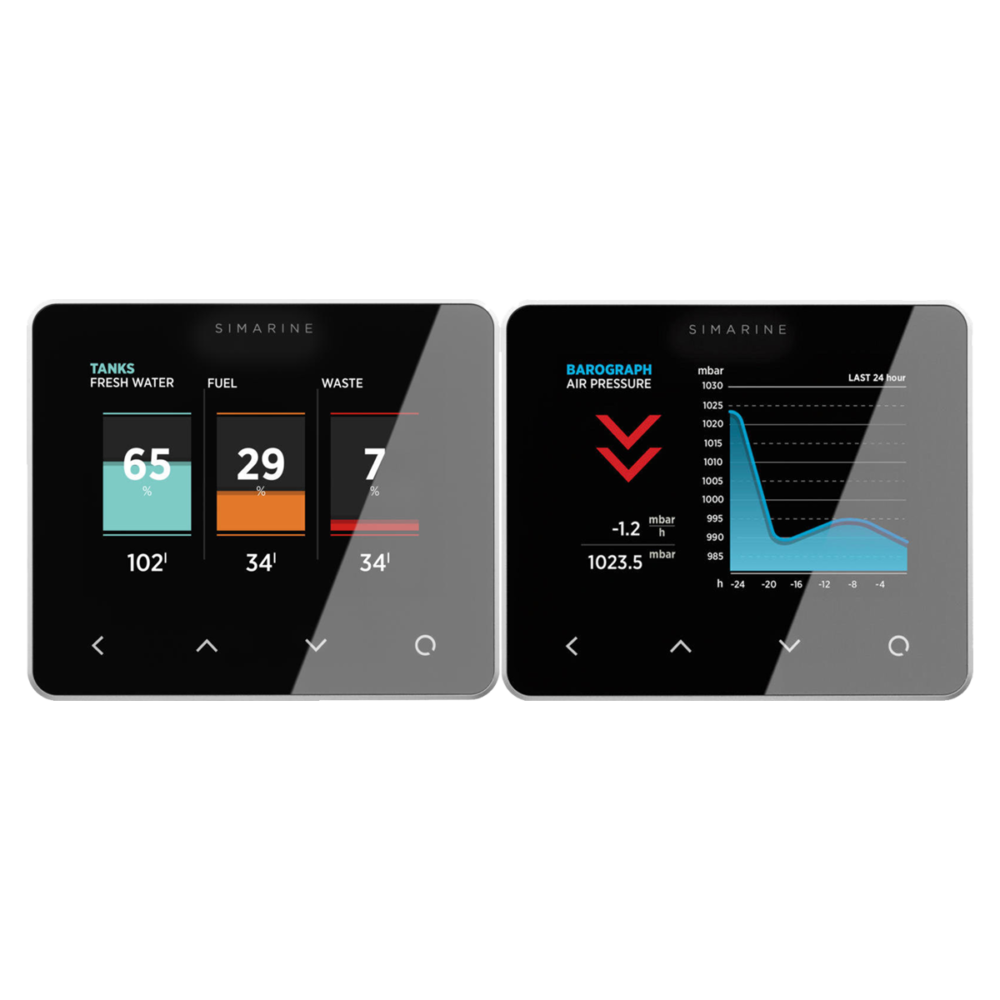

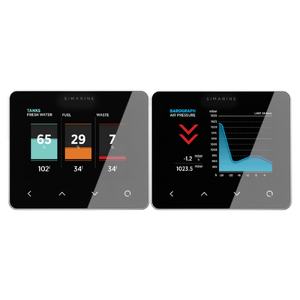

• Tank level sensors: 14
• Inclinometer sensors: 2

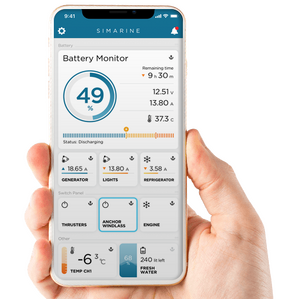

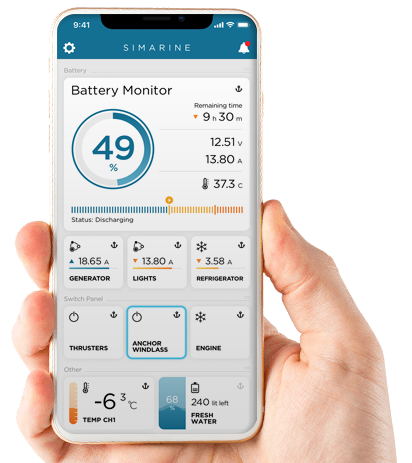

• Smartphone application: 1

Logger Capacity

• up to 3 month
