Enerdrive B-TEC 2 x 300Ah Lithium Battery, Charger, Inverter, Monitor & MPPT Bundle

Enerdrive B-TEC 2 x 300Ah Lithium Battery, 40A DC2DC, 100A AC, 60A MPPT, 2600W Inverter & ePro+

Take an EXTRA $100 OFF! Add to cart to get an instant discount.
Sale Ends in

FREE SHIPPING

Learn More»

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

Enerdrive B-TEC 2 x 300Ah Lithium Battery, Charger, Inverter, Monitor & MPPT Bundle, 5 Year Warranty. The Enerdrive 2 x 300Ah lithium battery, when used in combination with a 40A DC-to-DC charger, is typically part of a setup commonly used in various applications, including off-grid power systems, recreational vehicles (RVs), boats, and other mobile power needs.

The AC charger becomes relevant when you are connected to an AC power source, such as a campsite with electricity hookups or a marina with shore power. It provides a convenient means to recharge the battery when AC power is available.

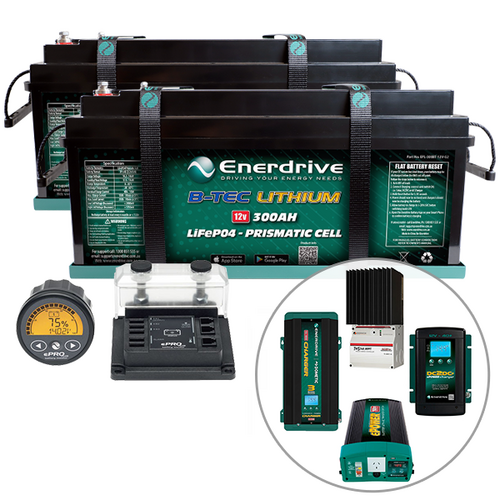

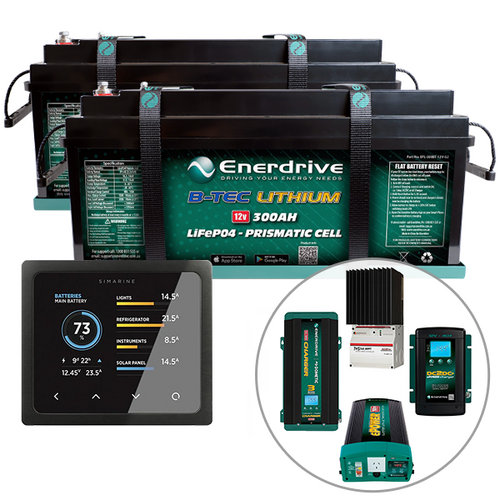

Bundle Includes:

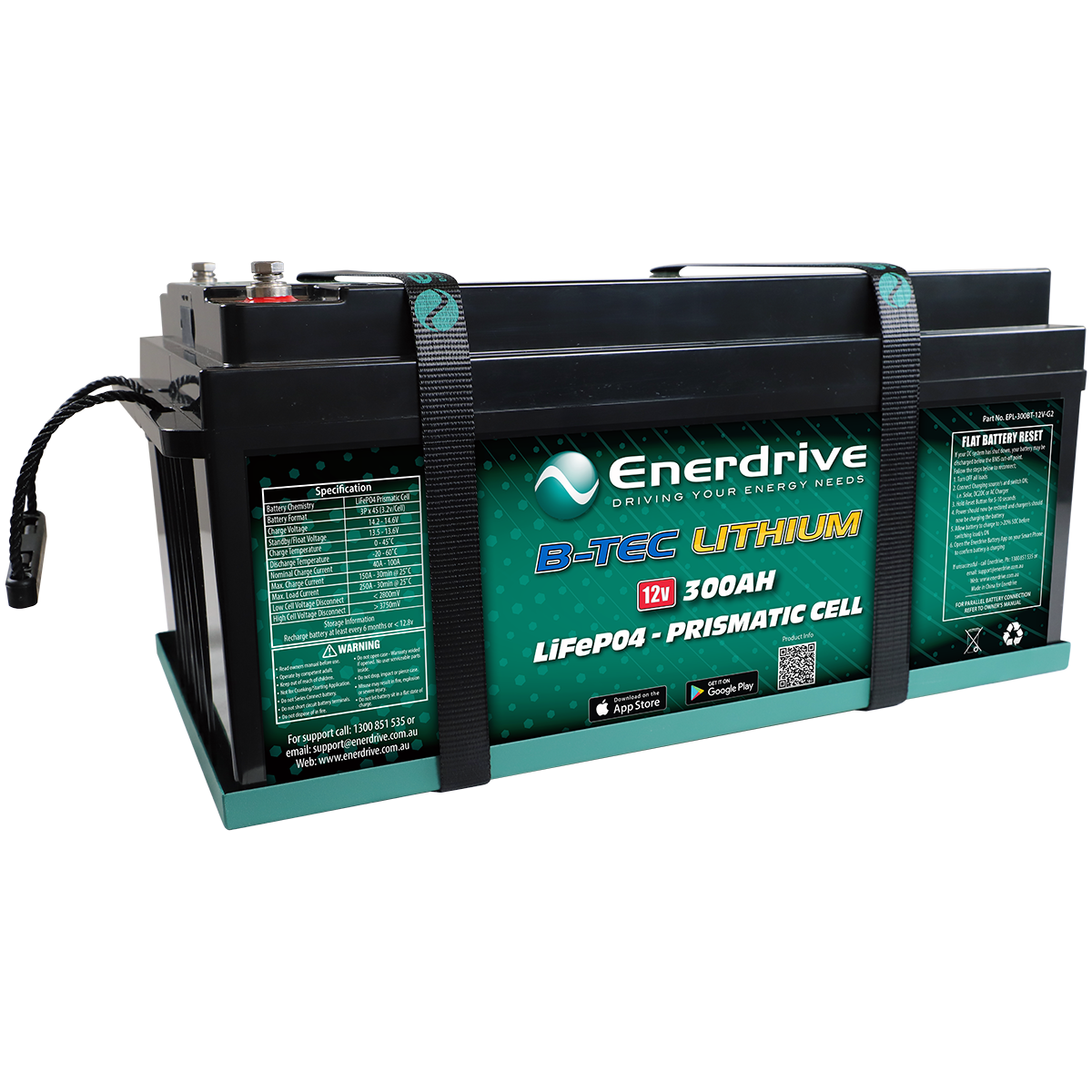

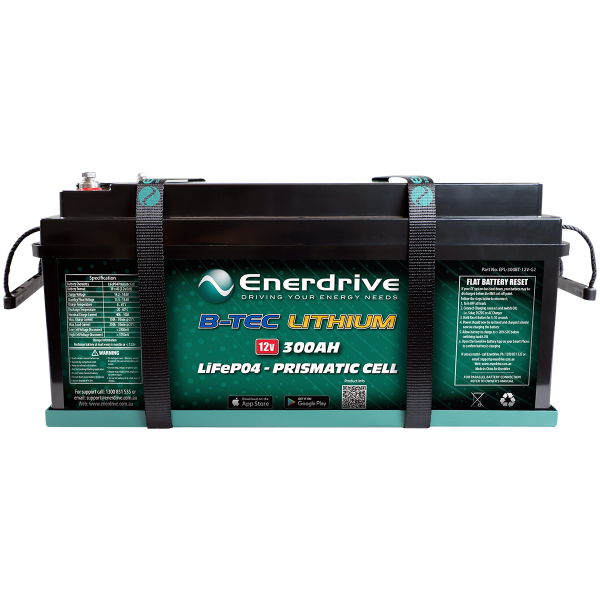

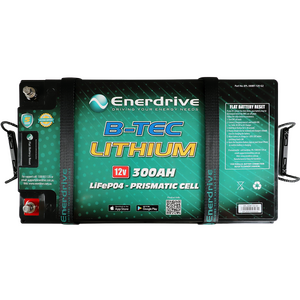

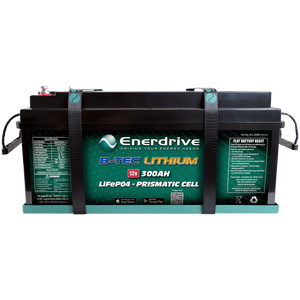

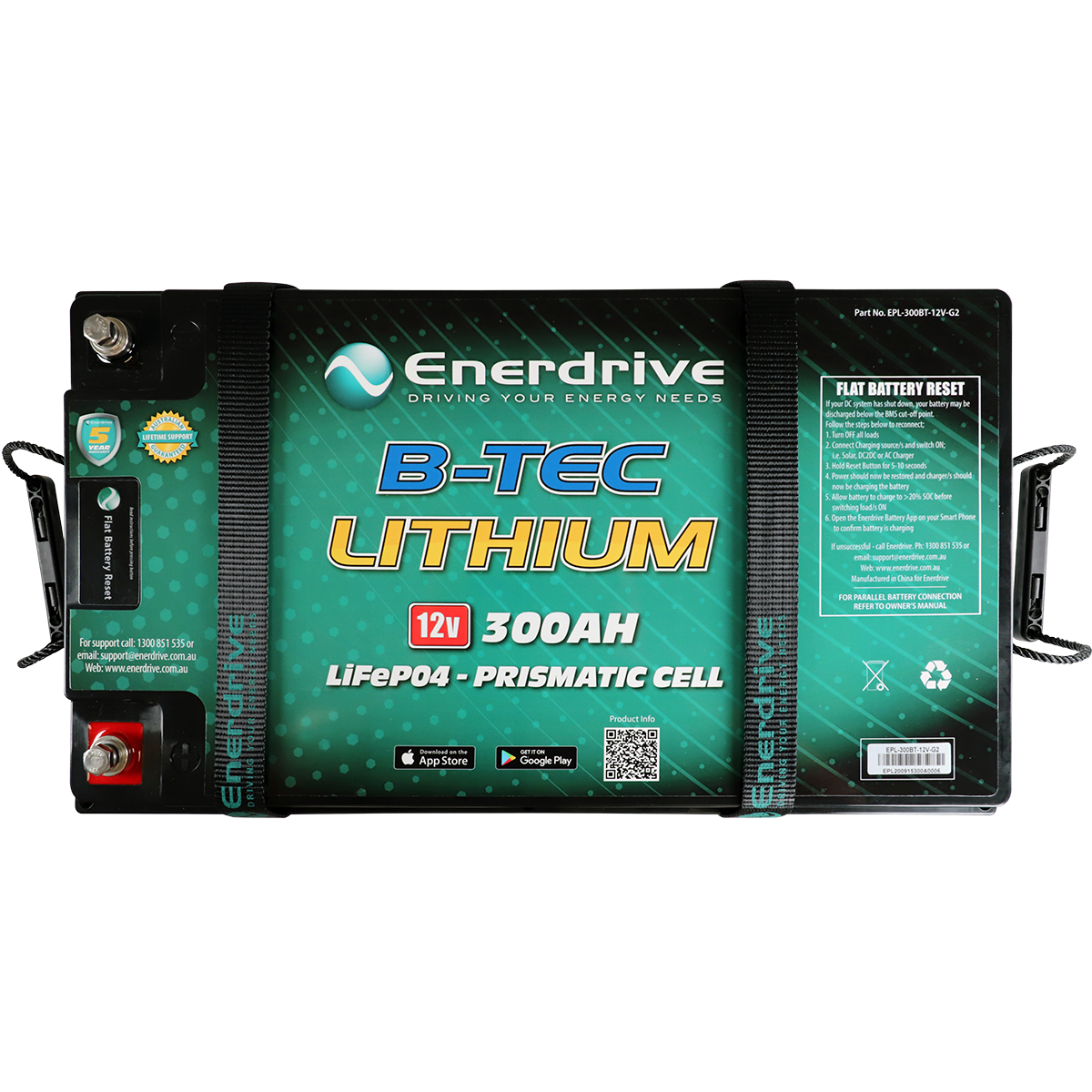

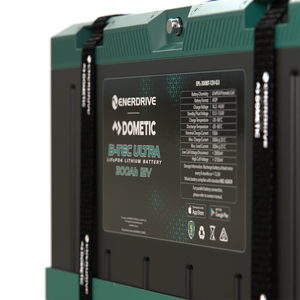

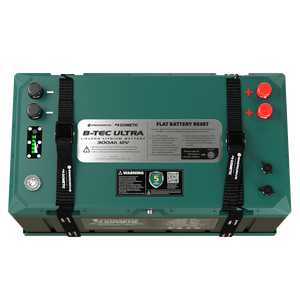

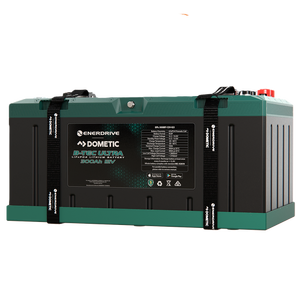

2 x EPL-300BT-12V-G2 - Enerdrive B-TEC 300Ah Lithium Battery

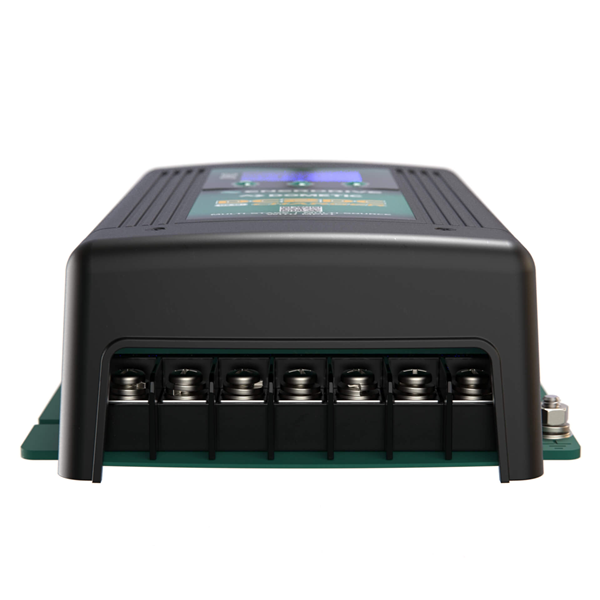

EN3DC40+ - Enerdrive 40A DC to DC Battery Charger

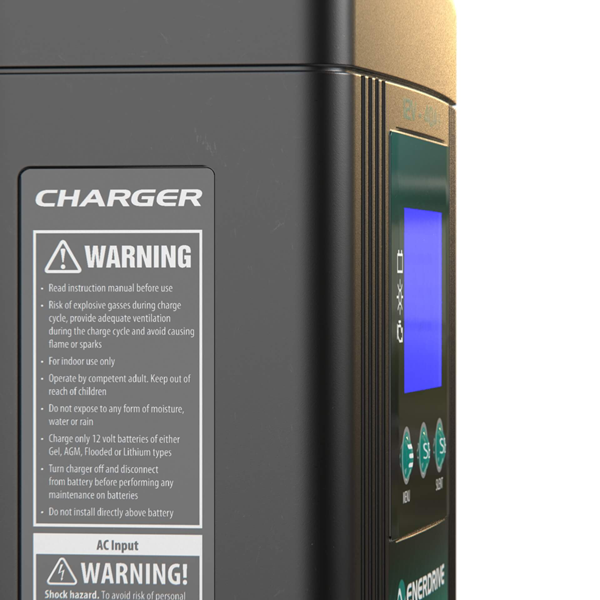

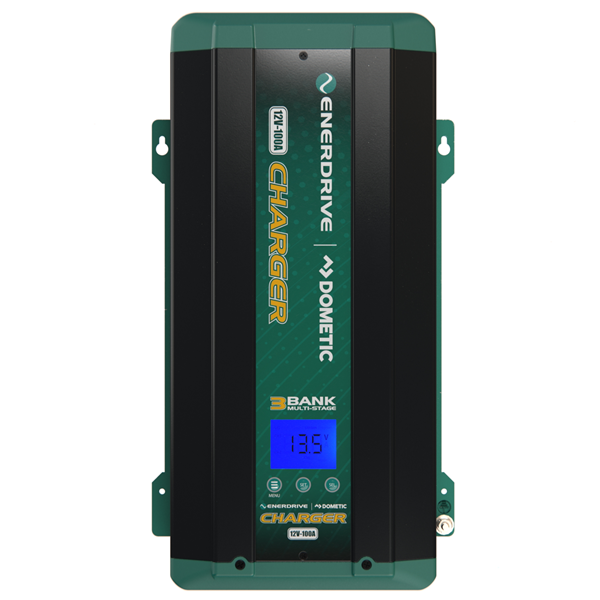

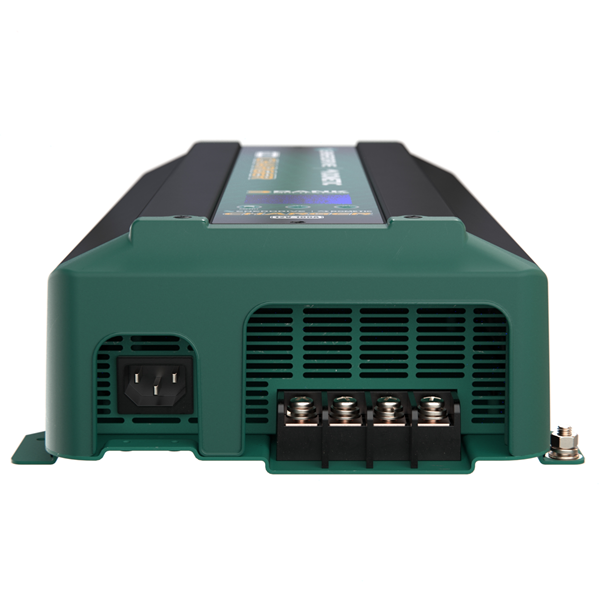

EN312100 - Enerdrive 100A AC Battery Charger

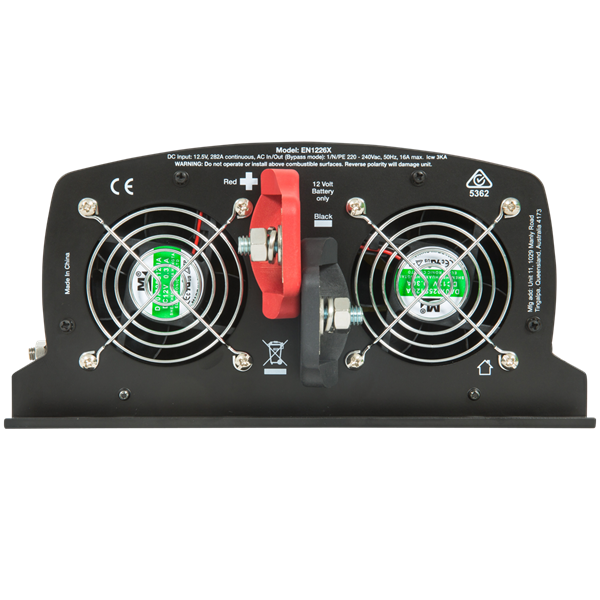

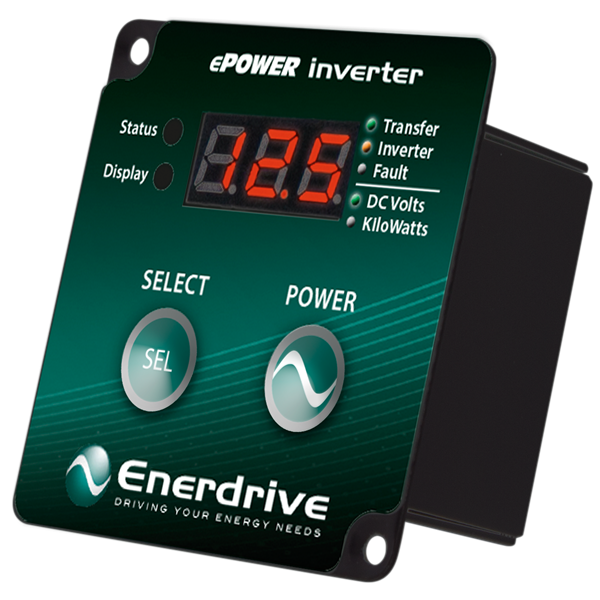

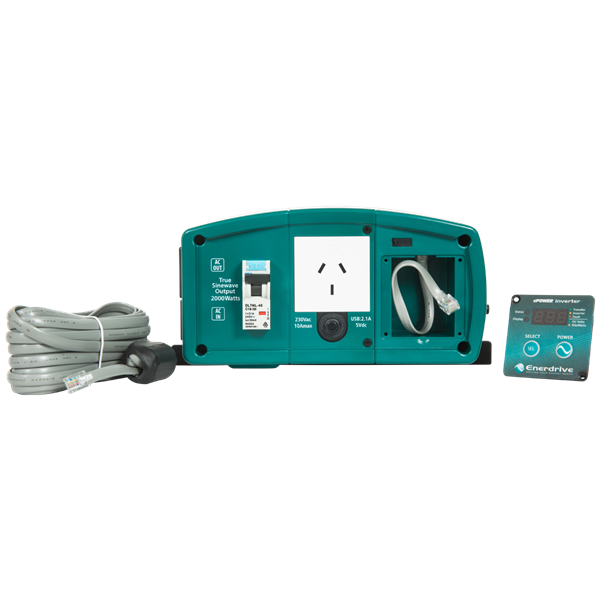

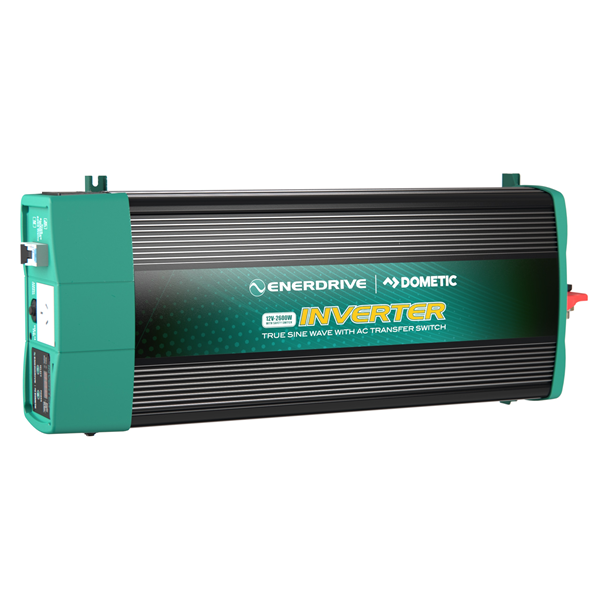

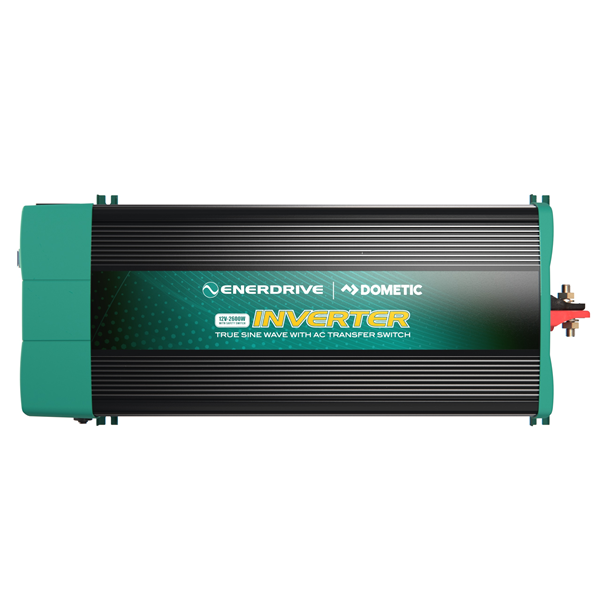

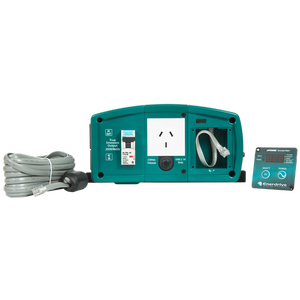

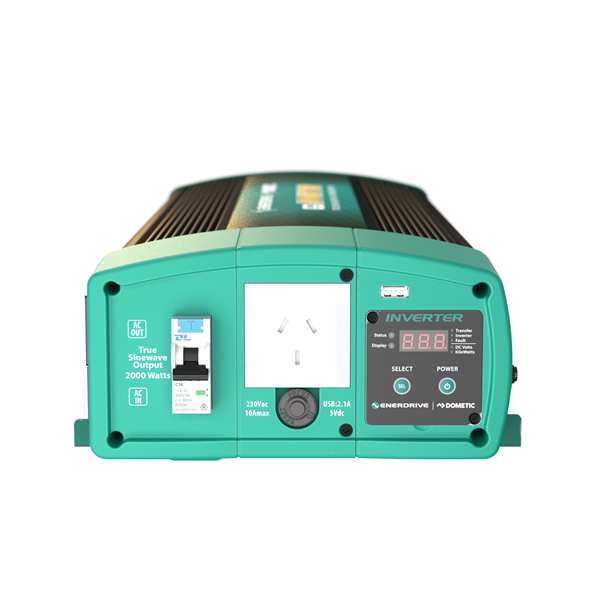

EN1226S-X - Enerdrive 2600W Inverter with RCD & AC Transfer Switch

Optional MPPT:

SR-TS-MPPT-45 - Morningstar TriStar MPPT 45 Amp Solar Controller
SR-TS-MPPT-60 - Morningstar TriStar MPPT 60 Amp Solar Controller

Option of Monitor:

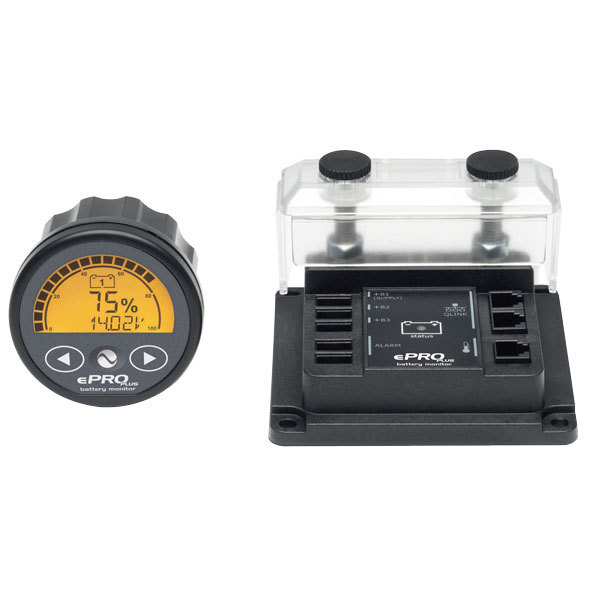

EN55050 - Enerdrive ePRO+ Battery Monitor

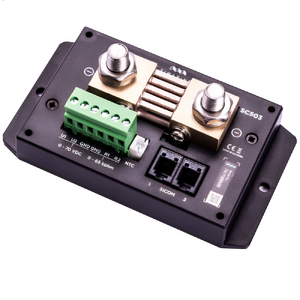

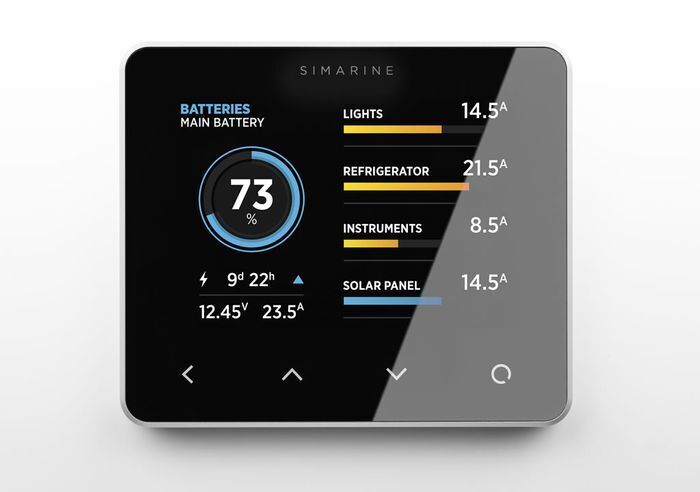

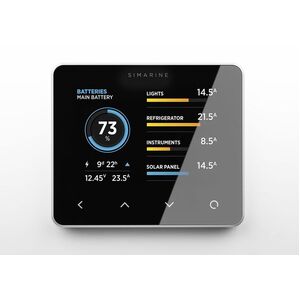

SI-PICO-3 - Simarine Pico+ Display Panel Mount Black with SI-SC303 & SI-SCQ50

Here's how these components work together:

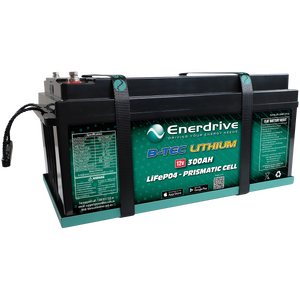

B-TEC 2 x 300Ah Lithium Battery: The cornerstone of your energy storage system, boasting a 2 x 300-ampere-hour capacity. It serves as the primary source of electrical energy for various applications, such as RVs, boats, or other off-grid setups.

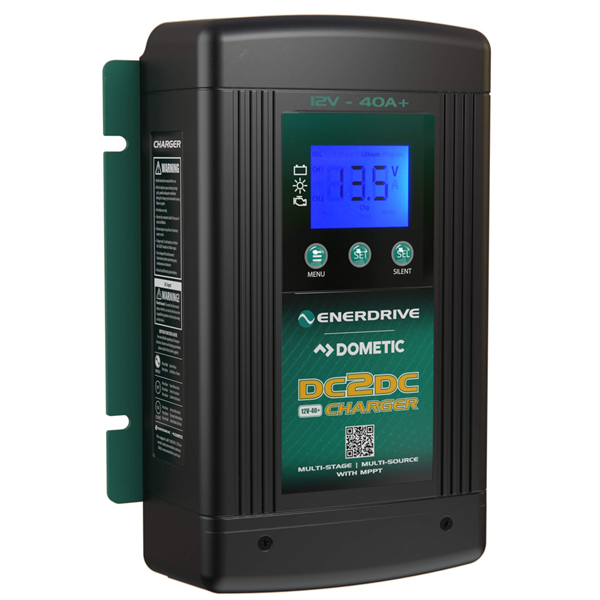

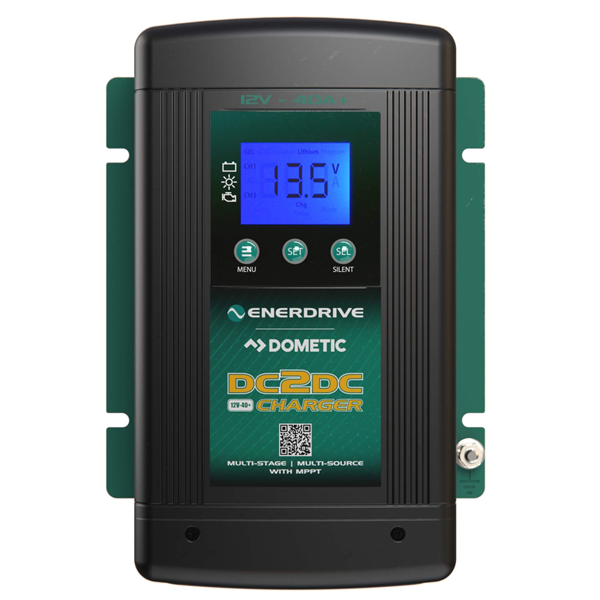

40A DC2DC Charger: This charger plays a pivotal role in regulating and transforming incoming DC power from diverse sources, such as a vehicle alternator or solar panels. It efficiently channels power to recharge the battery, ensuring optimal performance with a maximum 40-amp charging current from DC sources.

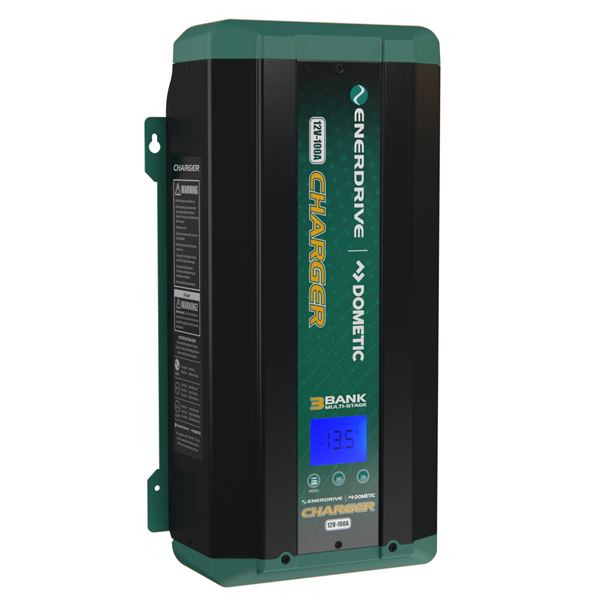

100A AC Charger: The AC charger recharges the battery when you have access to an AC power source, such as when your vehicle or setup is connected to shore power or an external generator. This charger converts AC power into DC power and delivers up to 100 amps to recharge the battery.

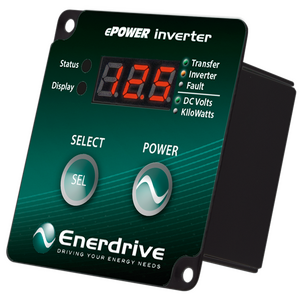

Inverter: The Enerdrive pure sine wave inverter plays a vital role in your setup. It ensures that the power delivered to your appliances and devices is of the highest quality. The pure sine wave output guarantees clean, stable power, making it suitable for sensitive electronics, ensuring they operate without interference or damage. This inverter enables you to use standard AC-powered devices with confidence, enhancing the versatility of your energy system.
Battery Monitor: A critical component providing real-time data on battery metrics such as voltage, current, state of charge, etc. It facilitates monitoring battery health for informed decisions about energy usage and recharging strategy.
MPPT: The solar charge controller plays a crucial role in maximizing the efficiency and performance of a solar power system by tracking the maximum power point of solar panels, optimizing energy harvest, managing battery charging, and providing monitoring and protection functions. It helps ensure that solar energy is harvested and utilized effectively, making it an essential component in off-grid, grid-tied, and hybrid solar power systems.

Bundles	K-600-03	K-600-04
2 x EPL-300BT-12V-G2	*	*
EN3DC40+	*	*
EN312100	*	*
EN1226S-X	*	*
SR-TS-MPPT-45		*
SR-TS-MPPT-60	*
EN55050	*
SI-PICO-3		*

Battery Information:

DC Charger Information:

AC Charger Information:

MPPT Information:

Inverter Information:

Go to: Product Details

Go to: Videos

Specifications

SKU K-600-03-04

Brand Enerdrive

Warranty Period: 5 Years

Product Category Batteries

Battery Voltage 12V

Amp Hours (ah) 600

Battery Length (mm) 521

Battery Width (mm) 280

Battery Height (mm) 238

Battery Weight (kg) 38.2

Nominal Voltage 12.8V

Nominal Capacity 300Ah

Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles

Battery Charge Temperature 0 ̴ 45°C

Normal Charge Voltage CV/CC* 14.20 ̴ 14.60V

Standby (Float) Voltage 13.50 ̴ 13.80V

Maximum Charge Current 190A @ 25°C for 30mins

Recommended Charge Current for Maximum Life 60~120A

Battery Discharge Temperature -20 ̴ 60°C

Battery Output Voltage Range 11.00 ̴ 14.60V

Maximum Discharge Current 250A @ 25˚C ±5˚C for 15 mins

Pulse Discharge Current 450A for 1.0s

Discharge Cut-off Voltage ≤11.20V

Over-Charge Protection Per Cell 3.90V ± 0.03V

Over-Charge Release Per Cell 3.60V ± 0.05V

Over-Charge Release Method Discharge below release voltage

Over-discharge Protection Per Cell 2.80V ± 0.05V

Over-discharge Release Per Cell 3.20V ± 0.05V

Over-discharge Release Method Apply Charge/Voltage ≥12.8V

Discharge Over Current 280A for 25s – 400A for 3.5s

Battery Manual Reset Button Yes

Protection Reset Time Approx 10s Auto Release

Over Current Release Method Disconnect Load

Battery Charge Over Temperature Protection to 55°C ± 5°C, Release at 45°C ± 5°C

Battery Discharge Over Temperature Protection to 65°C ± 5°C, Release at 50°C ± 5°C

Short Circuit Protection Auto release after 5s

Case Construction Hi Impact ABS Plastic

Temperature & Humidity Range ≤ 30 days -20°C ̴ 60°C, 5 ̴ 75% RH, ≥ 90 days -10°C ̴ 45°C, 5 ̴ 75% RH

Go to: Specifications

Go to: Reviews

Videos

Pro Series to B-TEC - The Next Step for Enerdrive

Go to: Videos

Go to: Q & A

Customer Reviews

Write a product review

Go to: Reviews

Go to: Warranty

Product Q&A

Ask Us a Question

Can I connect the Enerdrive B-tec Lithium Batteries in Parallel or in series?

Hi there,

You cannot connect any of the EnerdriveB-TEC batteries in series. You can however connect up to two only of the same size (ah) B-TEC batteries in Parallel. Enerdrive recommend that you only do this if you don't over load the max current of the internal BMS board from ONE OF THE BATTERIES.

Example. If you connect 2 x 200Ah B-TEC batteries then do not draw more than 200A of DC current from that battery bank, as one (1) single 200Ah B-TEC battery is only capable of handling 200A DC.

The main aim of connecting two (2) of the Enerdrive B-TEC batteries is not to increase your maximum DC current output, but to double your storage capacity.

Double the storage equals double the time you can stay powered up and off the grid.

Be sure to always consult the Enerdrive user manuals for correct cable sizing, fuse sizing and wiring diagrams.

We now sell an Enerdrive battery bundle with a parallel kit - please CLICK HERE to find it.
With charge capabilities of 0Â°-45Â° does the btec battery have built in protection to stay within these perameters? Or does the Enerdrive dcdc40 charger have these protections built in to safeguard the battery?

Hi There,

The BMS built in to the battery has over temperature protection.

It would be up to the user to make sure the battery is installed in an area where it should not be subject to temepratures under 0C and over 45C when being charged.
When putting Battery in its holding place, can i turn it on its side to slide it and then stand it upright

Hi There,

The Enerdrive Lithium Batteries are required to be stood upright. Enerdrive do not recommend placing them on their side at all, sorry.
