Morningstar TriStar MPPT 45 Amp Solar Controller

SKU: SR-TS-MPPT-45 Learn More»
Morningstar TriStar MPPT 45 Amp Solar Controller
Free Shipping
$1,151
$1,394

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Accessories

$89

Sold Out

$349

Click '+' to show more accessories
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

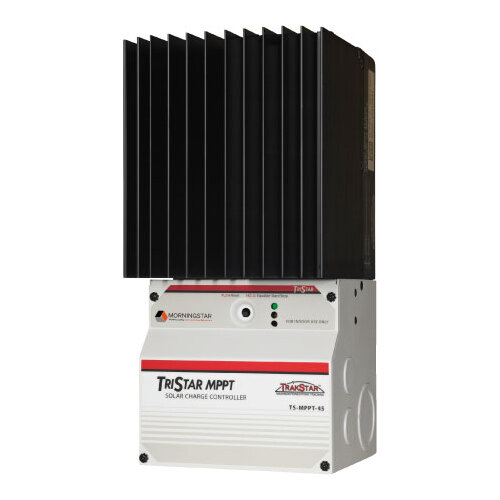

Morningstar TriStar MPPT 45 Amp Solar Controller, 5 year warranty. The Morningstar TriStar MPPT with TrakStar Technology is an advanced maximum power point tracking controller for off-grid solar systems up to 3kWp.

  • Maximizes Energy Harvest – Better peak power tracking than other MPPT controllers.
  • Very High Efficiency – the industry’s highest peak efficiency of 99% for off-grid charge controllers.
  • Extensive Networking & Communications – Enables system monitoring, data logging and adjust ability. On board Ethernet included on the TS-MPPT-60.


Product Manual

Specifications

SKU SR-TS-MPPT-45

Brand Morningstar

GTIN 9342616026885

Warranty Period: 5 Years

Product Category Solar Charge Controllers

Charge Current (A) 45

Nominal Voltage 12/24/36 or 48VDC

Amps 45

Weight (kg) 4.2

Dimensions (LxWxH mm) 291 x 130 x 142

Open Circuit Voltage Voc(V) 150VDC

Operating temperature range –40°C to +60°C

Efficiency 99% (Peak)

Battery Voltage Range 8 – 72VDC

Max. Battery Current 45A

Solar Rating 12V - 600Wp | 24V - 1200Wp | 48V - 2400Wp


Product Q&A

Ask Us a Question
  • Is this solar charge controller fully compatible as is with lithium (LiFePo4) batteries, or does it need to be specifically programmed to charge lithium batteries?

    Hi There

    This solar charge controller is compatible with Gel, AGM, and Lithium batteries.

    It is important to note at time of purchase what type of battery you have, so it can be programmed before being shipped.
