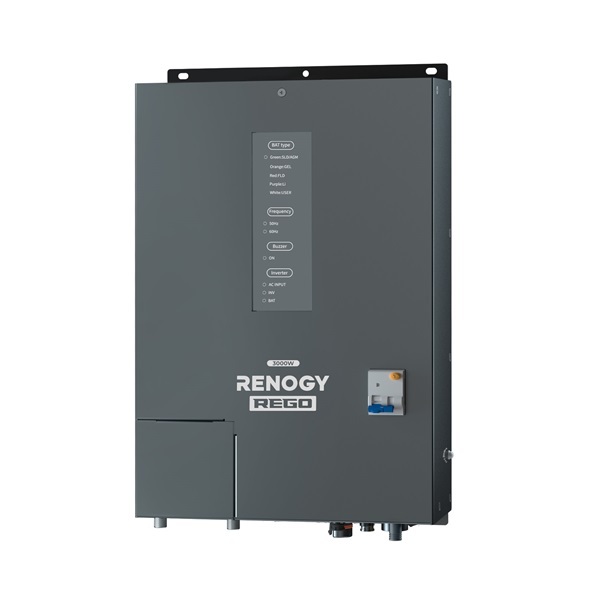

Renogy REGO 3000W Inverter Charger

SKU: RIV1230RCH-24S Learn More»

Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

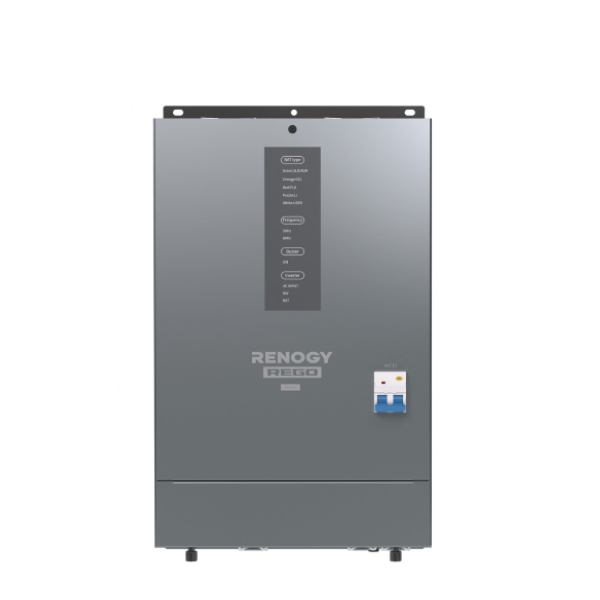

Renogy REGO 3000W Inverter Charger, 5 Year Warranty. The Renogy 3000W Pure Sine Wave Inverter Charger can be used for multiple applications when going off-grid. A power inverter is an electrical device that transforms the DC power stored in a battery bank into standard household AC power for a user's electronic needs. This device can also charge and maintain a battery bank when connected to shore power and now compatible with Lithium batteries. With a low transfer time, power remains uninterrupted when switching from solar to shore power. This creates clean and silent energy without having to worry about losing access to connected devices and appliances. The Renogy 3000W Pure Sine Wave Inverter Charger is a perfect back-up power source!

Features:

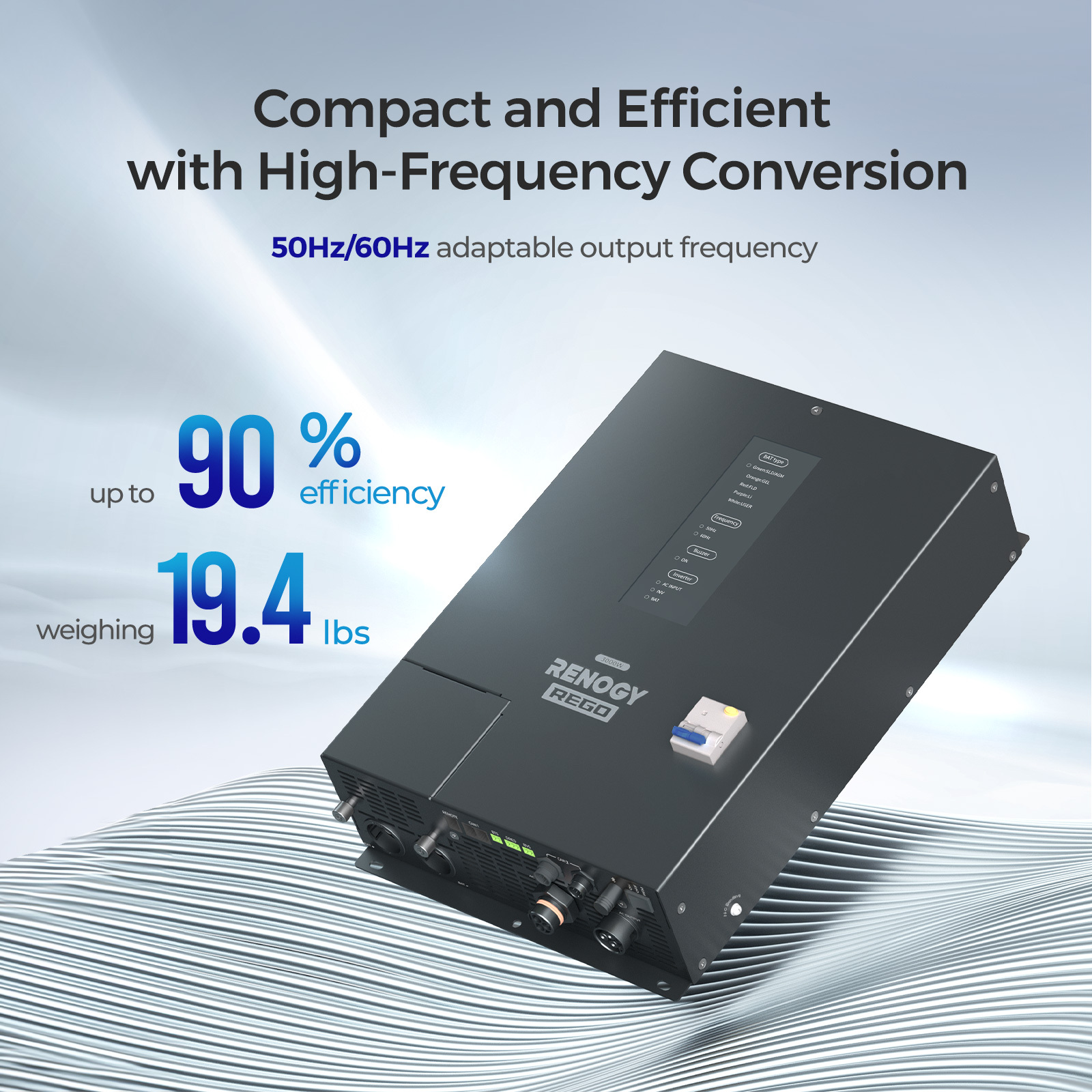

High Performance & Efficient Design: Robust, sleek design with peak efficiency over 90% and high-quality waveform with minimal harmonic distortion.

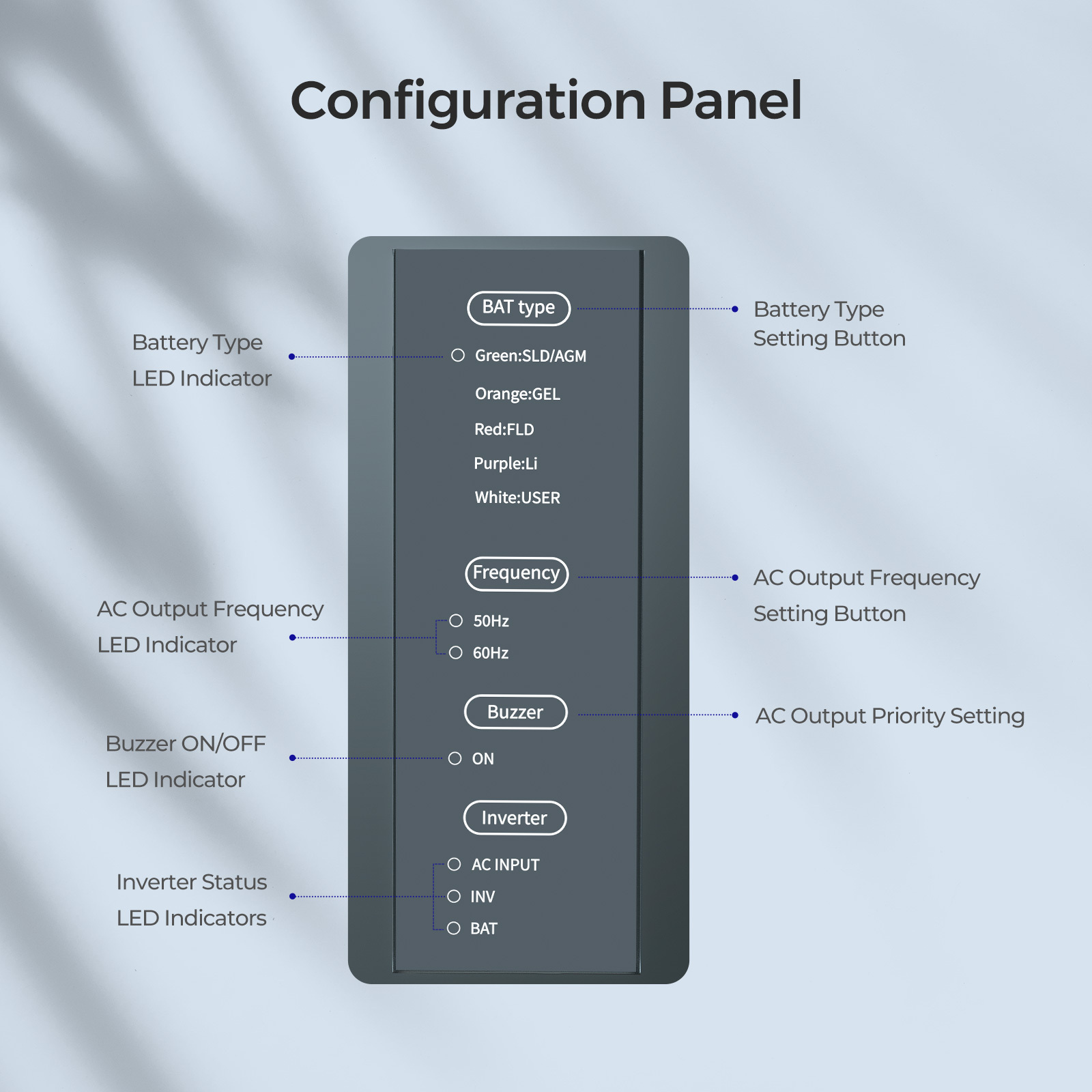

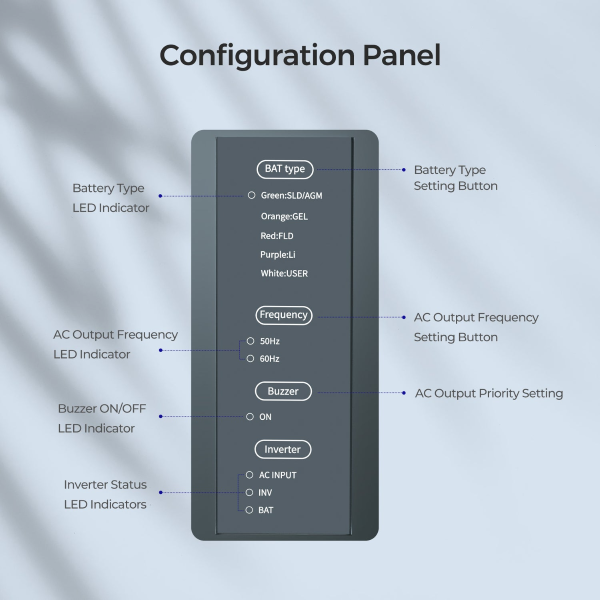

Advanced Battery Charging & Compatibility: 4-stage battery charger with configurable charging current and 8 pre-set battery voltages, including Lithium, with a user-defined option.
Automatic Generator Starter & RV-C Support: Features automatic generator start option and supports RV-C communication with over-the-air (OTA) software updates.

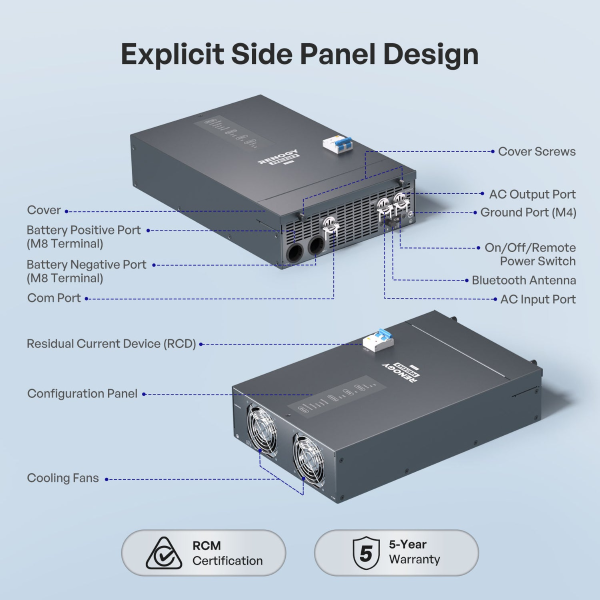

Multiple Protections & Continuous Bypass: Equipped with multiple electronic protections and a built-in 16A AC transfer relay with 14A continuous bypass capability.
Bluetooth Monitoring & Control: Built-in Bluetooth for easy connection to the DC HOME app, enabling monitoring and control from your smartphone.

Includes:

REGO 12V 3000W HF Inverter Charger
Wired Remote Control
Dry Contact Relay Connector
Grub Screws
User Manual

Go to: Product Details

Go to: Reviews

Specifications

SKU RIV1230RCH-24S

Brand Renogy

GTIN 840315229020

Warranty Period: 5 Years

Product Category Power Inverter Chargers

Wattage (W) 3000

Short Circuit Protection Software Protection & RCD

Charger Current 5A to 150A adjustable

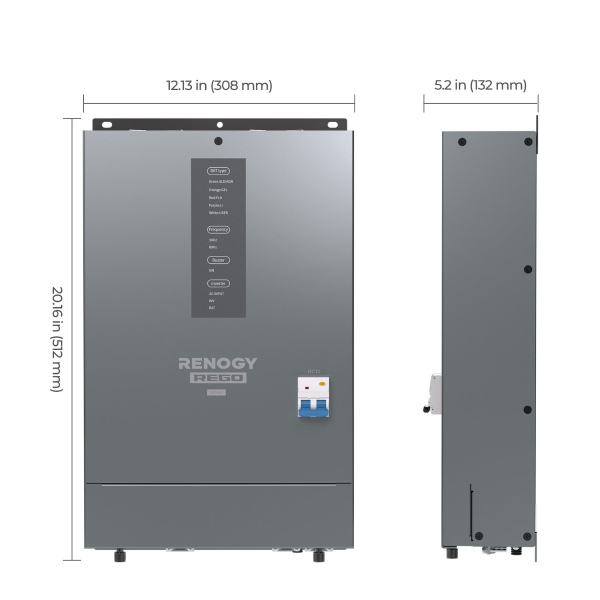

Dimensions 512 x 308 x 132mm

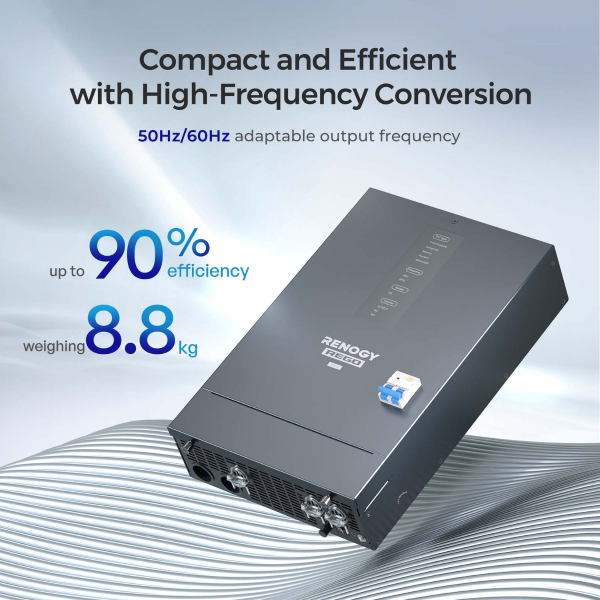

Maximum Charging Efficiency 90%

Nominal Efficiency 90%

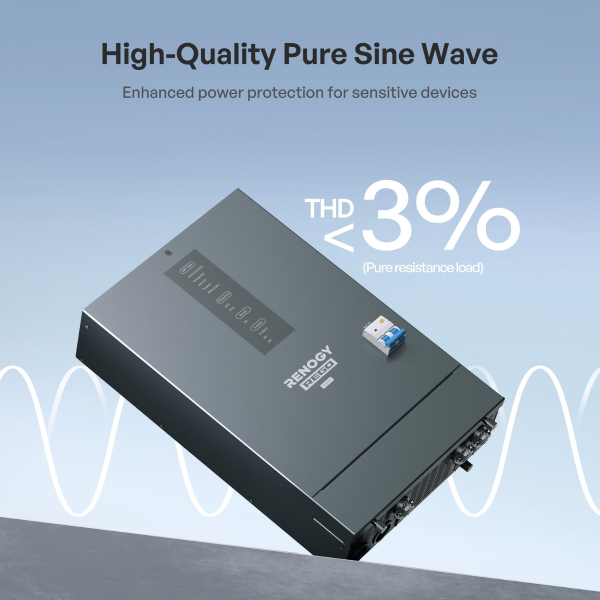

Total Harmonic Distortion <3% (Resistance Load)

Surge Power 9000VA

Rated Power Output 3000W

Continuous Power 3000W

No load power consumption < 26W (Normal)

Connection Built-in Bluetooth / RV-C

Output wave form Pure Sine Wave

Input Voltage 9V to 17V DC (±0.3V) (Full load 11V to 15.8V DC)

Operating temperature range -20°C to 60°C

Weight (kg) 8.8

Go to: Specifications

Go to: Reviews

Product Q&A

Ask Us a Question

Which types of batteries are compatible with this inverter charger?

It supports lithium (LiFePO4), GEL, flooded, SLD, and AGM batteries.
What is the maximum output power of the inverter charger?

It delivers a rated output of 3000W, with a surge capacity of up to 9000VA for 1 second, 4500VA for 3 seconds and 3600W for 10 seconds. Keeping in mind ambient temperatures can affect output
What is the inverter's transfer time between grid power and batteries?

The transfer time is a maximum of 20 milliseconds, ensuring uninterrupted power supply.
Can this device be installed outdoors?

No, the inverter charger must be installed indoors in a dry, ventilated area, away from direct sunlight and flammable substances.
How much does the Renogy Revo inverter charger draw with no load?

The Renogy Revo Inverter Charger will draw 10w when in sleep mode, with no load.
