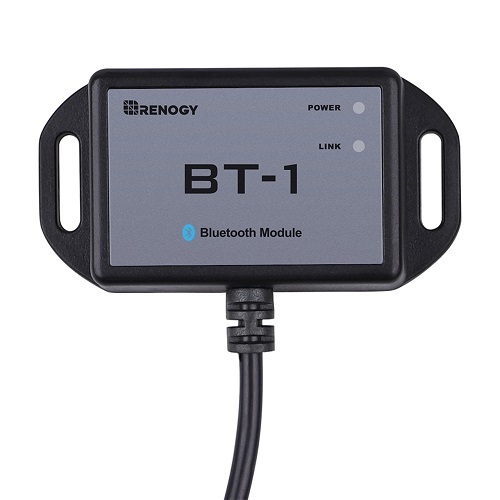

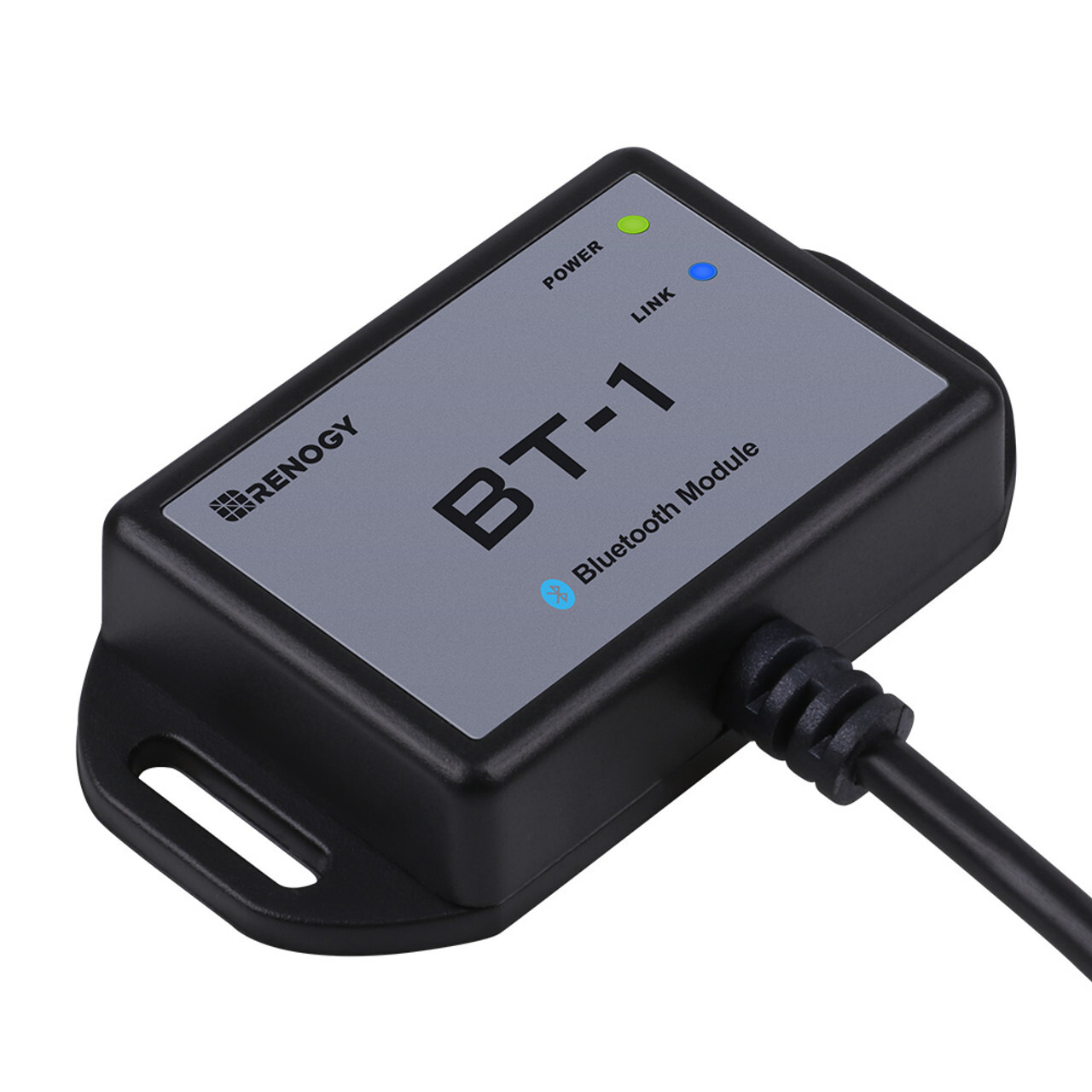

Renogy BT-1 Bluetooth Module for Renogy Products with RS232 Port

Product Description

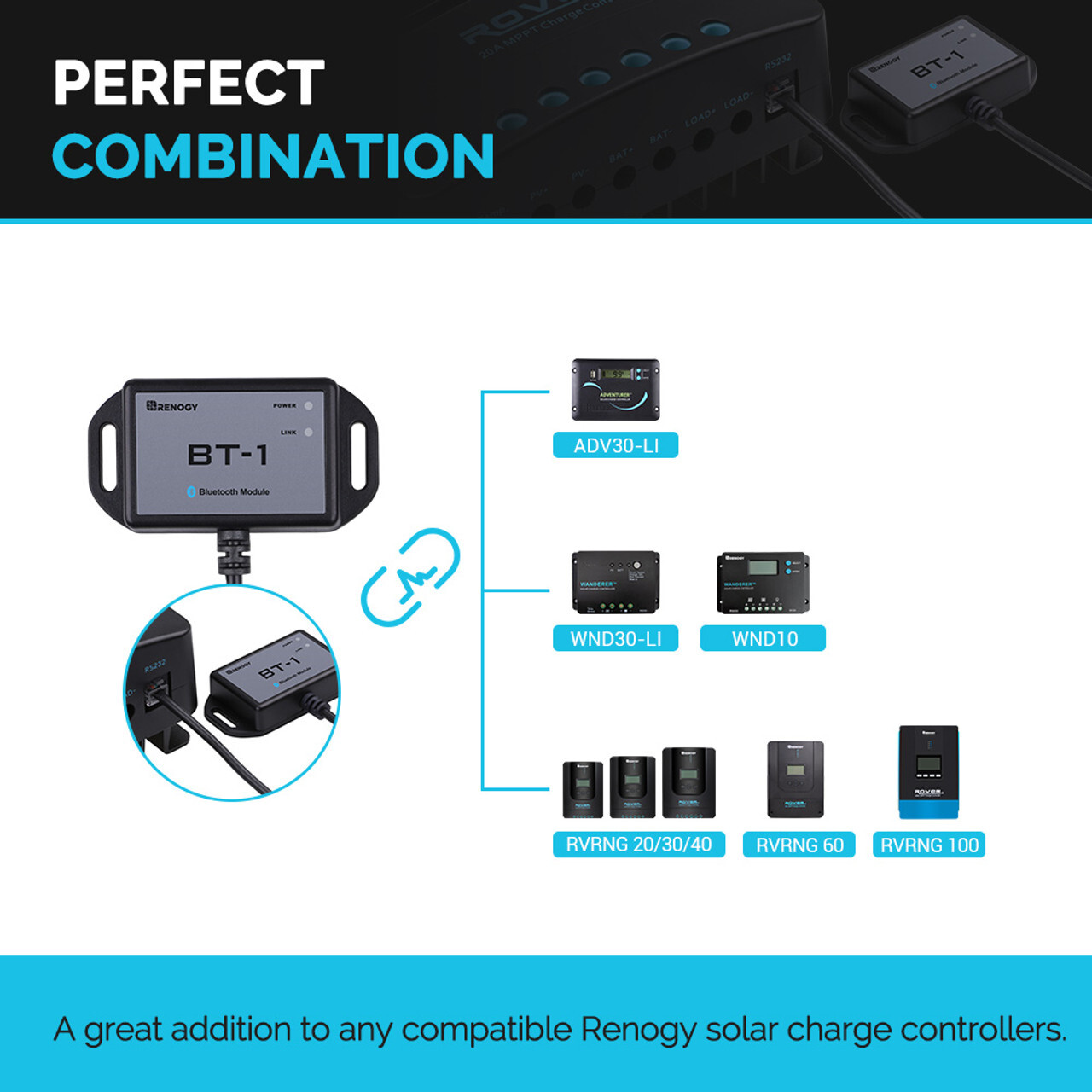

Renogy BT-1 Bluetooth Module for Renogy Products with RS232 Port, 1 Year Warranty. The Renogy BT-1 is a great addition to any compatible Renogy solar charge controller. Powered by its RJ12 communication port, the BT-1 provides wireless monitoring of system data through the Renogy DC Home smartphone App. And allows users to change parameters when using the Renogy DC Home smartphone App.

Features:

• Wirelessly monitor and control compatible solar charge controllers via Bluetooth.
• Connects to our user-friendly smartphone App, Renogy DCHome, to keep track of your system.
• Embedded exclusive Bluetooth chip with high efficiency and low energy consumption.
• Bluetooth 4.2 and BLE technology provide fast and uninterrupted communication.

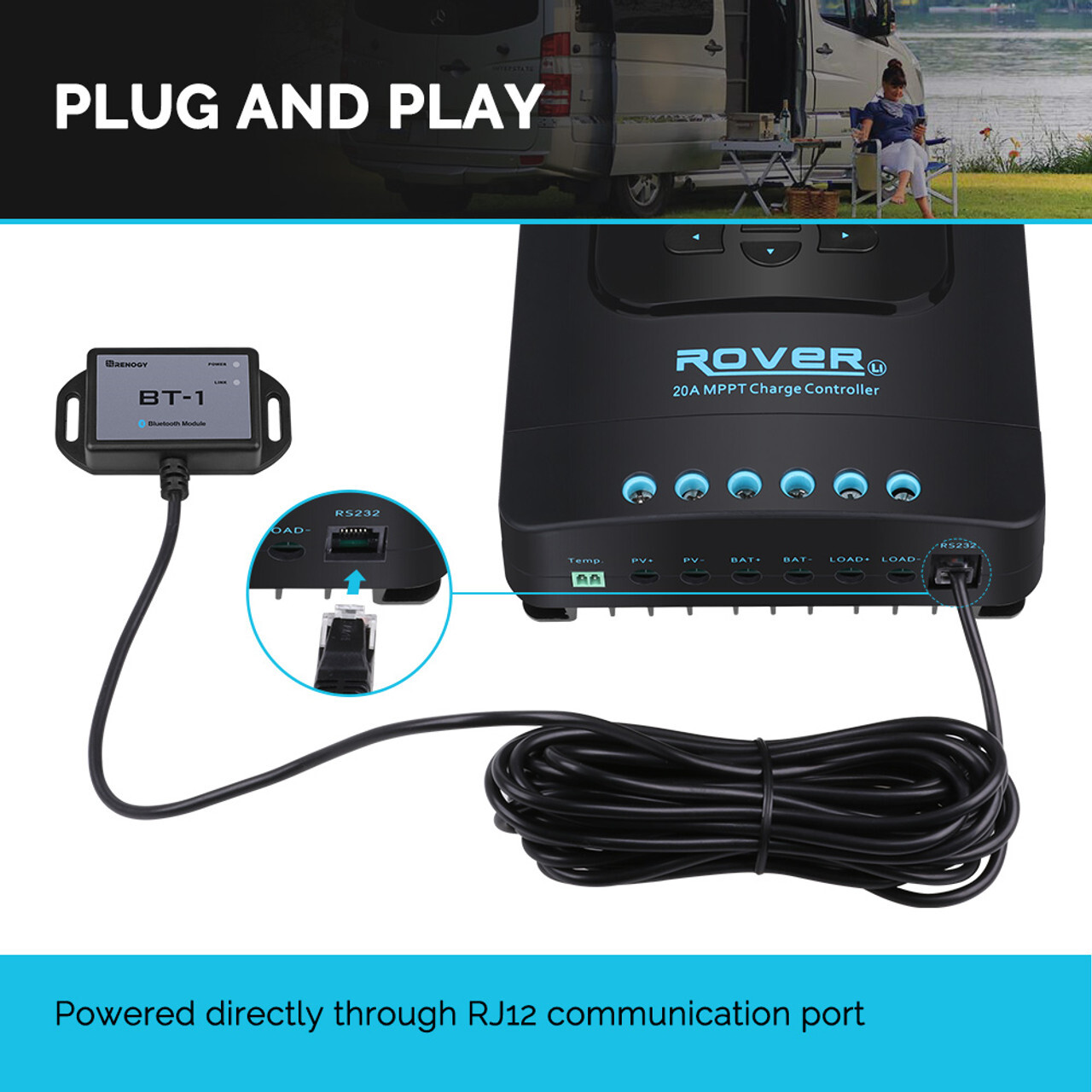

• Powered directly through RJ12 communication port.
• Signal range up to 82ft.

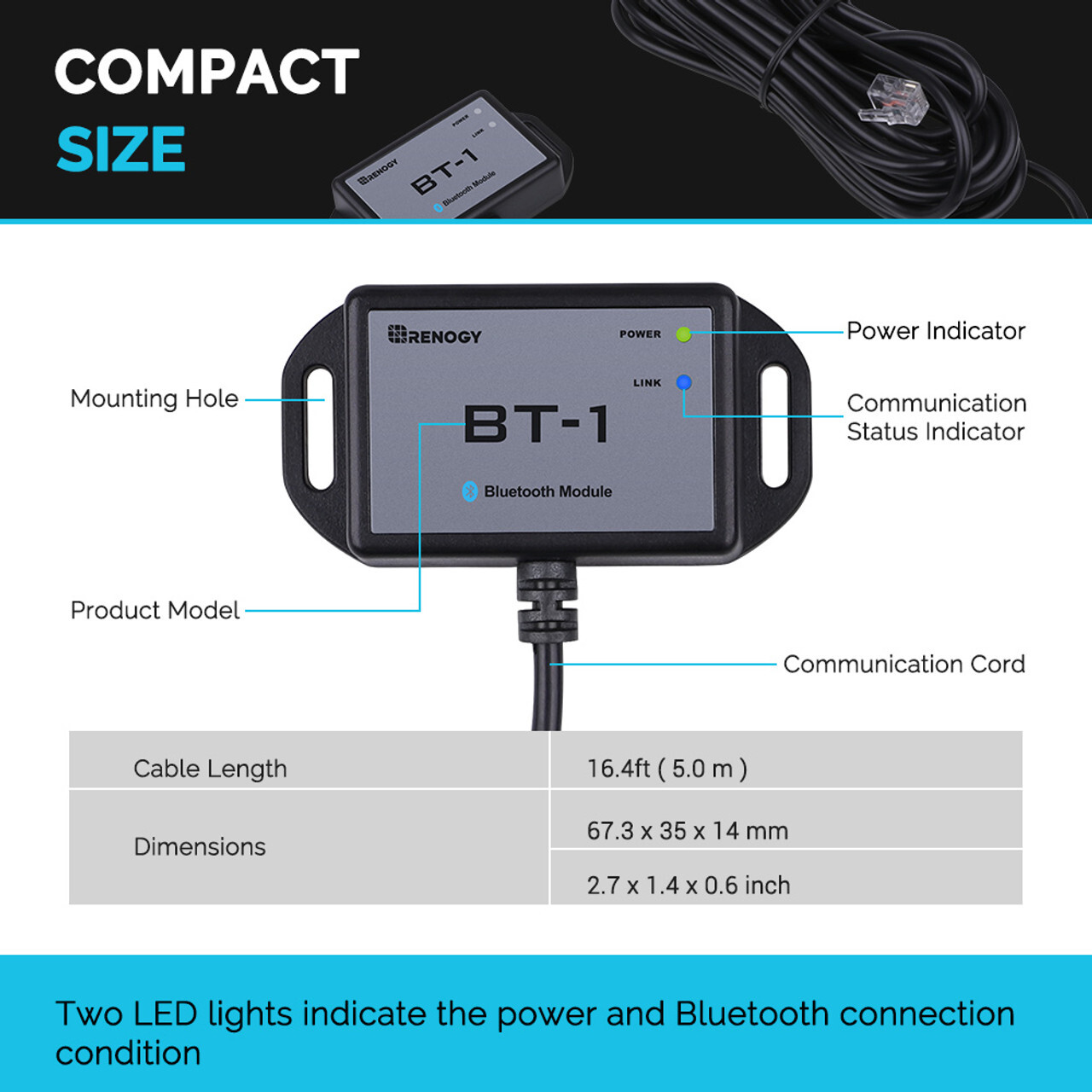

• Two LED lights indicate the power and Bluetooth connection condition.

Specifications:

• Communication Protocol: RS232
• Port Type: RJ12
• Input Voltage: 12V
• Protection Grade: IP54
• Standby Power Consumption: 0.04W
• Operating Power Consumption: 0.05W
• Communication Range: ≤82ft
• Serial Baud Rate: Fixed Baud Rate 9600bps
• Cable Length: 5.00 m (16.4 ft)
• Installation Dimensions: 67.3 φ3.5mm（2.66 φ 0.14in）
• Operation Temperature: -20℃~85℃
• Dimensions: 67.3 X 35 X 14 mm
• Weight: 130g
