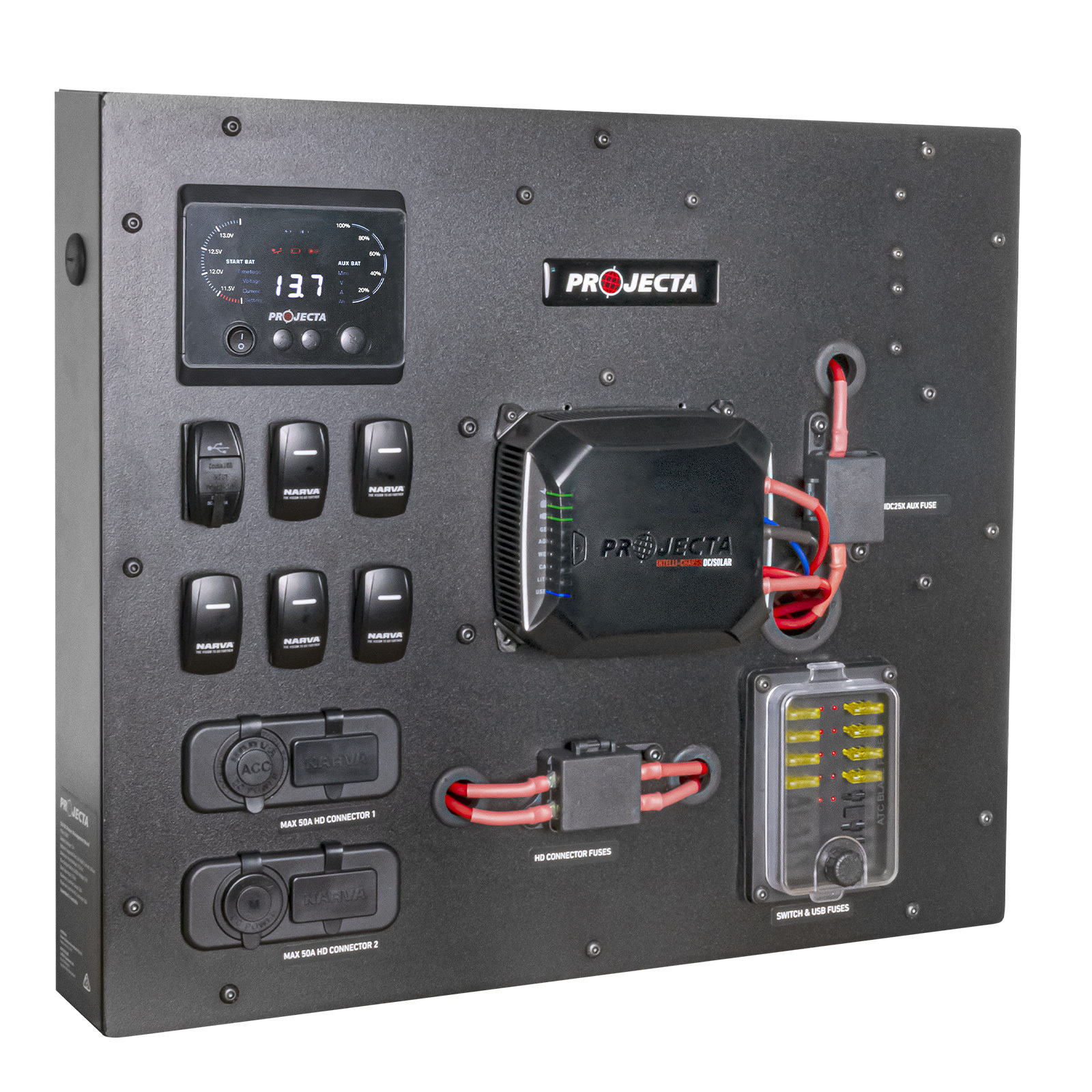

Projecta 12V 25A DC Power Management Board

Product Description

Projecta 12V 25A DC Power Management Board, 5 Year Warranty. A premium pre-built all-in-one DC power board, ideal for ute canopies and tray bodies. For ease of fitment, the unit is pre-wired enabling a quick and professional installation.

Features:

• DC-DC CHARGER (IDC25X): Providing a 3 or 5 stage charge simultaneously from both solar and alternator inputs, this dual battery management system is ideal for many applications
• BATTERY MONITOR (BM500-BT): An intelligent and compact battery meter ideal for monitoring SOC% and general status
• SOCKETS & SWITCH PANEL: Power and charge 12V devices with 3.1A USB sockets, a merit socket and a cigarette lighter socket. 5 switches are included to control all your connections
• HEAVY DUTY INPUT/OUTPUTBATTERY CONNECTORS: 50A Heavy duty connectors allow connection to appliances and to external
  solar
• CIRCUIT PROTECTION: 100A Heavy duty circuit breaker with manual reset and 10-way 25A max fuse box. Can be used to isolate the whole board from the battery

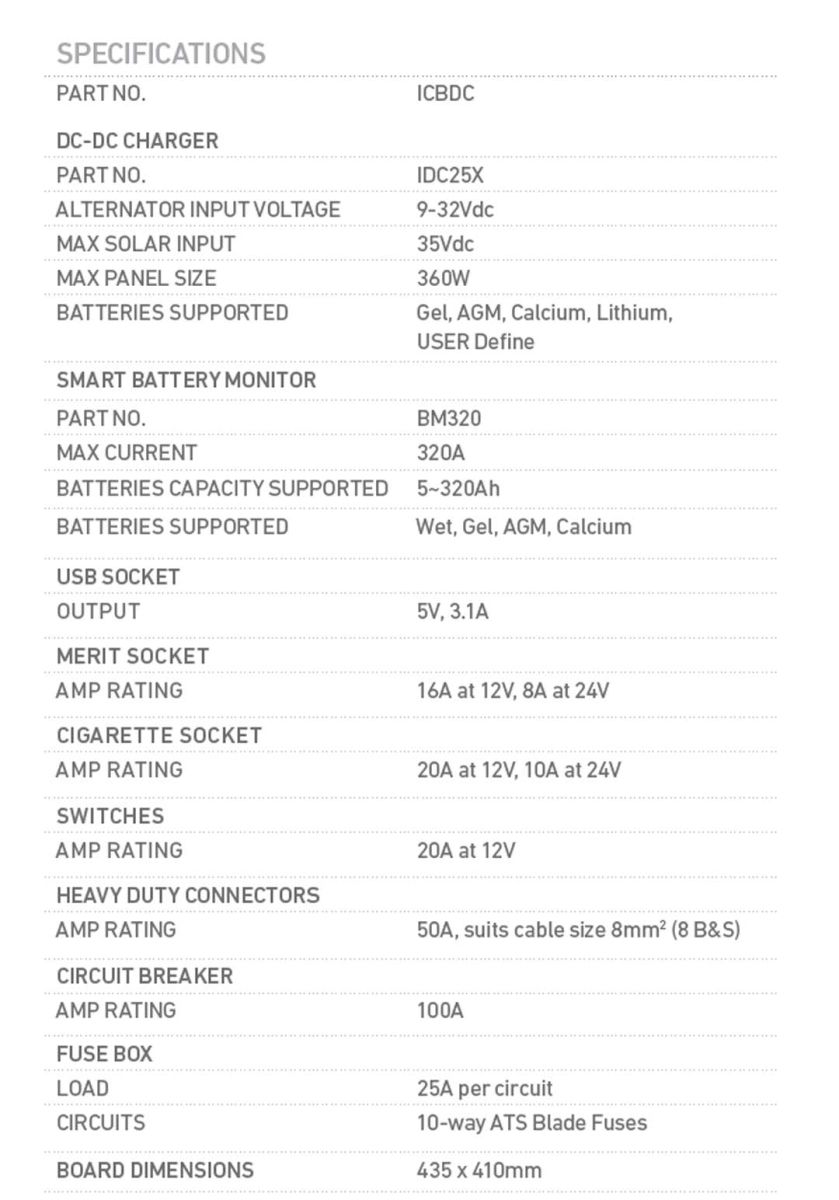

Specification:

DC-DC Charger:

• Input Voltage: 9-32Vdc
• Maximum Solar Input: 35Vdc
• Maximum Panel Size: 360W
• Batteries Supported: Gel, AGM, Calcium, Lithium

Smart Battery Monitor:

• Maximum Current: 320A
• Batteries Capacity Supporte: 5~320Ah
• Batteries Supported: Wet, Gel, AGM, Calcium

USB Pocket:

• Output: 5V,3.1A

Meri Socket:

• Amp Rating: 16A at 12V, 8A at 24V

Cigarette Socket:

• Amp Rating: 20A at 12V, 10A at 24V

Switches:

• Amp Rating: 20A at 12V

Heavy Duty Connector:

• Amp Rating: 50A, suits cable size 8mm² (8B&S)

Circuit Breaker:

• Amp Rating: 100A

Fuse Box:

• Load: 25A per circuit
• Circuits: 10-way ATS Blade Fuses

Board Dimensions: 435mm x 410mm
