Exotronic 200W Portable Folding Solar Panel with 20A MPPT Solar Controller

Product Description

Exotronic 200W Portable Folding Solar Panel with 20A MPPT Solar Controller, 5 Year Warranty.

Foldable Solar Panel.

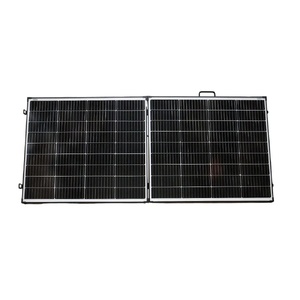

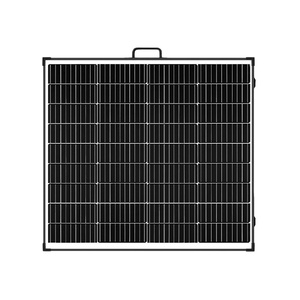

When camping, parking under shade, or need access to free power to charge your battery, Exotronic has you covered with a strong but small form-factor foldable glass solar panel solution.  The 200W briefcase is made up from two 100W solar modules using Trina half-cut 23% PERC monocrystalline solar cells with 9-wire busbars to maximise module efficiency.

Weighing only 11.2kg, this panel can be manoeuvred with minimal effort.

Each folded section is wired independently, so if one side is shaded the other side will still operate.

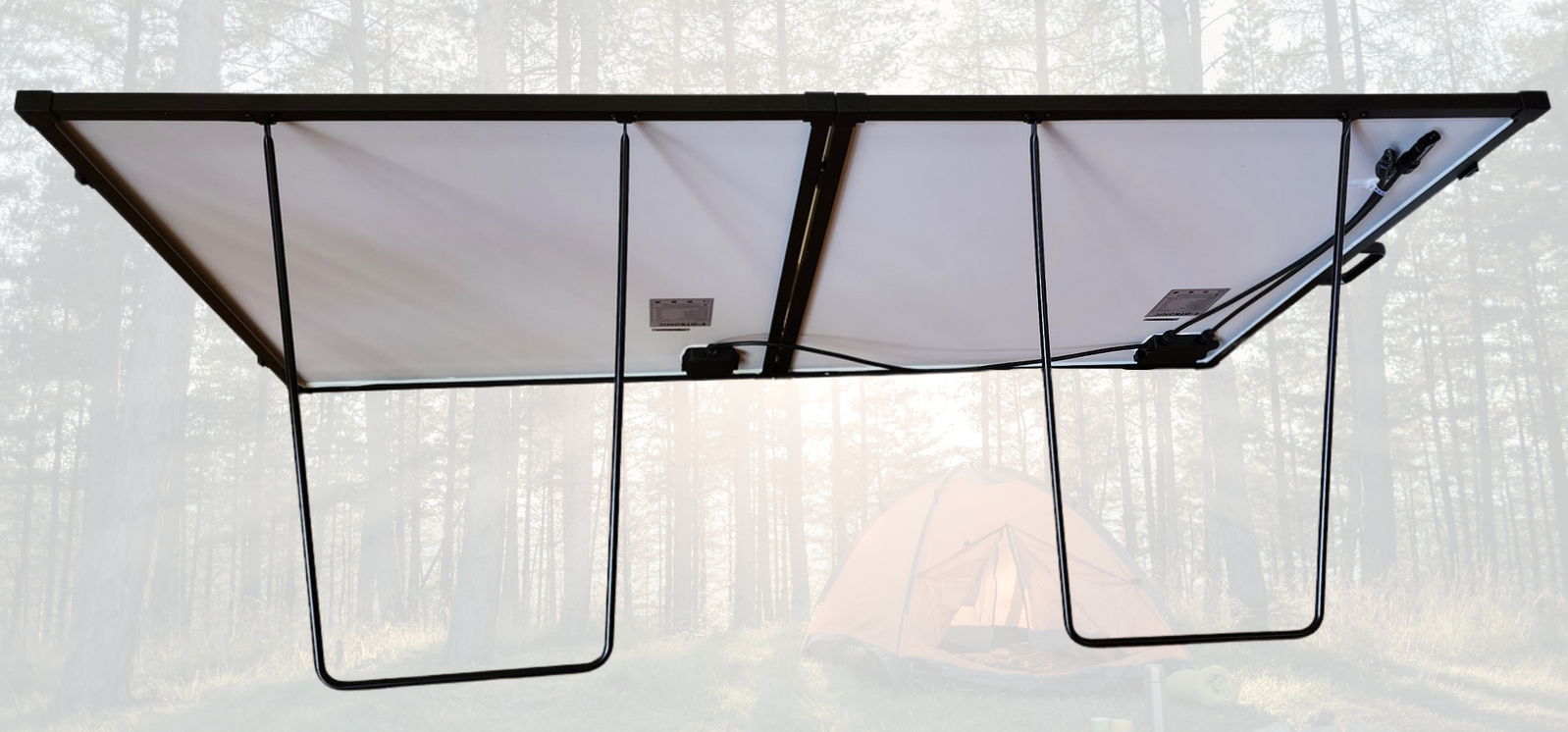

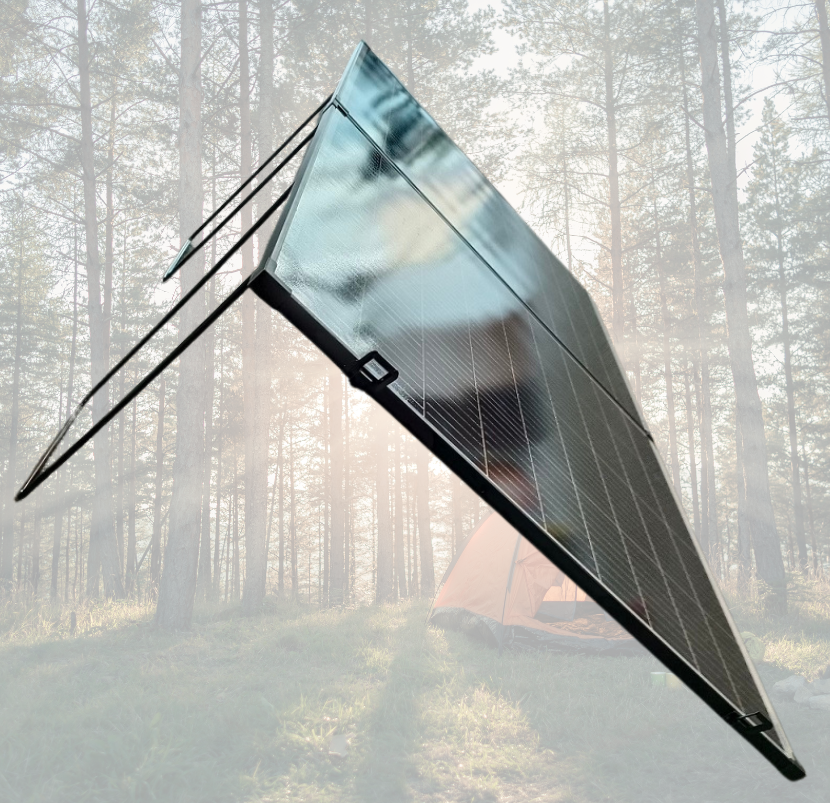

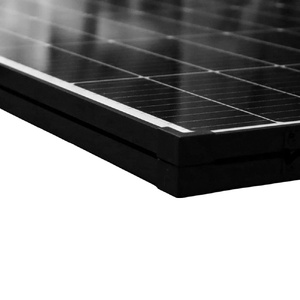

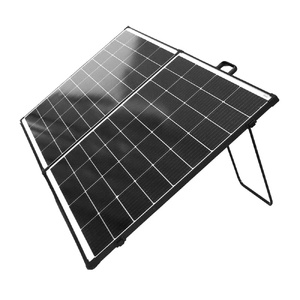

These modules include bumpers on the corners and fold-away legs,

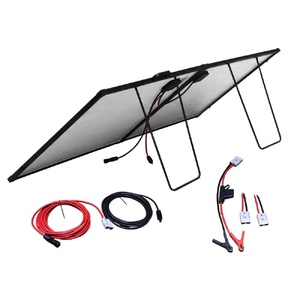

Also included is an array of premium quality cables to suit any situation:

• 5m 4mm2 PV1-F heavy duty tinned copper (marine) MC4 to 50A grey Anderson cable between the solar panel and solar charge controller (this can be connected directly to your existing DC-DC charger solar input or solar controller) - do not connect the panel directly to a battery without a controller
• 2x 50A grey Anderson tails, to connect to your existing MPPT or PWM solar controller
• Alligator to 50A grey Anderson with 30A fuse (this can be used to jump start a lithium battery BMS or charge a starter battery when needed)

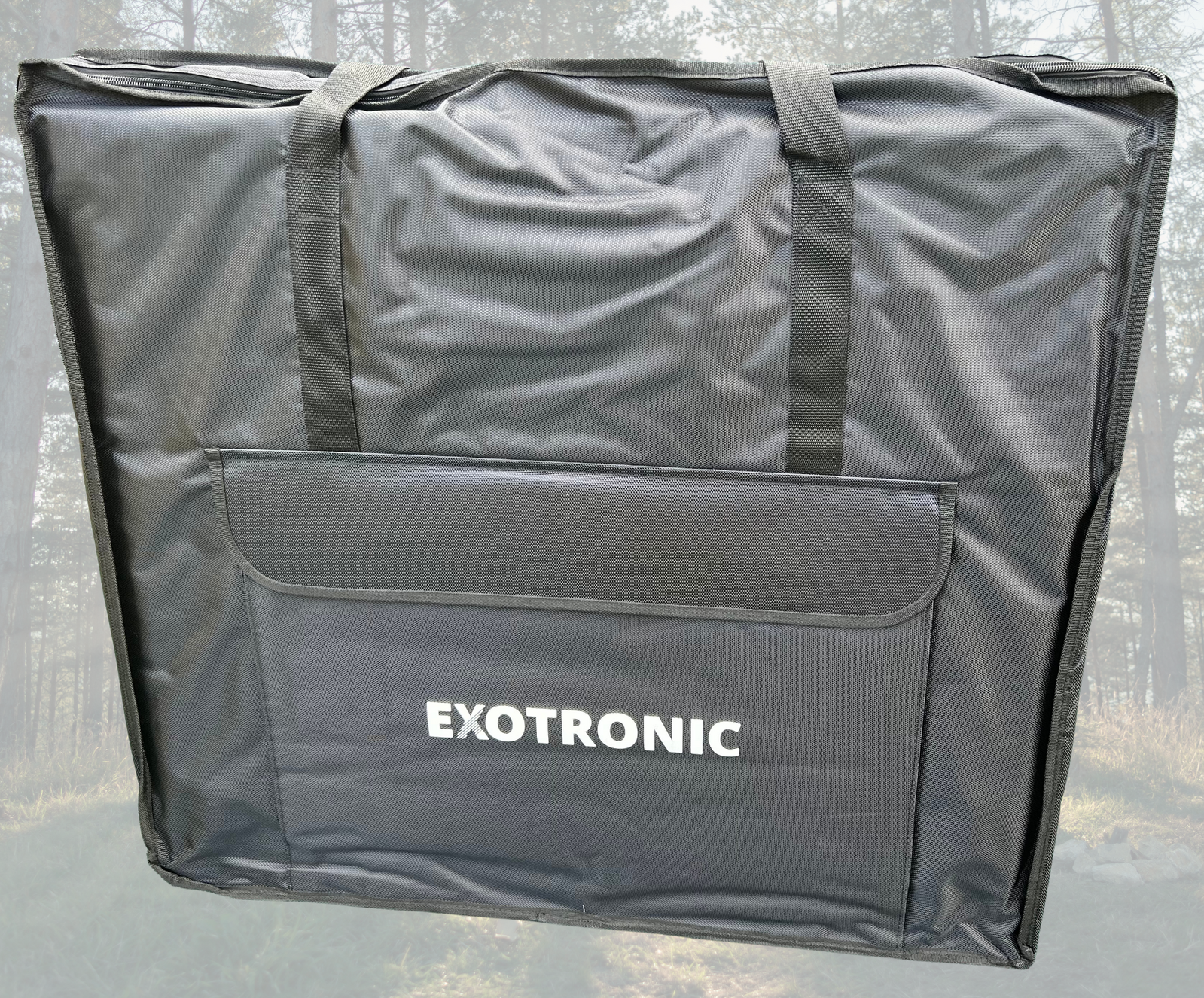

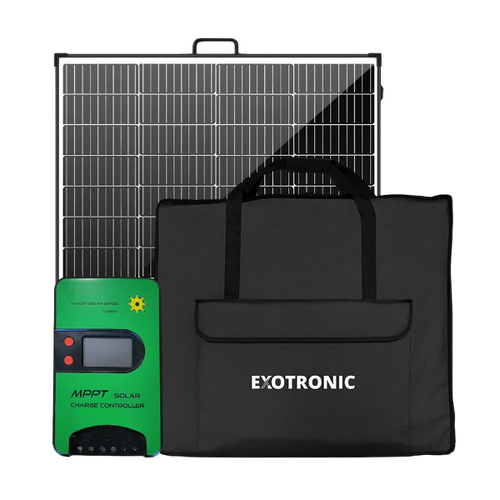

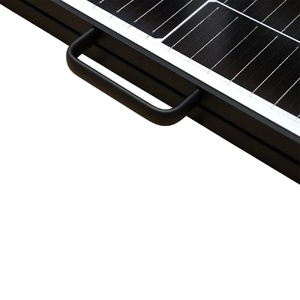

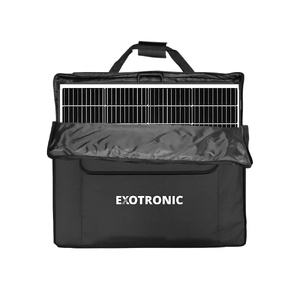

The included padded canvas bag helps protect the solar module from scratches when stored away and includes a carry handle and pocket to store the cables and controller when not in use.

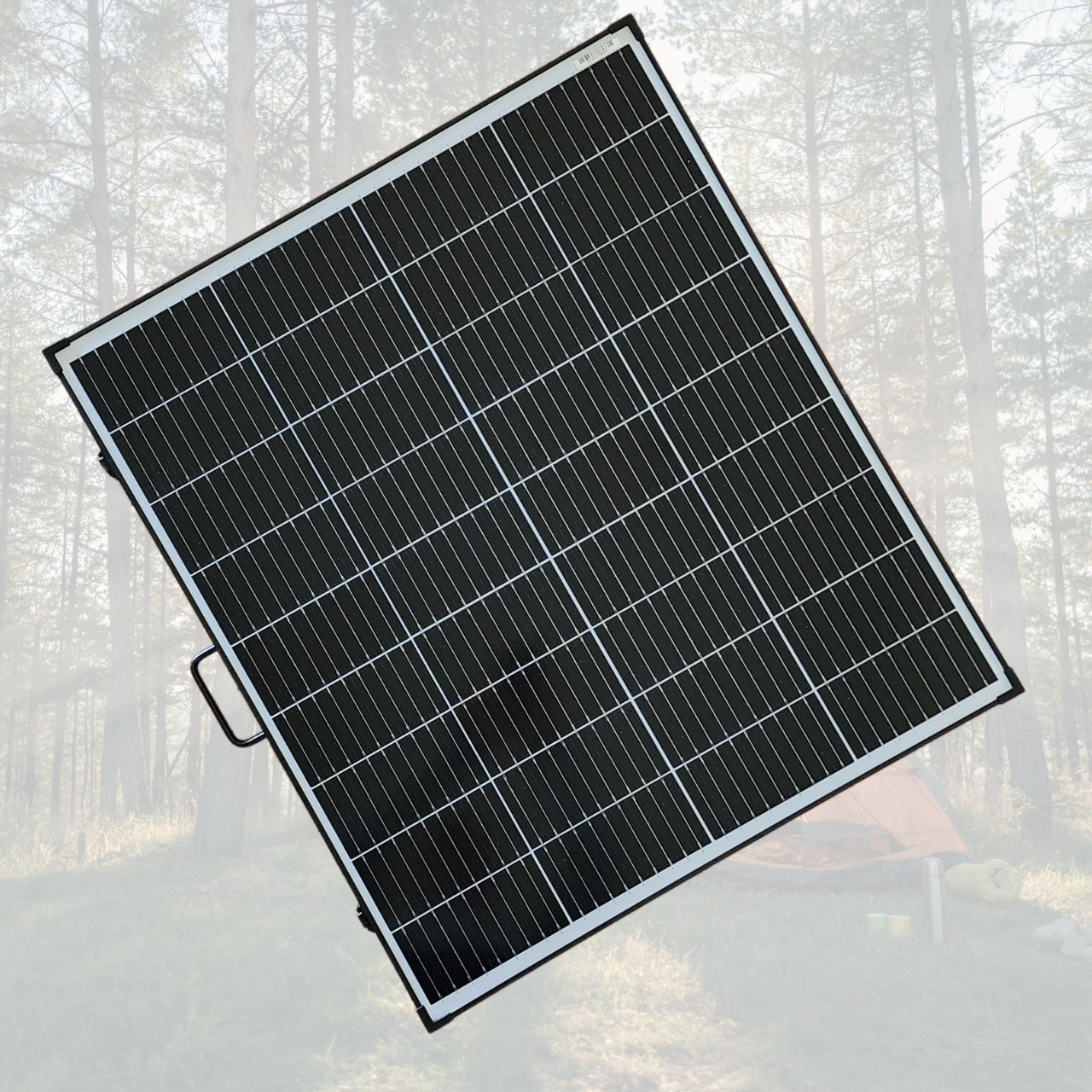

Using 23% efficient Trina monocrystalline passivated emitter rear contact (mono-PERC) square cut cells and the latest 9-wire bus-bar low-loss design, these panels achieve a high efficiency with a positive power tolerance.

PERC cells provide better performance in low light applications compared to traditional monocrystalline silicone designs as some of the light that passes through the cell is bounced back and converted into electricity.

The 9-wire busbar decreases the resistance of the module and carries current evenly over the whole surface of the cells to ensure that all there are minimal power losses within the module and significantly reduces uneven cell heating and hot spots.

Solar Charge Controller.

For best performance and safety of the solar controller, place the solar controller near your battery under cover, this reduces heat transfer from the MPPT to the solar panel and vice-versa.

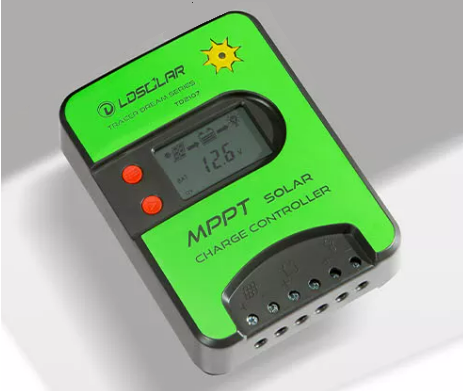

Tracer Dream 75V Bluetooth Series adopts MPPT technology. Using a 32 bit CPU, stability and speed can be guaranteed. Based on the synchronous rectifier technology, the transfer efficiency of circuit is increased up to 98.5% and the Pmax tracking accuracy up to 99.5%. So our MPPT can trace the accurate Pmax in the shortest time, even when the sunlight changes rapidly. It can perfectly handle extreme weather or weak sunlight.

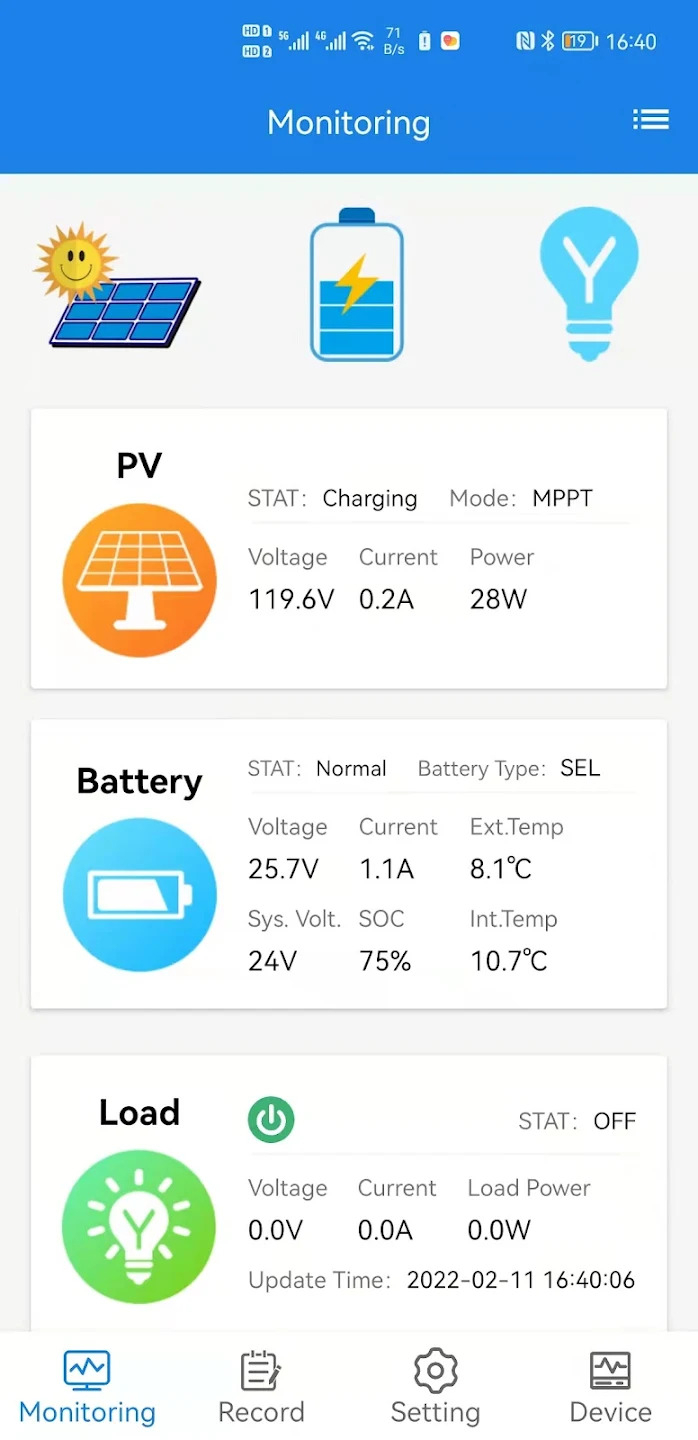

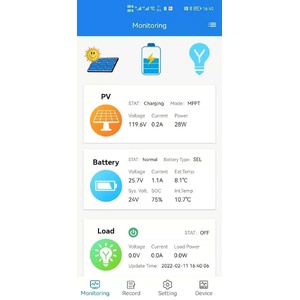

• Download the Bluetooth App on your Apple or Android – or search LD iConnect. – Default password 1234
• Advanced MPPT technology, fast and stable. Tracks the Maximum Power Point, the tracking accuracy is up to 99.5% efficient
• Adopting Synchronous Rectifier Technology, significantly improving the transfer efficiency of circuit, up to 98.5% efficient
• Accurately identifying and tracking the multi peak power point function PV array limited power input function, to ensure that the controller does not overload operation under any conditions
• Wide range of Maximum Power Point of PV array, Maximum PV input Voltage 75V.
• 12/24VDC system voltage automatic recognition
• Humanized LCD display, dynamic display operation data and working state
• Built-in operation log
• Multi load control mode: Normal Mode, Sensor Mode and Timer
• 3 stages charging mode with multiple chemistry modes: Sealed, Gel, Flooded, Lithium and many user adjustable settings (Default Lithium)
• Temperature Compensation Function
• Accumulation function of charging and discharging, actual time display power generation function
• Fullest digital protection functions: Reverse connection, Overcharging, Over-discharging, Overvoltage, Overload, Short circuit and more
