Enerdrive ePRO Inverter / Charger 1600W

SKU: EPC-1600-12-KIT Learn More»
Enerdrive ePRO Inverter / Charger 1600W
Free Shipping
$2,679
$3,190

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Learn More»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

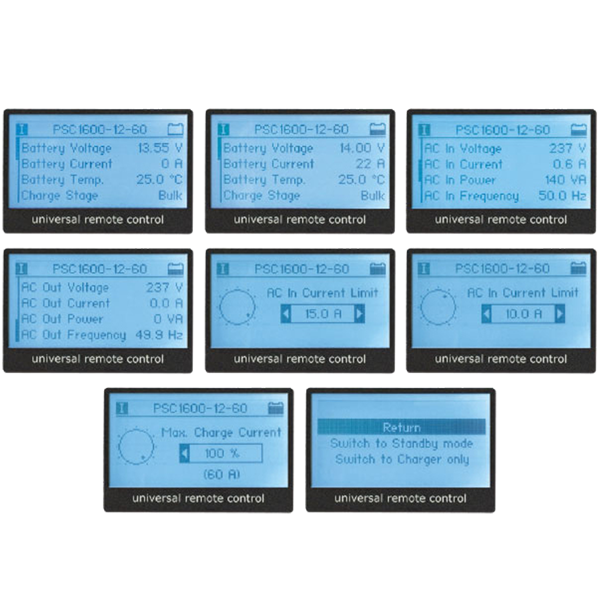

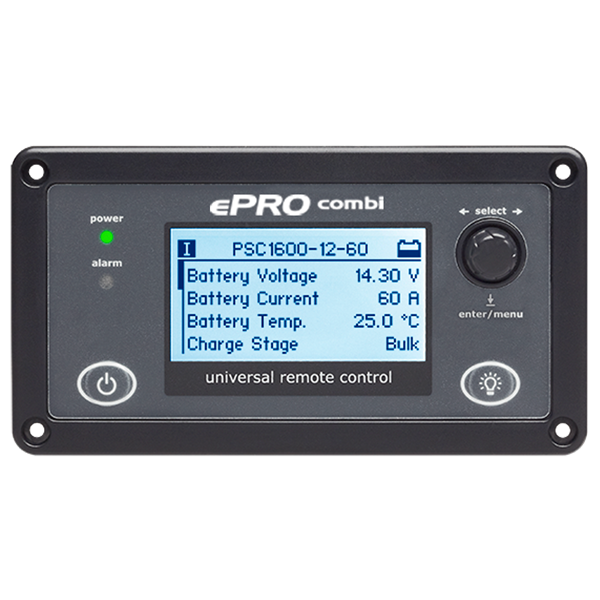

Universal Remote Control and Cable

Kit includes: Universal Remote Control and Cable

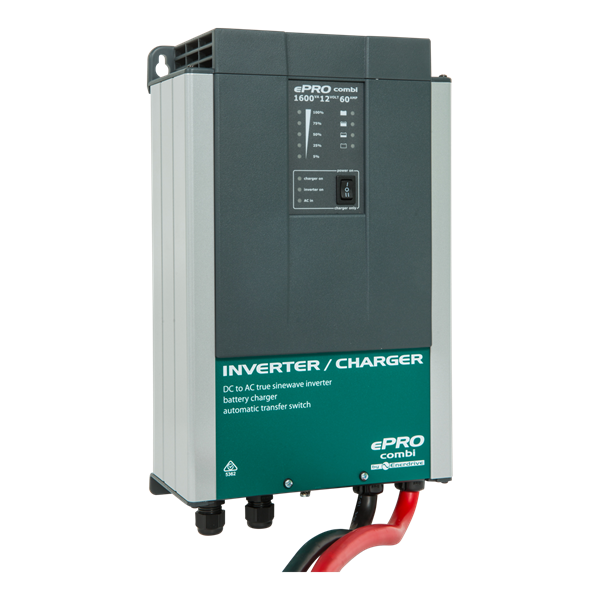

Enerdrive ePRO Inverter / Charger 1600W.

The main task of the ePRO Combi Inverter Charger is to act as an uninterruptible AC power supply (UPS). In case of a grid/generator failure or disconnection, the ePRO Combi immediately stops charging the battery, releases the AC transfer switch and activates the inverter which takes over the supply to the connected loads. All this is achieved so fast, that even very critical loads like computers will continue to operate without any problems. In case the grid/generator is reconnected again and the voltage and frequency are within acceptable limits, the ePRO Combi activates the AC transfer switch and battery charger again, while deactivating the inverter. The connected loads are now supplied again by the grid/generator without any interruption.

Available in 12v, 24v or 48v models and ranging in sizes from 1600-3500w inverter output and 35-120A charger output, the ePRO Combi has a unit to suit nearly any application.

Additionally, the ePRO Inverter Charger offers features like :

  • AC Input Power Boost, which temporarily assists weak AC input sources when the connected load needs more power than available from the grid or generator.
  • AC Input Current Limit, which limits the maximum current consumed from the AC input source by the ePRO Combi. This limit is user adjustable.
  • Power Factor Corrected AC Input, which optimizes energy efficiency and makes sure that the maximum amount of charging current is available from your AC source.
  • Intelligent 4-stage charge programs, user programmable to fit any battery type.
  • Fully programmable inverter, transfer switch and battery charger parameters, using the Dashboard for Windows software.
  • Programmable alarm relay, for optimal control of external devices like generator starting or selective load disconnection.
  • Freely assignable trigger input, which allows the user to control the ePRO Combi by external events.
  • Temperature controlled fans, to guarantee silent operation under less than full load conditions.
  • Temperature compensated battery charging, using the standard supplied battery temperature sensor for maximum battery lifetimes.
  • When installation space is at a premium, but maximum performance is required then look no further than the ePRO Combi range. With so many internal features the ePRO Combi will provide you with all the requirements for on-board power along with:
  • AC Input Power Boost – The ePRO Combi is capable of temporarily assisting weak AC input sources when more power is needed than available (i.e. from small generators). This is beneficial when larger loads than both the generator or the inverter on their own could support; so let the ePRO Combi combine both of the AC sources for maximum load support capability.
  • AC Input Current Limit – For those times when you have limited AC supply (i.e. portable generators), you can set the ePRO Combi to only charge at a maximum rate.
  • Alarm Output Relays – Providing full configuration options for the alarm contacts PLUS convert external trigger commands into a number of ePRO Combi status changes.
  • Also available on the larger 2000-3500w Combi’s are two fully configurable 16A 230v alarm relay outputs for controlling large AC loads like air conditioning. Along with two unique trigger inputs, it gives the end user virtually unparalleled control of their Enerdrive ePRO “Power Station”.
  • 5 Year warranty.
Enerdrive Product Brochure
Enerdrive Product Manual
Enerdrive Installation Guide

Specifications

SKU EPC-1600-12-KIT

Brand Enerdrive

GTIN 9342616017036

Warranty Period: 5 Years

Product Category Power Inverter Chargers

Output Current Rating (Amps) 60

Wattage (W) 1600

Charger Mode Charge Current 60A (max)

Optional Accessories optional cables and controls

Output Voltage and Frequency 230 Vac ± 2% / 50 Hz ± 0.05%

Included Kit includes: Universal Remote Control and Cable. DC Connections: Two wires, length 1.5 meters, 50 mm. AC Connections: Screw terminals

Product Dimensions (mm) LxWxH 351 x 210 x 114mm

Max input AC voltage 185 – 270 Vac / 45 – 65 Hz / PF > 0.95

Output wave form True sinewave (THD < 5% 1 @ Pnom)

Peak power 2500W (surge)

Net Weight (kg) 10.7

No Load Battery Draw <10 W [2.0 W]

Power 1300 - 1600W continuous

Input Voltage 12V (± 3% tolerance)

NOTE For further specifications and performance details, please download the PRODUCT BROCHURE under our Product Details tab


Videos

Exploring The Enerdrive BMS Found Internally In Their Lithium Batteries



Product Q&A

Ask Us a Question
  • Can these chargers take solar input?

    No, the battery charging component is an AC input, meaning only AC power (mains power) can charge through this unit.
