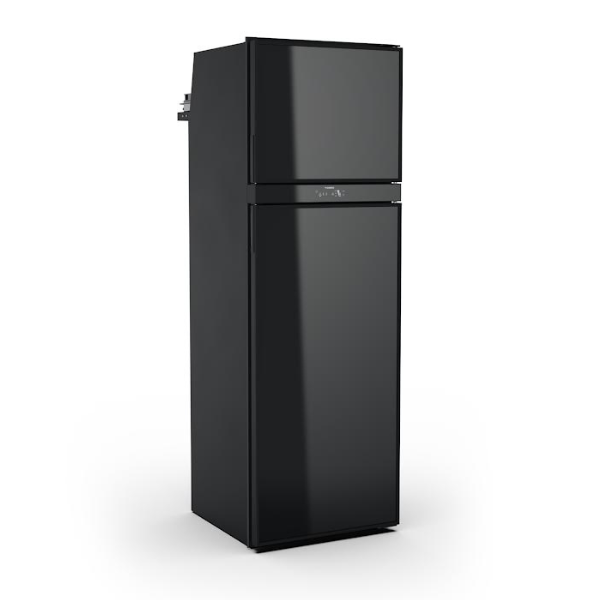

Dometic RUC6404X 180 Litre Core Compressor Fridge & Freezer

Specifications

SKU 9620017679

Brand Dometic

Warranty Period: 3 Years

Product Category Upright RV Compressor Fridges

Fridge Voltage 12 / 24 V

Temperature Range Refrigerator: 0 ~8°C

Temperature Range Freezer Compartment: -20°C ~ -10°C

Fridge Depth (mm) 677

Fridge Width (mm) 550

Fridge Height (mm) 1447

Weight (kg) 46

Cut Out Required 1442 x 535 x 611

Climate Class T

Refrigerant Type R600a

Average Power Consumption 88W

Freezer Volume (L) 46

Total Capacity (L) 180

Product Q&A

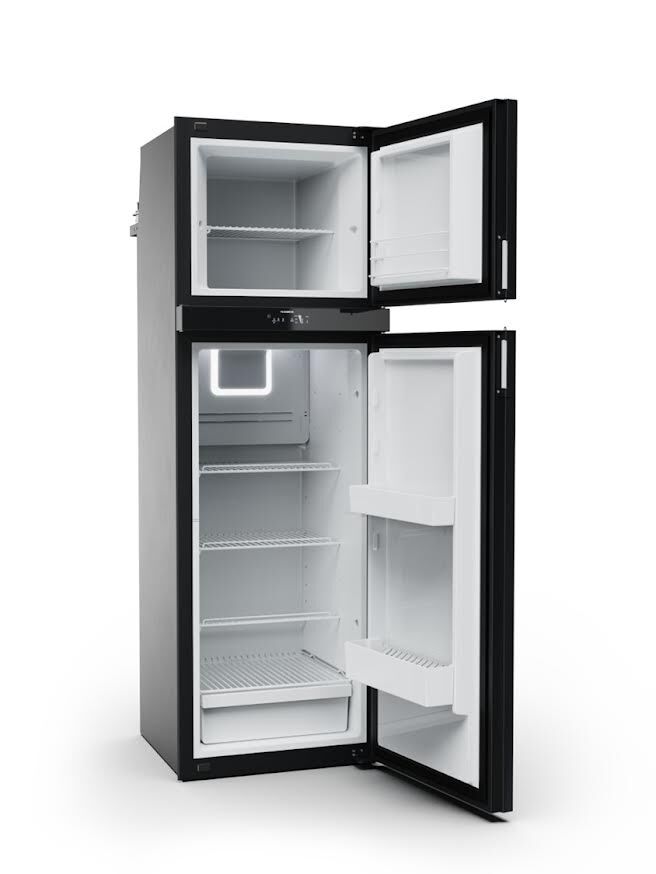

• Are the doors reversible?

  Yes they are. Commonly, the fridge comes right-hinged but this can be swapped during installation.

• Do I need to install external vents for my fridge?

  Yes, the fridge needs proper ventilation, so external vents must be installed to allow adequate airflow.

• How long after installation can I start storing goods inside?

  4 Hours after start-up allow the fridge time to cool down.

• Do I need to leave space around the fridge when installing the fridge?

  Yes, you will need to leave at least 5mm of space for ventilation and 13mm at the bottom so it can breathe properly, and the door opens properly.

• Do I need to seal around the fridge when installing it?

  Yes. To prevent dust and heat entering the living space, you need to seal between the back wall of the fridge and the interior of the Caravan or RV.

• How do I secure the fridge into place?

  Slide it into position, correctly align it, secure it using the side mounting holes and screws, then fit the caps over the holes. Always refer to the installation manual or seek professional advice if you are unsure.

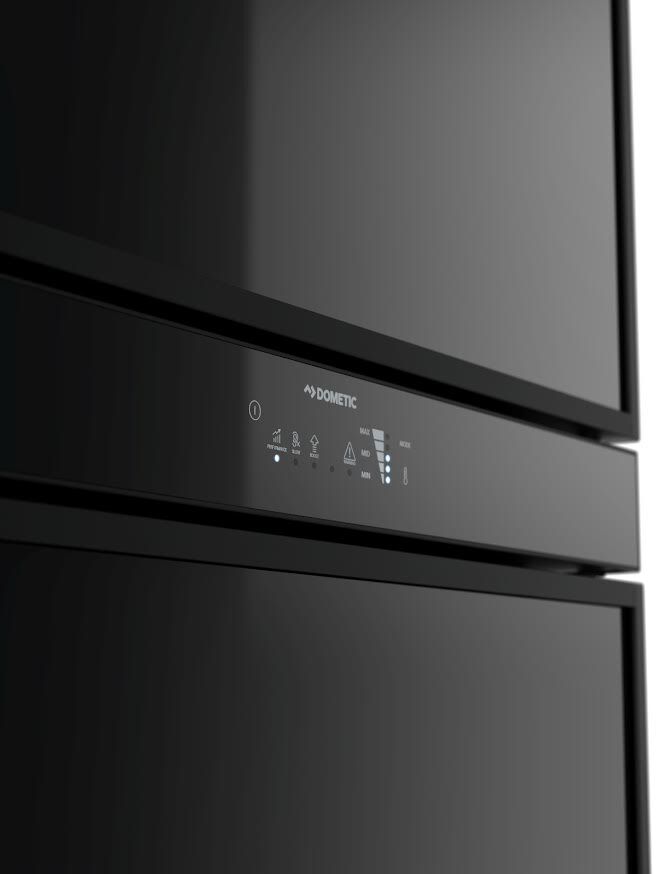

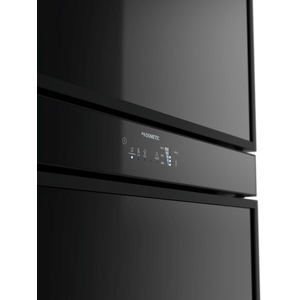

• How do I change the temperature of the fridge?

  Locate the temperature button (an upright thermometer symbol). Press the button repeatedly, until the desired cooling level is reached.

• How can I save energy on the fridge?

  Make sure warm food is cooled down before putting inside the fridge, limit opening the fridge only to when needed, defrost the unit frequently, check the seal regularly, maintain proper shelf placement, keep the condenser clean and adequate external ventilation out the back of the compressor

• Can it run properly in cold weather or low temperatures?

  The fridge has a cold weather/low temperature control that allows it to operate at low ambient temperatures for extended periods of time.

• Does this have a quiet mode?

  Yes it does. The fans will run at lower speeds and the compressor will operate at a reduced speed to minimise noise.
