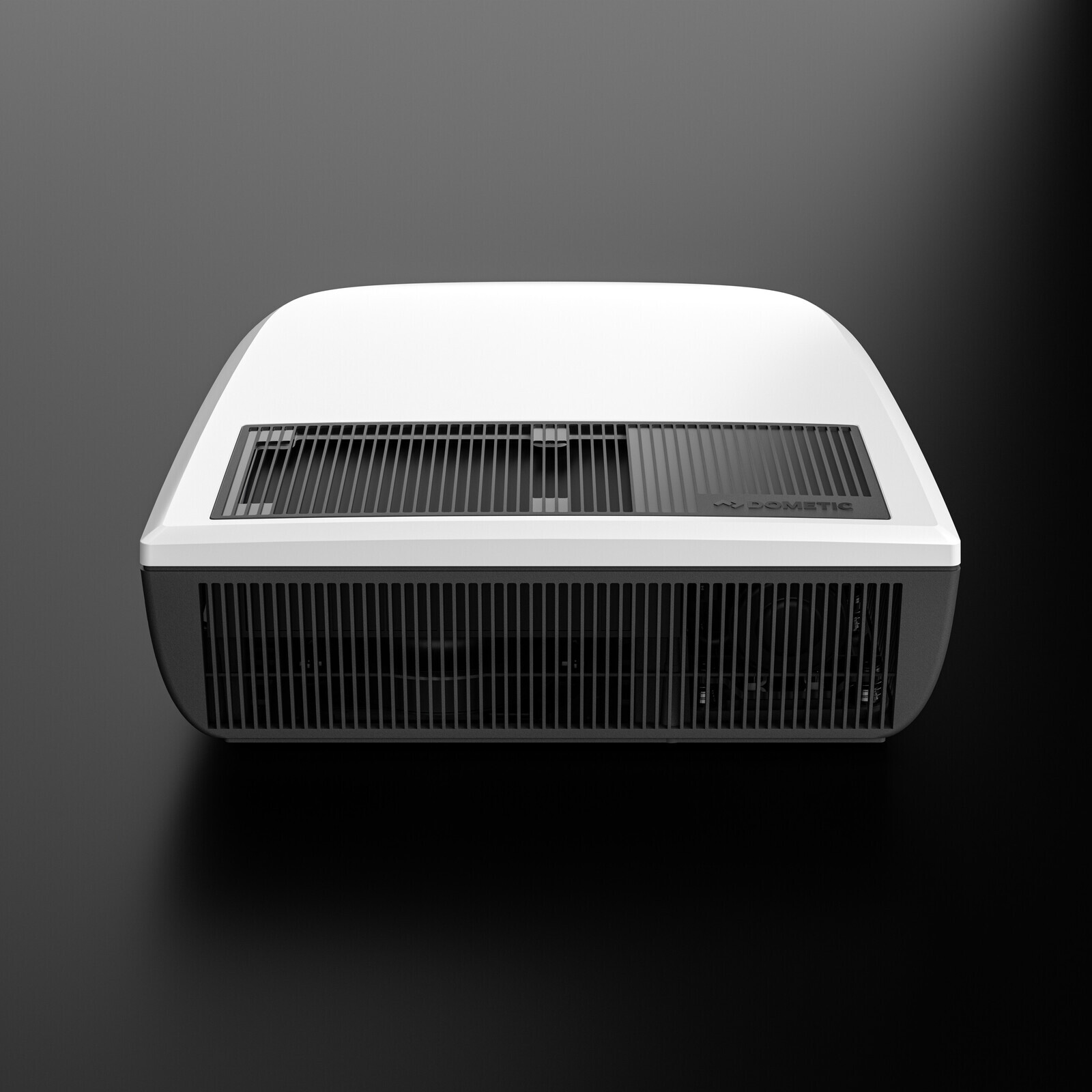

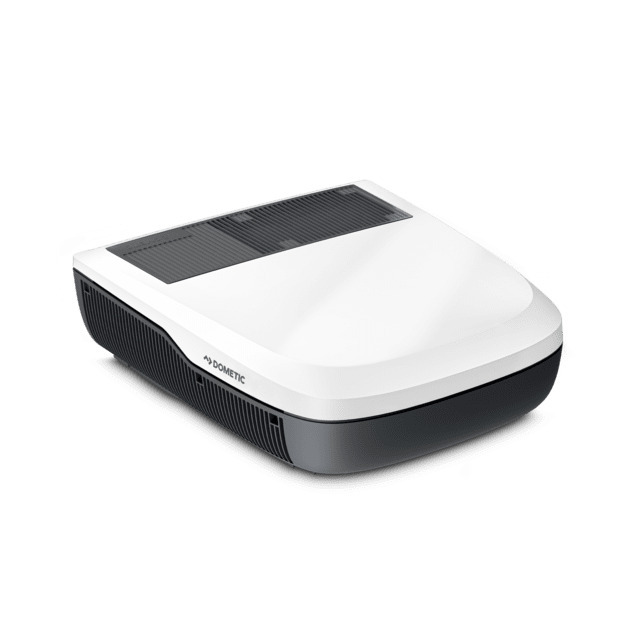

Dometic FreshJet 4 Series Essential Roof Top Air Conditioner with ADB

Specifications

SKU 9620001681-ADB

Brand Dometic

GTIN 6975399590132

Warranty Period: 3 Years

Product Category RV Air Conditioners

Best for Vehicle Length (m) 5

Cooling Capacity (ISO5151) (kW) 2.2

Heating Capacity (W) 1.0 kW

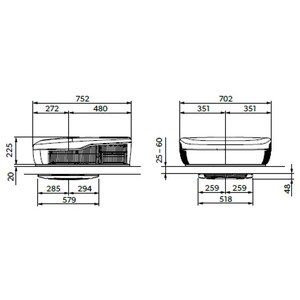

Plenum Length 752 mm

Plenum Width 702 mm

Plenum Height 225 mm

Number of Blower Speeds 4

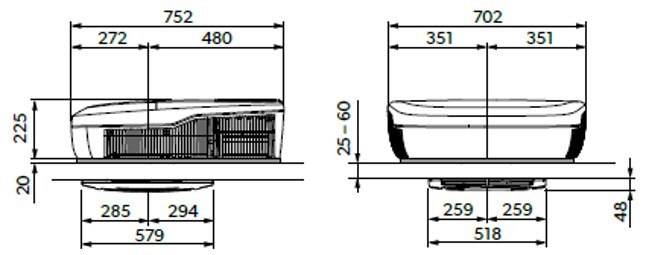

Dimensions 702 x 752 x 225mm

Refrigerant Type R32

Current Draw (Cooling/Heating) 4.55 | 4.42

Remote control Yes

Opening Preferably 400 x 400 mm or Optionally 360 x 360 mm

Avg Power Consumption 1012W (Cooling) | 1005W (Heating)

Weight (kg) 34

Airflow 428m³/h

Customer Reviews

Product Q&A

• Is the Freshjet 7 Series Lite smaller ini pyhsical dimensions than the Harrier Lite?

  Yes, the new 7 Series Lite is much smaller in length, and slightly smaller in height

• Will this replace my existing Air Con?

  The Dometic Freshjet range utilises either a 360x360mm or 400x400mm cut out size, which will cover most existing Air Conditioners.

• Would I need to use an air purifier in the van when this is installed?

  No, the Dometic Freshjet range is the first of its kind to offer a inbuilt air purifier. This is called the ClearAir system, which will keep the van smelling fresh and clean while greatly reducing allergens, viruses, bacteria and pollutants.

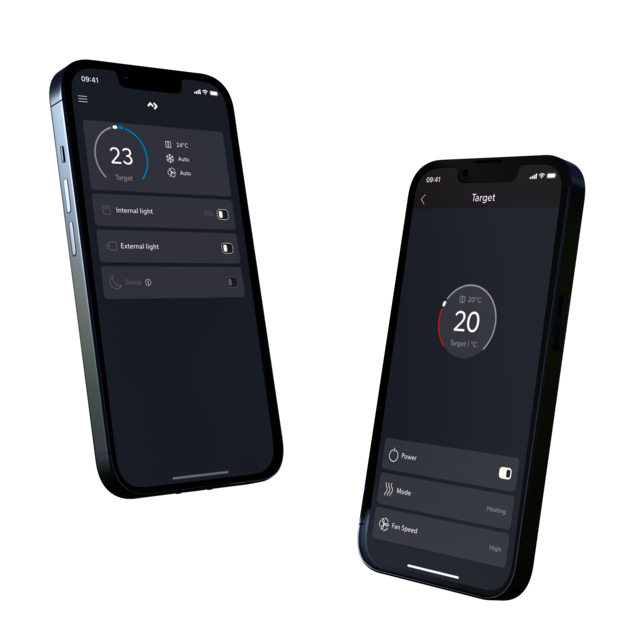

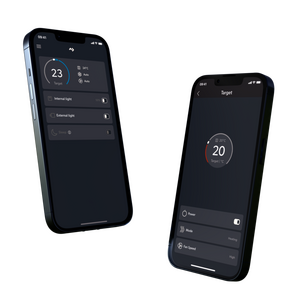

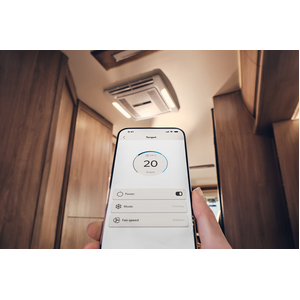

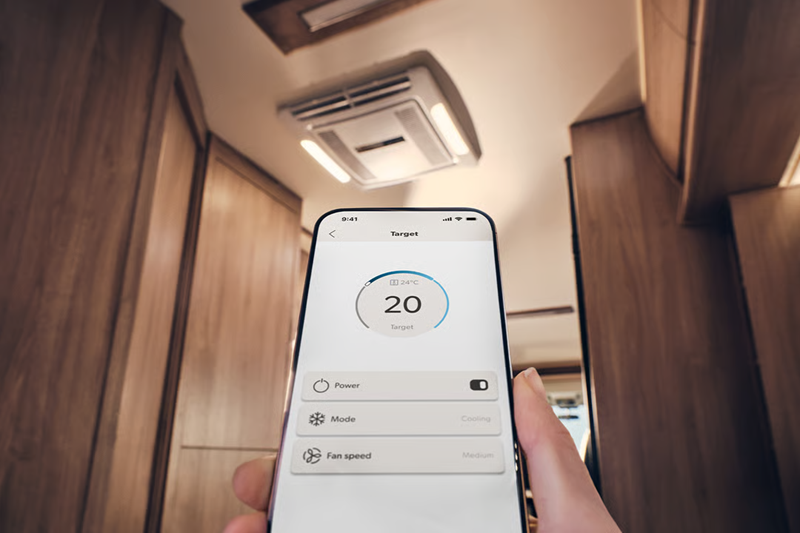

• Does the Freshjet have a WIFI or Bluetooth feature?

  The Freshjet range offers WIFI and Bluetooth, meaning you will be able to operate your AC from your phone.

• Does this AC come pre-gassed?

  The Freshjet range will come pre-gassed ready for install. This latest range of Dometic AC's are using a more sustainable R32 refrigerant.

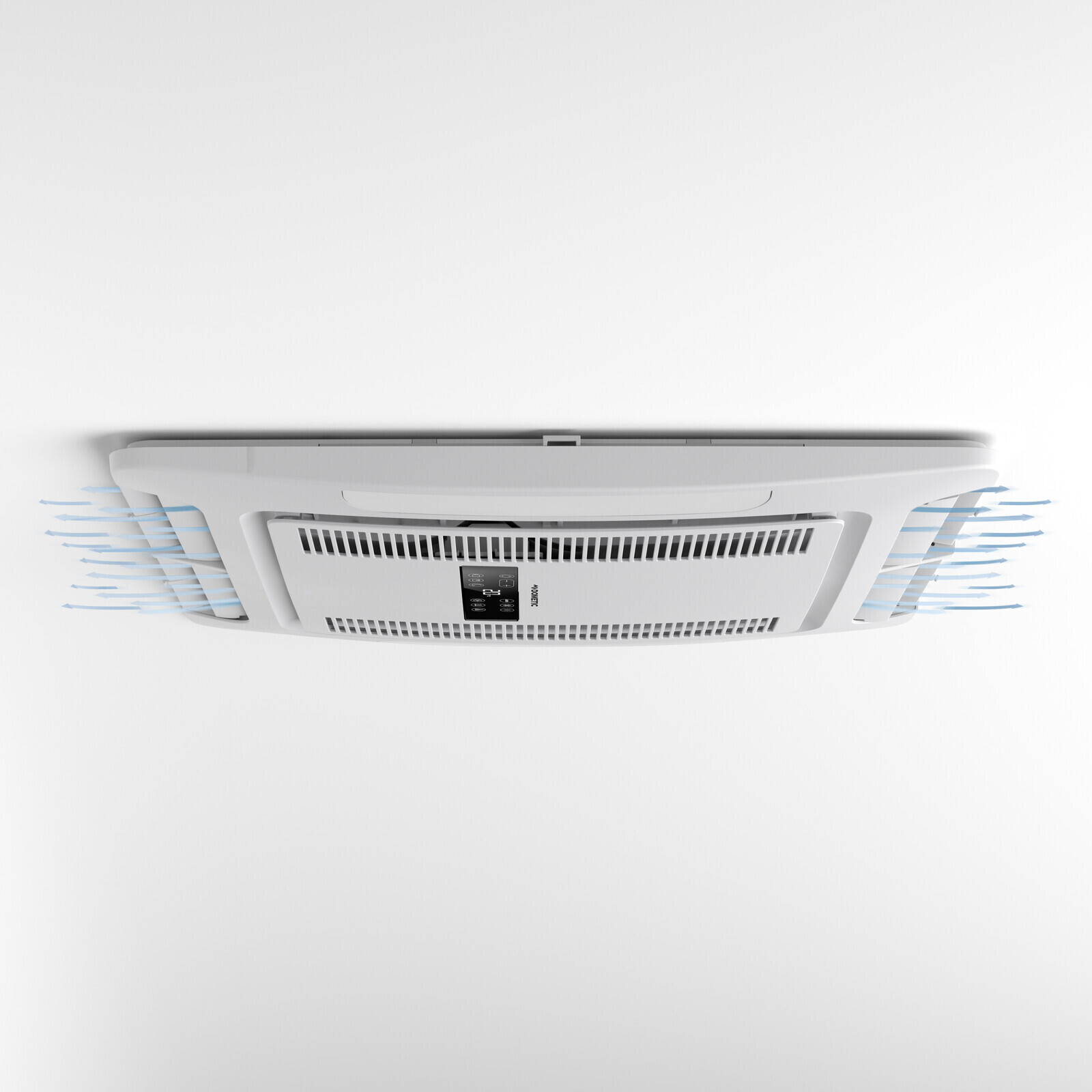

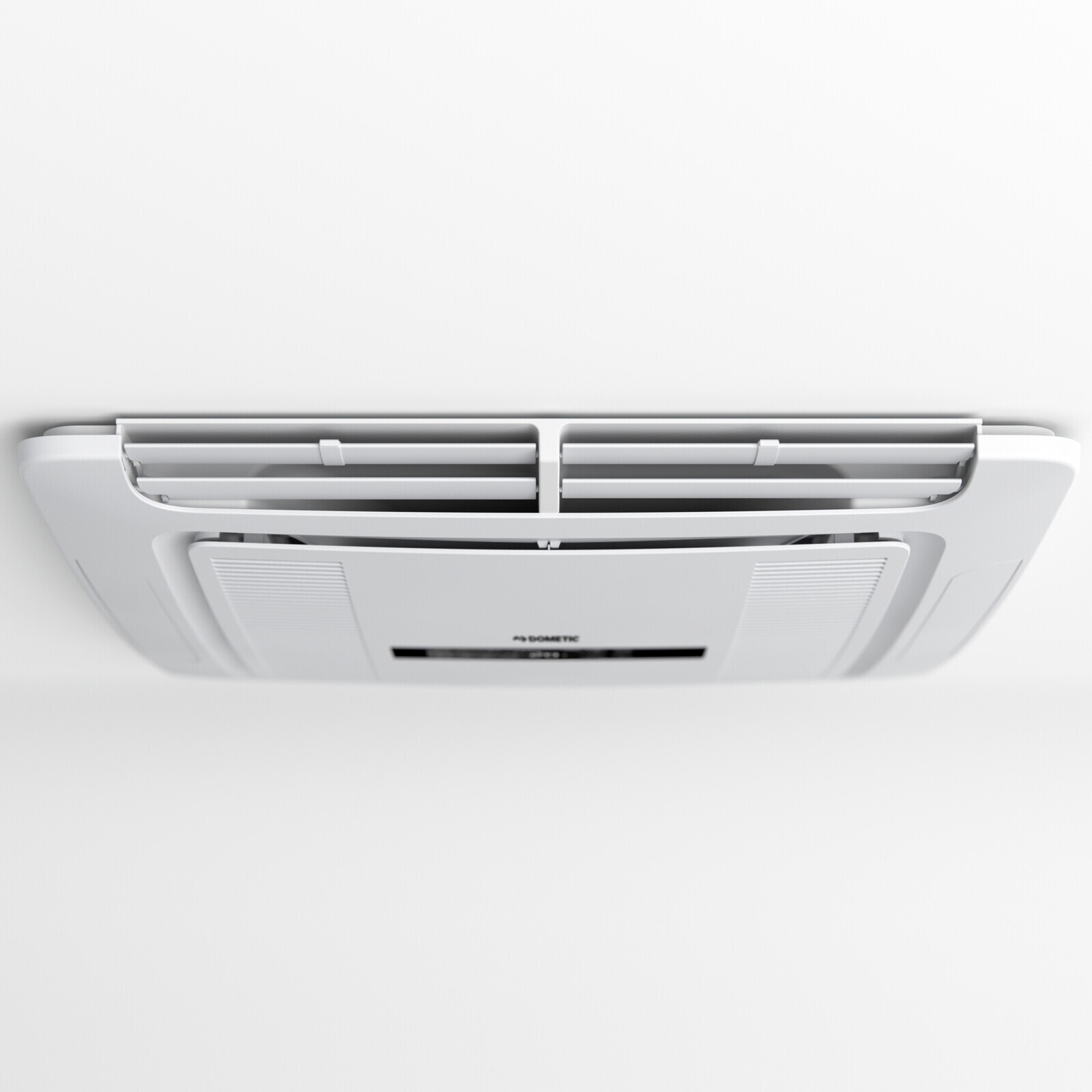

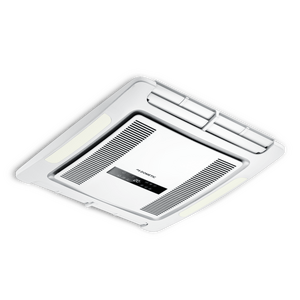

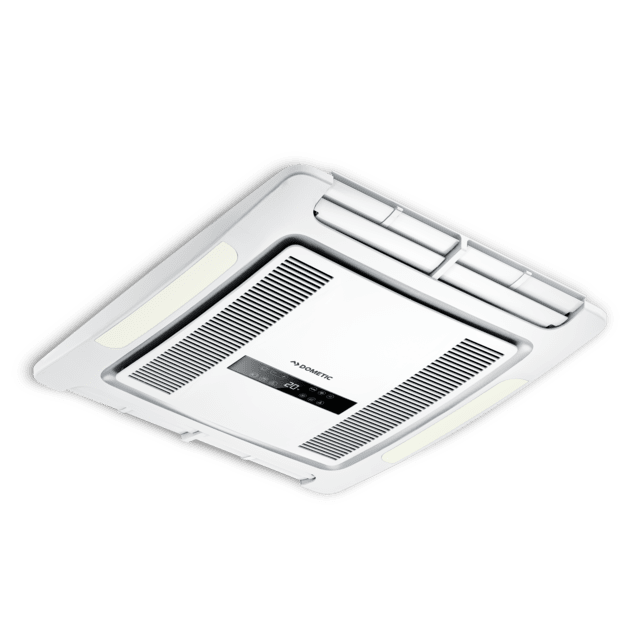

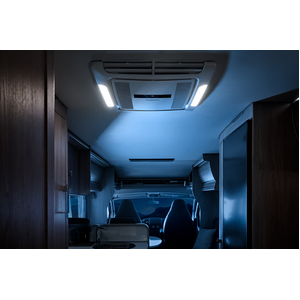

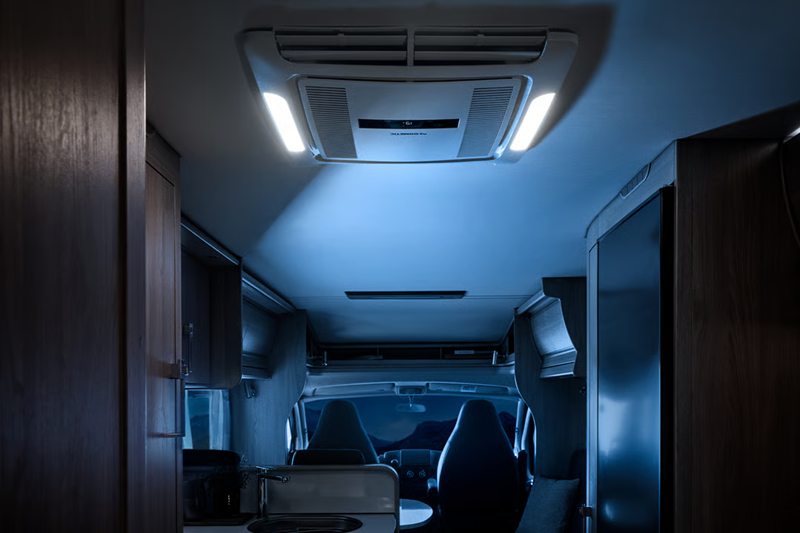

• Do the new range of Freshjet have the same Air Distribution Box (ADB)?

  Yes, the new Freshjet units have one ADB that is standard across the whole range

• Where can I activate the sleep function?

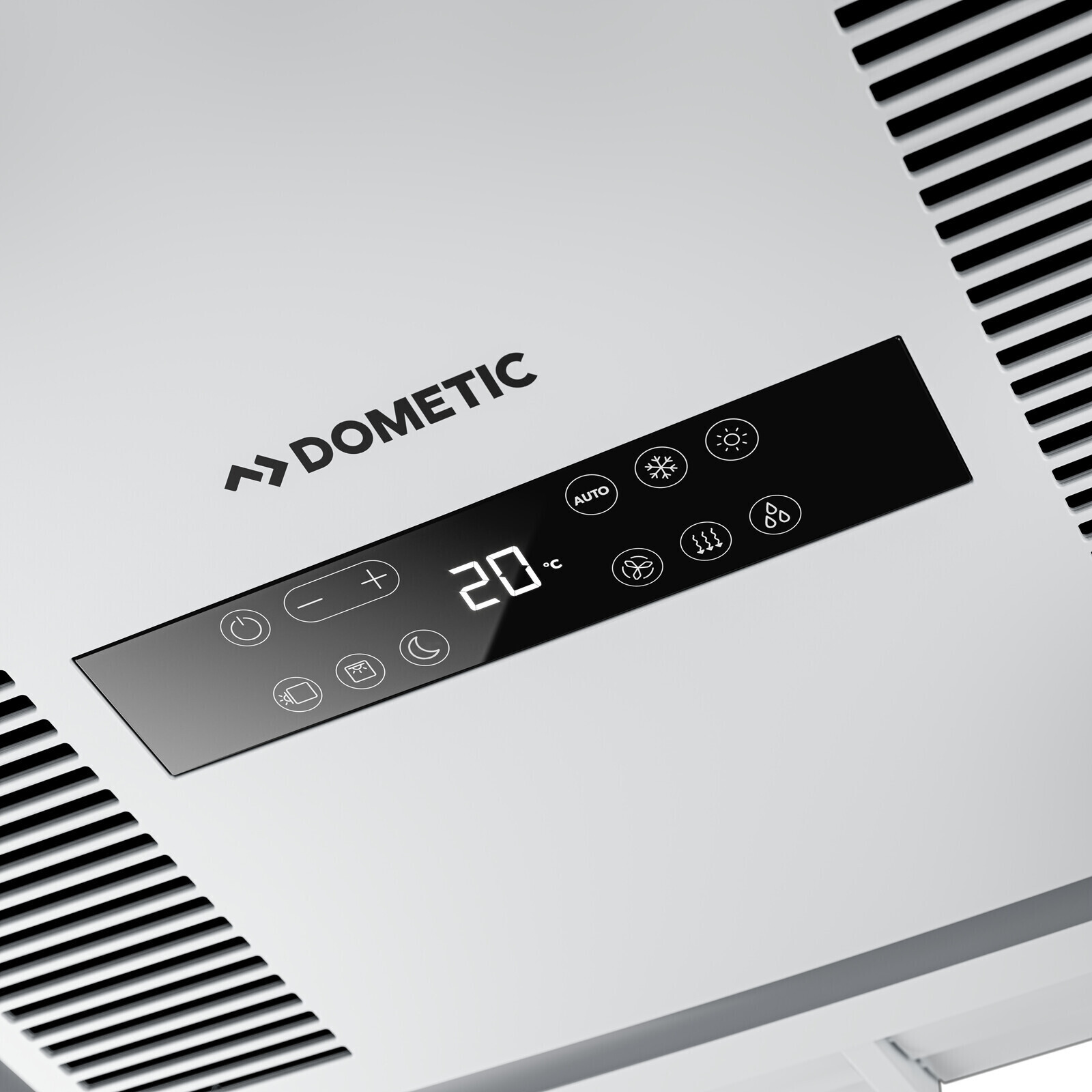

  The sleep function is only available when using the cooling or heating modes. Ensure you are in either one of these modes, then set your required temperature, press the moon button and the sleep function should be activated (the moon symbol will appear on the air distribution box display when it is activated).

• How can I best optimise the performance of my roof-top air conditioner?

  Hi there,

  Here are some tips to best optimise the performance of your roof top air conditioner:

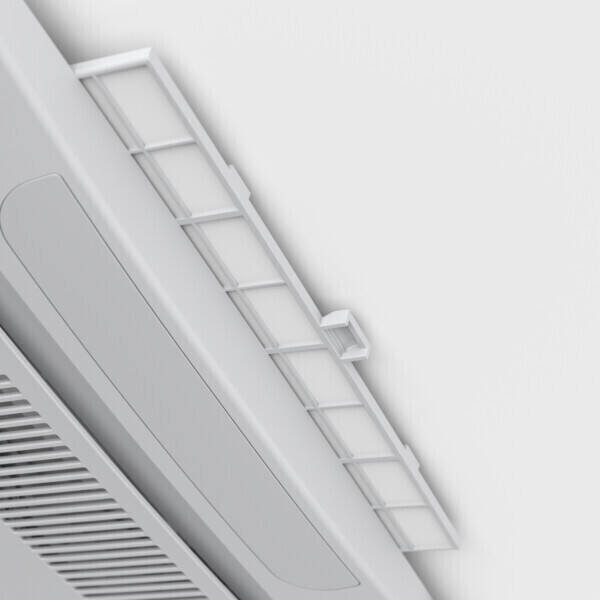

  • Clean the filters of the air distribution box regularly.
  • If your caravan has been sitting in direct sunlight for a long period of time, use the 'ventilation' mode with the windows open for a while before switching to the 'cooling' mode.
  • Avoid opening doors and windows as much as possible when the air conditioner is running.
  • Regularly remove leaves and dirt from the ventilation grilles of the roof top air conditioner. Make sure you do not damage the grilles in the process.

  Thanks for your question.

• Will the Dometic Air Conditioners turn off when the desired temperature has been reached?

  When the caravan has reached its set temperature, the compressor will turn off. The fan will remain on, circulating the cool air around the space. As soon as the thermostat detects the temperature has dropped, the compressor will start again to cool the area to the desired temperature.
