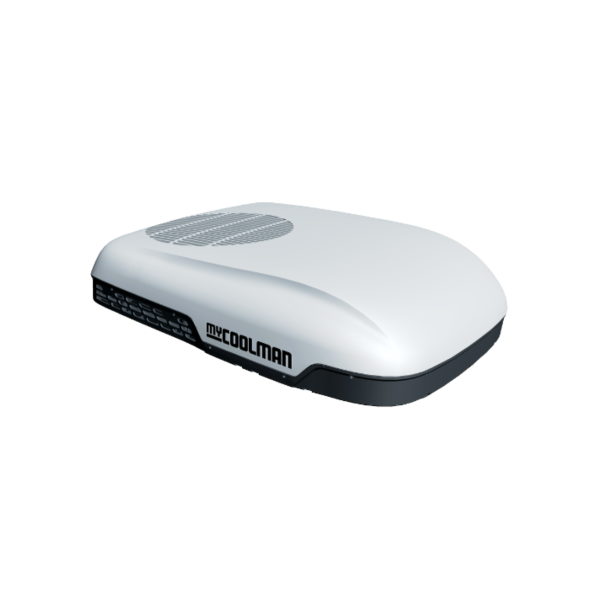

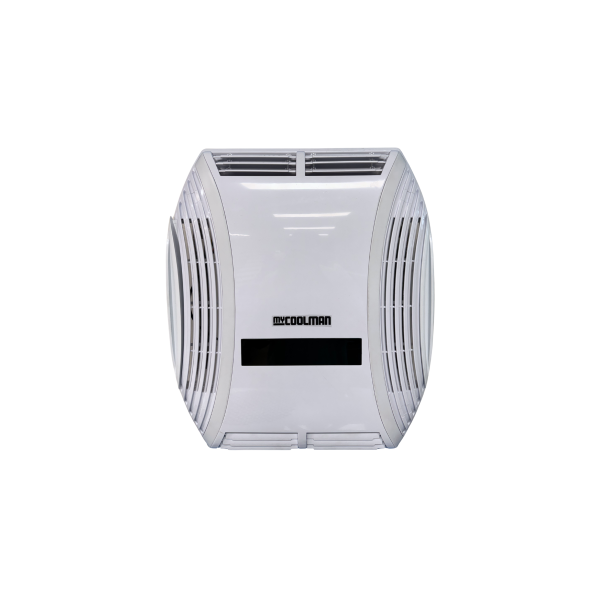

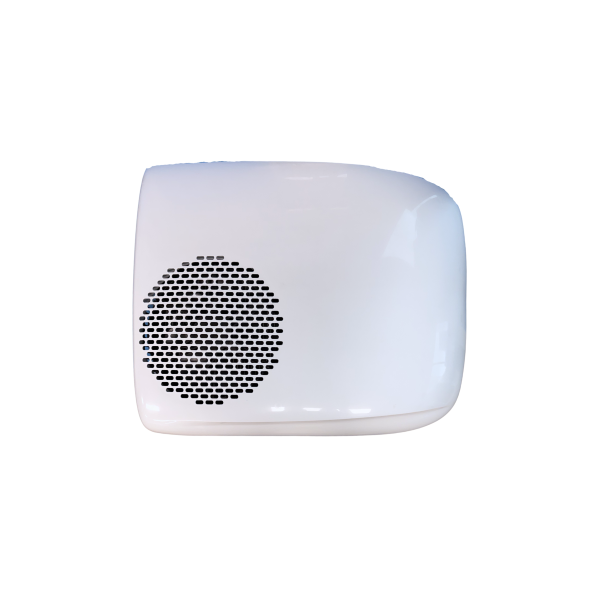

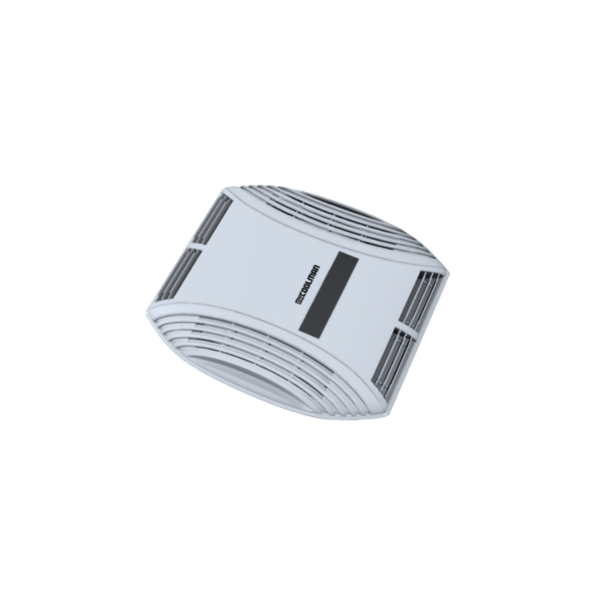

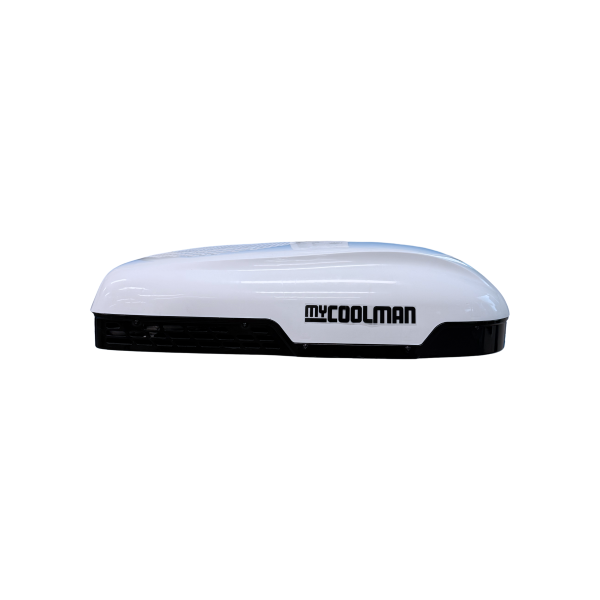

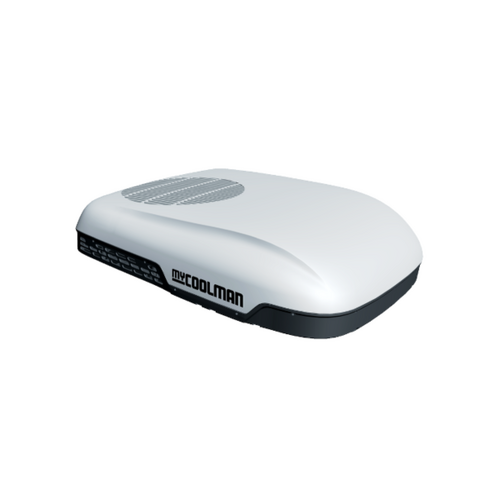

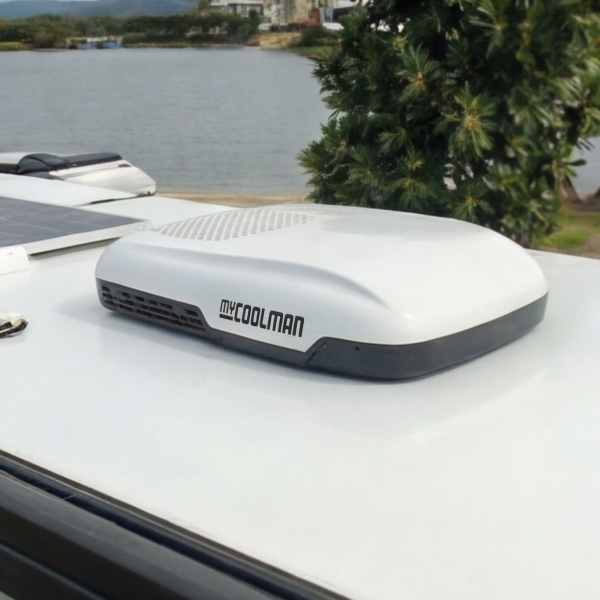

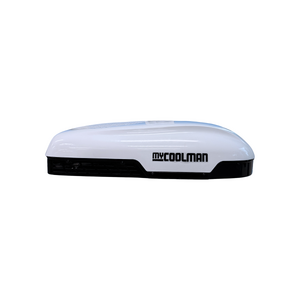

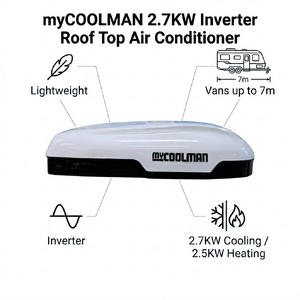

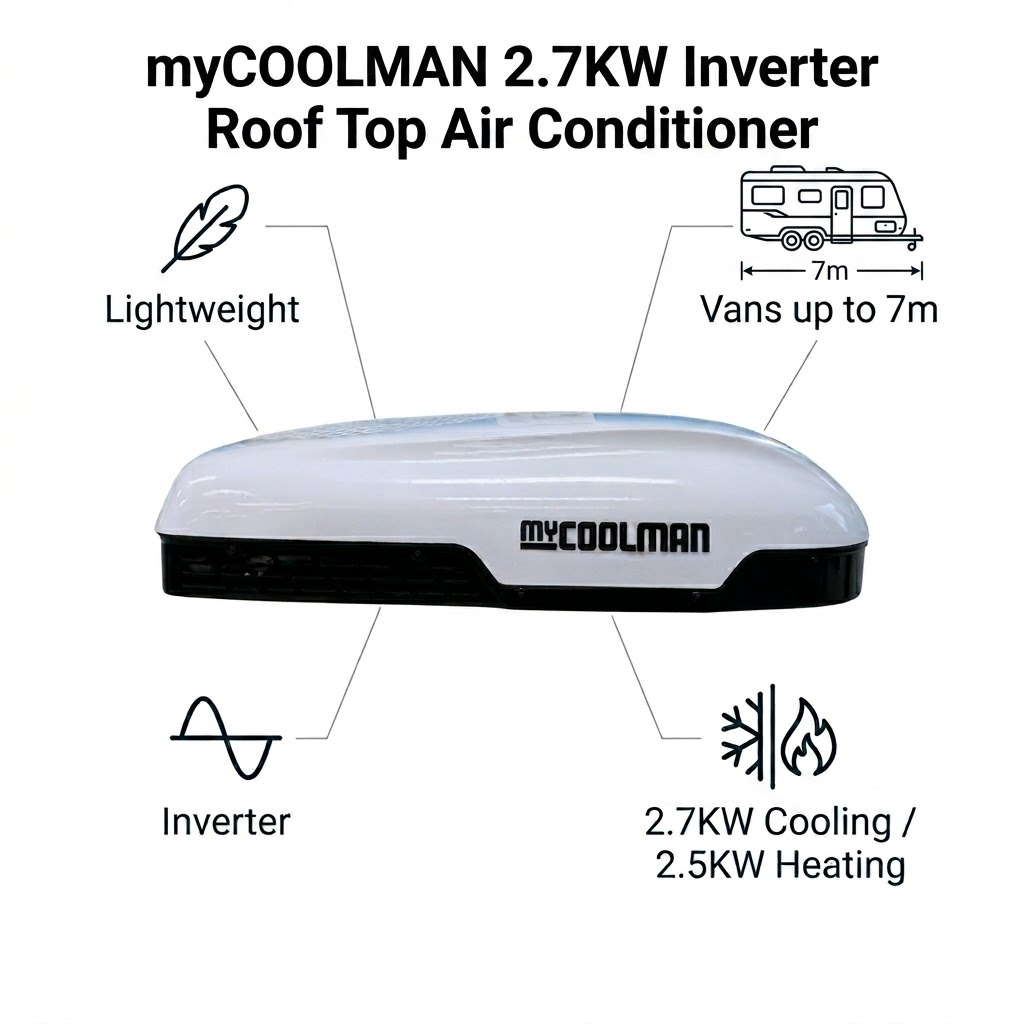

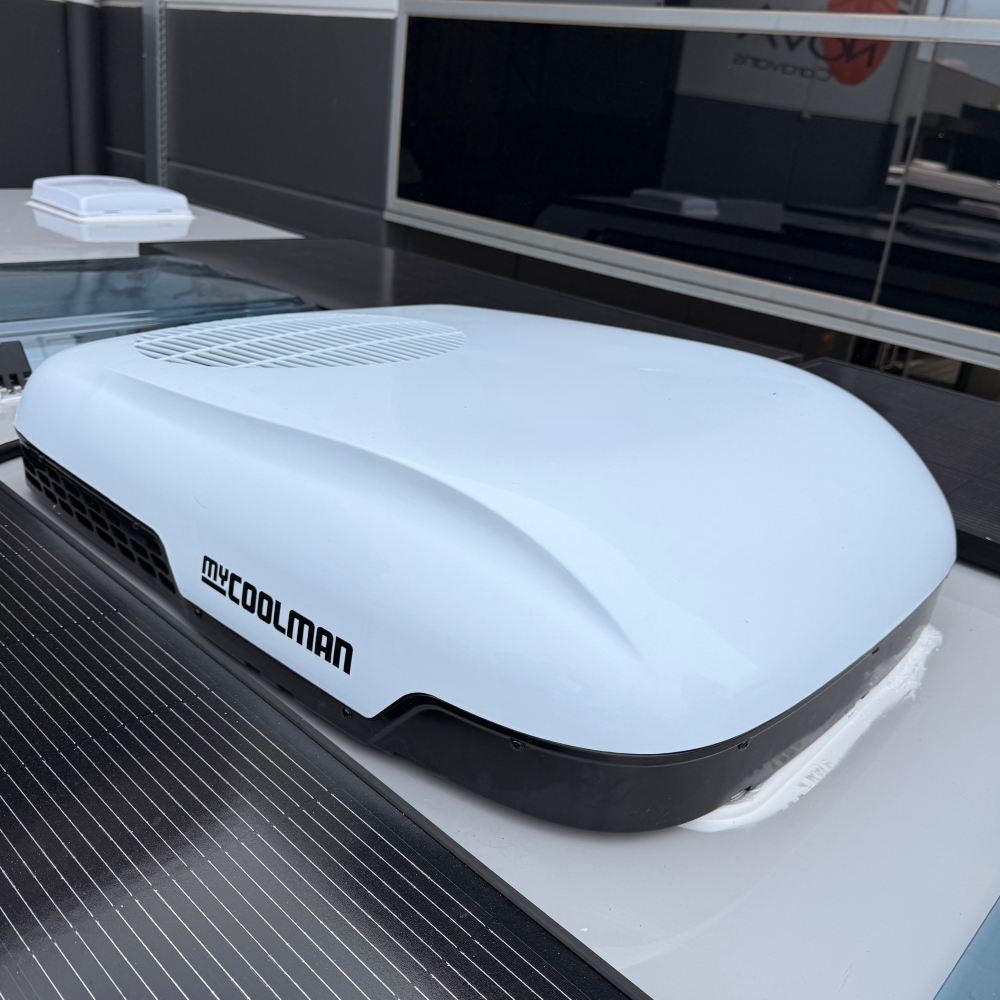

myCOOLMAN 2.7KW Inverter Roof Top Air Conditioner - CCA2700i

Specifications

SKU CCA2700i

Brand myCOOLMAN

Warranty Period: 3 Years

Product Category RV Air Conditioners

Best for Vehicle Length (m) 7

Heating Capacity (W) 2500

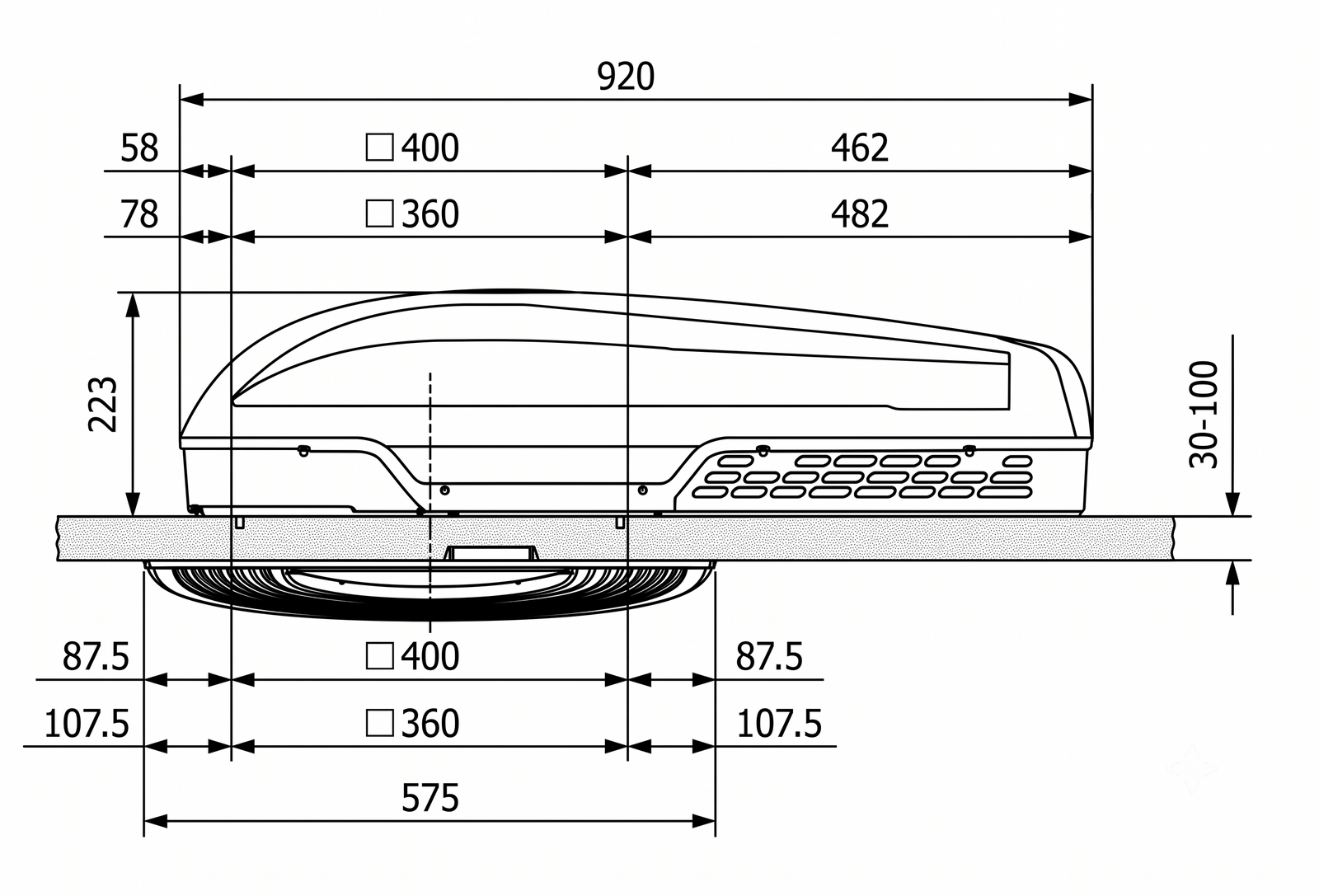

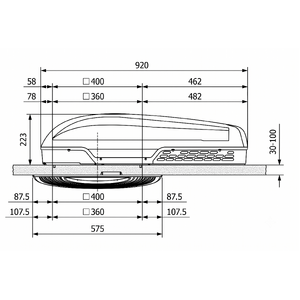

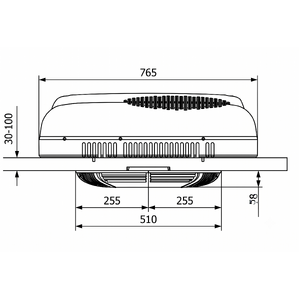

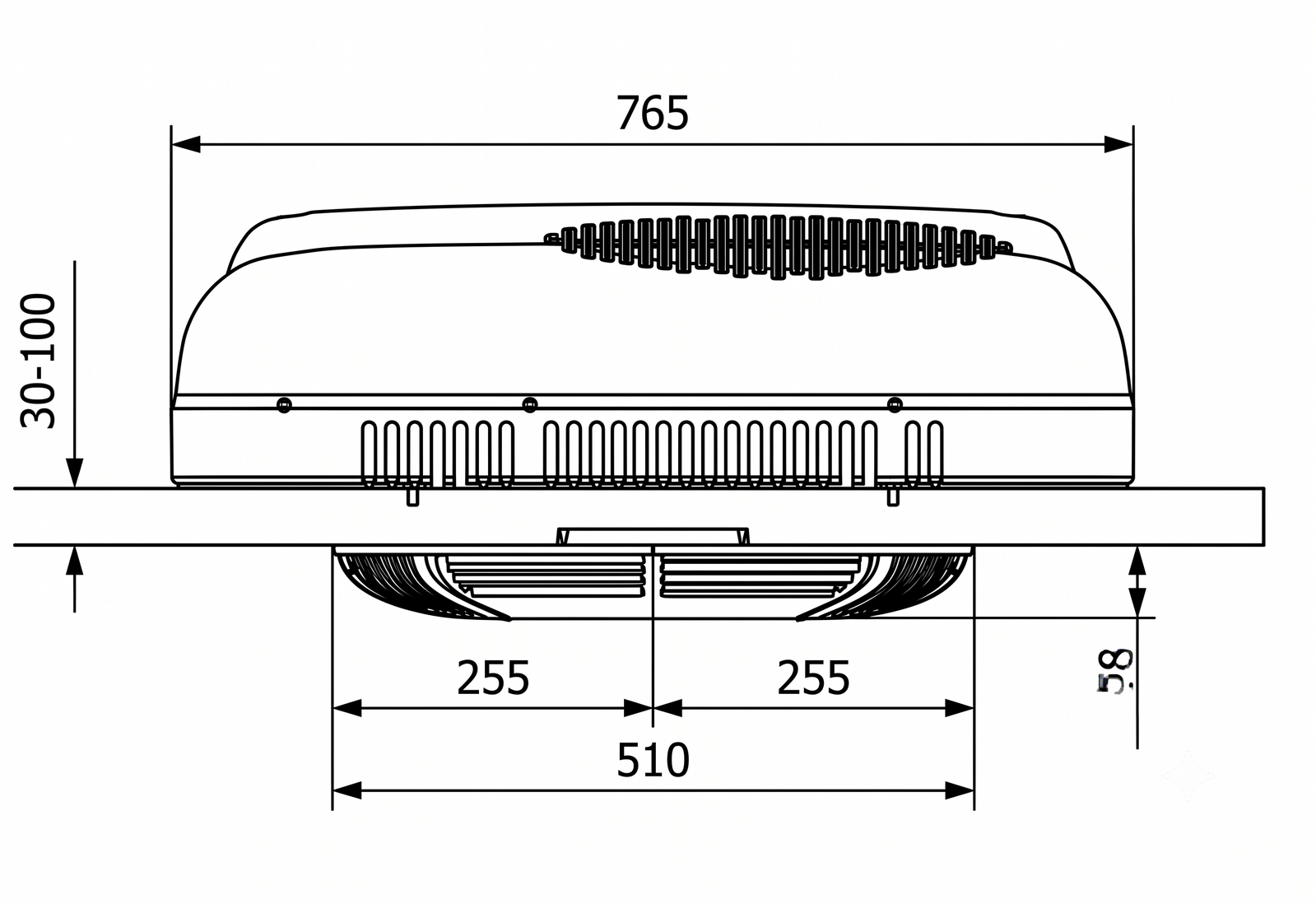

Dimensions 920 x 765 x 220mm (L x W x H)

Weight (kg) 38.1

Operating temperature range –2°C to + 55°C

IP Rating IP55

Input Voltage 220-240V

Input 1240W Cooling / 1050W Heating

Roof opening (W x D mm) 360 x 360 or 400 x 400 mm

Refrigerant Type R410a

Cooling Capacity (W) 2700

Airflow 550 m3/h

Cooling Rated Current 5.6A

Heating Rated Current 4.8A

Product Q&A

• How can I get the best performance out of my myCOOLMAN caravan air conditioner?

  Park your caravan in the shade and ensure it is well-insulated, deploy your awning to keep direct sunlight off the exterior panels, and use reflective window shades to block incoming solar heat.

• When should I turn on my air conditioner on a hot day?

  On hot days, start your cooling early by closing all blinds, windows, vents, and doors first thing in the morning. Turn the air conditioner on as soon as possible so it can easily maintain a comfortable environment. This prevents the unit from having to work twice as hard to cool down a space that has already heated up.

• How does the fan speed affect power consumption?

  While a higher fan speed cools an area down quickly, a steady low speed efficiently maintains the temperature and reduces overall power consumption. The myCOOLMAN air conditioner is designed to automatically adjust its compressor speed to match the cooling required, which ensures it uses the least amount of energy necessary to maintain comfort

• Can I run my myCOOLMAN air conditioner off-grid, and how long will my battery last?

  Yes, you can run this off-grid on a minimum 2000W pure sine wave inverter or generator. In 30-35°C ambient weather (with the AC set to 22-23°C), it draws an average of 60-80A per hour.

  Estimated Lithium Battery Runtimes:

  • 200Ah: 1 hour recommended (2-3 hours if run to flat).
  • 900Ah: 6 hours recommended (10-14 hours if run to flat).

  Note: Active solar charging or other power inputs will extend these runtimes.

• What if the cutout/opening is too big or too small?

  The MyCoolman 2.7kw suits an opening of 360 x 360 or 400 x 400mm. If smaller than this you will need to expand the size.

• Can I control this with my phone?

  Yes, it can be operated using a smart phone, as long as its Bluetooth is turned on and the AC is within Bluetooth range and has power. The MyCOOLMAN Air Conditioner App can be downloaded from Google Play Store or APP Store, and used to control and operate the AC unit.

• How often should I check the seal between the rooftop air conditioner and roof of the vehicle?

  Atleast once per year it should be examined for cracks and other damage.

• Is the mycoolman 2700i roof top ac reverse cycle?

  Yes, it is a reverse cycle air conditioner.

  • Cooling Capacity: 2700W
  • Heating Capacity: 2500W
