CTEK MXTS 70/50 12/24V 70/50A Battery Charger
SKU: MXTS70 Learn More»Product Description
CTEK MXTS 70/50 12/24V 70/50A Battery Charger, 2 Year Warranty. The MXTS 70/50 is a powerful, state of the art workshop charger developed specifically for all 12V and 24V lead acid batteries, including AGM and EFB Stop/Start types.
The MXTS 70/50 is a fully automatic 8 step charger that delivers selectable 50A/12V or 50A/24V to batteries from 20-1,500Ah (for 12V) and 20-1,500Ah (for 24V), with 50A of constant power supply in 12V and 24V mode. In 12V mode, up to 70A of power is automatically available for temporary high loads. Features include battery diagnosis to establish whether your battery can receive and retain a charge, a Recond mode for reconditioning deeply discharged batteries and a built in temperature sensor for optimised charging.
Features:
- Selectable power supply program for constant voltage output
- Patented float/pulse maintenance charging
- Recond function

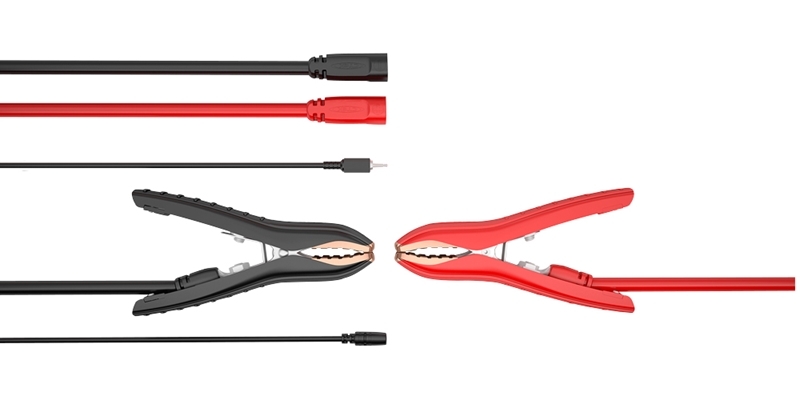

- Heavy duty 6m detachable charge cables and clamps

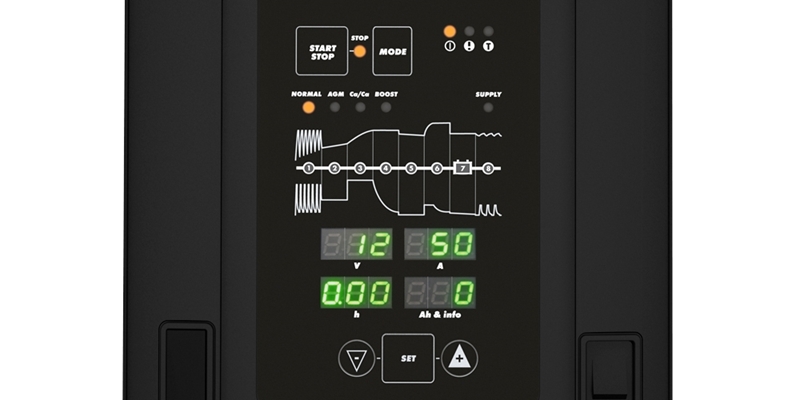

- LED displays for charging, charge voltage, current, charge time and energy indication
- Fully automatic 8 step charging
- Selectable modes for optimal battery size adaptation.
- Patented desulphation function
- Temperature sensor for optimised charging
- Heavy duty aluminium housing (IP20 classified)
- Compatible with Pro accessories.
- Safe spark free operation
- Reverse polarity protected
- Short circuit proof
- 2-year warranty
Specifications
SKU MXTS70
Brand CTEK
GTIN 7340103400158
Warranty Period: 2 Years
Product Category Battery Chargers
Output Current Rating (Amps) 50
Model MXTS70
Insulation Class IP20
Back Current Drain Corresponding to less than 1Ah/month
Battery Capacity 20–1500Ah
Voltage 12V
Charger Voltage 12/24V
Net Weight (kg) 5
Start Voltage 2.0V
Power 240V
Input 220–240VAC, 47–64Hz, 7.2A max
Battery Types 24V:, WET, MF, Ca/Ca, AGM, GEL
Ripple* Less than 4%
Ambient Temperature -20˚C to +50˚C (- 4°F to +122°F)
Output System Voltage 24V
Output 14.4V, 50A max
Dimensions 338 x 178 x 80 mm (L x W x H)
