Enerdrive DIY 40A AC and 40A DC2DC Charging Board - Pre Wired

K-DIY-BOARD-01

$2,399

Save $324 (12%) off RRP of $2,723

FREE SHIPPING

Accessories

$199

$265

$249

$328

Click '+' to show more accessories
Learn More»
This product is built to order. Build time 4 weeks. Express Shipping Price Match Guarantee Customer Reviews

Product Description

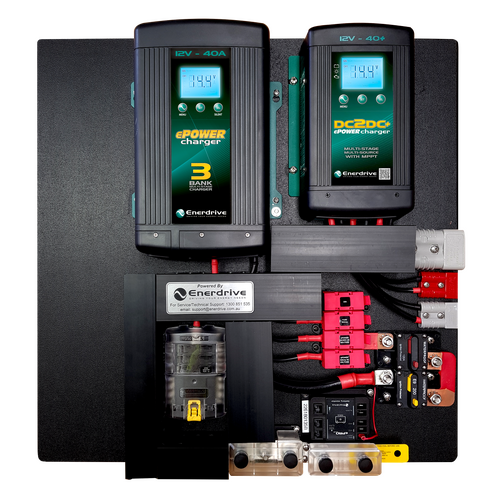

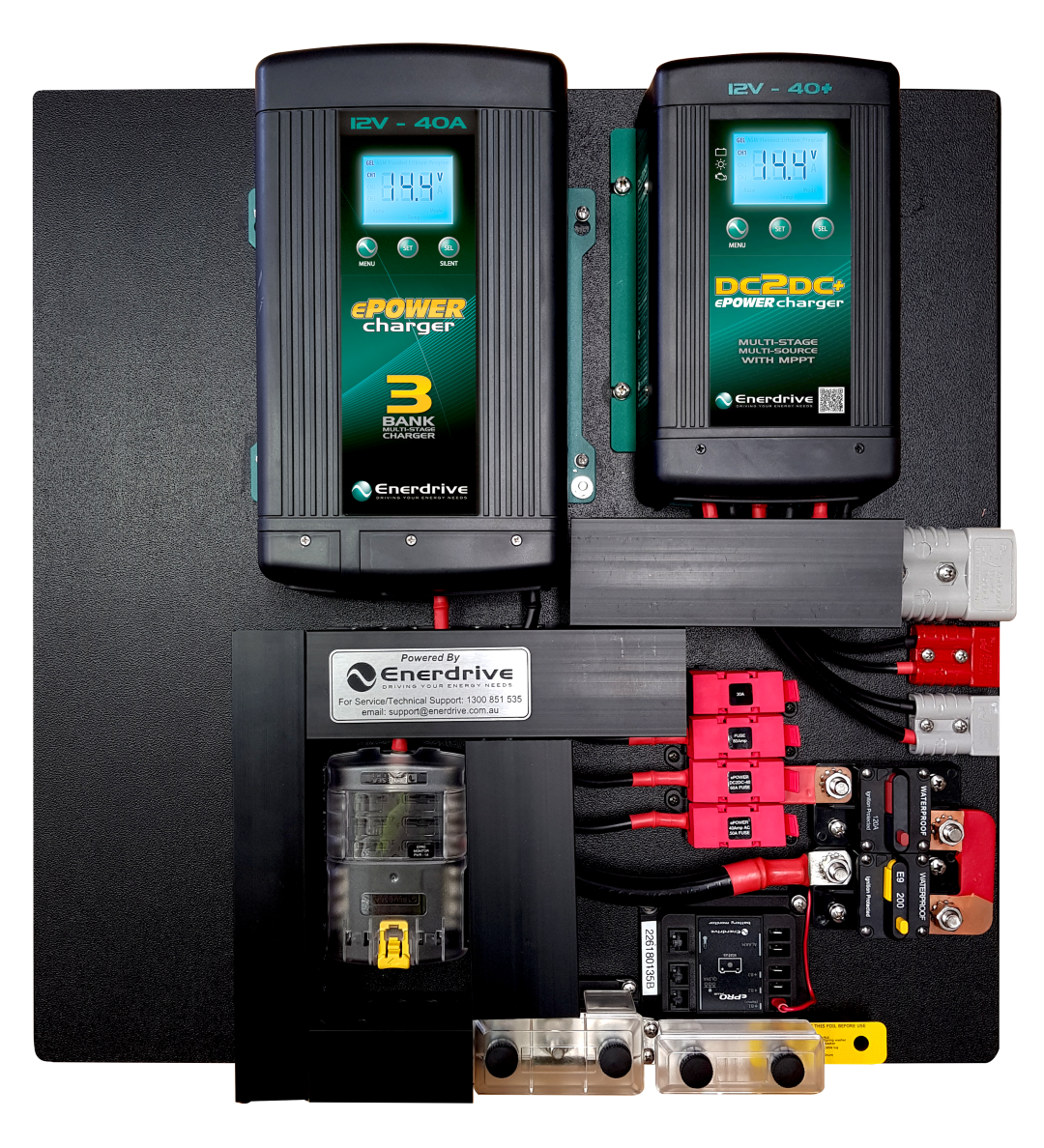

Enerdrive DIY 40A AC and 40A DC2DC Charging Board, 5 Year Warranty.

The Enerdrive DIY 40A AC and 40A DC2DC Charging Board is perfect for the DIY installer seeking a quality solution at a budget price! This system comprises of the:

  • Enerdrive ePOWER 12V 40A DC to DC Battery Charger   EN3DC40+
  • Enerdrive ePOWER 12V 40A Battery Charger   EN31240
  • ePRO Plus 500A Battery Monitor with Remote Display
  • 3 Stud Main Negative Bus Bar
  • 40A Low Battery Cutout
  • Main System Circuit Breaker 120A
  • Inverter Circuit Breaker 200A
  • ePOWER DC2DC 60A Output Fuse Connection
  • ePOWER AC Charger 50A Output Fuse Connection
  • 1 x 30A Load Output Fuse Connections
  • Main 6 Circuit "Wedge" Fuse Block with Negative Bus and Cover
  • 12mm Black Plastic Mounting Board. Water & Rot Resistance
  • 175A Anderson Plug (Inverter)
  • 50A Anderson Plug (Solar Input)
  • 50A Anderson Plug (Vehicle Input)

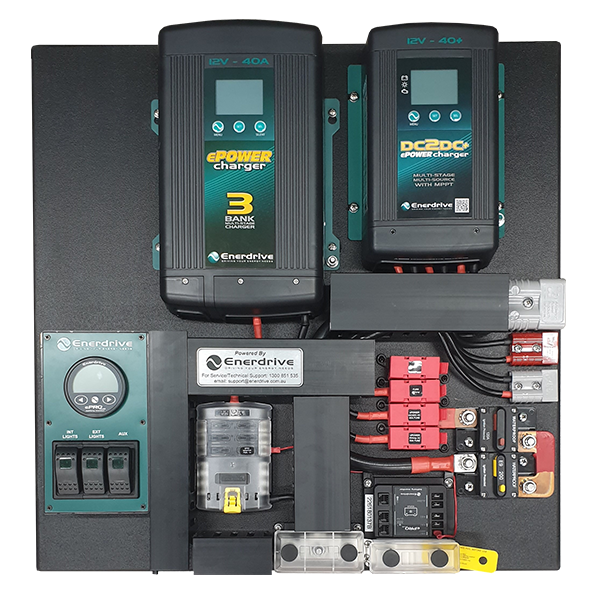

Available with or without an accessory box including 3 switches and provision to mount your battery monitor display.


Compare all the DIY Installation Kit models below:


Items Included

eSYS-C eSYS-D eSYS-E eSYS-F eSYS-G eSYS-H eSYS-I eSYS-J K-DIY-Board-01

ePOWER AC 40Amp 230v Charger

*

*

*

*

*







*

ePOWER AC 60Amp 230v Charger











*

*

*



ePOWER DC2DC 40+ Charger (Vehicle/Solar)

*

*

*

*

*

*

*

*

*

Morningstar Tristar PWM-45A Solar Controller











*

*

*



ePRO Plus 500A Battery Monitor

*



*





*



*

*

with Remote Display

Simarine Pico LCD WIFI Monitoring Screen



*



*

*



*





Simarine SC303 300A Main Battery Shunt



*



*

*



*





Simarine SCQ25T Individual Load/Charge Module



*



*

*









Simarine SCQ50 Individual Load/Charge Module



*



*

*



*





3 Stud Main Negative Bus Bar

*

*

*

*

*

*

*

*

*

40A Low Battery Cutout

*

*

*

*

*

*

*

*



Main System Circuit Breaker 120A

*

*

*

*

*







*

Main System Circuit Breaker 200A











*

*

*



Inverter Circuit Breaker 200A

*

*

*

*

*

*

*

*

*

Solar Input Positive Circuit Breaker 40A



*

*

*

*

*



*



Solar Input Positive Circuit Breaker 60A



*

*

*

*

*

*

*



ePOWER DC2DC 60A Output Fuse Connection

*

*

*

*

*

*

*

*

*

ePOWER AC Charger 50A Output Fuse Connection

*

*

*

*

*







*

ePOWER AC Charger 70A Output Fuse Connection











*

*

*



1 x 30A Load Output Fuse Connections













*



*

2 x 30A Load Output Fuse Connections







*

*

*



*



50A Load Output Fuse Connection

*











*





24hr Critical Load 4 Circuit "Wedge" Fuse Block



*



*

*









24hr Critical Load 8 Circuit "Wedge" Fuse Block





*













Main 6 Circuit "Wedge" Fuse Block











*

*



*

with Negative Bus and Cover

Main 12 Circuit "Wedge" Fuse Block



*

*













with Negative Bus and Cover

ePOWER 2000W AC Transfer Inverter

*





*











Battery Restart Switch (Lithium Batteries)

*

*

*

*

*









12mm Black Plastic Mounting Board.

*

*

*

*

*

*

*

*

*

Water & Rot Resistance

175A Anderson Plug (Inverter)

















*

50A Anderson Plug (Solar Input)

















*

50A Anderson Plug (Vehicle Input)

















*

Dimensions

1185L x 380W x 130Dmm

600L x 490W x 100Dmm

600L x 490W x 100Dmm

1185L x 380W x 130Dmm

790L x 380W x 100Dmm

1195L x 380W x 111Dmm

1195L x 380W x 111Dmm

920L x 380W x 111Dmm

580L x 580W x 100Dmm

Weight

 23kg

 14kg

 14kg

 23kg

 16kg

 17kg

 16.5kg

 17kg

 14kg

(*) Indicates Standard Fitment



PRO TIP: Common accessories to go with this canopy system are; one or two AGM Board Cable Kits. Thickness, length & quantity will depend on installation type. Please check products cable description for details.



Wiring Diagram



Enerdrive ePOWER 12V 40A DC to DC Battery Charger:

Enerdrive ePOWER 12V 40A DC to DC Battery Charger designed to meet the rugged demands of Australian conditions and delivering multiple source charging for DC systems.

The Enerdrive ePOWER DC2DC Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either an alternator linked to a battery; or via solar power with the in built Maximum Power Point Tracking (MPPT) Solar Controller.

12V 40A DC2DC Battery Charger Features

  • Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output
  • DC M6 screw terminals that will allow for large battery cable connection between all sources
  • A dedicated Maximum Power Point (MPPT) solar regulator
  • The same battery algorithms as included in our AC mains ePOWER battery charger including a specific lithium charging profile
  • 40A output up to 40+°C with thermo controlled fan cooling
  • Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
  • Temperature sensor included in charger for more accurate battery charging

Enerdrive Product Brochure

Enerdrive Product Manual

For In Vehicle & Marine Wiring Diagram, click below:

Wiring Diagram

For Towed Vehicle Wiring Diagram, click below:

Wiring Diagram



Enerdrive ePOWER 40A Battery Charger:

The Enerdrive ePOWER 40A Battery Charger is a fully automatic, “set and forget” charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently.

As dictated by battery manufacturer’s recommendations, batteries require a multistage charge sequence for perfect, fast and accurate charging.

The Enerdrive ePOWER charger can be programmed for Lithium batteries. This setting delivers the full rated output of the charger constantly with the charger switching to power supply mode once the voltage peak is met (indicating a full battery bank).

40A Battery Charger Features:

  • Multistage Charging: Fully automatic multistage battery charger with the ability to charge 3 separate battery banks.
  • Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.
  • Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3.
  • Current Control: User adjustable current output (e.g. Dial the 60amp unit back to run off a 1kVA generator).
  • Smart Charging: The ePOWER 40A battery charger will regulate its output based on the loads connected to your battery banks.
  • Wide AC Input Range: Operates on both 110V / 60Hz and 240V / 50Hz.
  • LED Display: Easy to use “set and select” menu along with scrolling charger status.
  • Silent Mode: Disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours.
  • Temperature Sensor: Battery temperature sensor included with 3 meter cable.
  • 5 Year Warranty from an Australian company renowned for customer support.

Enerdrive Product Brochure

Enerdrive Product Manual

Enerdrive Operating Guide



Enerdrive ePRO PLUS Battery Monitor:

  • Complete battery status information at a glance (%, V, A, Ah, W, h:m, °C)
  • Supports up to three battery banks (12V, 24V and 48V)
  • Very simple ‘Plug and Play’ installation
  • Perfect integration with Enerdrive DC Modular products

The ePRO PLUS is the latest generation, highly advanced battery monitor. It consists of an intelligent shunt and a remote control display unit. The shunt has a Grid Optimized footprint for perfect integration with our DC Modular products.

This advanced battery monitor not only shows the true state of charge of your battery system. It also offers a large amount of additional features to optimally supervise your battery system and control external equipment. The ePRO PLUS is compatible with lead based and Lithium batteries (LiFePO4).

The ePRO PLUS can monitor up to three battery banks. The inputs for battery bank 2 and 3 can also be configured for other purposes, like mid-point voltage measurement, keyswitch input, setup lock or backlight control. The ePRO PLUS battery monitor can measure DC currents up to 600Amps (500Amp continuous) and voltages up to 70Vdc. So any lead- or lithium based battery from 12V up to 48V can be monitored.

The installation time is minimal, requiring only one supply wire to the intelligent shunt base and a single ‘QuickLink’ cable between the shunt base and the control/display unit (CDU). Additionally, the battery minus cable must be interrupted in order to insert the shunt into the high current circuit. The fused supply wire and the QuickLink cable are both included in the package, avoiding the need for a separate connection kit.

Enerdrive EN55050 EPRO Plus Product Brochure

Enerdrive EN55050 EPRO Plus Product Manual
Enerdrive Installation Guide

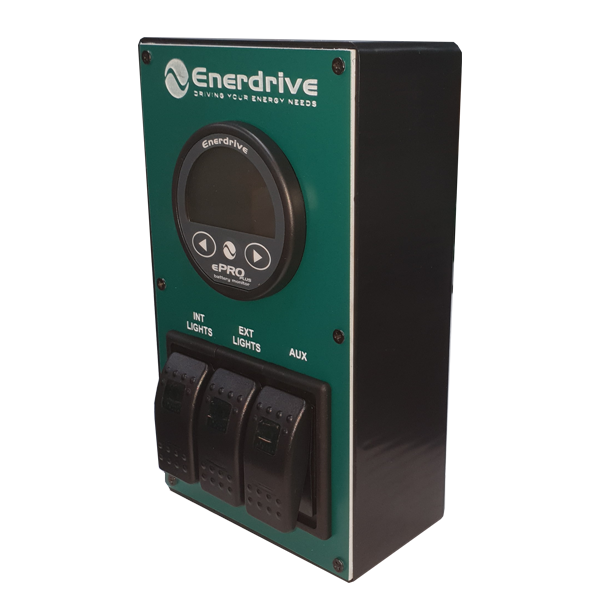

Enerdrive Accessories Box with ePro Plus Battery Monitor and Switches, Not Pre-Wired:

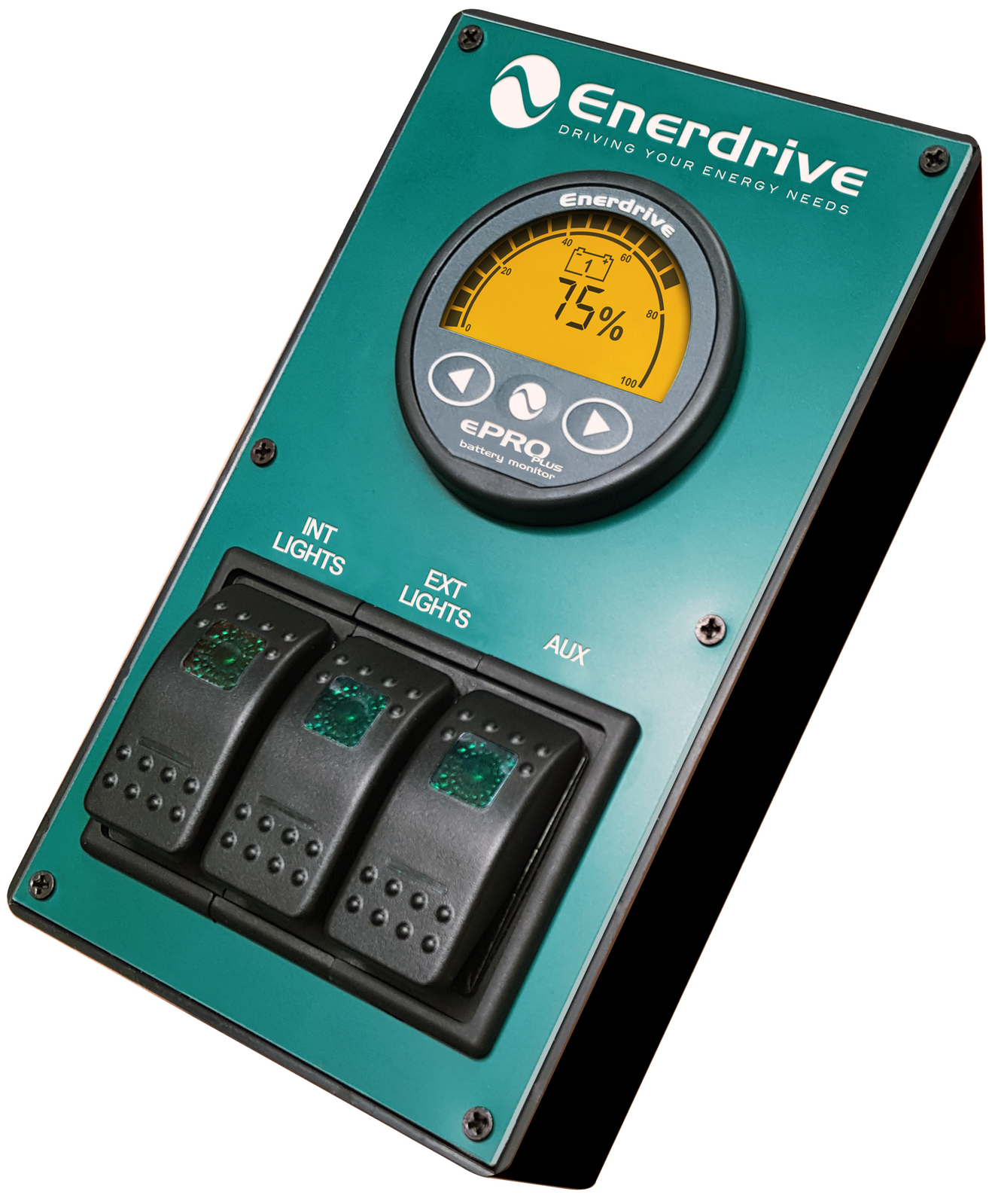

The Enerdrive Accessories Box comprises of an ePRO Plus Battery Monitor, three switches and the provision to mount you

Specifications

SKU K-DIY-BOARD

Brand Enerdrive

Warranty Period: 5 Years

Product Category Power Systems

Efficiency 95% (DC Battery Charger)

Standby Current < 2 mA (AC Battery Charger)

LCD Display Charging status, Battery Voltage, Output Current & Fault Codes (AC Battery Charger)

Humidity 5-95%, relative humidity non-condensing (AC Battery Charger)

DC Output Single (DC Battery Charger) | Three (1 fully independent, 2 common with diode isolation) (AC Battery Charger)

Regulatory Compliance Complies with AS/NZS 60335.2.29 Including Australian deviations (AC Battery Charger)

AC Input Connection IEC with Supplied 1.2M Power Lead (AC Battery Charger)

Over Charge Yes, unit shutdown (AC Battery Charger)

AC Input Frequency Range 47 – 63 Hz (AC Battery Charger)

Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (DC & AC Battery Charger) (AC Battery Charger)

Storage Range (temp) -40° to 70° C (AC Battery Charger)

Power consumption (DC 12V) 700W (Full Load) (AC Battery Charger)

Ingress Protection IP32 (Basic drip proof in vertical orientation) (AC Battery Charger)

Float 13.0V - 13.8V (DC Battery Charger) | 13.4 – 13.8 V (AC Battery Charger)

AC Input Voltage 90 to 265 VAC (AC Battery Charger)

Dimensions 242 x 172 x 74mm (DC Battery Charger) | 295mm x 206mm x 90mm (AC Battery Charger) (L x W x H)

Output Current Rating (Amps) 40

DC Output Ground Single Heavy Duty Common Ground Stud (AC Battery Charger)

Battery Temp Sensor Port RJ12 (standard battery temp. sensor supplied) (AC Battery Charger)

Reverse Polarity Yes, (with user replaceable fuse/s) (AC Battery Charger)

Over Temperature Protection Yes, unit de-rated and shutdown (AC Battery Charger)

Equalize 15.5V (DC Battery Charger) | 16.0 V (AC Battery Charger)

Charger Efficiency > 82% (AC Battery Charger)

AC Input Operating Range 207-265 Vac (3.8 A Max)90 – 125 Vac (7.7 A Max) (AC Battery Charger)

Charging Control Three Stages (DC Battery Charger) | Four stages (Bulk/Absorption/Float/Maintenance), Two stages (Bulk/Absorption)Constant Power Supply (Program setti

Output System Voltage 12V

Operating Range (temp) -20° to 60° C (AC Battery Charger)

Note Please note, if you order the K-DIY-BOARD-01, you will receive the Epor plus monitor display screen as a loose item to be mounted where you choose. Yo

Net Weight (kg) 14

DC Output Connection Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (AC Battery Charger)

Output Short Circuit Yes, (with user replaceable fuse/s) (AC Battery Charger)

Power Factor Correction Yes (AC Battery Charger)

Temperature Setting Low/ Normal/ High (Battery Temperature Sensor Standard) (DC Battery Charger) | Hot, Normal, Cold (no sensor connected) (AC Battery Charger)

Charger Mode Output Voltage 13.8V - 15.5V (DC Battery Charger) | 14.2 – 15.5 V (AC Battery Charger)

Cooling Forced air ventilation (thermo controlled fan) (AC Battery Charger)
