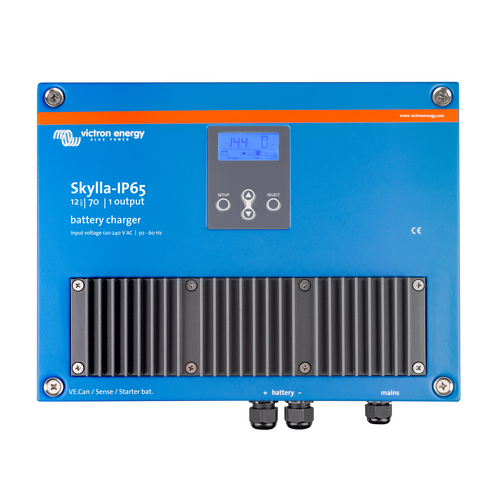

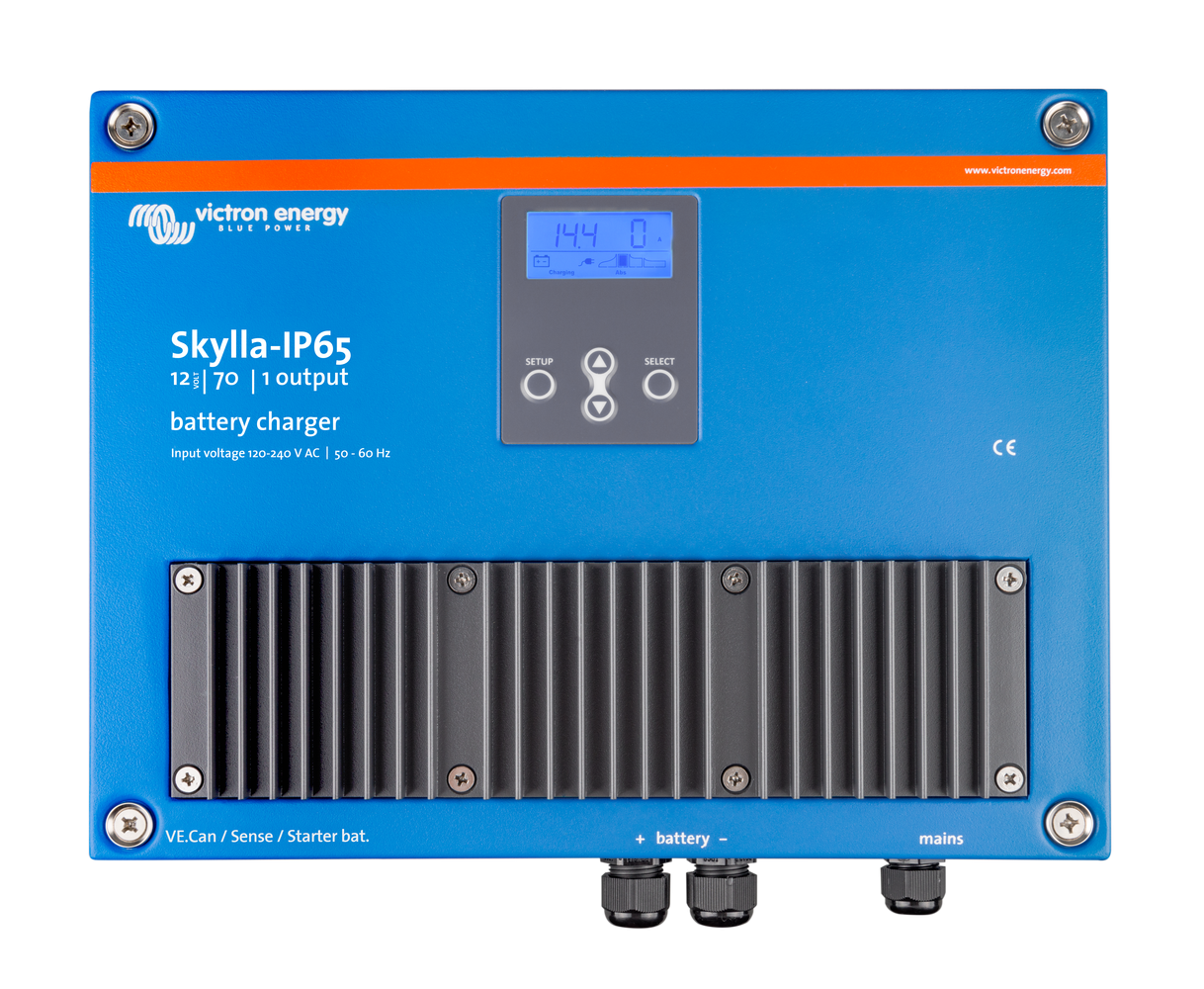

Victron Skylla-IP65 12V/70A Battery Charger (1+1) 120-240V

Product Description

Victron Skylla-IP65 12V/70A Battery Charger (1+1) 120-240V, 5 Year Warranty. A powerful, waterproof and intelligent battery charger with a 7-stage adaptive charge algorithm, suitable for a wide range of battery types and chemistries featuring a dedicated Lithium-ion charge algorithm.

The wide range universal input voltage adds flexibility to the installation, the charger will maintain its full output power no matter where it is located in the world.

The IP65 rating makes this charger especially suitable for marine, mobile, and industrial applications and it can withstand the rigors of an adverse environment: heat, humidity and salt air.

Both models are available in two versions:

• 3 full rated outputs
• 1 full rated output together with an isolated 3A trickle charge output for a starter battery

Specifications:

• Input voltage (VAC): 120/230 V
• Input voltage range (VAC): 90-265 V
• Maximum AC input current @ 100 VAC: 12A
• Frequency: 45-65 Hz
• Power factor: 0.98
• Charge Voltage 'absorpion':  14.4 V
• Charge Voltage 'Float': 13.8V
• Charge Voltage 'Storage': 13.2V
• Charge Current: 70A
• Charge Curret Starter Battery: 3A
• Charge Algorithm: 7-stage adaptive
• Battery Capacity: 350-700 Ah
• Temperature Sensor: Yes
• Can be used as power supply: Yes
• Remote on-off port: Yes (can be connected to a Li-Ion BMS)
• CAN-bus communication port (VE.Can): Two RJ45 connectors, NMEA2000 protocol, not isolated
• Synchronised parallel operation: Yes, with VE.Can
• Synchronised parallel operation: Yes, with VE.Can
• Alarm relay: DPST AC rating: 240 VAC/4 A DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC
• Forced cooling: Yes (internal air circulation)
• Protection: Battery reverse polarity (fuse) | Output short circuit | Over temperature
• Operating Temperature Range: -20 to 60 °C (Full output current up to 40 °C)
• Humidity (Non-Condensing): Max 95 %
• Material & Colour: Aluminium (blue RAL 5012)
• Battery Connection: M6 bolts
• 230 VAC Connection: screw-clamp 6mm² (AWG 10)
• Protection Category: IP65
• Weight: 6kg
• Dimensions (hxwxd): 401 x 265 x 151 mm
