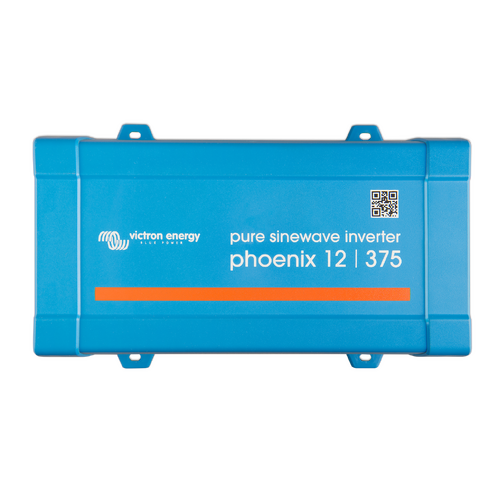

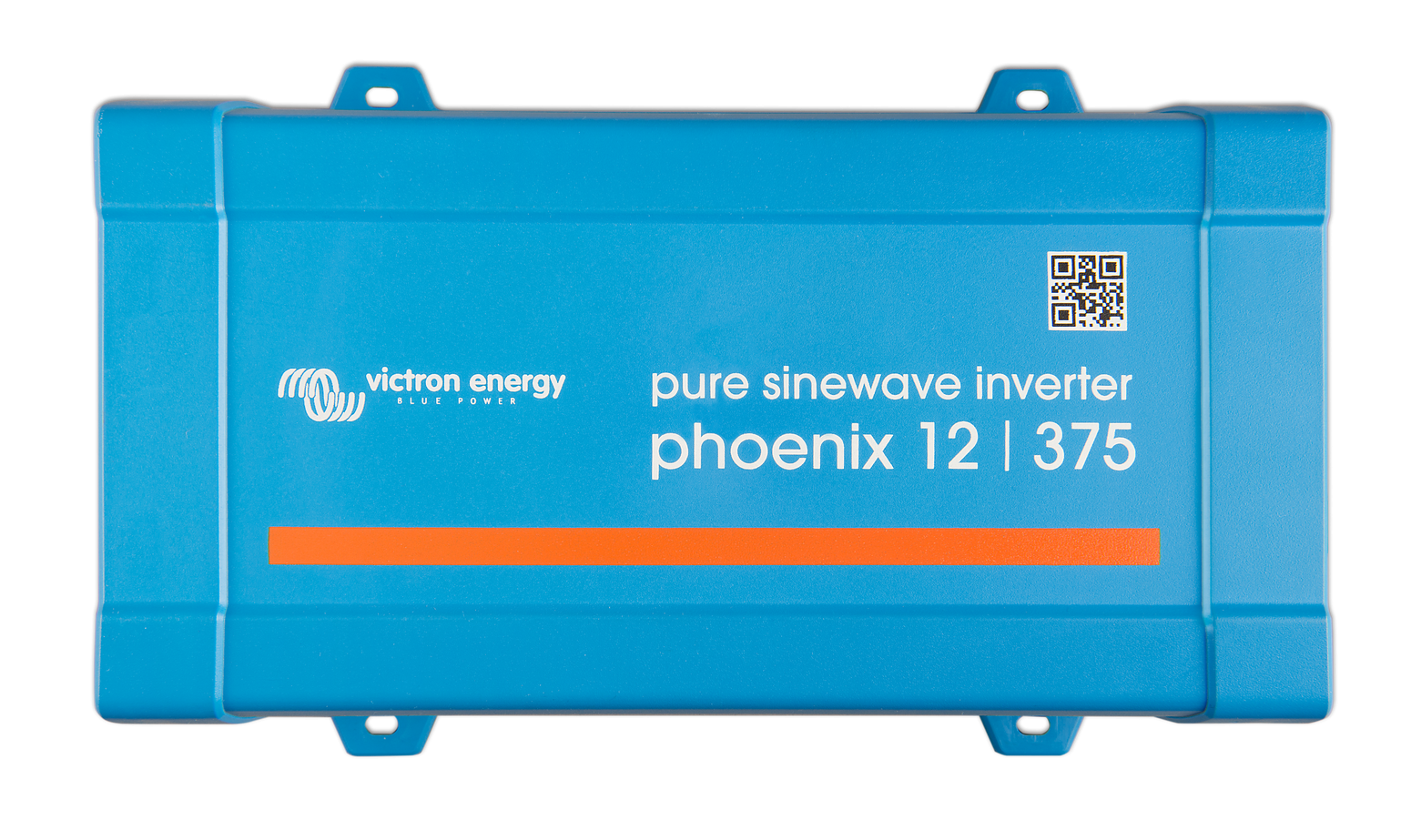

Victron Phoenix Inverter 12/375 230V VE.Direct AU/NZ (AS/NZS 3112)

SKU: PIN121371300 Learn More»
$229
$235
In Stock1-2 Days Dispatch

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Learn More»

Description

Victron Phoenix Inverter 12/375 230V VE.Direct AU/NZ (AS/NZS 3112), 5 Year Warranty. Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC

VE.Direct communication port:

  • The VE.Direct port can be connected to:
    • A computer (VE.Direct to USB interface cable needed)
    • Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)
  • Fully configurable:
    • Low battery voltage alarm trip and reset levels
    • Low battery voltage cut-off and restart levels
    • Dynamic cut-off: load dependent cut-off level
    • Output voltage 210 - 245V
    • Frequency 50 Hz or 60 Hz
    • ECO mode on/off and ECO mode sense level
  • Monitoring:
    • In- and output voltage, % load and alarms

Proven reliability:

The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power:

Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode:

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

Remote on/off:

A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.

LED diagnosis:

Please see manual for a description.

To transfer the load to another AC source: the automatic transfer switch:

For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

DC connection with screw terminals:

No special tools needed for installation



Victron PIN123750300 Product Card

Victron PIN123750300 Product Manual

Show More

Specifications

SKU PIN121371300

Brand Victron

GTIN 8719076055013

Product Category Power Inverters

Model PIN121371300

Wattage (W) 375

Protection category IP 21

Peak power 700W

Humidity Max 95%

NOTE For further specifications and performance details, please download the PRODUCT CARD under our Product Details tab

Continuous Power at 40°C, Cos Phi 1 260W

Efficiency 89%

Input Voltage 9,2 - 17V

Battery-connection Screw terminals

Continuous Power at 25°C, Cos Phi 1 300W

Output Voltage and Frequency 230VAC or 120VAC +/- 3% | 50Hz or 60Hz +/- 0,1%

Operating temperature range -40 to +65°C (fan assisted cooling) Derate 1,25% per °C above 40°C

Protection a) output short circuit, b) overload, c) battery voltage too high, d) battery voltage too low, e) temperature too high, f) DC ripple too high

Dimensions 86mm x 165mm x 260mm

Net Weight (kg) 3


NOTE: see full product specifications & further product info in the section on this page.
