Product Description

Simarine by Enerdrive, Digital Battery Monitor Pack (Shunt 300A, Quad Shunt 4 x 25A & Tank Module), 5 Year Warranty.

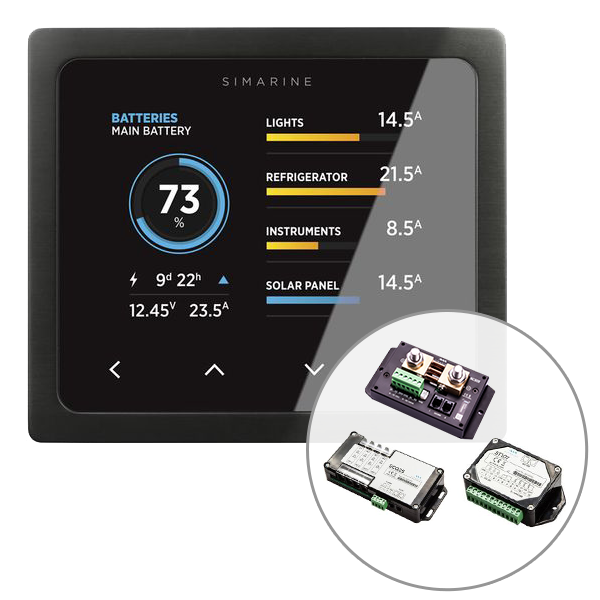

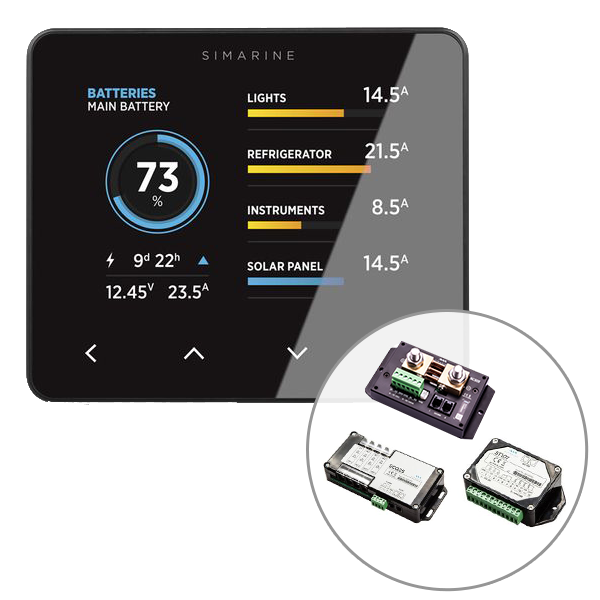

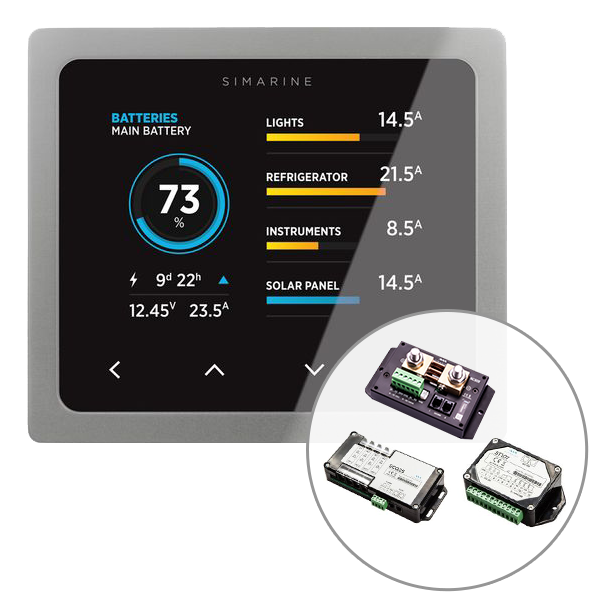

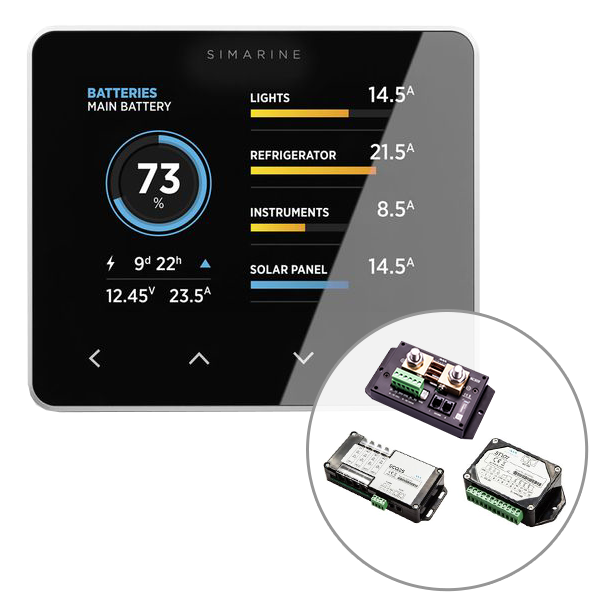

Pack includes:

  • Pico Display (You can choose either standalone black, standalone silver, mount balck or mount silver)
  • Battery Shunt 300A 2 x Volt 2 x Resist 1 x Temp
  • Quad Shunt 4 x 25A Circuits
  • Tank module 3 x Volt 4 x Tank/Temp

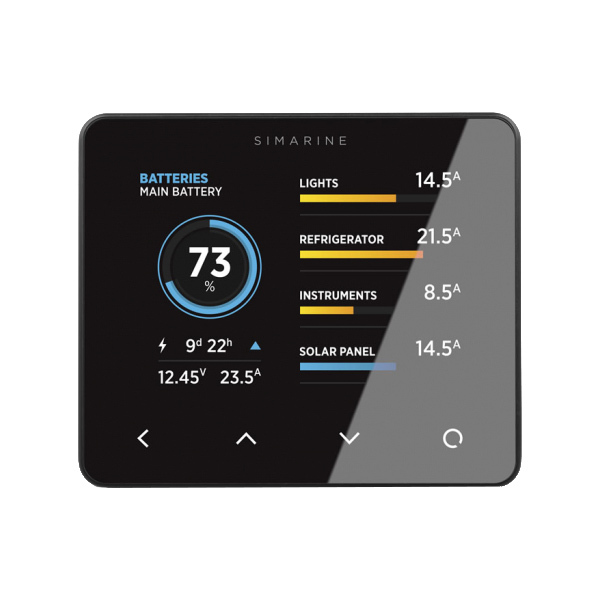

Pico Display:

SIMARINE’s advanced battery monitor for more demanding users.It can be connected to:

  • up to 6 battery banks,
  • 6 additional battery voltages
  • 14 tank levels (for temperature monitoring)
  • 20 consumer or power generation readings.
  • Compatible with all SIMARINE modules.

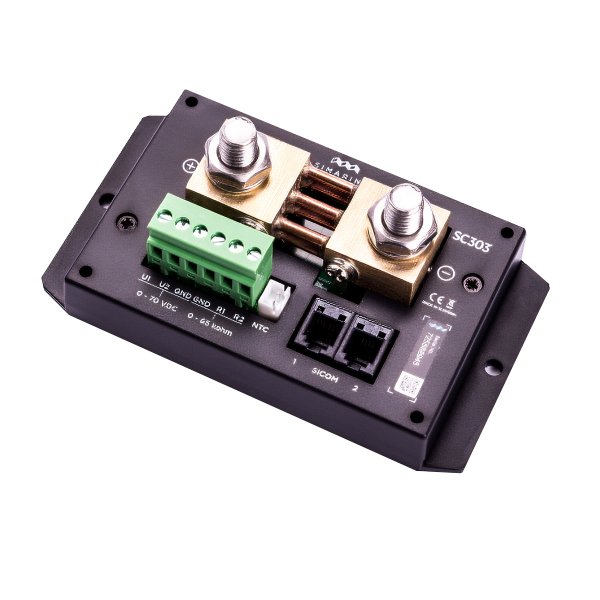

Battery Shunt 300A 2 x Volt 2 x Resist 1 x Temp:

Innovative combination of shunt and tank level module. SC303 is an active combo shunt for PICO battery monitor with 2x voltages, 2x tank level or temperature, 1x socket for temperature sensor with JST connector and 1x current sensor up to 300A for up to 75V systems. It can be used for monitoring current draw of heavy consumers (inverters, bow and stern thrusters, anchor winches) and current generators (shore power chargers and solar panels). Additionally, it allows monitoring tanks for fuel, fresh and grey water.

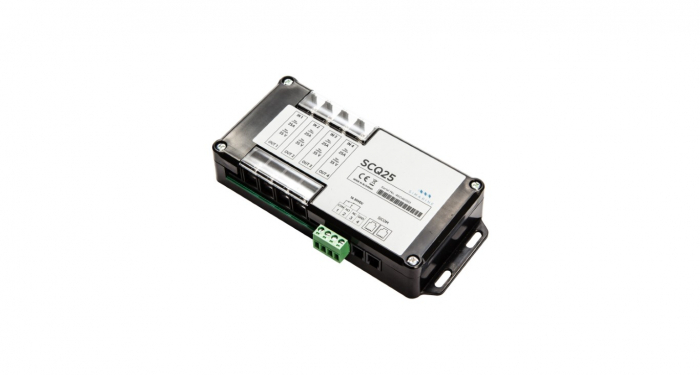

Quad Shunt 4 x 25A Circuits:

SCQ25 is an innovative shunt module for monitoring individual consumers and generator with 4x current sensors up to 25A each. For 12V and 24V systems.

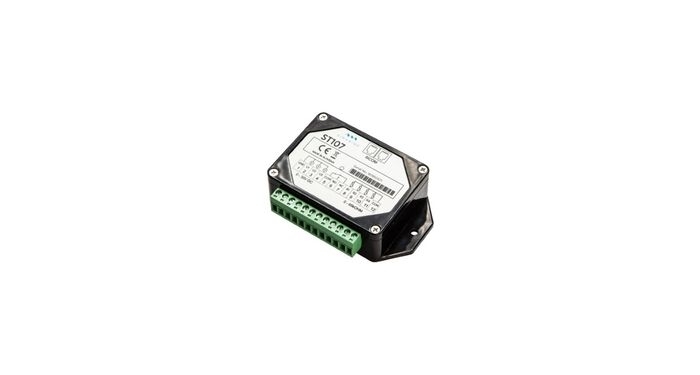

Tank Module 3 x Volt 4 x Tank/Temp:

Fresh, Gray or Black – keep your waters under control with ST107 module.

ST107 is an the ultimate digital module, that allows wide connection (and monitoring) possibilities. It enables monitoring tank levels (up to 7x), battery voltages (up to 3x), temperatures (up to 4x).

Free Simarine Android and iOS Apps:

Simarine offers a free App to connect your PICO display to your smartphone via Wi-Fi. The Apps allow you to monitor all battery and tank data, upload history, edit and restore settings and even upgrade the firmware with new features.

For Battery Shunt 300A 2 x Volt 2 x Resist 1 x Temp product manual, click here.

For Quad Shunt 4 x 25A Circuits product manual, click here.

For Tank Module 3 x Volt 4 x Tank/Temp product manual, click here.

Enerdrive Product Brochure

Enerdrive Product Manual

Specifications

SKU MYG-SI-2

Brand Simarine

Warranty Period: 5 Years

Product Category Batteries Other

Product Type Digital Battery Monitor, Shunt 300A & Quad Shunt 4 x 25A & Tank Module 3 x Volt 4 x Tank/Temp

Temperature range -20 – +70 °C (Monitor)

Power consumption (DC 12V) 90 mA (Operating, Wi-Fi on, 100% illumination) | 35 mA (Operating, Wi-Fi off, 70% illumination 3) | 18 mA (Stand by, Wi-Fi off, 0% illumination) | 5 m

Voltage 6 – 35 V (Monitor)

Supply Voltage Range 6-35V

LCD Display LCD TFT 3,5'' High resolution IPS, Gorilla Glass, anti-reflective coating

Dimensions (LxWxH mm) 10 x 84 x 98 mm (Standalone) | 10 x 94 x 108.5 mm (Panel) (Monitor)

Input Voltage 0-75V

NOTE Please note, there are three different Pico + Display options available: standalone black, standalone silver or mount silver.


Videos

Enerdrive eTIPS - How to Reprogram a Simarine Display



Walk Through of the Simarine Battery Monitor App



Connecting Your Enerdrive Lithium Battery to a Simarine Monitor



Simarine Pico screen and Smartphone app in Unison Batteries, Tanks, Temperatures



Retrofit using standalone display



Alarms on Simarine and Safiery Remote Monitoring Systems



Customer Reviews

Have been using this on my exploration vehicle for Review by
I use the pico daily both by the app and the fixed display. At the touch of a button I can closely monitor the vitally important status of my lithium battery system and my water tank levels. Pretty impressed. The system has handled the dust and vibration you would expect off road in the Australian outback. It’s accurate and easy to use with the data you need to travel safely.
(Posted on 17 July 2020)

Write a product review

Product Q&A

Ask Us a Question
  • hi, does this work with the Enerdrive ePOWER B-TEC 200Ah Lithium Battery, 40A DC2DC + 60A AC Charger Packthanks vernon

    Hi Vernon,

    Yes this product can be integrated with the Enerdrive ePower 200Ah pack.
