Renogy ONE M1

SKU: RMS-LP4 Learn More»

Free Shipping

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

Renogy ONE M1, 2 Year Warranty. Introducing Renogy ONE M1, your all-in-one energy monitoring and off-grid smart living center that revolutionizes comfort when you live in your off-grid home or RV.

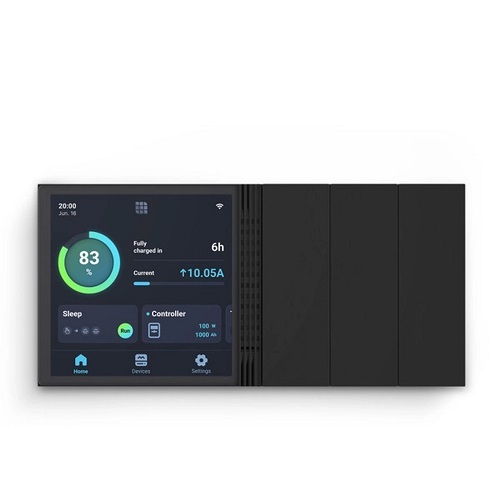

Renogy ONE M1 is the heart of your off-grid system, with a sleek, flush-mount touchscreen that looks great anywhere. A 4'' HD display lets you monitor every Renogy device in your home from one screen. And with the DC Home app, you'll have the same system monitoring wherever you go on your smartphone.

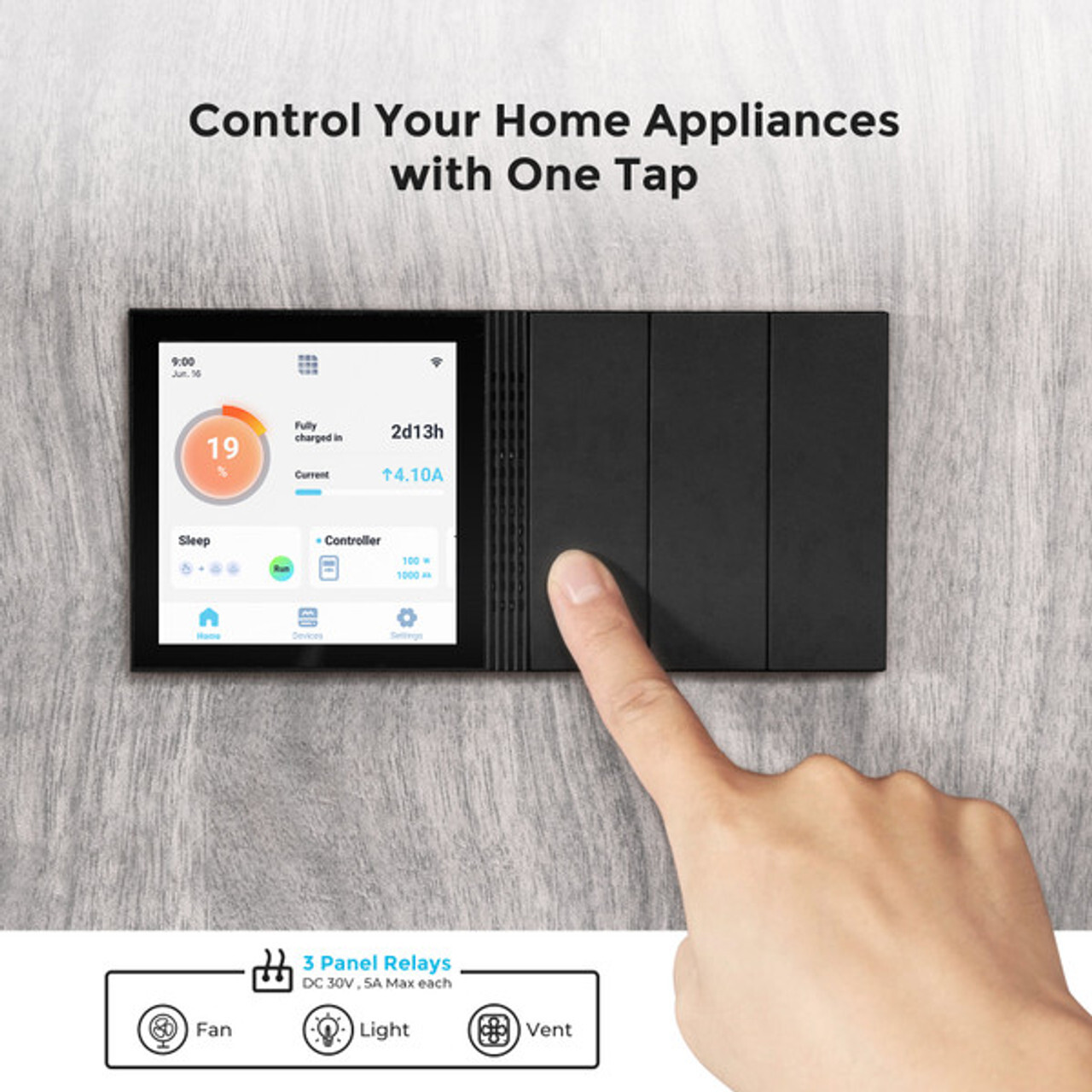

Live off-grid without compromising comfort with Renogy ONE M1. It gives you control of up to 3 devices at a time through the direct connection with panel relays. For instance, you can create an "Evening" mode that automatically turns on lights or a "Sleep" mode that dims the lights and shuts down the connected appliances.

Renogy ONE M1 delivers peace of mind with enhanced security features for your off-grid home or RV. Renogy ONE is compatible with our Door and Window Sensors and motion Sensors and sends instant alerts right to your DC Home app if there's a security breach.

Features:

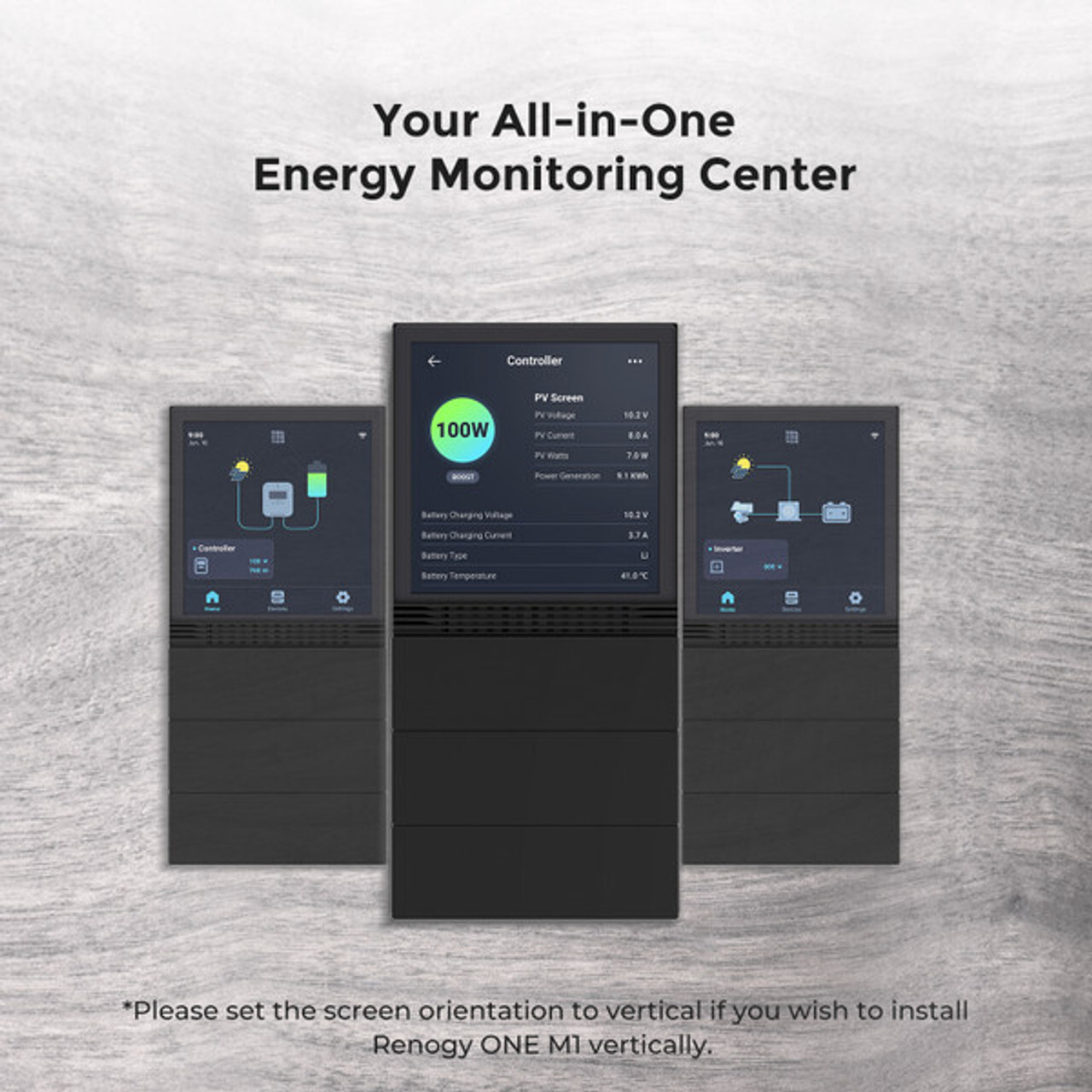

All-in-One Smart Panel: Renogy ONE M1 is the nerve center of your off-grid home or RV. The 4-inch touch screen display provides smart energy monitoring and control of all your connected devices and appliances with intuitive visuals and real-time data.

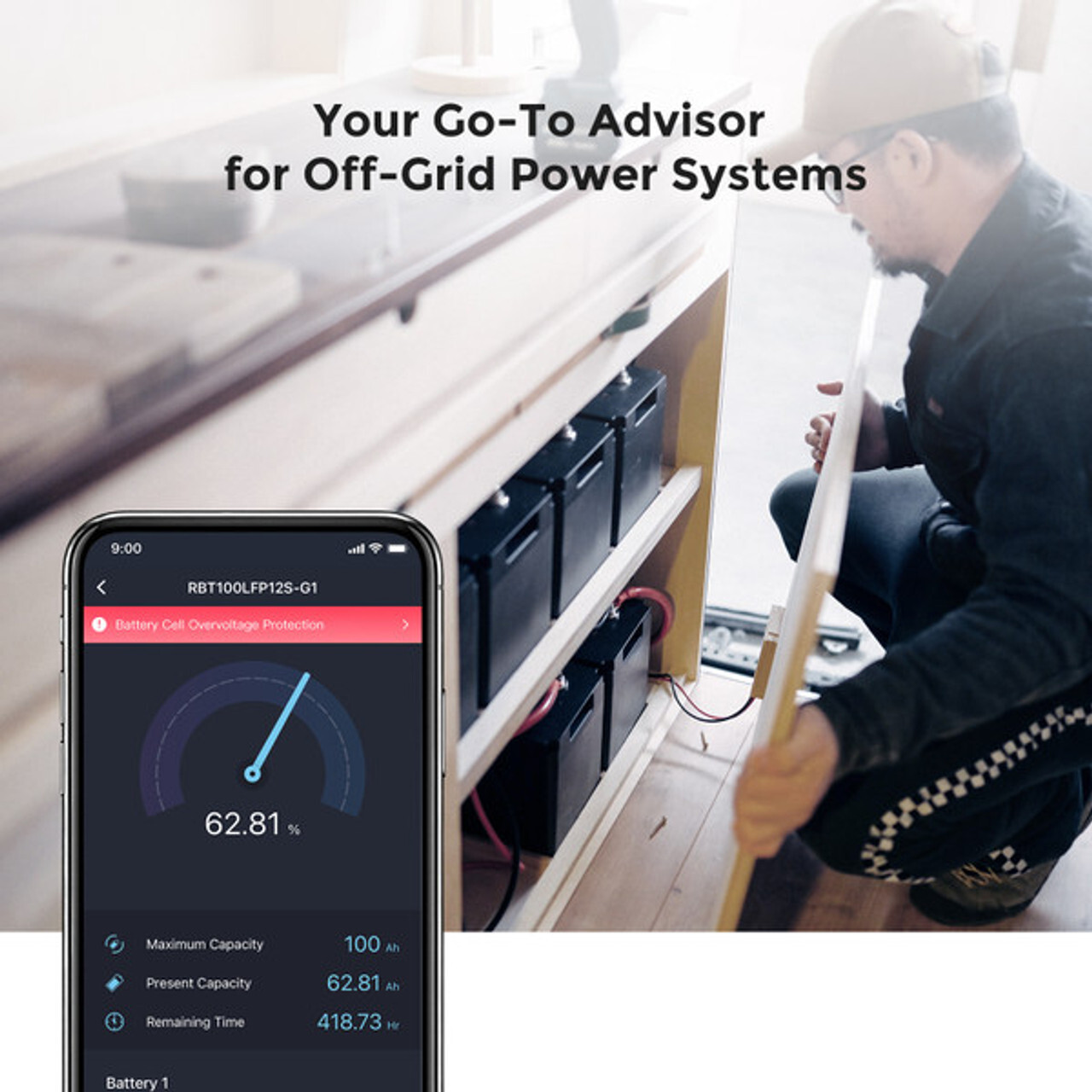

24/7 Energy Monitoring: No longer do you need to track the performance data of your LiFePO4 batteries, charge controllers, and inverters on multiple monitors. Now, Renogy ONE M1 delivers all the performance data from connected devices directly to your smart panel through Bluetooth, RS485, or RV-C communication cables. DC Home app gives you all these capabilities wherever you go right on your smartphone
Connected Living: Directly connect a maximum of 3 DC appliances to the panel relays of Renogy ONE M1. The system gives you the flexibility to switch on/off connected appliances in multiple ways including physical switches or the DC Home app.

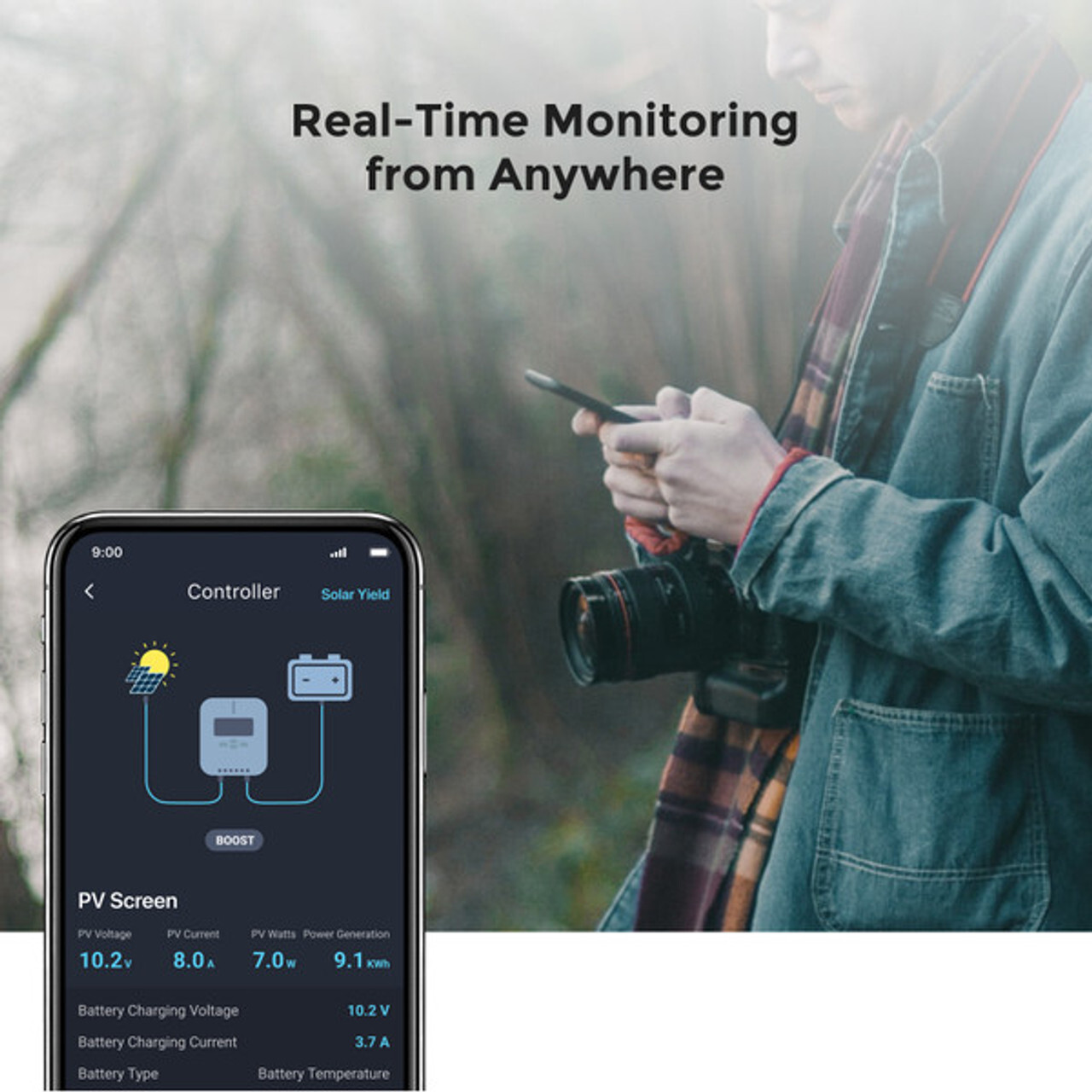

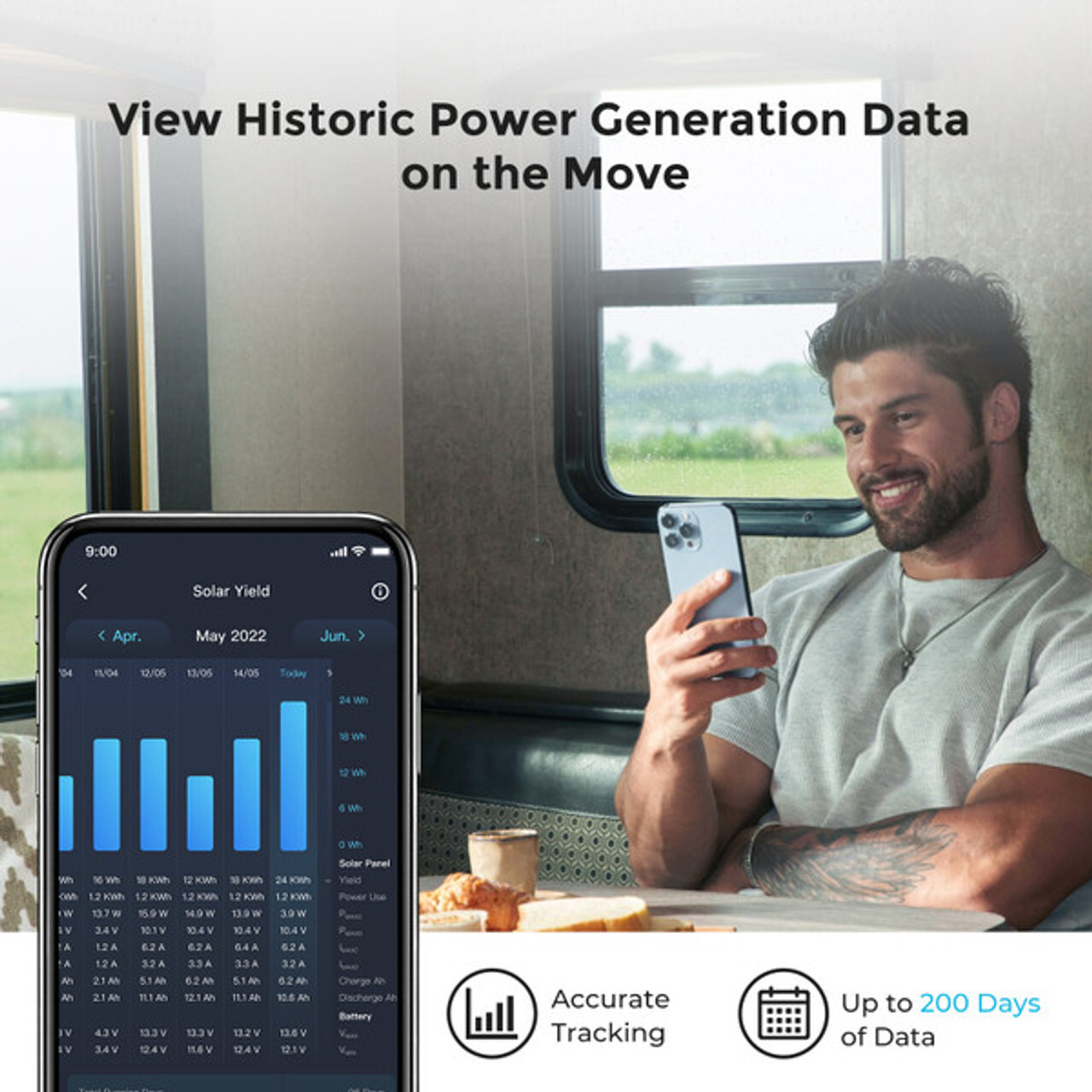

Monitoring Anywhere, Anytime: Wi-Fi connectivity uploads energy data while you’re off the grid so you can monitor your system in real time, wherever you are, with the DC Home app.
Casing Material: PC+ABS V0

Go to: Product Details

Go to: Reviews

Specifications

SKU RMS-LP4

Brand Renogy

Warranty Period: 2 Years

Product Category Battery Monitors

Rated Power 3.5W

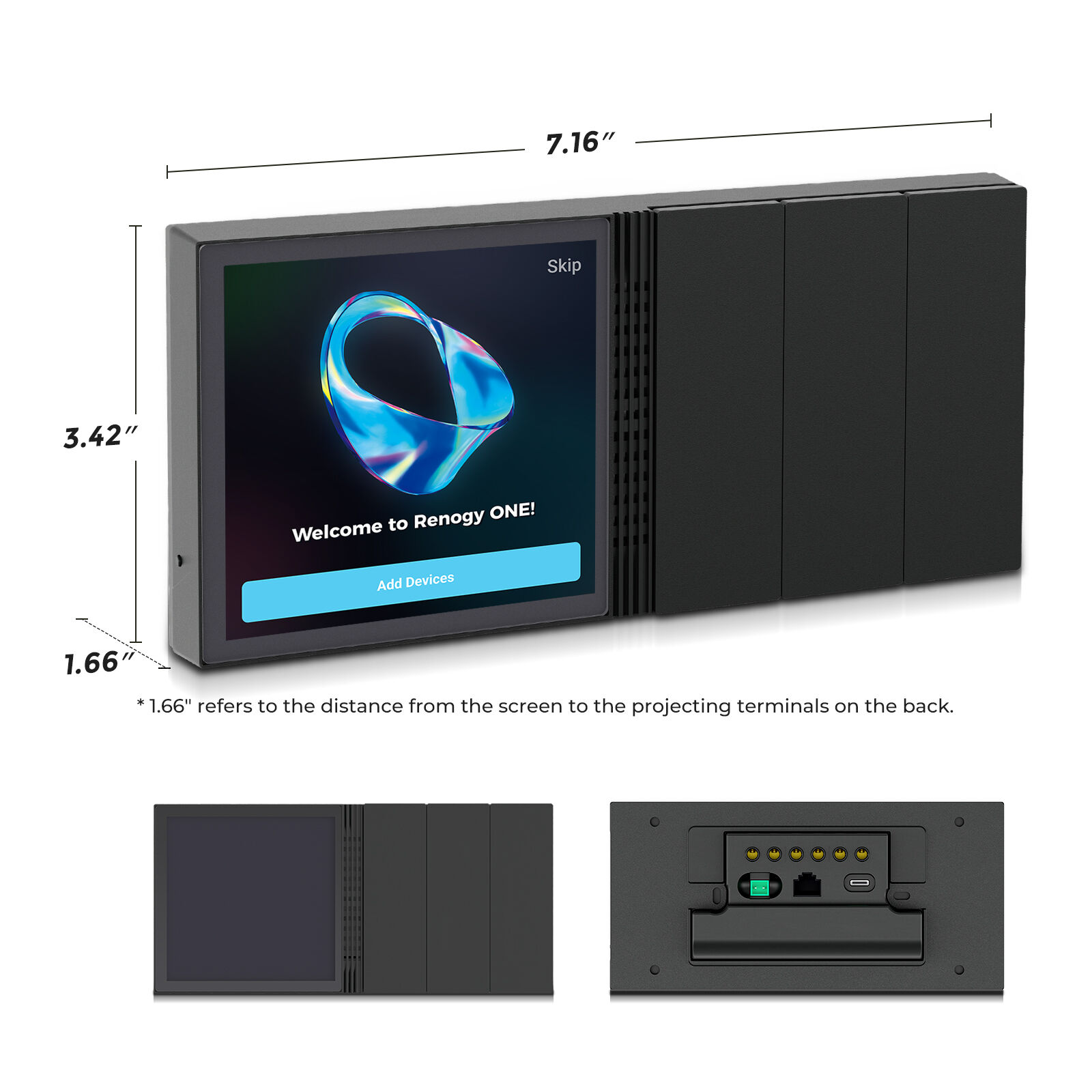

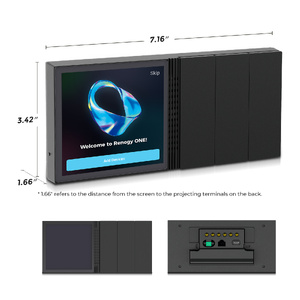

Dimensions 181.8 x 86.8 x 42.2 mm

Weight (kg) 0.286

Operating temperature range -20°C-50°C

Standby power consumption <2.5W

Operating Humidity 0% to 95%

Go to: Specifications

Go to: Reviews

Product Q&A

Ask Us a Question

Can I connect the Renogy One to different brands of batteries?

The Renogy One can only connect with Renogy batteries with built in Bluetooth or connected to the BT-1/BT-2
Can Renogy ONE connect to the Internet via a hotspot from a smart mobile phone?

Yes it can
Does the functionality of the configured smart scenes continue when Renogy ONE M1 is offline?

Indeed, Renogy ONE M1 can communicate wirelessly with smart accessories via the Zigbee 3.0 protocol. When you configure a smart scene, the settings are stored within the system of Renogy ONE M1. In the event that a network connection is unavailable, Renogy ONE M1 can still communicate with smart accessories through Zigbee 3.0.
What is the maximum number of devices that Renogy ONE M1 can connect to via Bluetooth, RS485/CAN, and Zigbee 3.0?

Renogy ONE M1 allows you to connect up to seven Bluetooth devices, sixty-four devices with an RS485/CAN port, and two hundred Zigbee 3.0 devices.

Please be aware that if there are too many devices connected to Renogy ONE M1, it may respond slowly.
What is the maximum range between Renogy ONE M1 and Bluetooth devices? Zigbee 3.0 devices?

The Renogy ONE M1 has a maximum range of 32.8 ft (10 m) for Bluetooth devices. However, for Zigbee 3.0 devices, the maximum range extends to 164 ft (50 m).
How much time will the data be locally stored by Renogy ONE M1

Renogy ONE M1 has a 30-day local data storage capacity.
Is it possible for Renogy ONE M1 to recognize devices automatically over any kind of connection?

Yes, as long as they are approved by Renogy, devices having RS485 connections, Bluetooth, Zigbee 3.0, and RV-C capabilities can all be instantly recognized by the Renogy ONE M1.
Is the DC Home app required for Renogy ONE M1 to function?

No, you can add energy devices and examine energy data without connecting to the DC Home app. But, in order to use key features like remote monitoring and creating smart scenes, we recommend pairing it with the DC Home app.
Can a smart mobile phone use a hotspot to connect to the Internet and use the Renogy ONE M1?

Absolutely.
Does the Renogy ONE M1 support wireless networks encrypted with WPA3?

No, WPA3 is not supported by it.
Is a 5G Hz Wi-Fi network supported by the Renogy ONE M1?

No, it isn't
