Renogy Monitoring Screen for DC-DC MPPT Battery Charger Series

Product Description

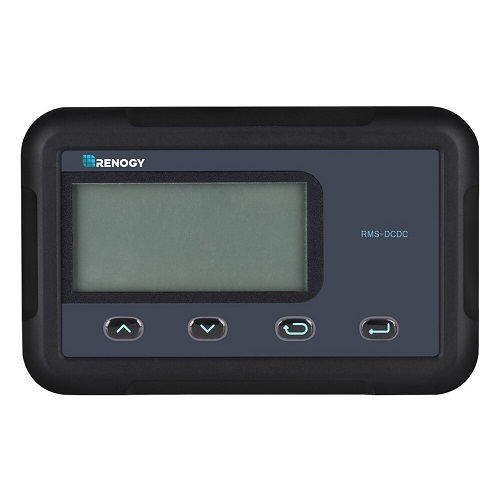

Renogy Monitoring Screen for DC-DC MPPT Battery Charger Series, 1 Year Warranty. The RMS-DCDC is a high precision meter designed for DC-DC MPPT Series onboard battery chargers. Engineered for an aesthetically clean and professional look once mounted, this meter can be flush-mounted and features a backlit LCD. Utilize the 4-key input to navigate through the LCD for system information, configure charging parameters, as well as identify any error codes. The RMS-DCDC is the perfect companion, offering operator feedback on your 2-battery system and keeping you up to date with important system information.

Features:

Dual Battery Monitoring

• Stay informed about your house and auxiliary battery's charging status and easily monitor the solar system's overall health.

Adjustable Parameters

• Program your charger settings, volts, and amps directly through the monitoring screen.

Plug and Play

• Simply connect an RJ45 directly to your DC-DC and let the screen take care of the rest.

 Accurate Readings

• Precise tracking and monitoring ensure the latest real-time solar and alternator charging information.

Specifications:

• Supply Voltage: 5VDC
• Communication Port: RJ45 (RS485 Protocol)
• Supply Current: 30mA
• Display: Backlit LCD
• Power Consumption: <1W
• User Interface: 4 Front Menu Buttons
• Operating Temperature Range: -20°C~45°C
• Mounting System: Wall Mount
• Voltage Accuracy: ±0.1V
• Dimension: 70 x 110 x 31.8 mm
• Current Accuracy: ±0.1A
• Weight: 62 g
• Wire Length: 5m
