Renogy All-in-One Ranger Control Hub

SKU: RPSD6NPB Learn More»
$799
EXTRA $30 OFF! Add to cart to get an instant discount
SALE ENDS:

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Accessories

$310

$269

$156

$449

Click '+' to show more accessories
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

"So easy to connect"

Read more
This product was so easy to connect. I don't have much of a clue when it comes to 12v cable and connections. This saved me
(Posted on 14 August 2025)

Product Description

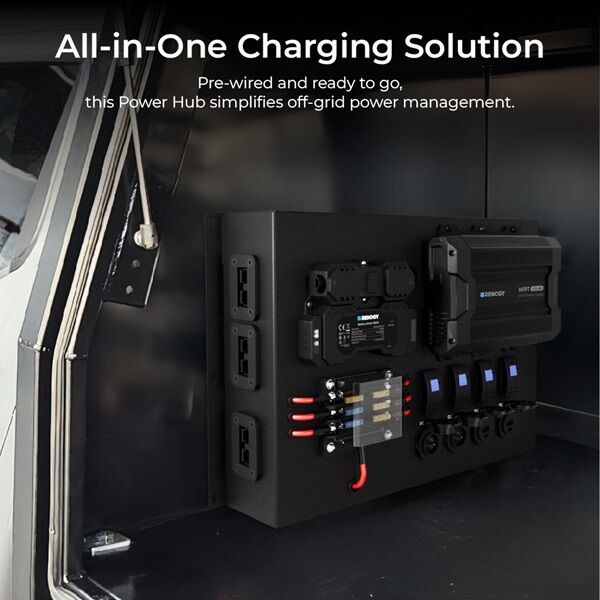

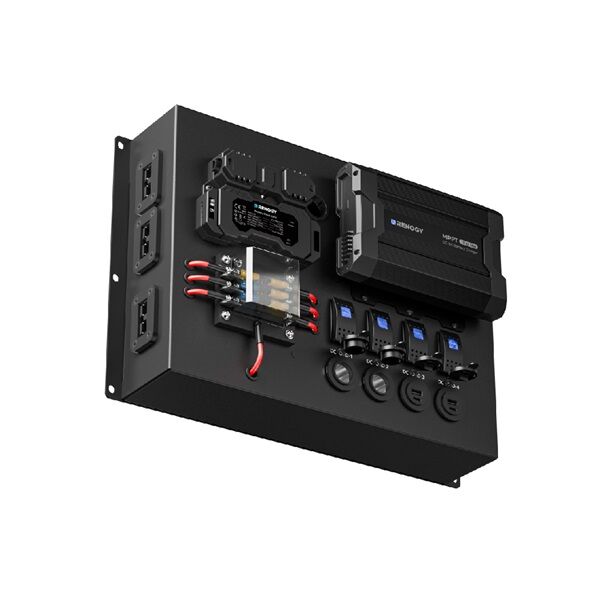

Renogy All-in-One Ranger Control Hub, 2 Year Warranty. Sick of trying to design your own electrical system? Then let the Renogy All-in-One Ranger Control Hub step in. The Ranger Control Hub is the ultimate power solution for 4x4 canopies, combining an IP67-rated DC-DC battery charger with MPPT for seamless charging from both solar panels and your vehicle’s starter battery. Designed for convenience, this all-in-one power hub supports all battery types with hassle-free installation—no need to worry about wiring sizes or complex setups. Simply plug into the Anderson ports and start charging effortlessly.

Features:

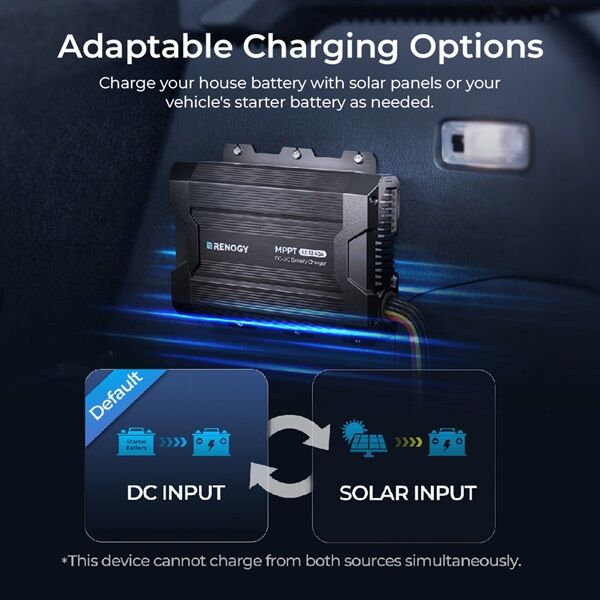

  • Versatile Charging Options: The 40A DC-DC battery charger with MPPT lets you charge your batteries via solar panels or a vehicle alternator. With 50A Anderson ports for effortless connection, off-grid living has never been easier.

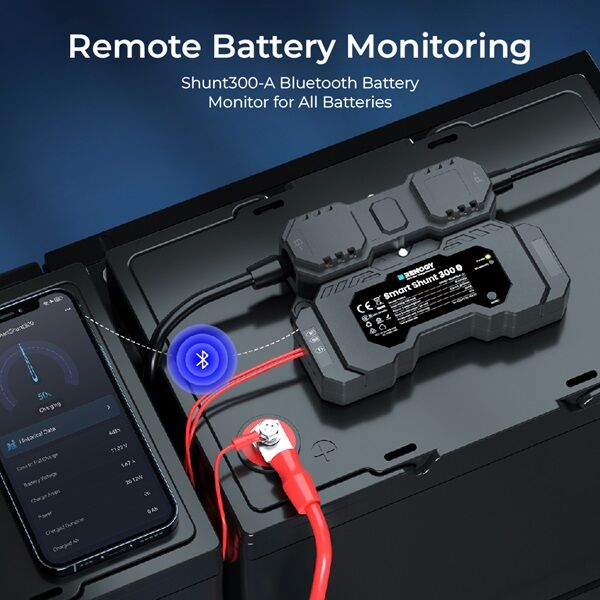

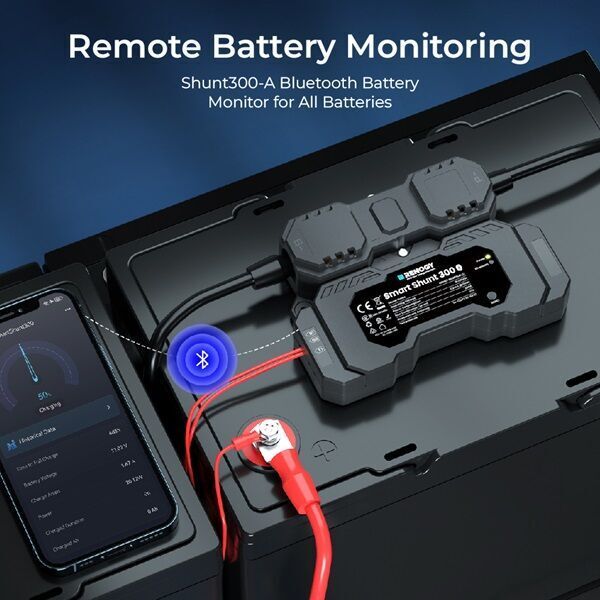

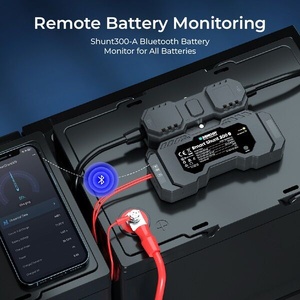

  • Precious Battery Monitoring: Equipped with the Battery Shunt 300, the Ranger Control Hub keeps you informed of your battery status anytime, anywhere. Its high-precision current sensor enables real-time monitoring via the Renogy ONE Core and DC Home App.

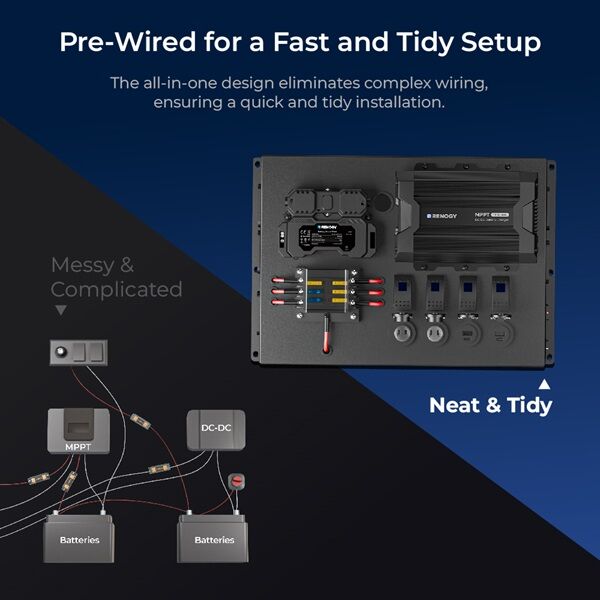

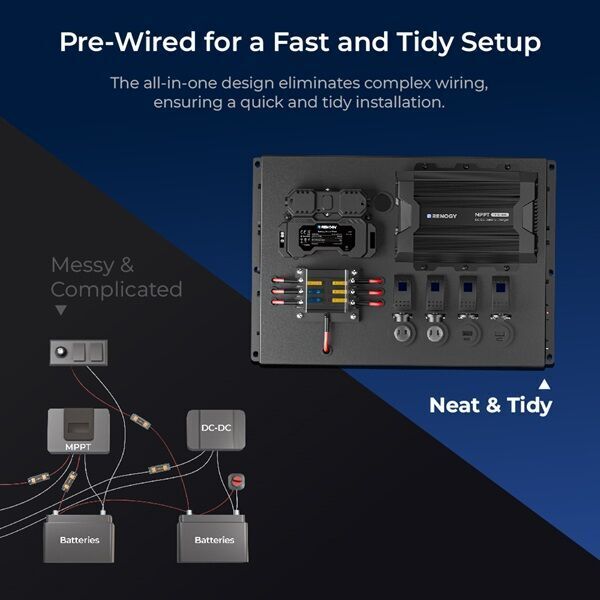

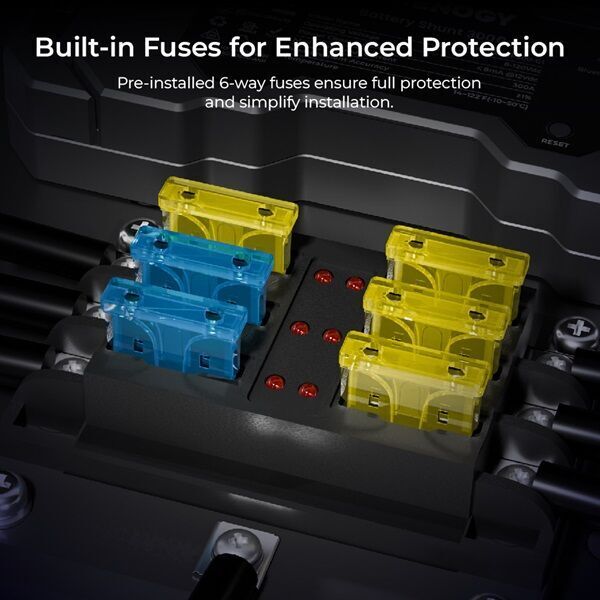

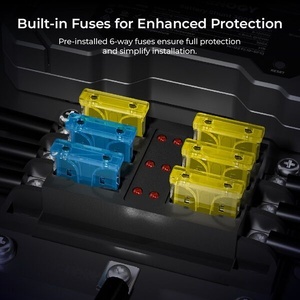

  • Pre-wired Design for Effortless Installation: The Renogy All-in-One Ranger Control Hub simplifies your power setup with a fully pre-wired system. All fuses and wiring are pre-installed, removing the hassle of complex wiring. With Anderson input ports, connecting your solar panels and battery is as easy as plug-and-play.
  • High compatibility with all type of batteries: This All-in-One control hub is compatible with different type of batteries. Equipped with a 50A Anderson input for your vehicle's starter battery and a 50A Anderson output for your house battery, it delivers efficient and reliable power transfer. Whether you're using lithium, AGM, or other deep-cycle batteries, this hub provides a hassle-free connection for optimal charging and performance.

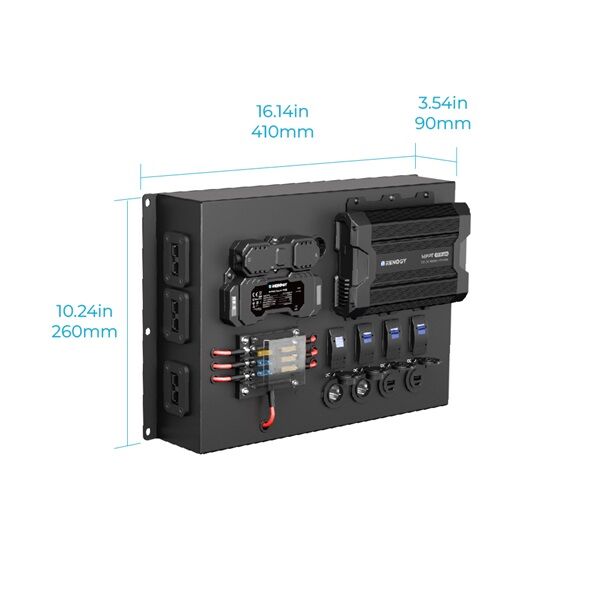

  • Compact design is perfect for your 4x4 canopy: The Renogy All-in-One Ranger Control Hub is designed for maximum space efficiency without compromising functionality. Measuring just 410 x 260 x 90mm, it seamlessly fits into your 4x4 canopy—making the most of every inch in your vehicle.

Specifications

SKU RPSD6NPB

Brand Renogy

Warranty Period: 2 Years

Product Category Power Systems

Output Current Rating (Amps) 40A

Voltage 12V

Dimensions 410 x 260 x 90mm

Solar Input Voltage Range 10-30V DC

Alternator Input Voltage 12-16V DC


Videos

Renogy's First all-in-one Power System



Product Q&A

Ask Us a Question
  • What are the solar requirements for this board?

    The DC-DC charger has a built in MPPT which can will regulate up to 616W and 30VOC.

  • What is the best way to monitor my battery capacity?

    You'll be able to monitor your battery through the 300A Bluetooth Shunt which comes pre-wired. This will allow you to monitor from your phone or you can purchase the Renogy One Core if you wanted a fixed screen.

  • On the board, can I set any safety alarms?

    Through the DC Home app, you will be able to set Low/High SOC, Low/High Voltage, High Charge Amps, High Discharge Amps, Low/High Battery Temperature alarms.

  • What types of outlets are available on this board?

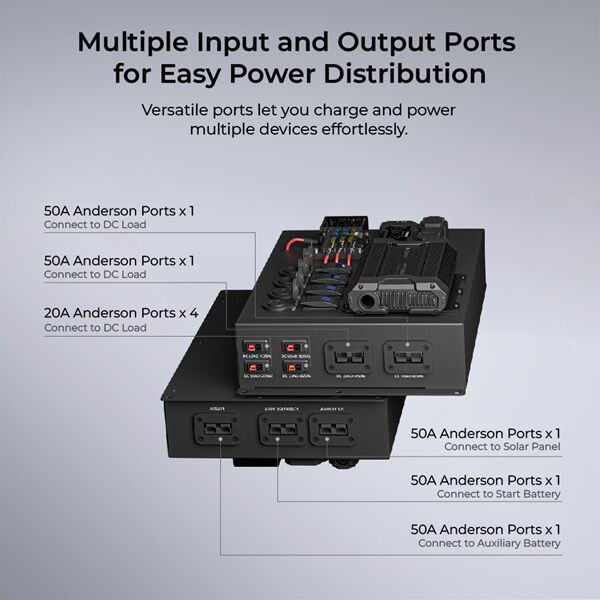

    It features two 12V cigarette sockets, two USB ports (one USB-C and one USB-A), two 50a anderson outputs and four mini Anderson outputs linked to the four switches.

  • How do I set up the DC-DC charger?

    On the side of the DC-DC unit, there is a button and indicator lights. Check the manual to identify the correct light settings for your specific battery type.

  • What battery voltages is this compatible with?

    12-16V DC for the vehicles battery, and the auxiliary battery must be 12V DC.

Customer Reviews

Write a product review

So easy to connect Review by
This product was so easy to connect. I don't have much of a clue when it comes to 12v cable and connections. This saved me
(Posted on 14 August 2025)
