Projecta PM300 RV Power Management System

7 Reviews | Q&A

$1,605

FREE SHIPPING

Accessories

Sold Out

Sold Out

Sold Out

Click '+' to show more accessories
Learn More»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

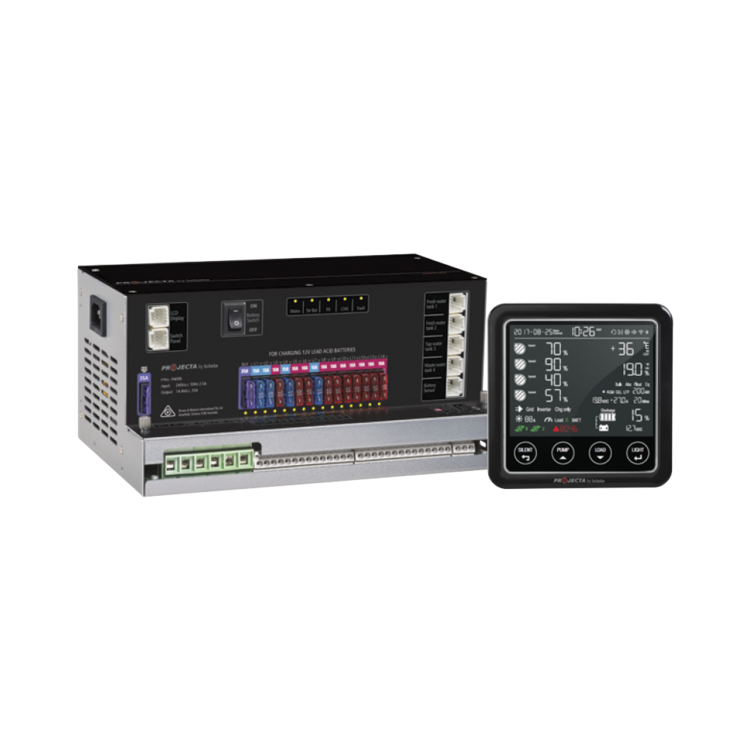

Projecta PM300 RV Power Management System, 1 Year Warranty. A comprehensive system building on all the functionality of PM200, but with a remote LCD display offering advanced monitoring of battery, solar, water and electrical systems, plus a full MPPT 30A solar charge controller..

PM300’s remote LCD control features battery and charging information (Volts, AMPs, SOC, time remaining), up to 4 water tank level inputs with pump control, a load switch, night mode and silent mode for quiet operation. 14 channel fused output and WAGO® terminals, plus a host of protection features and sensors ensure easy, safe operation and monitoring of your electricals.

Features:

  • Voltage Sensitive Relay engages & disengages with engine
  • 20A Charger, 35A Power Supply
  • Wago® Terminals for easy wiring
  • Manual Battery Switch connection for remote & local operation
  • MPPT Solar Input
  • Water Level & Pump Control


Projecta Brochure

Projecta Product Manual

Specifications

SKU PM300

Brand Projecta

GTIN 9315219110039

Warranty Period: 1 Year

Product Category Power Systems

Nominal Voltage 240 ± 10% VAC | 50/60Hz (Input) | 12.8 0.2 VDC (Output)

Standby (Float) Voltage (13.5/13.5 /13.5/13.7) ±0.13VDC

Output Current Rating 35A (Continuous)

Power 35A

Charging Voltage 12V

Open Circuit Voltage Voc(V) 50VDC

Dimensions 264 x 164 x 128 mm (L x W x H)

Charge voltage 'absorption' (14.4/14.1 /14.4/14.7) ±0.15VDC

Included LCD Remote Control

Net Weight (kg) 3

Start Voltage 2V

Output Fuse Rating 4 x 15A: 10 x 10A

Operating temperature range -40°C~+65°C (50°C:full load; 60°C:20A; 65°C: shutdown the output)

Battery Types AGM, GEL, LFP (LiFePO4), WET


Videos

New Intelli-RV range from Projecta!



Projecta - Some Things You May Not Know About Us!



Customer Reviews

Product Review Review by
Great Quality for the price.Upgraded to Lithium battery and my Projecta PM 235 had a PWM solar regulator where I wanted the MPPT solar regulator
(Posted on 23 December 2022)
Great all in one product Review by
Product is a must have on a caravan, does everything you need all in one compact unit, easy to install and compatible with most brands and products. Very versatile and great value
(Posted on 28 June 2022)
Easy install,, Great features, Fast service Review by
Upgraded caravan battery to lithium and needed a BMS to support this. After some research found the PM300 did everything required & included the display panel unlike some others.The installation was super easy & neat with detailed instructions. The display monitor is easy to use and set up and provides great info. The only issue is the battery temp sensor cable supplied is to short and will require the extension cable to connect it.
(Posted on 21 April 2022)
Easy install,, Great features, Fast service Review by
Upgraded caravan battery to lithium and needed a BMS to support this. After some research found the PM300 did everything required & included the display panel unlike some others. The installation was super easy & neat with detailed instructions. The display monitor is easy to use and set up and provides great info. The only issue is the battery temp sensor cable supplied is to short and will require the extension cable to connect it.
(Posted on 21 April 2022)

View All Reviews

Powerful, full of features. All in a small package Review by
Great quality for the price. This machine has all of the features required for an off-grid set up. The unit itself seems well constructed and is easy to install.
(Posted on 31 May 2021)

Write a product review

Product Q&A

Ask Us a Question
  • Hi we will be getting a projector PM300 with our new caravan which comes with AGM batteries and I would like to upgrade and get lithium batteries.Is this compatible with the setup.Thanking you.Dennis.

    Hi There,

    According to Projecta:

    The PM300 can be configured to charge Lithium battery. With the Lithium battery, the max charging current will automatically be set at 30% of battery capacity.

  • What are the dimensions of the remote display?

    Hi There,

    According to the user manual, the overal LCD dimensions are:

    101mm x 101mm x 43.45mm

  • HI,Thinking of buying the projecta pm300 power management unit. Woud also need a water PMWS 200 tank sensor. Can you supply one of this and how much would it cost. Regards Tom

    Hi, we don't have a tank sensor accessory available for the pm300.
