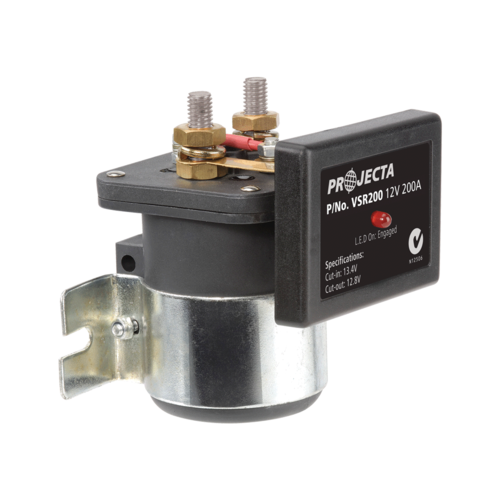

Projecta 200A Voltage Sensitive Relay
SKU: VSR200 Learn More»![](/assets/thumbL/VSR200.png?20240119084957)
![](/assets/alt_1/VSR200.png?20240119084957)
![](/assets/alt_2/VSR200.png?20240119084957)
![](/assets/alt_3/VSR200.png?20240119084957)
![](/assets/alt_4/VSR200.png?20240119084957)
![](/assets/alt_5/VSR200.png?20240119084957)
![](/assets/alt_6/VSR200.png?20240119084957)
Product Description
Projecta 200A Voltage Sensitive Relay, 1 Year Warranty. The perfect ‘no-fuss’ power management controllers suitable for a wide variety of 12V DC applications, eg. winching etc.
Features:
- L.E.D indicator illuminates when VSR is activated
- Sealed electronics prevents dust and water ingress (IP66)
- Built-in protection guards vehicle against voltage spikes
- Bypasses automatic settings allowing relay to engage below set voltages
- Silver tip contacts provide exceptional current transfer
Specifications
SKU VSR200
Brand Projecta
GTIN 9315219200129
Warranty Period: 1 Year
Product Category Electrical Accessories
Model VSR200
Cut-out Delay 8 seconds
Cable Length 32mm2 (2 B&S)
Type Approval EMC
Current draw Charging 680mA (standby 10mA)
Voltage 12 V
Cut-out Voltage 12.8V
Mounting Hole Surface/firewall
Ingress Protection IP66
Cut-in Voltage 13.4V
Charge current 200A Continuous, 400A Peak
Fuse Recommended 250A
Operating Voltage Minimum 10V
