Projecta 12V 25A Power Management Board


Save $193 (9%) off RRP of $2,092


Learn More»
Express Shipping Price Match Guarantee Customer Reviews

Product Description

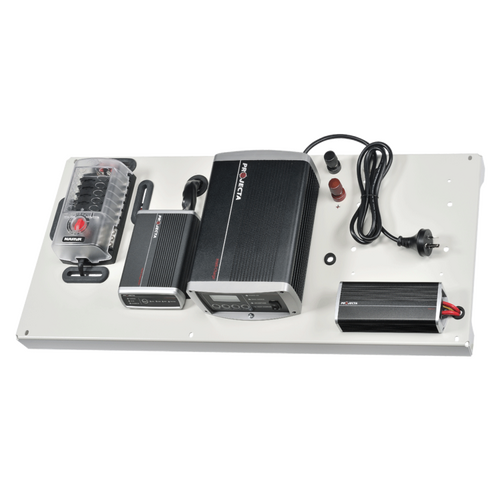

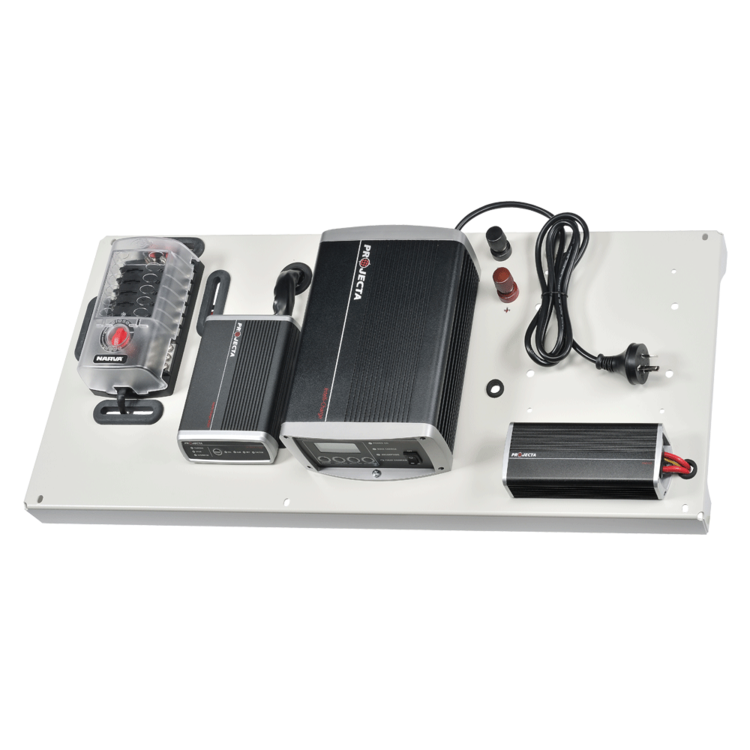

Projecta 12V 25A Power Management Board, 1 Year Warranty. Utilising the latest range of premium ‘Intelli’ power management equipment, these 25 Amp power boards are a sophisticated and complete system that is ideal for caravan and motor home applications. Pre-built, these all-in-one units enable quick and easy installation.

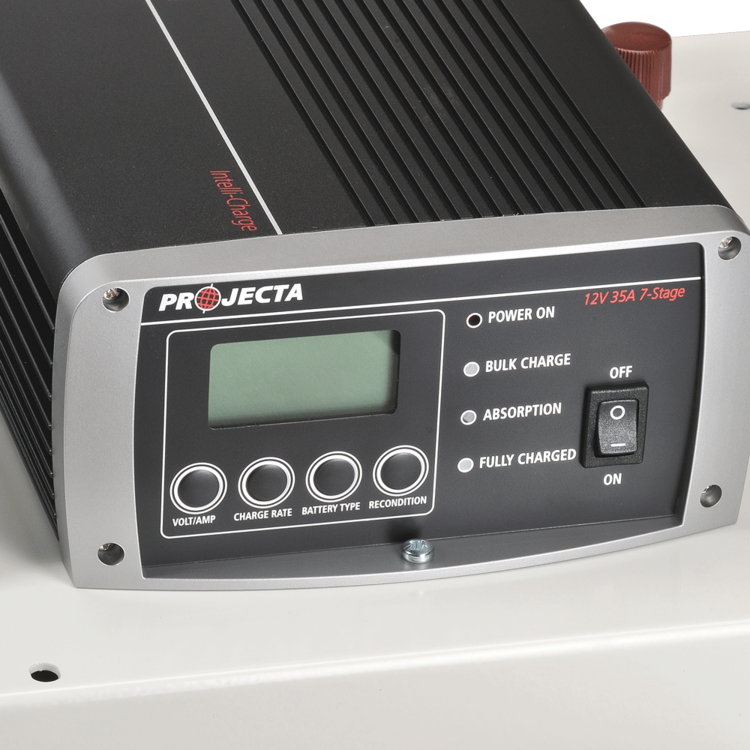

  • 7 stage charger: A sophisticated 7A automatic charger that features multi-chemistry selection and adjustable output to match your battery type

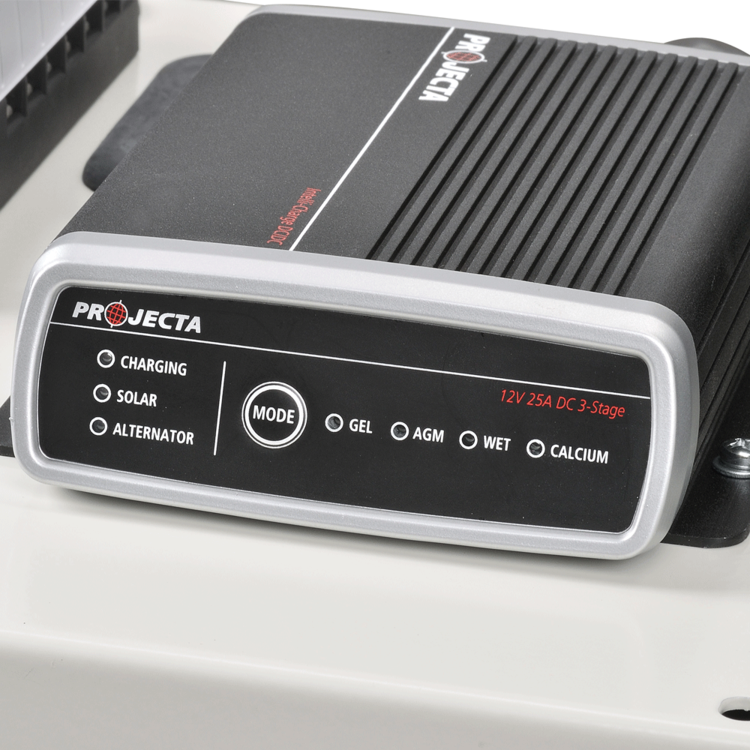

  • DC/solar controller: Advanced battery charger that utilises both solar and the tow vehicle’s power to deliver a comprehensive 3 stage charge

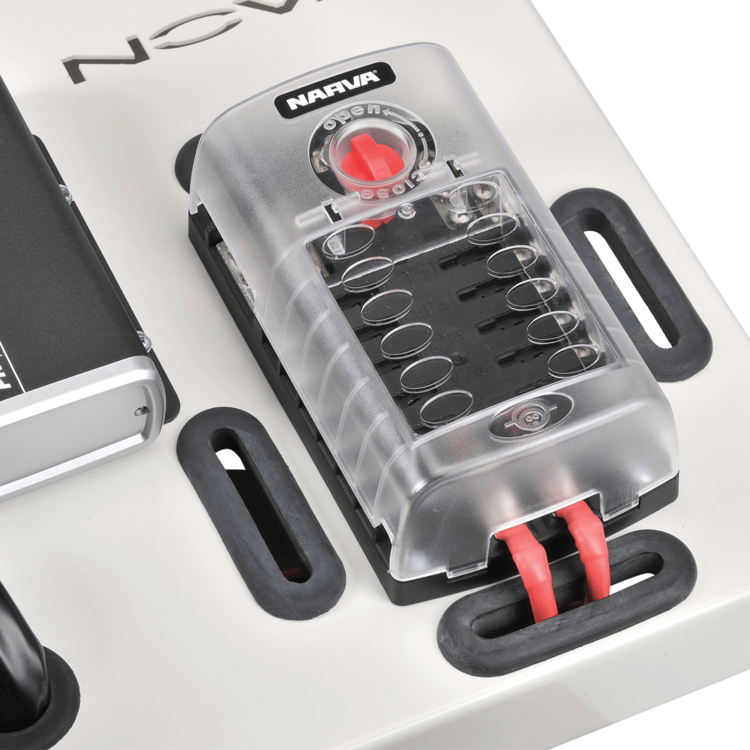

  • Fuse distribution box: A 12-way standard ATS blade fuse/circuit breaker block with single grounding and dual power inputs

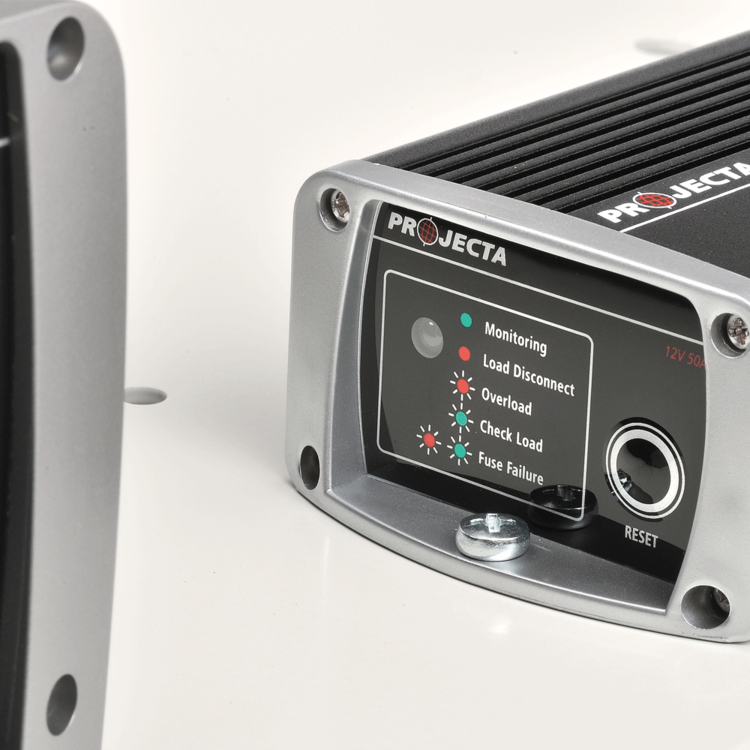

  • Low voltage disconnect: A robust and compact unit that protects expensive deep cycle batteries from damage caused by over-discharge

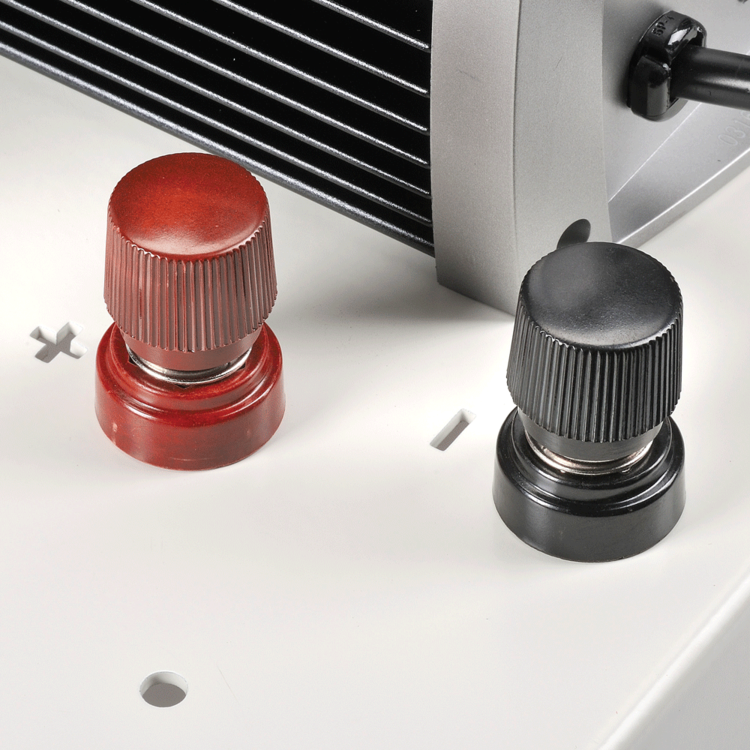

  • Direct battery connection: Heavy-duty positive and negative terminal posts allow for quick and direction connection to the batteries (P/No. INVPOSTS)

240V Charging:

  • Charge Type: 7 Stage Automatic
  • Input: 240VAC, 50Hz, 792W
  • Output: 12V
  • Output Current: 2, 6,12, 25A
  • Batteries Supported: Gel, AGM, Wet & Calcium

Solar Controller:

  • Charge Type: 3 Stage
  • Input: 9-32Vdc
  • Max Input: 23Vdc, 385W
  • Max Load: 20A
  • Batteries Supported: GEL, AGM & WET


  • Input Voltage: 10-16V
  • Output Current: 30A
  • Disconnect Voltage Setpoints: 10.0V, 10.5V, 11.0V, 12.0V
  • Reconnect Voltage: 13.0V

Fuse Block:

  • Load: 30A per circuit, 120A per block at 12V
  • Circuits: 6-Way ATS Blade Fuses



Brand Projecta

GTIN 9315219010063

Warranty Period: 1 Year

Product Category Power Systems

Output Current Rating 2, 6, 12, 25A

Maximum Solar Watt Input 23Vdc, 385W

Note See product details for specifications

Ideal Battery Type Gel, AGM, Wet & Calcium

Input 240VAC, 50Hz, 792W

Charger Type 7 Stage Automatic (240V Charging) | 3 Stage (12V DC/Solar Charging)

Output 12V
