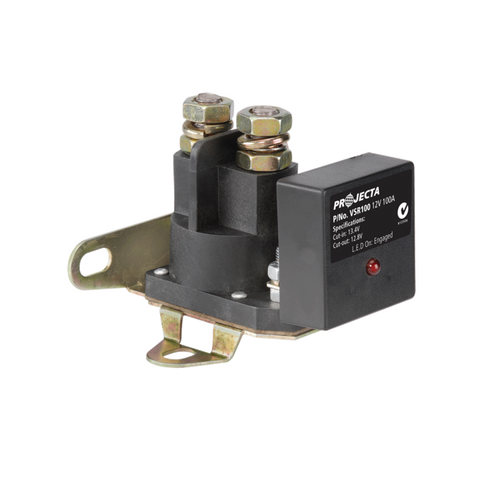

Projecta 100A Voltage Sensitive Relay
SKU: VSR100 Learn More»![](/assets/thumbL/VSR100.png?20240119084957)
![](/assets/alt_1/VSR100.png?20240119084957)
![](/assets/alt_2/VSR100.png?20240119084957)
![](/assets/alt_3/VSR100.png?20240119084957)
![](/assets/alt_4/VSR100.png?20240119084957)
![](/assets/alt_5/VSR100.png?20240119084957)
![](/assets/alt_6/VSR100.png?20240119084957)
Product Description
Projecta 100A Voltage Sensitive Relay, 1 Year Warranty. The perfect ‘no-fuss’ power management controllers suitable for a wide variety of 12V DC applications, eg. winching etc.
Features:

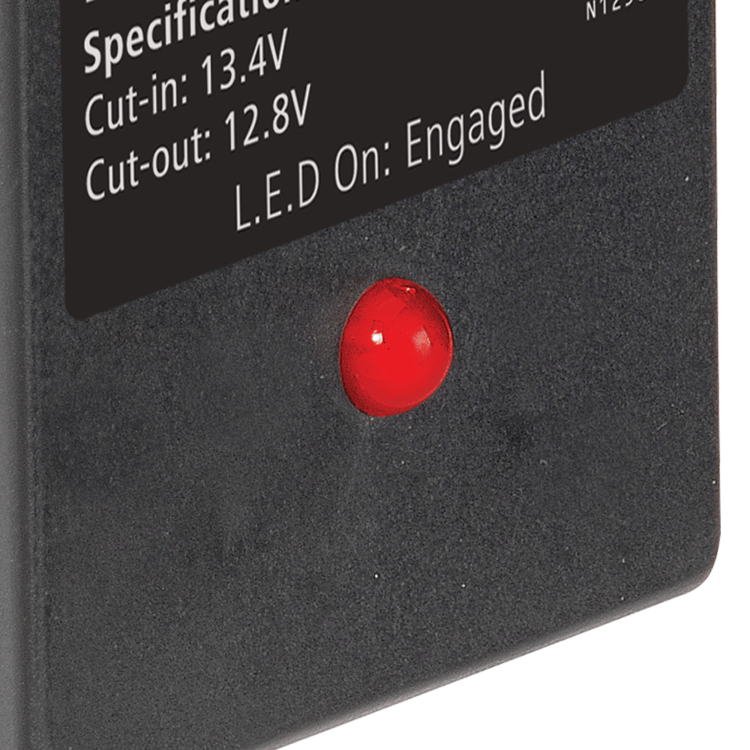

- L.E.D indicator illuminates when VSR is activated
- Sealed electronics prevents dust and water ingress (IP66)
- Built-in protection guards vehicle against voltage spikes
- Bypasses automatic settings allowing relay to engage below set voltages

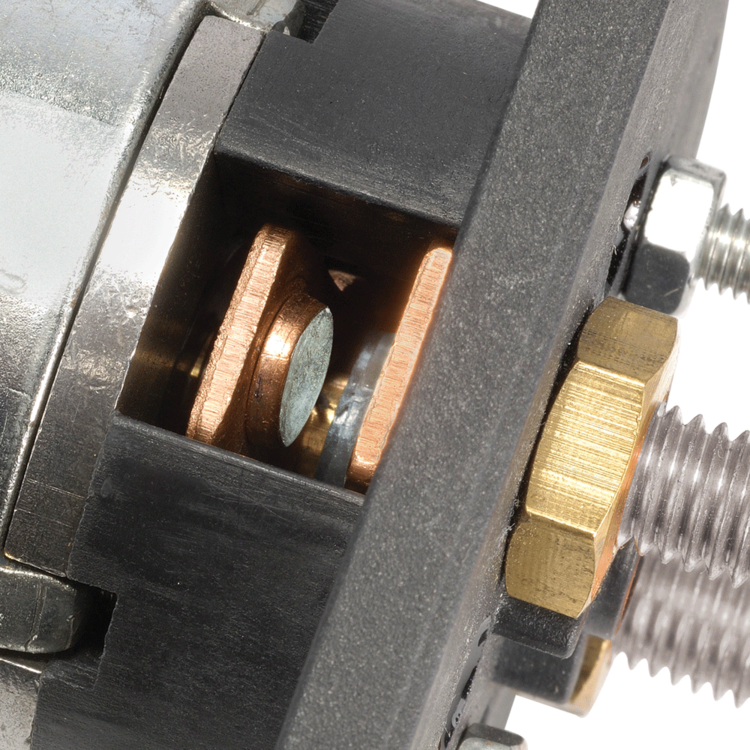

- Silver tip contacts provide exceptional current transfer
Specifications
SKU VSR100
Brand Projecta
GTIN 9315219121011
Warranty Period: 1 Year
Product Category Electrical Accessories
Model VSR100
Cut-in Voltage 13.4V
Charge current 100A Continuous, 200A Peak
Ingress Protection IP66
Current draw Charging 550mA (standby 10mA)
Voltage 12 V
Cut-out Delay 8 seconds
Cable Length 14mm2 (6 B&S)
Type Approval EMC
Charging Control MCU
Cut-out Voltage 12.8V
Mounting Hole Surface/firewall
Charger Type Parallel
Fuse Recommended 150A
Operating Voltage Minimum 10V
