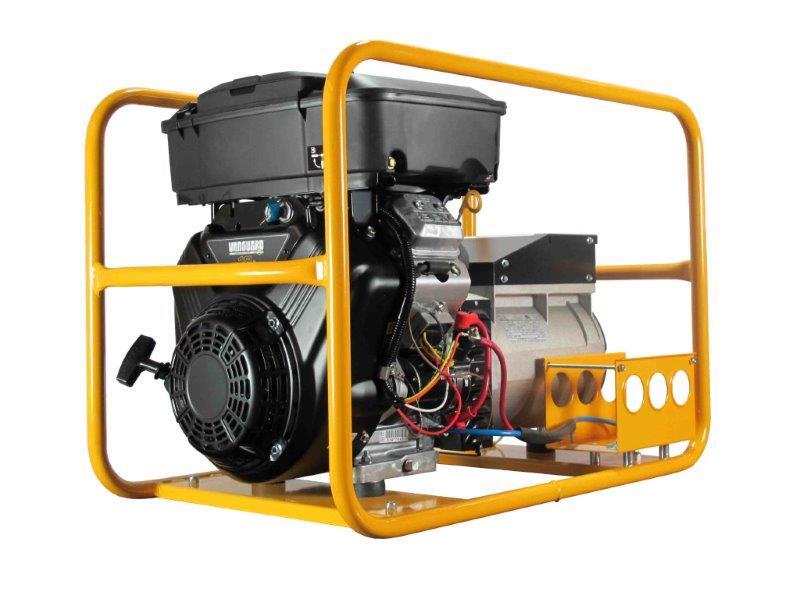

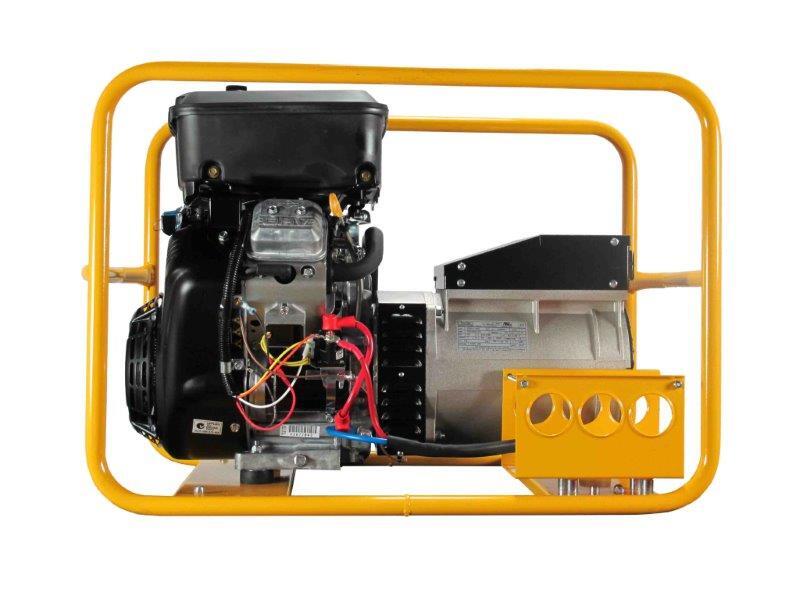

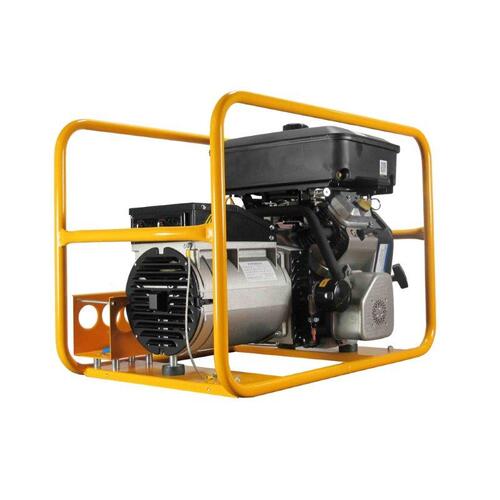

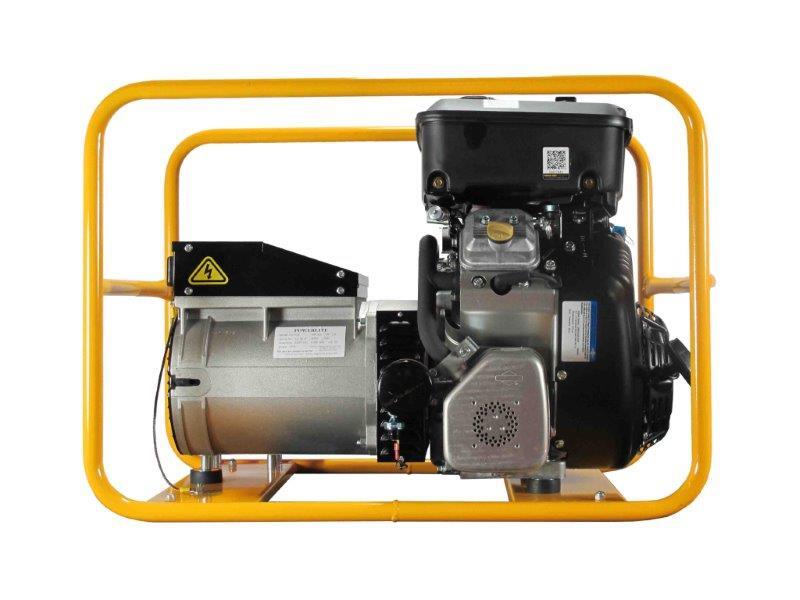

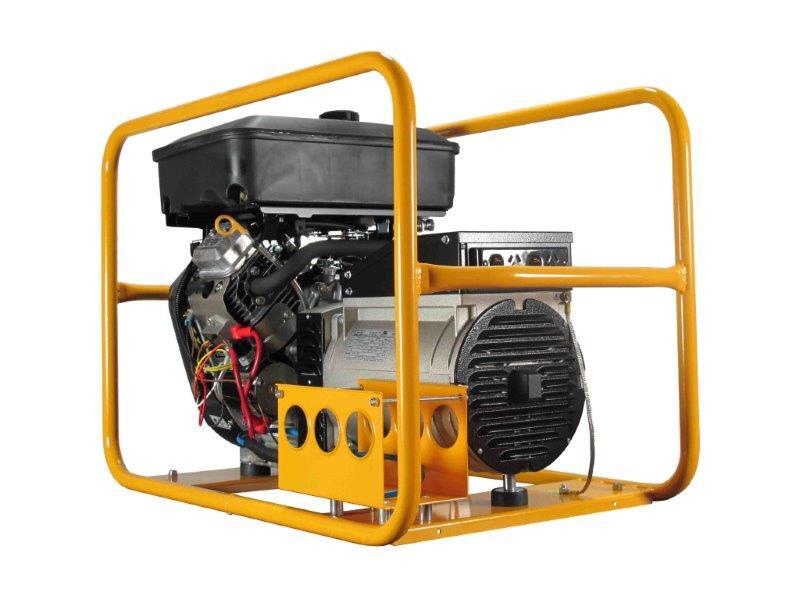

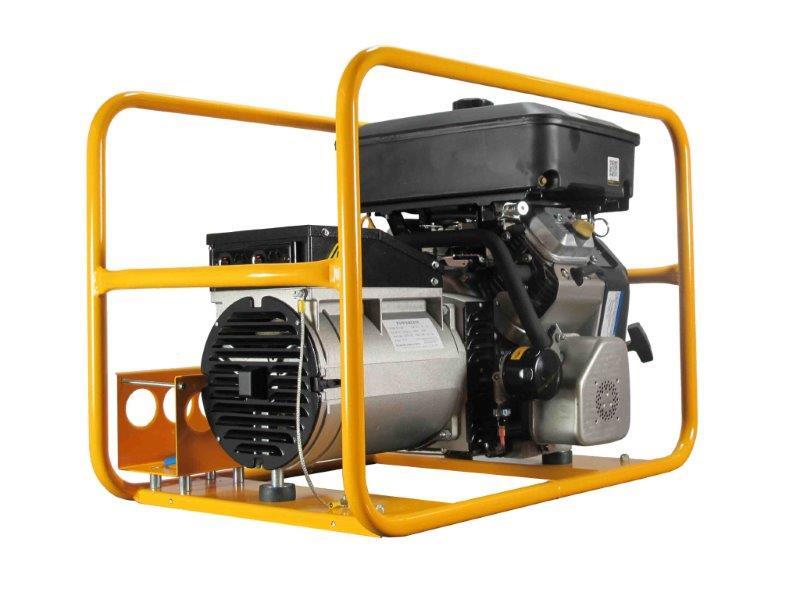

Powerlite Briggs & Stratton Vanguard 11kVA Generator
SKU: PB110E Learn More»Product Description
Vanguard Powered 11 KVA Electric Start, 8.5 litre tank
9,000W Petrol Powerlite Generator, powered by Briggs & Stratton, Vanguard with electric & recoil start. Ideally used for farm, household, workshops and shearing sheds, provided that the total power consumption at any one time is less than 9,000W. More than 1 electric motor may be operated at one time but please allow for heavy currents during starting.Â
Specifications
SKU PB110E
Brand Powerlite
Warranty Period: 2 Years + 1 Year Alternator
Product Category Portable Generators
kVA 11
Continuous Output (kW) 9
Continuous Output (Watts) 9000
Fuel Petrol
Fuel Tank Capacity 8.5L
Starting Method Electric & Recoil
Voltage 240V
Alternator Type Mecc Alte
Frequency 50Hz
Engine 18HP Vanguard Twin
Product Dimensions (mm) LxWxH 850x500x600mm
NOTE Product specifications provided by Manufacturer. This is a portable air-cooled petrol generator designed for short term/standby applications - for pri
Cont. Working Time 1.77hr
Engine Warranty 1 year warranty
Output Type 2 x 15A
Net Weight (kg) 100
Videos
Powerlite Generators Australia
Powerlite Petrol Generator User Guide:
Product Q&A
-
In terms of warranty, where can I find details of service agents for Powerlite Generators?
Powerlite use premium grade components in all their generators. Starting with the engine, all of the engine manufacturers have national service agent and spare parts networks. The links below will help you with details of their respective service agents:
For their petrol range, Powerlite mostly use Honda engines from Honda Australia. The Honda service agent network is listed HERE.
Some petrol models have Briggs & Stratton / Vanguard engines, with their service agents listed HERE.
For their diesel range, they use both Yanmar Engines and Hatz Engines.
For specific generator/alternator warranty, servicing and spare parts inquiries for Powerlite Generators, you can find information HERE.
-
How is it that this generator has 15Amp outlets, but the generator's power rating is greater than 15Amps? (as 15Amps equates to 3600watts on a 240Volt appliance). Presumably you can get more than 15Amps out of the outlets then?
Yes, that is correct. A 15 Amp outlet can deliver more power than 15 Amps for a short period, as there is no circuit breaker fitted to the generator as standard. You can briefly pull the full rated power amount of the generator (continuous and maximum) through the 15 Amp outlet.. noting that this is only for a short time - i.e. when you are first starting up an appliance such as a comprossor, drop saw, air conditioner etc. it may draw around 30 Amps (as an example) to start up, and then drop back down to 10 Amps to keep running.
However, if your appliance draws more than 15 Amps continuously, it is not recommended you run it for prolonged periods from a 15 Amp outlet, as it is likely to result in overheating issues. It may be prudent to consider re-fitting the outlets to a larger size to fit your continuous power requirement (i.e. 20 Amp, or 32 Amp outlet for example) - this can be configured upon request at extra cost. Thank you. -
Is this generator suitable for my WIA 200i mig inverter welder? Ice is it stable current etc and powerful enough
Hi Shane,
Thank you for getting in touch.
Based on the specs of your welder we do not see any reason why this generator would not be suitable for your application.
-
Can I use this generator to charge my power tool batteries?
Hi there,
Charging battery packs is fine from a conventional generator, we'd recommend having a steady load on the generator and don't connect appliances that will cause the load to jump around during charging.
Thanks.
-
Can I change this alternator to avr control? If I can what is the price?
Yes, AVR can be fitted to this unit by the manufacturer - its is an option within the accessory list on the product page which has the price listed. Thanks
Customer Reviews
great product Review by leith stockleyexcellent generator, provides plenty of power.(Posted on 21 July 2021)
Very good Review by Michael KingwillVery happy with it, A really good price for the size 11kva. Went with the vanguard motor as it has the pull start as well , the Honda only has key start no pull start.(Posted on 25 June 2020)
Good value Review by Michael KingwillGreat value, has key as well as pull start.(Posted on 14 June 2020)
