Powerlite 70kVA Tractor Generator

Accessories

POA

POA

Express Shipping Price Match Guarantee Customer Reviews

Product Description

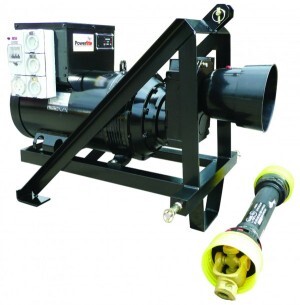

Powerlite 70kVA Tractor Generator. The 1500rpm alternator has a flange mounted reduction gear box with PTO drive shaft spline.

These generators offer reliable, simple and practical source of power when a tractor is available. Input power required 93hp to run generator with PTO /

Options include:

  • Heavy duty 3 point linkage frame
  • Weatherproof outlets
  • Rated weatherproof circuit breaker
  • Category 1 & 2 linkage pins
  • Category 3 linkage pins

 Powerlite PTO Tractor Generators Product Brochure


Specifications

SKU TPL75

Brand Powerlite

Warranty Period: 2 Years

Product Category Tractor Generators

Net Weight (kg) 370

Prime Output 70kVA

Alternator Type 2 bearing 1500rpm heavy duty brushless alternator

Tractor Size Required 93hp or greater

Dimensions (LxWxH mm) 875x395x480

Gearbox Heavy duty PTO gear box

Note Options include: Heavy duty 3 point linkage frame Weatherproof outlets Rated weatherproof circuit breaker Category 1 & 2 linkage pins Category 3 link


Videos

Powerlite - PTO Tractor Generator



Product Q&A

Ask Us a Question
  • Hi, how do i calculate what size tractor engine is required to run a specific size of PTO generator?

    The general rule is that you multiply the kva by 1.25 to give a minimum engine Horse Power rating to run the generator.

    For example: 60kva x 1.25 = 75HP. In this instance you would need a tractor engine that produces a minimum of 75HP to run a 60kva three phase PTO generator.

    The generator uses a 3 to 1 gear box and draws 500rpm from the PTO.

  • Could you advise place of manufacture? And durability compared to good quality generator?

    Hi Tom, the Powerlite PTO Tractor Generators are assembeld in Sydney, Australia.

    In our experience, they are extremely durable and because they have less componentry than a typical stationary diesel generator, the PTO's have excellent longevity. Customers will often get 20 years of use from a quality PTO Tractor Generator if looked after. Thank you.
