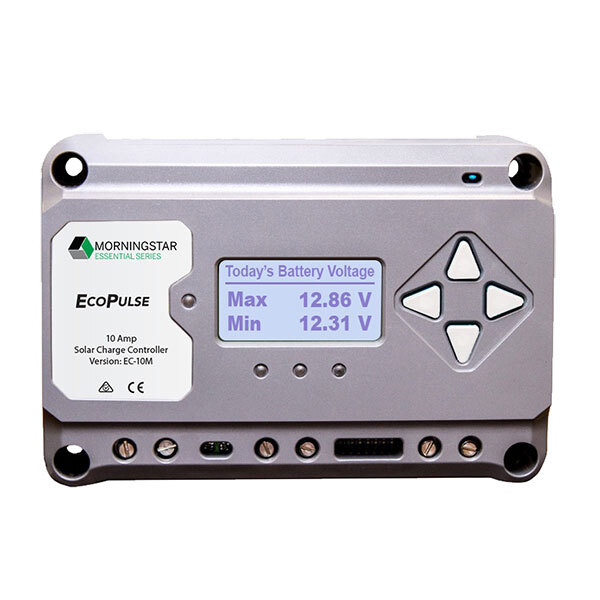

Morningstar EcoPulse 10 AMP Solar Charge Controller

SKU: SR-EC1 Learn More»

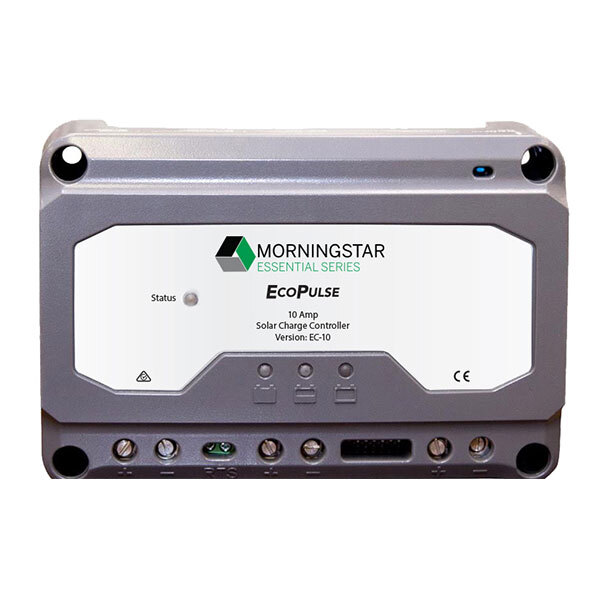

Morningstar EcoPulse 10 AMP Solar Charge Controller
Free Shipping

SR-EC10

$185

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Accessories

Sold Out

Express Shipping Price Match Guarantee Customer Reviews

Product Description

Morningstar EcoPulse 10 AMP Solar Charge Controller, 5 Year Warranty. The EcoPulse is a pulse width modulation (PWM) solar charge controller within Morningstar’s Essential Series™ of products which provides essential off-grid battery regulation functions. This controller is easy to use, and designed for residential and leisure consumer applications.* Metered and non-metered versions of this product are available at 10, 20, and 30 amp charge ratings for 12 and 24 volt battery systems.

  • High Reliability – conformally coated circuit board and corrosion resistant terminals.
  • Robust Thermal Design – extruded aluminum heatsink dissipates heat quickly without using cooling fans.
  • Durable Casing – high strength polycarbonate case.
  • LED Fault Indications – alert when short circuit, over current, high voltage, and other error conditions take place.
  • Automatic Solar Based Lighting Control – field adjustable dusk ‘til dawn setting.
  • Adjustable Charge Settings – seven presets and a custom setting can be set via DIP Switches or by the meter display buttons.
  • Adjustable Load Control – load control can be adjusted via meter display.
  • Optional Meter – multi-lingual interface with scroll buttons to adjust the settings and display metrics.


Product Card

Product Manual

Specifications

SKU SR-EC1

Brand Morningstar

GTIN 9342616026472

Warranty Period: 5 Years

Product Category Solar Charge Controllers

Charge Current (A) 10

Amps 10

Humidity 100% Non-condensing

Weight (kg) 0.4

Dimensions (LxWxH mm) 105 x 153 x 55

Open Circuit Voltage Voc(V) 60V

Operating Range (temp) -40°C to + 45°C

Storage Range (temp) -40°C to + 80°C

Enclosure Class IP20, Type 1

Nominal Battery Voltage 12V or 24V - auto-detect

Accuracy of voltage measurement <= 0.1% +/- 50mV

Battery Voltage Range 10 - 35V

Max. Battery Current 10A

Load Current Rating 10A
