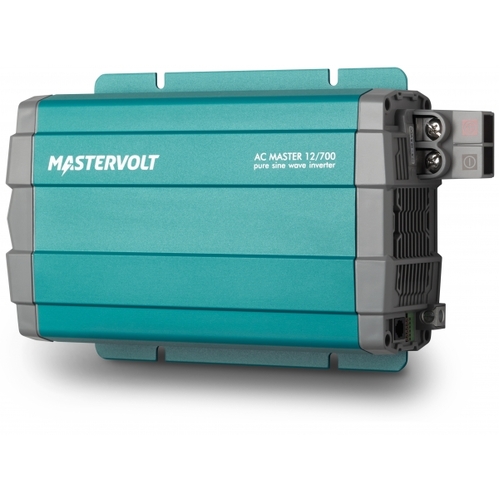

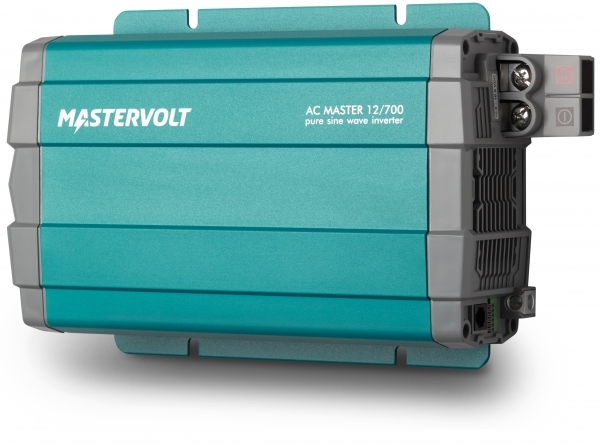

Mastervolt 12V 700W AC Master Inverter

FREE SHIPPING

Learn More»

Product Description

Mastervolt 12V 700W AC Master Inverter, 2 Year Warranty. Reliable AC power for recreational and semi-professional use.

These affordable sine wave inverters convert 12V or 24V battery voltage into reliable grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. The pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high frequency switching technology eliminates any annoying humming and buzzing sounds. Representing complete value for money, these ruggedly built inverters provide essential home comforts when you’re far from the nearest grid connection.

Features:

Pure sine wave technology protects sensitive equipment
Delivers full output at high peak power under the most demanding conditions
Automatic power saving system for extended runtime
Compact and lightweight design, saving valuable installation time
Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage
Variable speed fan for quiet operation at low power
Optional remote control for instant switch off
Convenient plug connection for all models, 2500/3500 Watt models also hard wired. In addition, the 2500/3500 Watt models offer
Combine 2 up to 15 units to obtain high power or 3-phase systems
Integrated transfer system, switches automatically between AC power sources

Go to: Product Details

Go to: Reviews

Specifications

SKU 110501

Brand Mastervolt

GTIN 9319786430118

Product Category Power Inverters

Wattage (W) 700

Temperature range ✓

Protection Degree IP21, horizontal wall mounting

Display/Read-Out LED Indication: battery voltage, status

Efficiency 0.91

Dimensions 200mm x 330mm x 83mm

Minimal Cable Size 25 mm2

Peak Load <810 W (1 min) <1230 W (1 sec.)

Continuous Power at 25°C, Cos Phi 1 700 W

Cos Phi ✓

Recommended Battery Capacity >100 Ah

Protections over temperature, over load, short circuit, high/low voltage, reverse polarity (fuse)

Output Voltage and Frequency 230V – 50 Hz (± 0,1.%)

Minimal DC Fuse (Slow Blow)* 100A

Nominal Battery Voltage 12v

MasterBUS Compatible yes, using a MasterBus AC Master Interface

Approvals CE, E-mark, RCM

No Load Battery Draw <0.1A

Cooling Temperature and load controlled fan

Net Weight (kg) 2.7

Input Current (Nominal Load) 70

Output Waveform true sine

Go to: Specifications

Go to: Q & A

Customer Reviews

Write a product review

Go to: Reviews

Go to: Warranty

Product Q&A

Ask Us a Question

Can I run an inverter from AGM or Gel batteries?

The short answer is yes. People have been running 240V inverters from AGM batteries long before lithium was around. But people have traditionally used a lot lower AC current devices when caravan and camping than they do today.

Inverters were never intended to run air conditioners, microwaves , coffee machines and the like.....that is until lithium came into the RV market.

For low current devices (under 600W) it is fine to connect an inverter to your AGM battery system. AGM batteries can put out low current for a long period of time. When you need to go near 1000W or more , then you should consider a lithium battery.

You can connect an inverter to AGM batteries but you need a lot larger size batteries than lithium (to cope with the high current).

A general rule of thumb for AGM or GEL batteries is a 1000W inverter should be coupled with 2 x 120A batteries and a 2000W inverter will need 3 x 120Ah batteries.

Conversely, some 100Ah lithium batteries (Enerdrive, Invicta) can power a 1000W inverter and some 200Ah lithium batteries (Enerdrive) will power a 2000W inverter.
