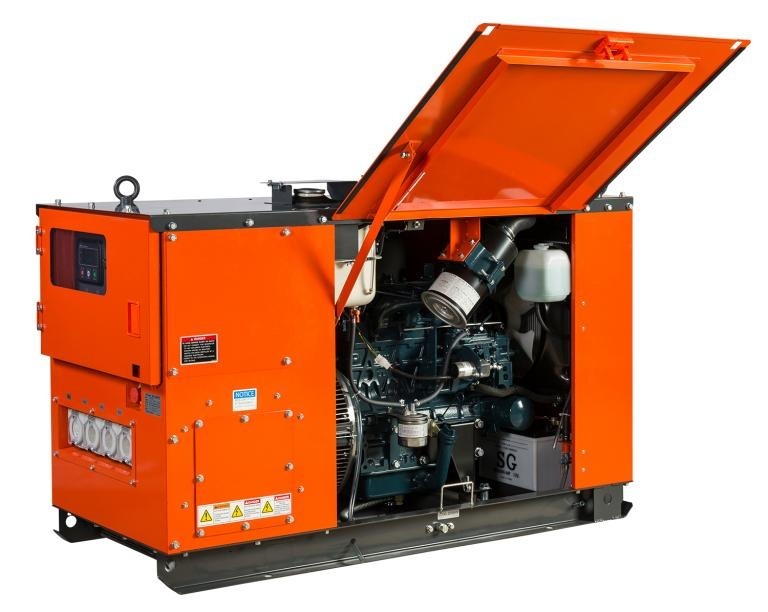

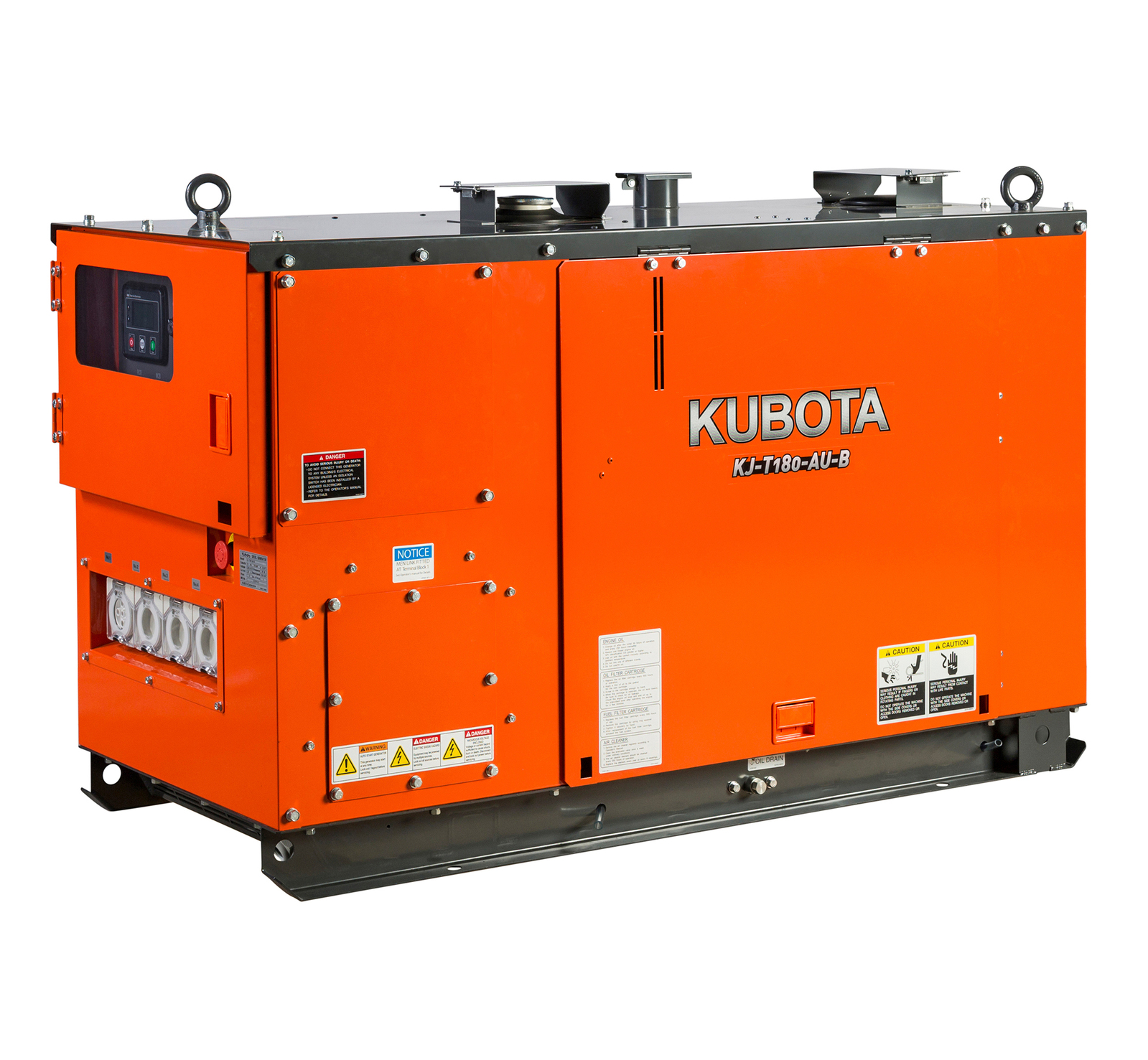

Kubota 18kva Three Phase Diesel Generator KJ-T180

SKU: KJ-T180-AU-B Learn More»
POA
Express Shipping Price Match Guarantee Customer Reviews

Product Description

The Kubota KJ-T180, 18 kVA Diesel Generator provide a much quieter, efficient and long service life generator where you need safe and economical electrical power.

Cleaner Power: The 03 series engines used in the KJ series incorporate the TVCS combustion system which improves air/fuel mixture, resulting in cleaner emissions.

Dependable Power: The brushless, self exciting type alternator is designed to deliver high quality power.

Quieter Power: Sound levels at full load and no load are minimised due to the World renowned Kubota Technology.

Increased Safety: The engine is protected against any abnormalities within the oil or cooling systems and all rotating parts are enclosed in a sturdy enclosure.

Simple Maintenance: Oil, water and filters are located on one side for ease of maintenance.

Kubota Product Brochure

Product Manual

Specifications

SKU KJ-T180-AU-B

Brand Kubota

Warranty Period: 2 Years

Product Category Kubota Generators

Standby kVA 19.8

Continuous Output 18.0 kVA / 14.4 kW

Phase Three

Fuel Diesel

Tank Litres 37

Weight (wet) 505 kg

Voltage 3 Phase 415V

Phase & Wire 3 Phases 12 Wires

Coupling Type Direct Drive

Number Of Cylinders 4

Coolant 9.0 L

Bore / Stroke 87 x 92.4 mm

Voltage (Single Phase) 240V

Max Current Amps 25.0 Amps

Fuel litres per hour (100% load) 7.0

Insulation Class H

Battery 95D31R | 12 x 64 AH/5Hr

Engine Kubota V2203, 4 cylinder water cooled

Standby Output 19.8 kVA / 15.8 kW

Dimensions (LxWxH mm) 1448 x 650 x 971

Starting System Electric

Voltage Regulation 3.5 (No Load to Full Load)

Engine Speed 1500 rpm

Oil Capacity 7.6 L

Displacement 2197 mL

Frequency 50 Hz

Alternator Type Revolving field
