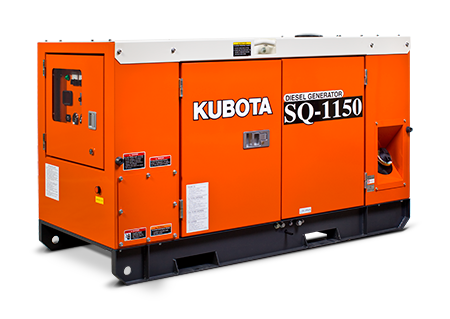

Kubota 15kva Single Phase Diesel Generator SQ1150

SKU: SQ1150B-AU-B Learn More»
POA
Express Shipping Price Match Guarantee Customer Reviews

Product Description

The Kubota SQ1150, 16 kVA Diesel Generator provide a much quieter, efficient and long service life generator where you need safe and economical electrical power.

Cleaner Power: The 03 and V3300series engines used in the SQ series incorporate the TVCS combustion system which improves air/fuel mixture, resulting in cleaner emissions.

Dependable Power: The brushless, self exciting type alternator is designed to deliver high quality power.

Quieter Power: Sound levels at full load and no load are minimised due to the World renowned Kubota Technology such as quieter cooling fans, second mufflers and noise absorbing ducts within the cabinets.

Increased Safety: The engine is protected against any abnormalities within the oil or cooling systems and all rotating parts are enclosed in a sturdy lockable enclosure.

Simple Maintenance: Oil, water and filters are located on one side for ease of maintenance.

Ease of Transport: Centre lifting lugs and fork lift slots ensure that the transport of the SQ series is kept as easy as possible.


Kubota Product Brochure

Product Manual


Specifications

SKU SQ1150B-AU-B

Brand Kubota

Warranty Period: 2 Years

Product Category Kubota Generators

Standby kVA 16

Continuous Output 15 kVA / 15 kW

Phase Single

Fuel Diesel

Tank Litres 100

Standby Output 16 kVA / 16 kW

Voltage Regulation 1.5 % (No Load to Full Load)

Engine Speed 1500 rpm

Engine Kubota V2203-EBG, 4 cylinder water cooled

Number Of Cylinders 4

Voltage (Single Phase) 240V

Fuel litres per hour (100% load) 5.5 L/h

Weight (wet) 915 kg

Dimensions (LxWxH mm) 1725 x 795 x 118 mm

Oil Capacity 7.6 L

Frequency 50 Hz

Phase & Wire 1 Phase & 4 Wires

Coolant 7.4 L

Control Panel Digital Control Panel DSE4520

Insulation Class H

Starting System Electric

Displacement 2.197 L

Alternator Type Revolving field

Coupling Type Direct Coupled

Bore / Stroke 87 x 92.4 mm

Max Current Amps 62.5 Amps

Battery 80D26R (55Ah)
