Enerdrive ePOWER 500W Pure Sine Wave Inverter with RCD+GPO

$823

Save $280 (25%) off RRP of $1,103

FREE SHIPPING

Accessories

$225

Learn More»
Express Shipping Price Match Guarantee Customer Reviews

Product Description

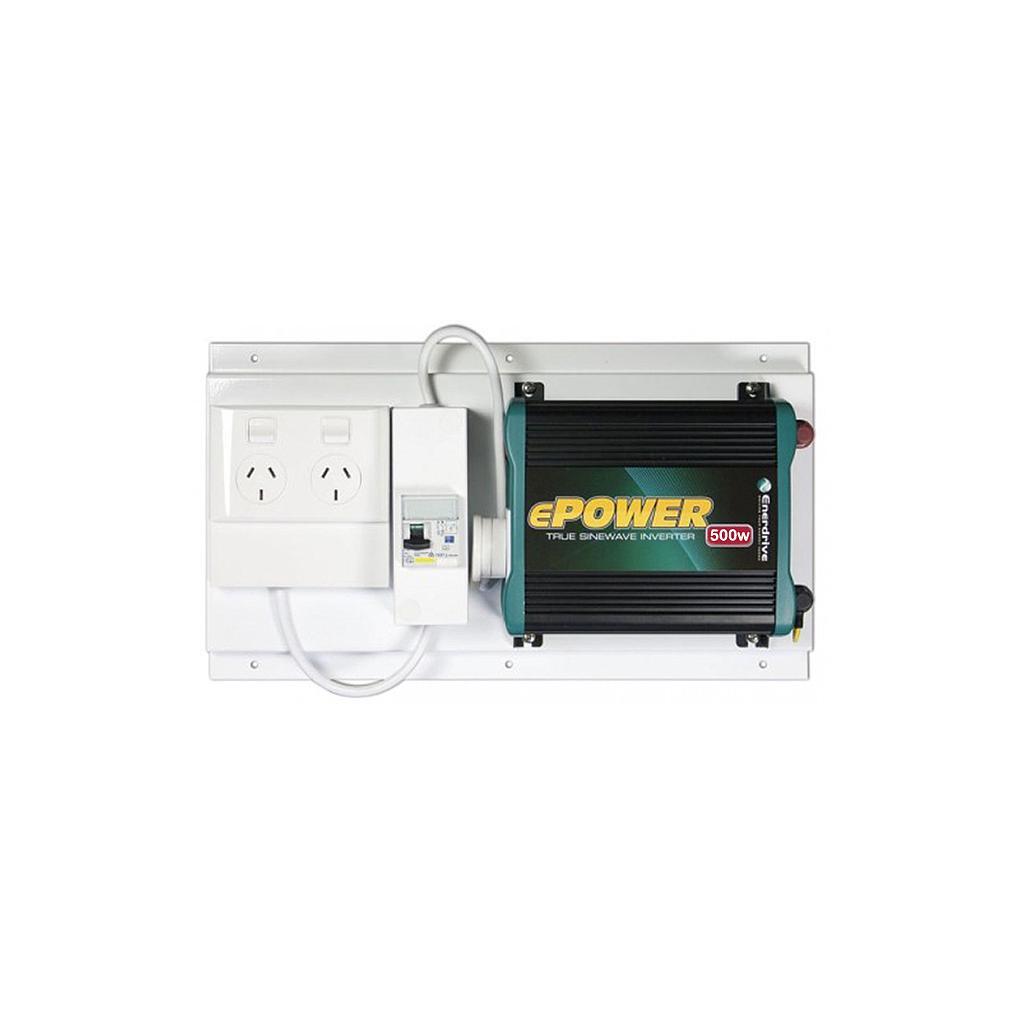

Enerdrive ePOWER 500W Pure Sine Wave Inverter with RCD+GPO, 5 Year Warranty

Think you might like AC power in more than one spot in the Vehicle? Enerdrive have thought of this too. By utilising a clever AC Plug & Play GPO system you can quickly and easily add extra AC power points by just plugging them in. All power points are Double Pole with the system incorporating a Type ‘A’ RCDBO with M.E.N Protection for safety and compliance in all permanently mounted mobile applications. Also available is the stand alone RCD/GPO arrangement for hardwired Inverters andCombi units like the Prosine, Magnasine and TBS. (190mm High x 178mm Wide)

These Inverter Packages are great for Professional Vehicles such as Telecommunications, Energy, Council, Emergency Vehicles and let’s not forget Recreation Vehicles like Caravans, Motorhomes, Camper Trailers and Marine applications.

“You have Safety Protection at home and now you can have it where ever you go.” Work sites have plenty of hazards such as vehicles, machinery and building materials lying amongst your tools and power leads. These items may be affected or damaged without you knowing and you don’t want to be shocked when you find out. Make sure you are electrically protected and go home safe.

Installation is quick and easy, requiring only 6 mounting screws for the plate and connection of the DC power. Your system is now ready to go.

Inverter Features

  • True sine wave output is ideal for operating motor loads, and to reduce stress on surge protection circuitry, meaning potentially longer equipment life
  • Audio alarm with warning/error codes to alert user to check inverter condition before unit shutdown
  • Automatic shutdown protects overload, over temperature and low/high battery conditions
  • High surge capacity for products that require more power to start (2 x constant)
  • High efficiency conversion of battery available power to AC power
  • Heavy duty DC battery stud connectors
  • Includes 5V USB port
Load Consumption Estimate Run time
 Cordless Phone  5W  80 hrs
 Clock/Radio  8W  65 hrs
 Table Lamp  40W / 60W  22 hrs / 15 hrs
 Freezer (8.8 cu. ft.)  80W  12 hrs
 20″ LCD TV  100W  10.5 hrs
 Refrigerator (18 cu. ft.)  120W  8.3 hrs
 Microwave (mid-size)  1000W  44 min
 Coffee Maker  1200W  35 min
 Vacuum  1400W  28 m

RCD-GPO Manual

Specifications

SKU RCD-GPO-EP500W

Brand Enerdrive

GTIN 9342616024508

Warranty Period: 5 Years

Product Category Power Inverters

Model ePOWER 500

Wattage (W) 500

Over Voltage Protection 31.0 VD

AC Output Power : 500W , Current : 2.17A

DC Input Voltage 21.0 – 31.0 VDC

Dimensions 225 x 410 x 115 mm (Mounted on board)

Under Voltage Shutdown Recovery 23.6 VDC

Operating Altitude Up to 3000 meters above sea level

Optional Accessories Battery Cable Connection Kits

Output Wave 1 AC outlet

Output Voltage and Frequency 230 Vac / 50 Hz

Input Voltage 25 VDC

Humidity 5-90% noncondensing

Net Weight (kg) 1.73

Under Voltage Shutdown 21.0 VDC

Under Voltage Alarm 11.2 VDC

Storage Range (temp) -20°C to 60°C

Output wave form True Sinewave

Peak power 1000W

Operating temperature range 0°C to 40°C

Over Voltage Shutdown 31.0 VDC

USB Socket Output 5V, 1A

No Load Battery Draw 2.17A


Product Q&A

Ask Us a Question
  • Can I run an inverter from AGM or Gel batteries?

    The short answer is yes. People have been running 240V inverters from AGM batteries long before lithium was around. But people have traditionally used a lot lower AC current devices when caravan and camping than they do today.

    Inverters were never intended to run air conditioners, microwaves , coffee machines and the like.....that is until lithium came into the RV market.

    For low current devices (under 600W) it is fine to connect an inverter to your AGM battery system. AGM batteries can put out low current for a long period of time. When you need to go near 1000W or more , then you should consider a lithium battery.

    You can connect an inverter to AGM batteries but you need a lot larger size batteries than lithium (to cope with the high current).

    A general rule of thumb for AGM or GEL batteries is a 1000W inverter should be coupled with 2 x 120A batteries and a 2000W inverter will need 3 x 120Ah batteries.

    Conversely, some 100Ah lithium batteries (Enerdrive, Invicta) can power a 1000W inverter and some 200Ah lithium batteries (Enerdrive) will power a 2000W inverter.

Warranty

    For details relating to this product's warranty CLICK HERE

Delivery

    For details relating to our delivery process CLICK HERE
