Enerdrive 60A AC to DC Battery Charger with Installation Kit

1 Reviews | Q&A

$875

Save $152 (15%) off RRP of $1,027

Take an EXTRA $30 OFF! Add to cart to get an instant discount.
Sale Ends in

FREE SHIPPING

Accessories

$195

Learn More»
In stock, dispatch 1 - 2 days Express Shipping Price Match Guarantee Customer Reviews

Product Description

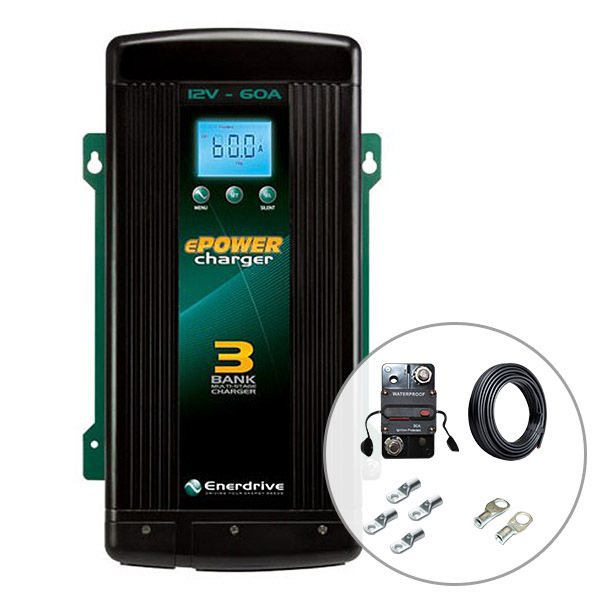

Enerdrive 60A AC to DC Battery Charging Installation Kit, includes Circuit Breakers, Lugs and Heavy Duty 16mm ² Twin Core Cable, 5 Year warranty.

Kit Includes:

  • 60Amp 12V ePower Battery Charger   EN31260
  • 16mm ² Twin Core Cable 1.5 Meters
  • 80 Amp Manual Reset Circuit Breaker x1 Piece
  • 16MM – 6MM Diameter Cable Lugs x2 Pieces & 16MM – 8MM Diameter Cable Lugs x4 Pieces

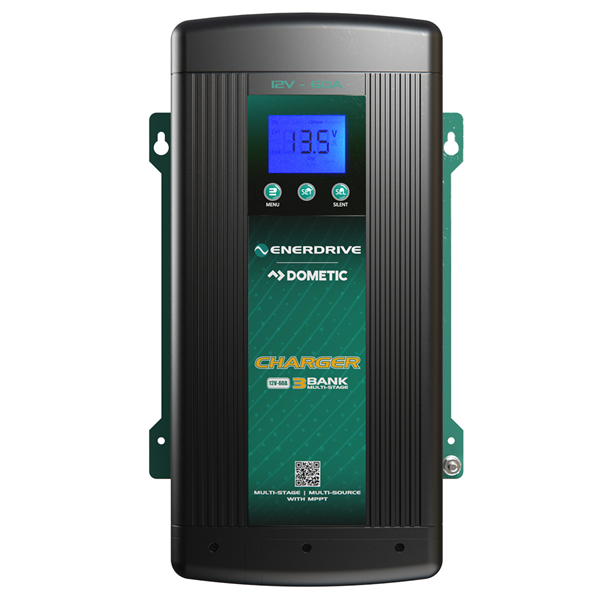

ePOWER 12V 60A Battery Charger:

The Enerdrive ePOWER 60A Battery Charger is a fully automatic, “set and forget” charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently.

As dictated by battery manufacturer’s recommendations, batteries require a multistage charge sequence for perfect, fast and accurate charging.

The Enerdrive ePOWER charger can be programmed for Lithium batteries. This setting delivers the full rated output of the charger constantly with the charger switching to power supply mode once the voltage peak is met (indicating a full battery bank).

Features:

  • Multistage Charging: Fully automatic multistage battery charger with the ability to charge 3 separate battery banks.
  • Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.
  • Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3.
  • Current Control: User adjustable current output (e.g. Dial the 60amp unit back to run off a 1kVA generator).
  • Smart Charging: The ePOWER 60A battery charger will regulate its output based on the loads connected to your battery banks.
  • Wide AC Input Range: Operates on both 110V / 60Hz and 240V / 50Hz.
  • LED Display: Easy to use “set and select” menu along with scrolling charger status.
  • Silent Mode: Disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours.
  • Temperature Sensor: Battery temperature sensor included with 3 meter cable.
  • 5 Year Warranty from an Australian company renowned for customer support.

Enerdrive Product Brochure

Enerdrive Product Manual

Enerdrive Operating Guide

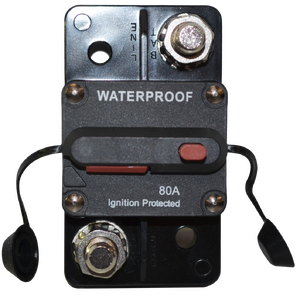

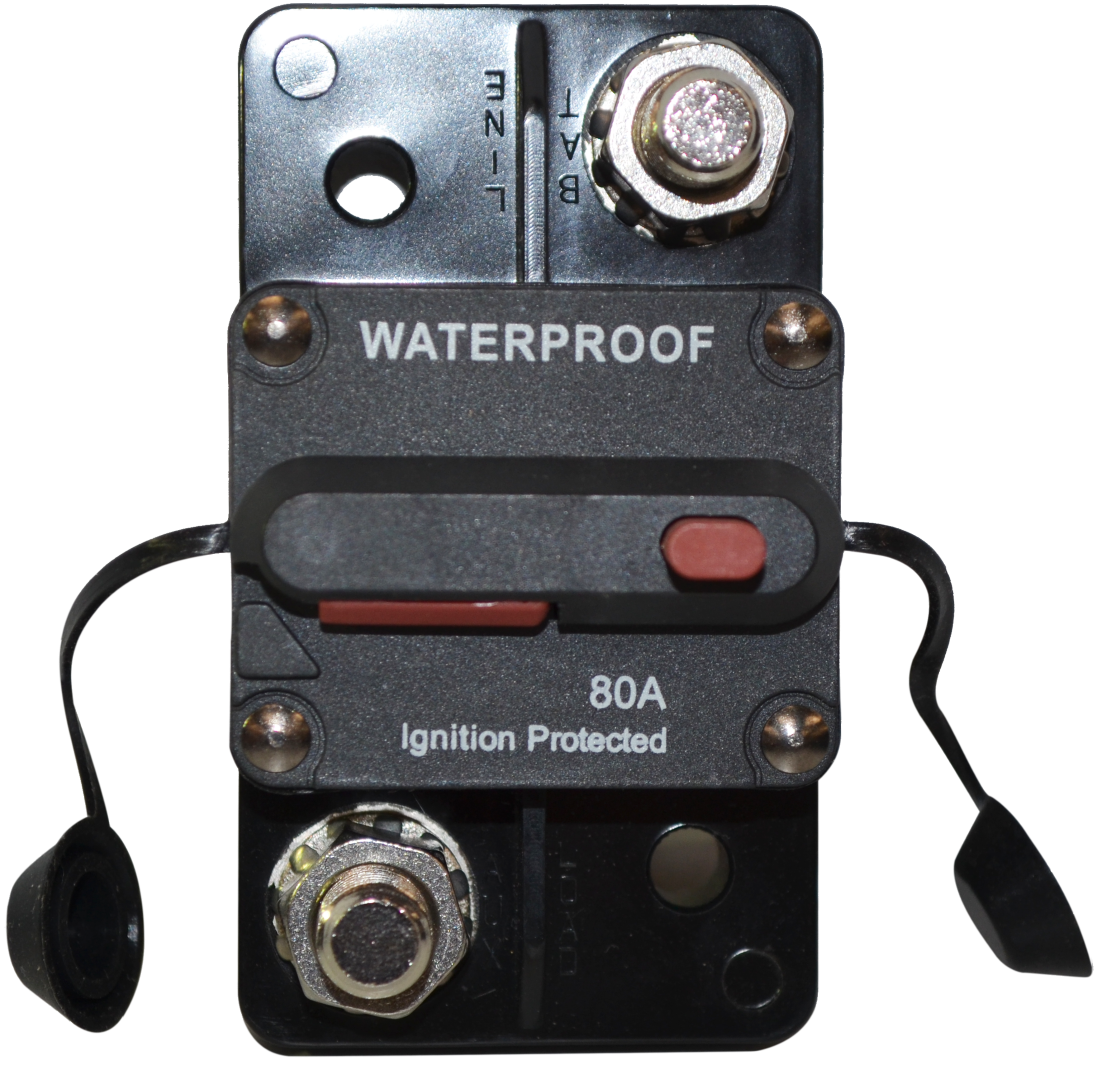

80 Amp Manual Reset Circuit Breaker:

Hi-Amp Circuit Breaker. 3/8" Stainless Steel Studs 80-150amp. Typically used in auxiliary and accessory circuits in truck, bus RV's and marine applications. Others include battery charge and DC audio System.

Features:

  • Rated Current: 80Amp
  • Dimensions: 86 x 48.4 x 44.2mm
  • Interrupt Capacity: 5KA @ 16Vdc | 3KA @ 32Vdc | 2KA @ 72 Dvc
  • Voltage: Up to 48Vdc
  • Calibration @ 25­°C: 100% Hold 135% Trip (percentage of rating)
  • Endurance: 400% A 14Vdc, 5000 cycles

Specifications

SKU MYG-CHARGER60-KIT

Brand Enerdrive

GTIN 9342616024133

Warranty Period: 5 Years

Product Category Battery Chargers

Output Current Rating (Amps) 60

Model EN31260 (Battery Charger)

Product Type Enerdrive 60A AC to DC Battery Charging Installation Kit, includes Circuit Breakers, Lugs and Heavy Duty 16mm ² Twin Core Cable

Ingress Protection IP32 (Basic drip proof in vertical orientation) (Battery Charger)

Float 13.4 – 13.8 V (Battery Charger)

AC Input Voltage 90 to 265 VAC (Battery Charger)

DC Output Three (1 fully independent, 2 common with diode isolation) (Battery Charger)

DC Output Ground Single Heavy Duty Common Ground Stud (Battery Charger)

Battery Temp Sensor Port RJ12 (standard battery temp. sensor supplied) (Battery Charger)

Reverse Polarity Yes, (with user replaceable fuse/s) (Battery Charger)

Over Temperature Protection Yes, unit de-rated and shutdown (Battery Charger)

Equalize 16.0 V (Battery Charger)

Storage Range (temp) -40° to 70° C (Battery Charger)

Power consumption (DC 12V) 1050W (Full Load) (Battery Charger)

Charging Control Four stages (Bulk/Absorption/Float/Maintenance) Two stages (Bulk/Absorption), Constant Power Supply (Program setting), Priority Battery Bank Chargin

Output System Voltage 12V

Operating Range (temp) -20° to 60° C (Battery Charger)

Charger Voltage 12V

Humidity 5-95%, relative humidity non-condensing (Battery Charger)

Net Weight (kg) 4

DC Output Connection Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (Battery Charger)

Output Short Circuit Yes, (with user replaceable fuse/s) (Battery Charger)

Power Factor Correction Yes (Battery Charger)

Temperature Setting Hot, Normal, Cold (no sensor connected) (Battery Charger)

Charger Mode Output Voltage 14.2 – 15.5 V (Battery Charger)

Charger Efficiency > 82% (Battery Charger)

AC Input Operating Range 207-265 Vac (5.9 A Max)90-125 Vac (11.3 A Max) (Battery Charger)

Standby Current < 2 mA (Battery Charger)

LCD Display Charging status, Battery Voltage, Output Current & Fault Codes. (Battery Charger)

Dimensions 356 x 206 x 99 mm (L x W x H) (Battery Charger)

Regulatory Compliance Complies with AS/NZS 60335.2.29 Including Australian deviations. (Battery Charger)

AC Input Connection IEC with Supplied 1.2M Power Lead (Battery Charger)

Over Charge Yes, unit shutdown (Battery Charger)

AC Input Frequency Range 47 – 63 Hz (Battery Charger)

Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (Battery Charger)

Optional Accessories Remote Digital Display / Enerdrive Part Number EN3REM (Battery Charger)

Cooling Forced air ventilation (thermo controlled fan) (Battery Charger)
