Enerdrive 40A AC to DC Battery Charger with Installation Kit

Enerdrive 40A AC to DC Battery Charger with Installation Kit

$715

Save $113 (14%) off RRP of $828

FREE SHIPPING

Accessories

Optional Remote Control for Enerdrive ePOWER AC Chargers

$195

Call 1300 400 122

Add To Wishlist

Learn More»

Customer Reviews

Go to: Product Details

Go to: Specifications

Product Description

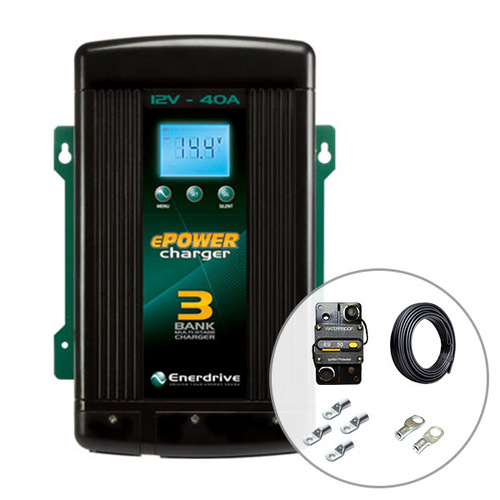

Enerdrive 40A AC to DC Battery Charging Installation Kit, includes Circuit Breakers, Lugs and Heavy Duty 16mm ² Twin Core Cable, 5 Year warranty.

Kit Includes:

40Amp ePower Battery Charger
16mm ² Twin Core Cable 1.5 Meters
50 Amp Manual Reset Circuit Breaker
16MM – 6MM Diameter Cable Lugs x2 Pieces
16MM – 8MM Diameter Cable Lugs x4 Pieces

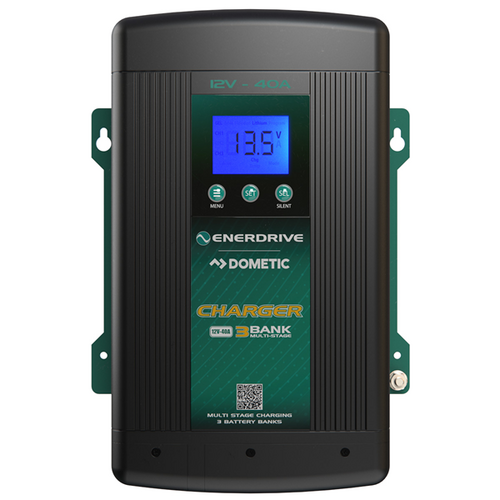

ePOWER 40A Battery Charger:

The Enerdrive ePOWER 40A Battery Charger is a fully automatic, “set and forget” charger. It is designed to quickly and accurately recharge your batteries using algorithms that help maximise service life. Multistage smart charging technology enables the charger to be connected to your battery banks permanently.

As dictated by battery manufacturer’s recommendations, batteries require a multistage charge sequence for perfect, fast and accurate charging.

The Enerdrive ePOWER charger can be programmed for Lithium batteries. This setting delivers the full rated output of the charger constantly with the charger switching to power supply mode once the voltage peak is met (indicating a full battery bank).

40A Battery Charger Features:

Multistage Charging: Fully automatic multistage battery charger with the ability to charge 3 separate battery banks.
Separate Battery Banks: Isolated charging design where battery bank one is separate from battery bank two and three.
Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3.
Current Control: User adjustable current output (e.g. Dial the 60amp unit back to run off a 1kVA generator).
Smart Charging: The ePOWER 40A battery charger will regulate its output based on the loads connected to your battery banks.
Wide AC Input Range: Operates on both 110V / 60Hz and 240V / 50Hz.
LED Display: Easy to use “set and select” menu along with scrolling charger status.
Silent Mode: Disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours.
Temperature Sensor: Battery temperature sensor included with 3 meter cable.
5 Year Warranty from an Australian company renowned for customer support.

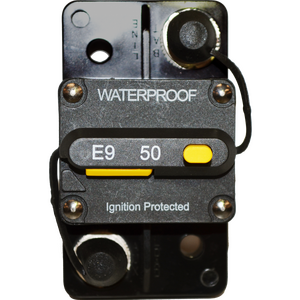

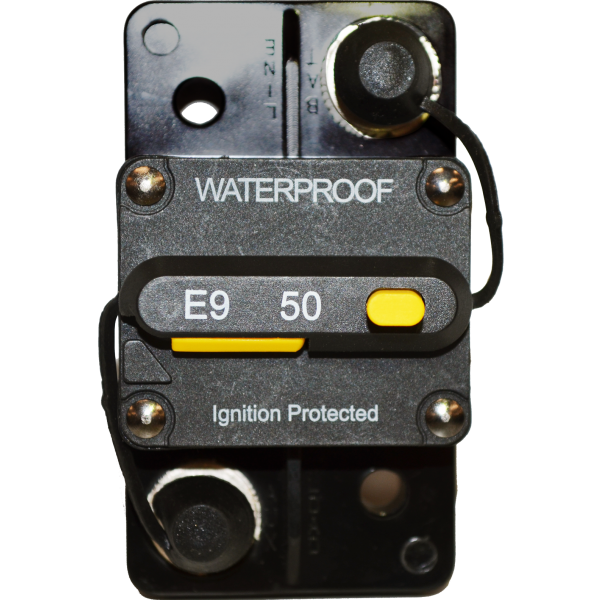

50 Amp Manual Reset Circuit Breaker:

Hi-Amp Circuit Breaker. 1/4" Stainless Steel Studs 25-70amp. Typically used in auxiliary and accessory circuits in truck, bus RV's and marine applications. Others include battery charge and DC audio System.

Features:

Rated Current: 50Amp
Dimensions: 86 x 48.4 x 44.2mm
Interrupt Capacity: 5KA @ 16Vdc | 3KA @ 32Vdc | 2KA @ 72 Dvc
Voltage: Up to 48Vdc
Calibration @ 25°C: 100% Hold 135% Trip (percentage of rating)
Endurance: 400% A 14Vdc, 5000 cycles

Go to: Product Details

Go to: Videos

Specifications

SKU MYG-CHARGER40-KIT

Brand Enerdrive

GTIN 9342616024126

Warranty Period: 5 Years

Product Category Battery Chargers

Output Current Rating (Amps) 40

Model EN31240 (Battery Charger)

Product Type Enerdrive 40A AC to DC Battery Charging Installation Kit, includes Circuit Breakers, Lugs and Heavy Duty 16mm ² Twin Core Cable

Ingress Protection IP32 (Basic drip proof in vertical orientation) (Battery Charger)

Float 13.4 – 13.8 V (Battery Charger)

AC Input Voltage 90 to 265 VAC (Battery Charger)

DC Output Three (1 fully independent, 2 common with diode isolation) (Battery Charger)

DC Output Ground Single Heavy Duty Common Ground Stud (Battery Charger)

Battery Temp Sensor Port RJ12 (standard battery temp. sensor supplied) (Battery Charger)

Reverse Polarity Yes, (with user replaceable fuse/s) (Battery Charger)

Over Temperature Protection Yes, unit de-rated and shutdown (Battery Charger)

Equalize 16.0 V (Battery Charger)

Storage Range (temp) -40° to 70° C (Battery Charger)

Power consumption (DC 12V) 700W (Full Load) (Battery Charger)

Charging Control Four stages (Bulk/Absorption/Float/Maintenance), Two stages (Bulk/Absorption)Constant Power Supply (Program setting), Priority Battery Bank Charging

Output System Voltage 12V

Operating Range (temp) -20° to 60° C (Battery Charger)

Charger Voltage 12V

Humidity 5-95%, relative humidity non-condensing (Battery Charger)

Net Weight (kg) 2.6

DC Output Connection Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread (Battery Charger)

Output Short Circuit Yes, (with user replaceable fuse/s) (Battery Charger)

Power Factor Correction Yes (Battery Charger)

Temperature Setting Hot, Normal, Cold (no sensor connected) (Battery Charger)

Charger Mode Output Voltage 14.2 – 15.5 V (Battery Charger)

Charger Efficiency > 82% (Battery Charger)

AC Input Operating Range 207-265 Vac (3.8 A Max)90 – 125 Vac (7.7 A Max) (Battery Charger)

Standby Current < 2 mA (Battery Charger)

LCD Display Charging status, Battery Voltage, Output Current & Fault Codes. (Battery Charger)

Dimensions 295 x 206x 86 mm (L x W x H) (Battery Charger)

Regulatory Compliance Complies with AS/NZS 60335.2.29 Including Australian deviations. (Battery Charger)

AC Input Connection IEC with Supplied 1.2M Power Lead (Battery Charger)

Over Charge Yes, unit shutdown (Battery Charger)

AC Input Frequency Range 47 – 63 Hz (Battery Charger)

Selectable Battery Type Gel, AGM, Flooded, Lithium, Program (Battery Charger)

Optional Accessories Remote Digital Display / Enerdrive Part Number EN3REM (Battery Charger)

Cooling Forced air ventilation (thermo controlled fan) (Battery Charger)

Go to: Specifications

Go to: Reviews

Videos

Introducing The Enerdrive Battery Charger Range

All about the 40A Enerdrive AC Charger

Go to: Videos

Go to: Q & A

Customer Reviews

SIMPLE AND GREAT PRODUCT Review by GARY GRAHAM

Excellent product from Enerdrive . My Generator had the product for sale as a kit so made it very easy to install. I rang them re the product and were able to answer my question with ease. Price was excellent and product arrived promptly. I added the charger to the rest of my Enerdrive system so that I can now charge my 4x4 Canopy via solar, alternator and now 240v. Thanks
(Posted on 27 December 2023)

Awesome product Review by Ken Hunt

Easy to fit and easy to configure. Multiple battery function is great as well as battery setup. As usual Enerdrive has hit the button on the head. Functional and very configurable.
(Posted on 27 November 2020)

GREAT PRODUCT AND GREAT SERVICE Review by Paul Fookes

I purchased the Enerdrive 40A AC to DC charger as a part of rebuilding our off grid power system. We could not be more happy with its performance. Having installed it during the recent bush fires to compensate for the darkness of most days, it has run well to provide the correct charging sequence for our tubular gel batteries. Easy to install and set up just by following the bouncing ball in the manual. It has not missed a beat. Thoroughly recommended for off grid and RV applications.
(Posted on 15 February 2020)
