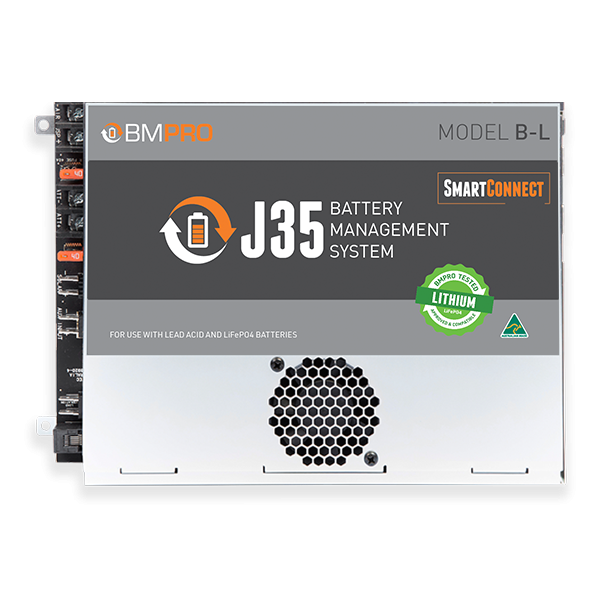

BMPRO J35B-L Battery Management System for Lead Acid & Lithium Batteries

$949

FREE SHIPPING

Accessories

$412

$482

Sold Out

$825

Sold Out

$105

Sold Out

Sold Out

Sold Out

Sold Out

Sold Out

$69

$79

$89

$300

Click '+' to show more accessories
Learn More»
Express Shipping Price Match Guarantee Customer Reviews

Product Description

BMPRO J35B-L Battery Management System for Lead Acid & Lithium Batteries, 2 Year Warranty.  J35 Model B-L is an intelligent battery management system with a distribution system and a multi-stage battery charger. J35B model has been specially designed for Jayco and can be found on-board modern caravans and motorhomes.

Use J35B-L BMS for charging 12V Sealed Lead-Acid (SLA) batteries including valve-regulated lead-acid (VRLA) batteries, both absorbed glass mat (AGM) and gel batteries. This battery management system is also compatible with lithium batteries (LiFePO4). The power supply is able to deliver 35A maximum to the battery and loads.

Charge your battery to the optimal charge level from AC mains, your solar panels, or from auxiliary (DC or vehicle power). A maximum DC charging current is 15 Amp. Multi-stage battery charger including bulk, absorption, float, and periodic boost charging modes to ensure long battery life. The J35B-L System supports up to 300W of panels with open circuit voltage between 18 and 28 VDC.

J35B-L keeps your battery healthy for a long time thanks to the multiple battery protection features, such as low voltage disconnect and storage mode.

Built in electronic fuses protect the loads. You can also use up to 14 outputs to connect your appliances, including hot water, water pump, lights, and more.

Get more out of the J35B-L intelligent battery management system by connecting it to accessories, such as battery monitors JControl or JHub. They will allow you get access to the monitoring your power supply status in a handy location. Moreover, when used with the ControlNode103, J35B-L is SmartConnect ready and allows monitoring multiple Bluetooth sensors via JHub app.

Features:

  • 14 x 12VDC outputs
  • 35A maximum output current
  • solar input current

Product Manual

The table below illustrates which BMPRO range products are compatible and if any prerequisites will apply to the combination

Please CLICK HERE for more information on these BMPRO combinations and relevant prerequisites

BMPRO Compatibility Table

*This combination will have certain prerequisites - please CLICK HERE for more information

Specifications

SKU BMPJ35BL

Brand BMPRO

Warranty Period: 2 Years

Product Category Batteries Other

Net Weight (kg) 2

Input Voltage 240 VAC nominal, ± 10%, 50-60 Hz

Output Current Rating 35A (Load + Battery Current)

Ambient Temperature 0-50 °C


Videos

Power your caravan off grid with solar energy



Free camping with confidence. How to save power off grid?



Product Q&A

Ask Us a Question
  • Hi if I upgrade my J35 model c to a d model to be able to run lithium batteries in my van do I also have to update the software in the JHub tablet. Cheers Bill

    Hi Bill,

    It is always recommended to use the latest updates for your system. Upgrading the software on the JHub tablet is really easy.
    Please see the following instruction sheet: https://teambmpro.com/wp-content/uploads/Upgrade-JHub-for-SmartConnect-Compatibility.pdf

Warranty

For details relating to this product's warranty CLICK HERE

Delivery

    For details relating to our delivery process CLICK HERE
