Projecta PM400 RV Power Management System
SKU: PM400 Learn More»
FREE SHIPPING
This item is sent via Express Courier. All freight is fully insured.
Accessories
Product Description

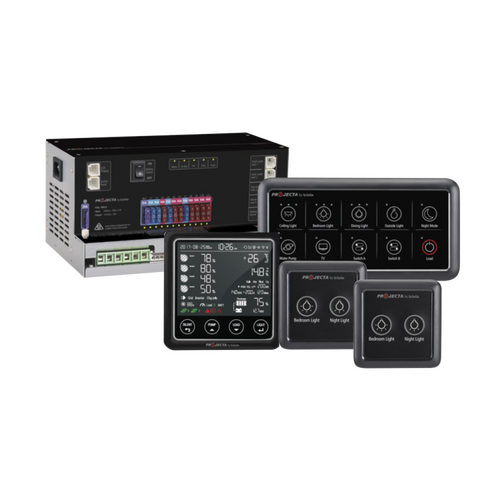

Projecta PM400 RV Power Management System, 1 Year Warranty. The ultimate in power management systems, PM400 encompasses a complete remote control solution for the most advanced setups. Utilising an 11 channel central wiring unit and MPPT, it includes PM300’s advanced LCD display plus a central switch panel, bedroom light/dimming switches and smart phone Bluetooth® operation.
The central switch panel can be mounted anywhere and allows remote operation of water pump, lighting and appliances, plus a master switch and night mode. Bedroom lighting switch panels enable light and dimming control from the comfort of your bed. Bluetooth® connectivity means you can control and monitor your power system and appliances from inside or outside using the smart phone app – great for outdoor light switching.
Features:
- Voltage Sensitive Relay engages & disengages with engine
- 20A Charger, 35A Power Supply
- Wago® Terminals for easy wiring
- Manual Battery Switch connection for remote & local operation
- Centralised switch panel
- Bedroom switch x2
- Wiring specific cables
- MPPT Solar Input
- Water Level & Pump Control
Specifications:
- Power: 35A
- Charging Voltage: 12V
- Output Fuse Rating: 4 x 15A: 7 x 10A
- Dimensions (LxWxH) mm: 266 × 165 × 129
- Net Weight: 3.0 Kg
- Included: LCD/Bluetooth Control, Remote Switch Panels
Specifications
SKU PM400
Brand Projecta
GTIN 9315219110046
Warranty Period 1 Year
Product Category Battery Management System
Nominal Voltage 240 ± 10% VAC | 50/60Hz (Input) | 12.8 0.2 VDC (Output)
Standby (Float) Voltage (13.5/13.5 /13.5/13.7) 0.13VDC
Dimensions 264 x 164 x 128 mm (L x W x H)
Battery Types AGM, GEL, LFP (LiFePO4), WET
Included LCD/Bluetooth Control, Remote Switch Panels
Open Circuit Voltage Voc(V) 50VDC
Operating temperature range -40°C +65°C (50°C:full load; 60°C:20A; 65°C: shutdown the output)
Charging Voltage 12V
Output Fuse Rating 4 x 15A: 7 x 10A
Charge voltage 'absorption' (14.4/14.1 /14.4/14.7) 0.15VDC
Power 35A
Start Voltage 2V
Output Current Rating 35A (Continuous)
Net Weight (kg) 3
