Welling & Crossley 7.75kVA Open Frame AVR Honda Powered Generator

Product Description

Welling & Crossley 7.75kVA Open Frame AVR Honda Powered Generator, 3 Years Warranty. The Welling and Crossley P7750H is an AVR (automatic voltage regulated) generator with key-start, powered by a Honda Australia approved GX390 engine.

Supplied with transport kit (handles and wheels), this generator is Euro 5 emissions compliant. It features multiple output options – including two IP66-rated 15A AC outlets, plus USB-A and USB-C ports – suitable for powering a wide range of devices.

Combining W&C’s market expertise with the reliability of a genuine Honda engine, the WC-P7750H packs plenty of power in a compact footprint.

Applications:

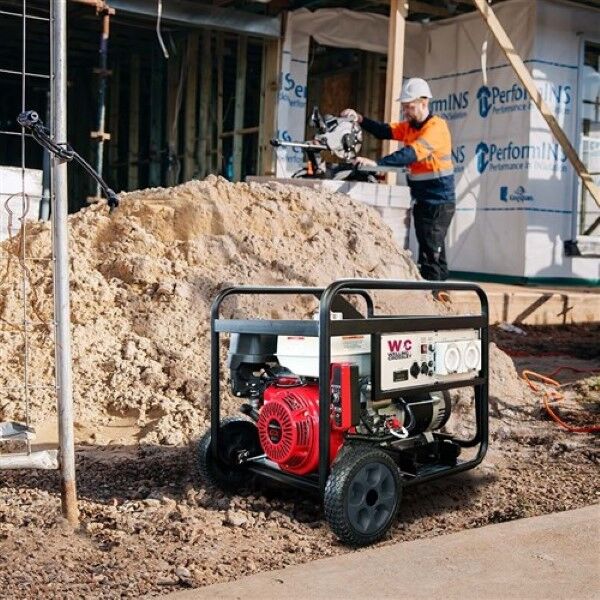

• Work sites to power small to medium tools and lights. RCD may be required for some worksites
• Home back-up solution for essential appliances
• Outdoor events for lights, sound systems etc.
• Mobile businesses or market stalls for powering small appliances

Features:

• Powered by Honda: This generator is powered by a genuine, robust Honda GX390 engine, and backed by Honda Australia
• Euro 5 emission compliant petrol electric start engine
• Automatic Voltage Regulator for stable power output
• 2-Wire Start: This feature allows the generator to be started remotely from the closing of a remote contact. This could be an automatic transfer switch (ATS) in the event of a power failure, a float switch or any device that can provide a closed circuit as a start signal
• Heavy-duty wheels and handles: Designed for easy transportation and mobility, even on rough terrain
• 2 x IP66 Outlets (single phase – 15 Amp)
• USB A and USB C outlets
• Recoil, Push-button electric or 2 wire remote starting
• Digital V/F/T Display (Volts, Frequency, Time)
• Limited warranty: Engine – 3 years, Alternator & Frame – 2 years. Battery excluded

Specifications:

• Generator Rating: 7.75 kVA
• Max AC Output: 6000W
• Rated AC Output: 5500W
• Rated Motor Speed: 3000rpm
• Rated Voltage: 230/240V AC
• Phase: Single
• Frequency: 50hz
• Outlets: 2 x IP66 15Amp
• USB Connections: 1 x USB Type C (15w), 1 x USB Type A (18w)
• Engine Model: Honda GX390. Euro 5 emissions compliant
• Engine Type: 4 stroke, OHV, air cooled petrol
• Starting System: Recoil / Electric / 2-Wire
• Displacement: 389cc
• Oil: 1.1L SAE10W-30
• Noise Level @ 7m: 89 dBA
• Fuel Type: Petrol – 91 octane unleaded
• Fuel Tank Capacity: 6.1 L
• Fuel Consumption: 1.37 L/Hr @ 1/4 Load
• Product Dimensions (L x W x H): 700 x 660 x 500 mm
• Weight: 80 kg
