Victron VE.Can to CAN-bus BMS type A Cable 1

Product Description

Victron VE.Can to CAN-bus BMS type A Cable 1, 5 Year Warranty. The Victron VE.Can to CAN-Bus BMS Type A Cable (1.8m) provides a dedicated, plug-and-play communication link between your Victron GX device and compatible lithium battery management systems. This cable is engineered to ensure stable, error-free data transfer, enabling your system to monitor battery state, manage charging, and prevent unexpected shutdowns. By using this purpose-built cable, you eliminate the risks associated with generic RJ45 cables, such as incorrect pin-outs, signal interference, or unreliable connections that can lead to system faults or battery disconnection.

Designed for critical BMS communication, this cable supports the CAN-bus protocol at 500 kbit/s, the standard for Victron and many third-party batteries. It is not a standard Ethernet cable; its internal wiring follows a specific pin-out configuration that matches Victron VE.Can ports to the CAN ports on supported batteries. Using the correct cable is essential for safe and reliable operation, particularly in off-grid, marine, or mobile installations where power continuity is paramount.

Type A Compatibility: Optimised for Modern Pylontech and BYD Batteries
This Type A cable (part number ASS030710018) is compatible with a wide range of lithium battery models, including:

• Pylontech US2000C, US3000C, UP5000, US5000, US5000B, and Force-L series
• BYD B-Box
• Hubble Lithium via CloudLink (including AM-10+/Blade internal CloudLink)

If you are using older Pylontech models such as US2000, US3000, or UP2500, or batteries from LG Chem Resu, AXIstorage, or BMZ, you will require the Type B cable (ASS030720018). Always verify your battery's CAN port pin-out before installation to ensure correct communication.

Key Features:

• Pre-configured 1.8m length for tidy installations in enclosures or near battery racks
• Labelled connectors: "Battery BMS" and "Victron VE.Can" for foolproof orientation
• Compatible with VE.Can and BMS-Can ports on Cerbo GX, Venus GX, and other GX devices
• Supports CAN-bus BMS protocol at 500 kbit/s for fast, reliable data exchange

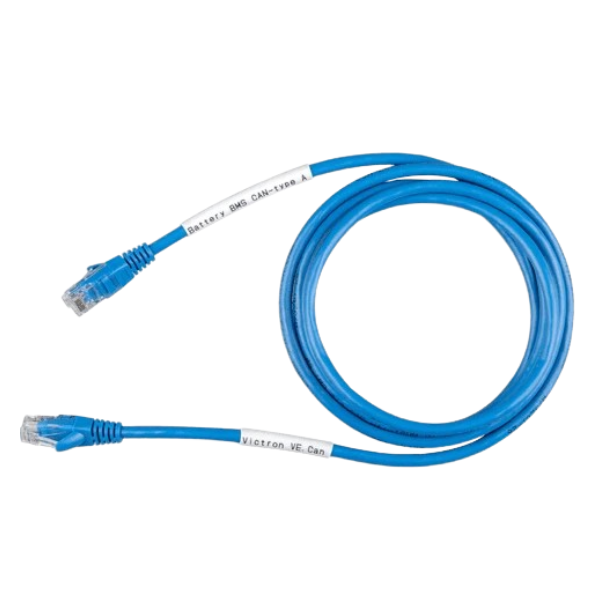

• Durable blue jacket with moulded RJ45 connectors for long-term reliability
• Includes clear pin-out mapping: GND (Pin 3 to 6), CAN-L (Pin 8 to 5), CAN-H (Pin 7 to 4)

Specifications:

• Part Number: ASS030710018
• Product Name: VE.Can to CAN-bus BMS Type A Cable 1.8 m
• Cable Type: Type A
• Cable Length: 1.8 m
• Compatible Batteries: BYD B-Box; Hubble Lithium via CloudLink (incl. AM-10+/Bldge internal CloudLink); Pylontech US2000C/US3000C/UP5000/Force-L
• Battery-Side Label: CAN-bus BMS
• Victron-Side Label: VE.Can
• GX Device Connection: VE.Can Port or BMS-CAN Port
• GND Pin-Out: Victron VE.Can Side: Pin 3; Battery Side: Pin 6
• CAN-L Pin-Out: Victron VE.Can Side: Pin 8; Battery Side: Pin 5
• CAN-H Pin-Out: Victron VE.Can Side: Pin 7; Battery Side: Pin 4
