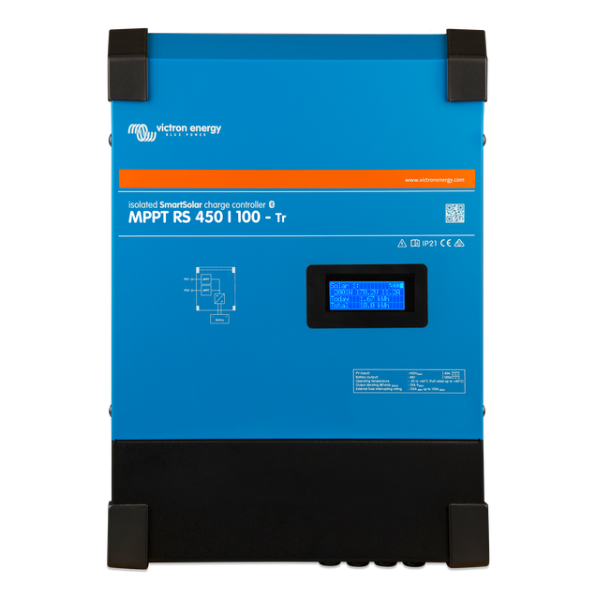

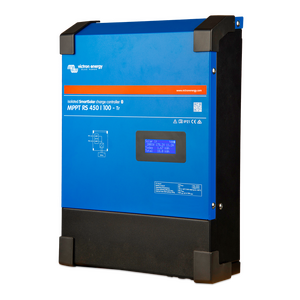

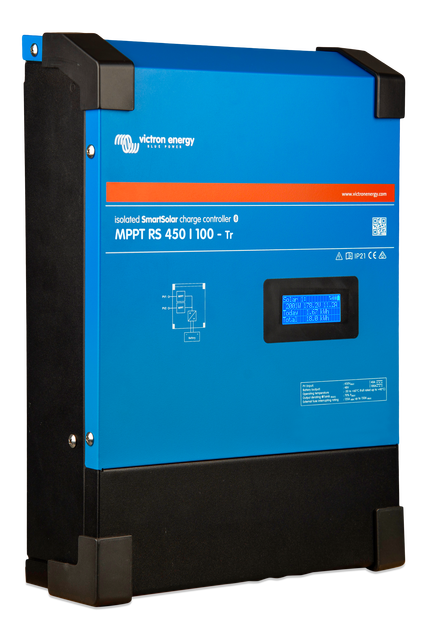

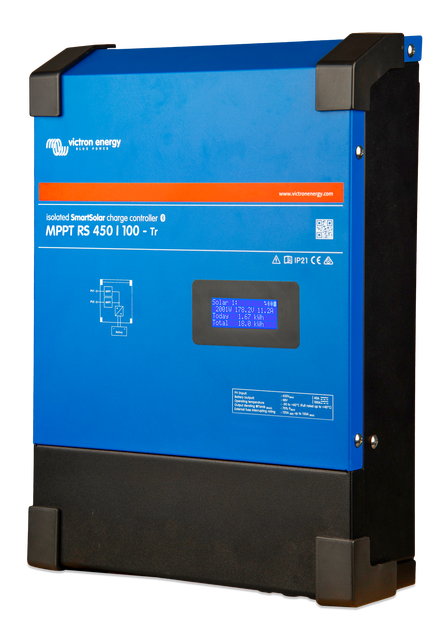

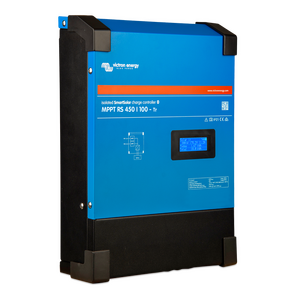

Victron SmartSolar MPPT RS 450/100-MC4

Product Description

Victron SmartSolar MPPT RS 450/100-MC4, 5 Year Warranty. The Victron SmartSolar MPPT RS 450/100-MC4 is engineered to optimize your solar power system, making it ideal for both on-grid and off-grid applications. This advanced solar charge controller integrates top-notch technology, safety features, and user-friendly design to deliver maximum performance.

Effortless Connectivity and Optimized Performance
The new MC4 version of the SmartSolar MPPT RS 450/100 simplifies the connection process with Staubli MC4 connectors, ensuring reliable and secure solar array connections. Its ultra-fast Maximum Power Point Tracking (MPPT) technology maximizes energy harvesting from your solar panels, ensuring that your system operates at peak efficiency. With multiple MPPT trackers, you can optimize the performance of your solar panel setup tailored to your specific location and needs.

Key Features:

• Staubli MC4 Connectors: Simplifies solar array connections, ensuring reliability and ease of installation.
• Ultra-fast MPPT Technology: Maximizes power output from your solar panels.
• Multiple MPPT Trackers: Allows for optimized performance tailored to your specific solar panel setup.
• Isolated PV Connections: Provides superior system safety with full galvanic isolation between PV and battery connections.
• Wide Voltage Range: Operates within an 80 – 450 VDC range, accommodating various solar panel configurations.
• Lightweight and Quiet Operation: Advanced high-frequency technology results in a powerful yet lightweight charger that operates efficiently and quietly.
• Bluetooth Connectivity: User-friendly setup and monitoring via the VictronConnect app.
• VE.Can and VE.Direct Ports: Advanced system integration and remote updates.
• PV Isolation Resistance Monitoring: Ensures safe operation even at higher voltages.

Safety and Reliability
The SmartSolar MPPT RS 450/100 features isolated PV connections, providing full galvanic isolation between PV and battery connections, enhancing overall system safety. It also continuously monitors PV isolation resistance, detecting any faults that could compromise the safety of your system at higher voltages.

User-Friendly Interface and Advanced Integration
This charge controller is designed with user convenience in mind. It includes an integrated display that shows essential battery and controller parameters. Additionally, Bluetooth connectivity allows for easy system setup and real-time monitoring via the VictronConnect app. VE.Can and VE.Direct ports enable seamless connection to a GX device for comprehensive system monitoring, data logging, and remote firmware updates.

Superior Efficiency and Durability
High Efficiency.With a maximum efficiency of 96%, the SmartSolar MPPT RS 450/100 ensures that almost all the energy harvested from your solar panels is utilized for charging your batteries, minimizing energy loss. Its wide MPPT voltage range (80 – 450 VDC) allows it to handle a variety of solar panel configurations, making it a versatile choice for different setups.

Robust Design
Constructed with a robust steel enclosure and high IP21 protection rating, this controller is built to withstand harsh environments. It operates reliably in extreme temperatures, from -40 to +60°C, ensuring consistent performance in diverse conditions. The lightweight and quiet operation, thanks to advanced high-frequency technology, makes it suitable for various installations.

Enhance your solar power system with the Victron SmartSolar MPPT RS 450/100-MC4. This high-efficiency, safe, and user-friendly solution is designed to maximize your solar energy harvest and provide peace of mind with its robust safety features.

Specifications:

• Maximum DC PV Voltage: 450 V
• Start-up Voltage: 120 V
• MPPT Operating Voltage Range: 80 – 450 V
• Number of Trackers: 2
• Max. PV Operational Input Current: 18 A per tracker
• Max. PV Short Circuit Current: 20 A per tracker
• Max. DC Output Charging Power: 4000 W per tracker, 5760 W total
• Maximum PV Array Size per Tracker: 7200 Wp (450 V x 20 A)
• PV Isolation Fail Level: 100 kΩ
• Synchronised Parallel Operation: Yes, up to 25 units with VE.Can
• Programmable Relay: Yes
• Protections: PV reverse polarity, Output short circuit, Over temperature
• Data Communication: VE.Direct port, VE.Can port & Bluetooth
• Bluetooth Frequency: 2402 – 2480 MHz
• Bluetooth Power: 4 dBm
• General Purpose Analogue/Digital In Port: Yes, 2x
• Remote On-Off: Yes
• Operating Temperature Range: -40 to +60 °C (fan assisted cooling)
• Humidity (Non-Condensing): Max 95%
• Enclosure Material & Colour: Steel, blue RAL 5012
• Protection Category: IP21

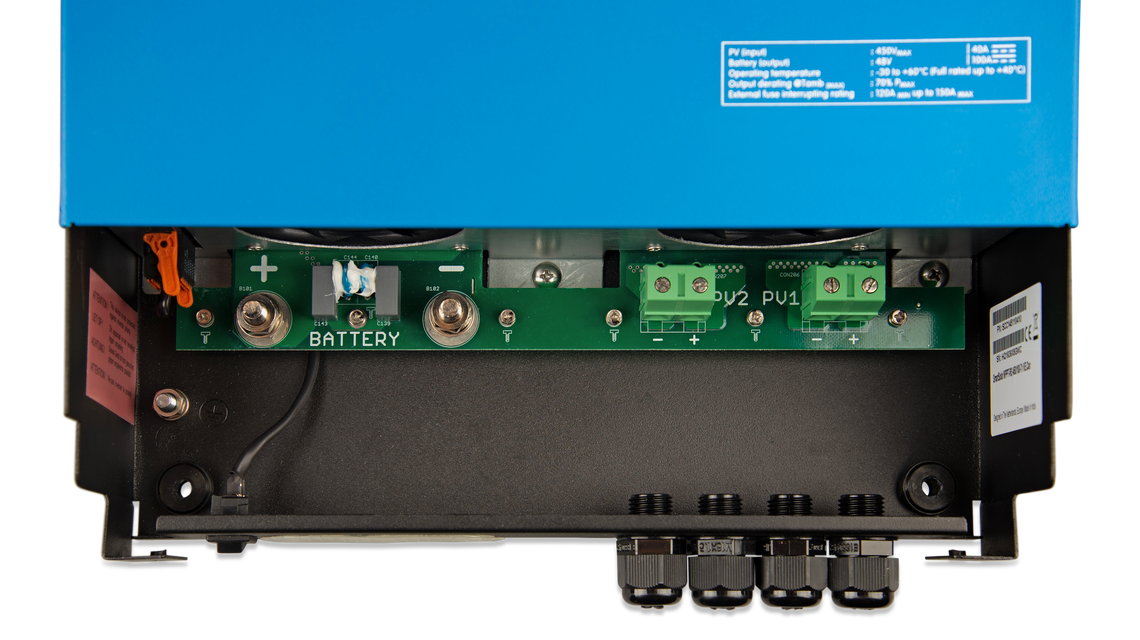

• Battery-Connection: M8 bolts

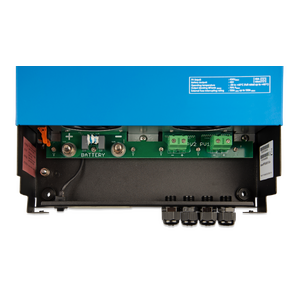

• Power Terminals PV Input (-Tr version): 2 x 16 mm²
• Power Terminals PV Input (MC4 version): 1 pair of male and female MC4 connectors per tracker
• Weight: 7.9 kg
• Dimensions (H x W x D): 440 x 313 x 126 mm
