Victron SmartSolar MPPT 75/10 - 12/24V Charge Controller

SKU: SCC075010060R Learn More»
Victron SmartSolar MPPT 75/10 - 12/24V Charge Controller
Free Shipping
$129

FREE SHIPPING

This item is sent via Express Courier. All freight is fully insured.

Accessories

$67

$74

$24

$35

$44

Click '+' to show more accessories
Dispatch 5 to 7 days Express Shipping Price Match Guarantee Customer Reviews

"Great product"

Read more
Product works great with my battery installation. The Bluetooth function is excellent.
(Posted on 13 June 2022)

Product Description

Victron SmartSolar MPPT 75 VOC / 10A 12/24V Charge Controller, 5 year warranty. A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

MPPT: Ultra Fast Maximum Power Point Tracking:

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remote Monitoring and Control:

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.

Load output:

The intelligent Load output function prevents damage caused by running batteries 'flat'. You can configure the voltage at which SmartSolar disconnects a load - thereby preventing excessive drain on your batteries. And here's the clever bit: SmartSolar will attempt a 100% recharge every day. If it can't - during periods of poor weather - it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains the health, and extends the life of your battery.

Bluetooth Smart built-in: dongle not needed:

The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

VE.Direct:

For a wired data connection to a Color Control GX, other GX products, PC or other devices

Ultra-fast Maximum Power Point Tracking (MPPT):

Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Load output:

Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage (48V model: interface with a relay). Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof.

Battery Life: intelligent battery management:

When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards, the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.

Programmable battery charge algorithm:

See the software section on our website for details

Day/night timing and light dimming option:

See the software section on our website for details

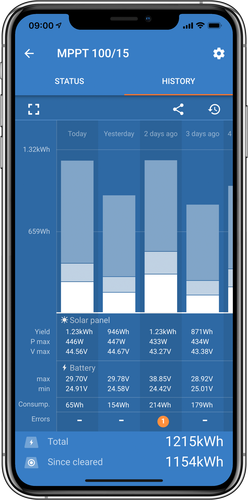

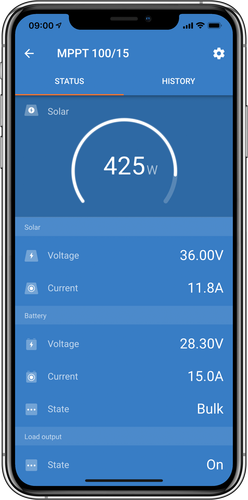

Programming, real-time data and history display options:

  • Modern Apple and Android smartphones, tablets, macbooks and other devices: see the VE.Direct Bluetooth Smart dongle and the MPPT app discovery sheet for screenshots.
  • ColorControl GX and other GX products.



Victron PI12/2000 Product Card

Product Manual

Specifications

SKU SCC075010060R

Brand Victron

GTIN 8719076040798

Warranty Period: 5 Years

Product Category Solar Charge Controllers

Charge Current (A) 10

Nominal PV Power 12V - 145W | 24V - 290W

Operating temperature range -30 to +60°C (full rated output up to 40°C)

Amps 10

Voltage 12/24V Auto Select

Charge voltage 'absorption' 14.4V / 28.8V (adjustable)

Protection Battery reverse polarity (fuse), Output Short circuit and Over Temperature

Dimensions 40 x 113 x 100 (D x W x H)

Net Weight (kg) 0.5

Efficiency 98% (Peak)

Humidity 95%, non-condensing

NOTE * iPhone is not included.


Videos

Change MPPT settings using Bluetooth



Updating a Victron SmartSolar MPPT Charge Controller



How to Size a Solar Charge Controller for a DIY Camper Van Solar System



Product Q&A

Ask Us a Question
  • What size MPPT Controller would I require for the van. I am planning a Lithium ion batteries upgrade, I have 3 x 120 solar system and plan to install a 3000w inverter. Cheers

    Hi There,

    The following Enerdrive charger would not be a bad option for your application as it allows for alternator charging, and solar charging:

    https://www.mygenerator.com.au/enerdrive-epower-12v-40a-dc-to-dc-battery-charger.html

Customer Reviews

Write a product review

Great product Review by
Product works great with my battery installation. The Bluetooth function is excellent.
(Posted on 13 June 2022)

Warranty

    For details relating to this product's warranty CLICK HERE

Delivery

    For details relating to our delivery process CLICK HERE
