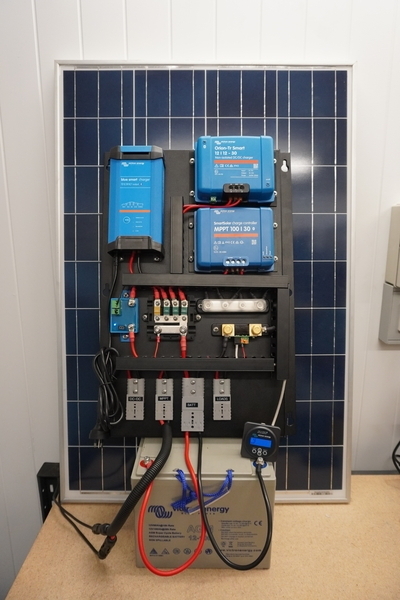

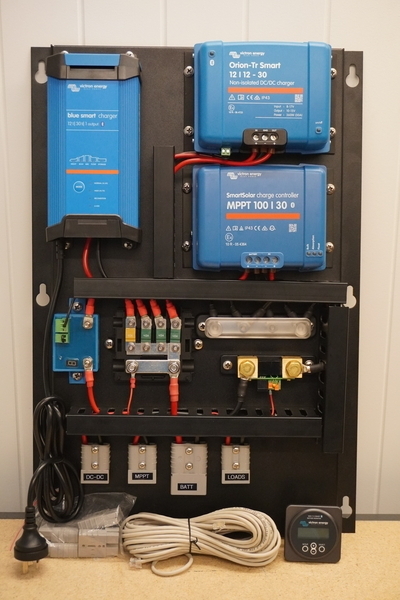

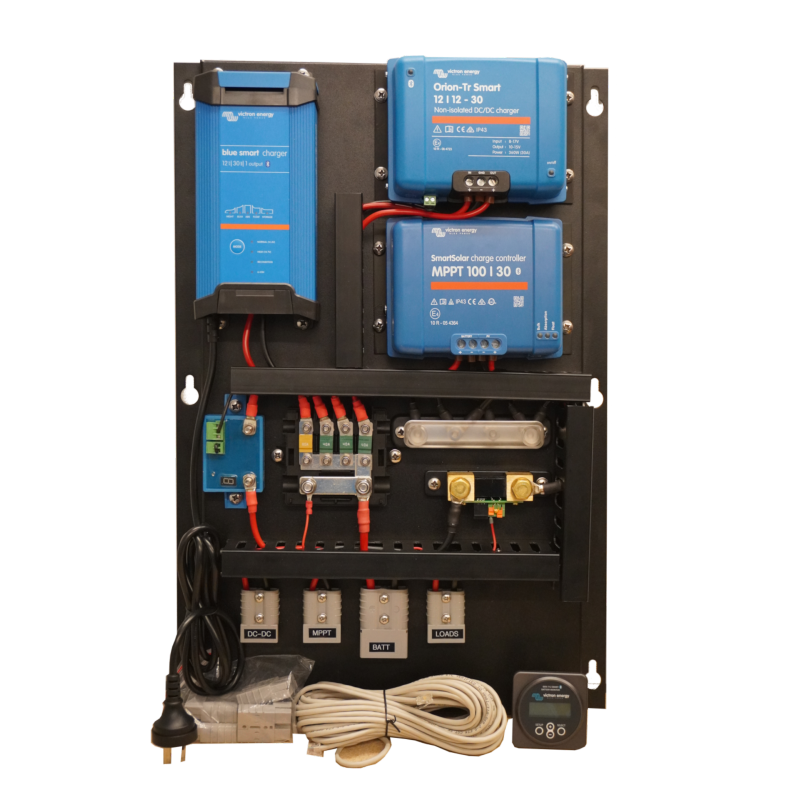

Victron Pre-Wired Power Panel with 30A DC, AC, and Solar Charger
SKU: VPP1230P Learn More»






Product Description
Victron Pre-Wired Power Panel with 30A DC, AC, and Solar Charger, 5 Years Warranty.
Includes:
- Victron Blue IP22 Smart Charger 12/30, 1 Output, BPC123047012
- Victron Orion-Tr Smart 12/12-30A (360W) Non-isolated DC-DC charger, ORI121236140
- Victron Battery Monitor BMV-712 Smart Black, BAM030712200R
- Victron Smart Battery Protect 12/24V-65A, BPR065022000
- Victron Busbar 150A 4Pole & Cover, VBB115040020
- Victron SmartSolar MPPT 100/30 Charge Controller, SCC110030210

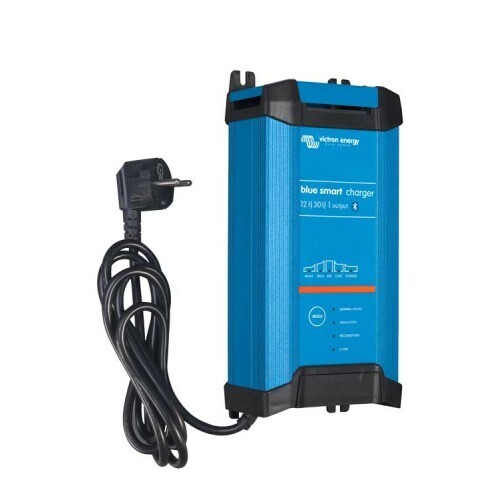

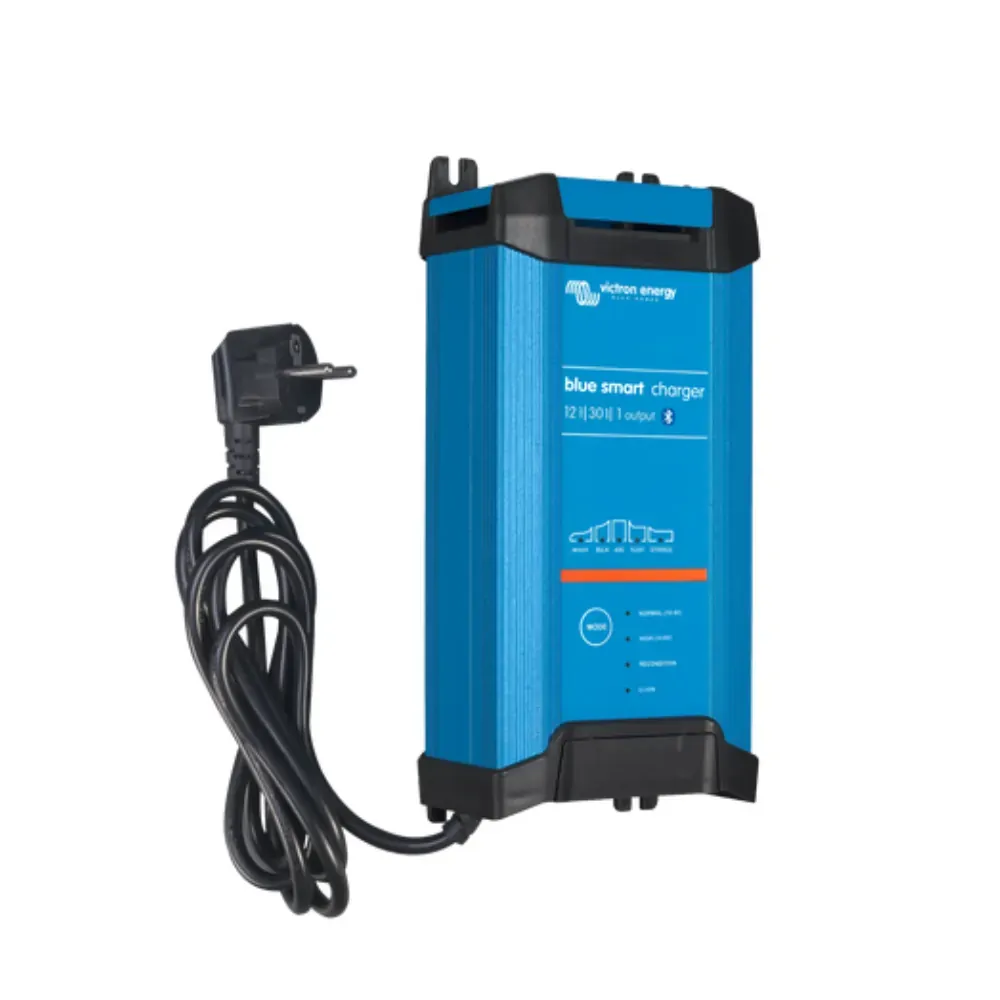

Victron Blue IP22 Smart Charger 12/30, 1 Output
The Blue Smart IP22 Charger is the new professional battery charger with built-in bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.

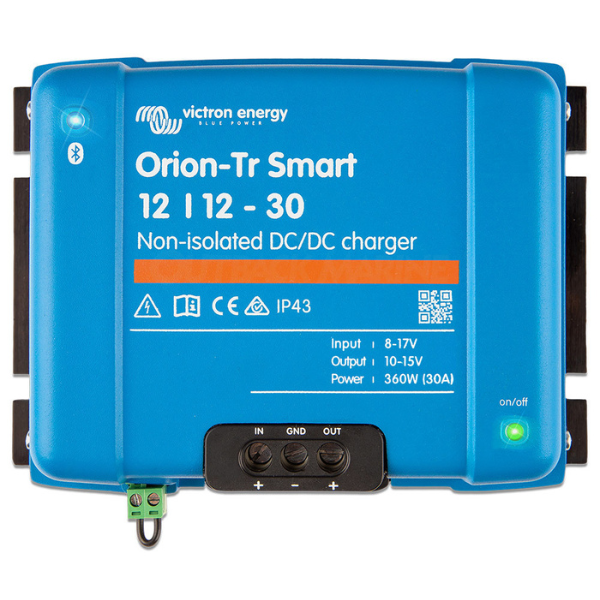

Victron Orion-Tr Smart 12/12-30A (360W) Non-isolated DC-DC charger
The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth. For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.
The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C.
Input fuse (not replaceable)

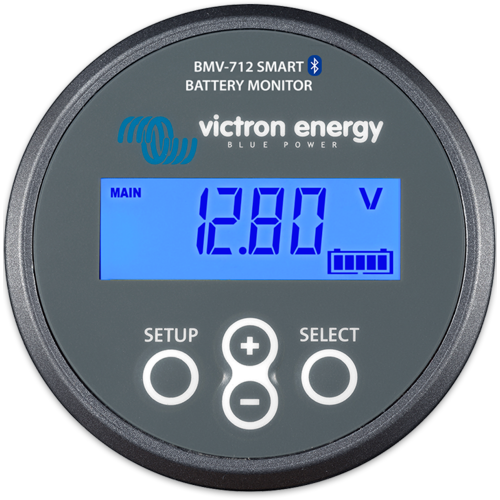

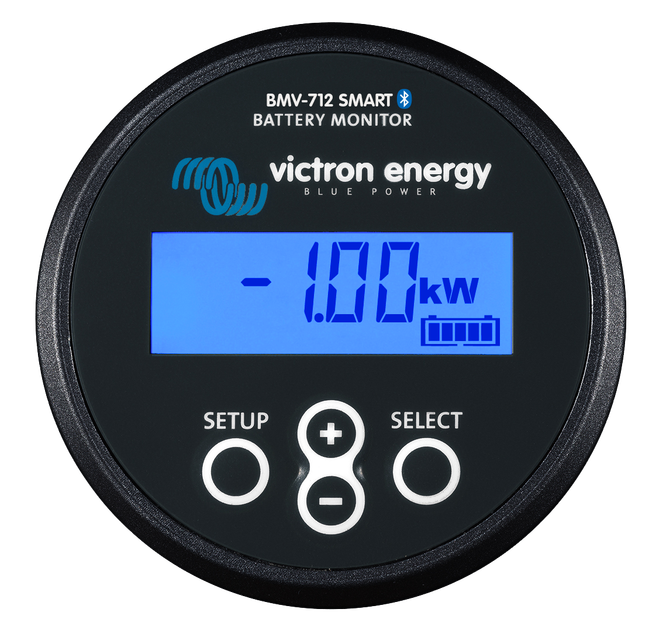

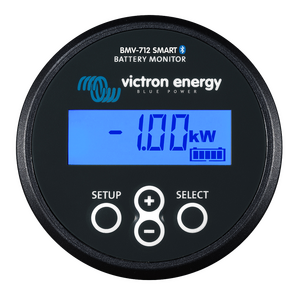

Victron Battery Monitor BMV-712 Smart Black
With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance.
Other features:
- Battery voltage, current, power, ampere-hours consumed and state of charge
- Remaining time at the current rate of discharge
- Programmable visual and audible alarm
- Programmable relay, to turn off non critical loads or to run a generator when needed
- 500 Amp quick connect shunt and connection kit
- Shunt selection capability up to 10.000 Amps
- VE.Direct communication port
- Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
- Wide input voltage range: 6,5 – 70V
- High current measurement resolution: 10 mA (0,01A)
- Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings

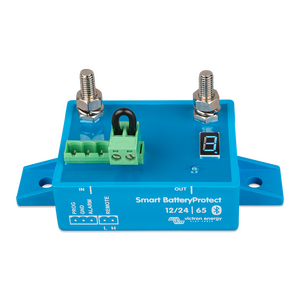

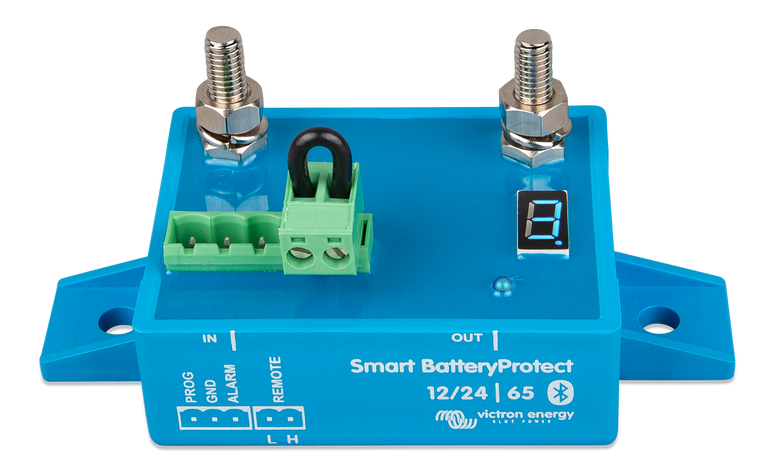

Victron Smart Battery Protect 12/24V-65A
The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine. When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set. Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin.
Victron Busbar 150A 4Pole & Cover
Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment. We offer a number of busbars with different current ratings, and a different number of connection terminals. Each busbar is fitted out with a removable protection cover.

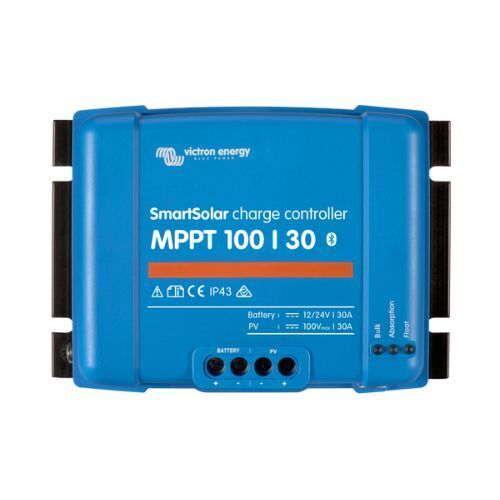

Victron SmartSolar MPPT 100 VOC / 30A Charge Controller
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
Specifications
SKU VPP1230P
Brand Victron
Warranty Period: 5 years on all Victron Energy products, 2 years on all other materials and workmanship
Product Category Power Systems
Efficiency 93% (Smart Charger) | 87% (DC DC Charger) | 98% (Solar Charge Controller)
Charger Voltage 12V (Smart Charger)
Nominal PV Power 12V - 440W | 24V - 880W (Solar Charge Controller)
Charge current in low current mode 15 A (Smart Charger)
No load power consumption <80 mA (DC/DC Charger) | 0.5 W (Smart Charger)
Under Voltage Shutdown 7V (DC DC Charger)
Charge Algorithm 6-stage adaptive (Smart Charger)
Can be used as power supply Yes (Smart Charger)
Charge voltage 'storage' Normal: 13,2V | High: 13,2V | Li-ion: 13,5V (Smart Charger)
Charge voltage 'absorption' Normal: 14,4V | High: 14,7V | Li-ion: 14,2V (Smart Charger) | Defult setting: 14.4V / 28.8V (Adjustable) (Solar Charge Controller)
Charge Voltage Float - Wet (25 degrees)** Normal: 13,8V | High: 13,8V | Li-ion: 13,5V (Smart Charger)
Protection category IP22 (Smart Charger)
Voltage 12V
Charge current 30 A (Smart Charger)
Standby Current Less than 1 mA (DC DC Charger)
DC Output Voltage 12,2V (DC DC Charger)
DC Input Voltage 10-17V (DC DC Charger)
Output System Voltage 12V
Battery Capacity 1 - 9999 Ah (Battery Monitor)
Input Voltage 6,5 - 70 VDC (Battery Monitor) | 180 – 265 VAC (Smart Charger)
Operating temperature range -20 to +50°C (Smart Charger) | -20 to +55°C (DC DC Charger) | -40 +50°C (Battery Monitor) | -30 to +60°C (Solar Charge Controller)
Battery-connection Screw terminals 13 mm² / AWG6 (Smart Charger)
Humidity Max 98% (Smart Charger) | Max. 95% non-condensing (DC DC Charger & Solar Charge Controller)
Short Circuit Current Isc(A) 60 (DC DC Charger)
Amps 30 (Solar Charge Controller)
Dimensions 108 x 65 x 235 mm (Smart Charger) | 130 x 186 x 80 mm (DC DC Charger) | 70 x 186 x 130mm (Solar Charge Controller)
